Product Details

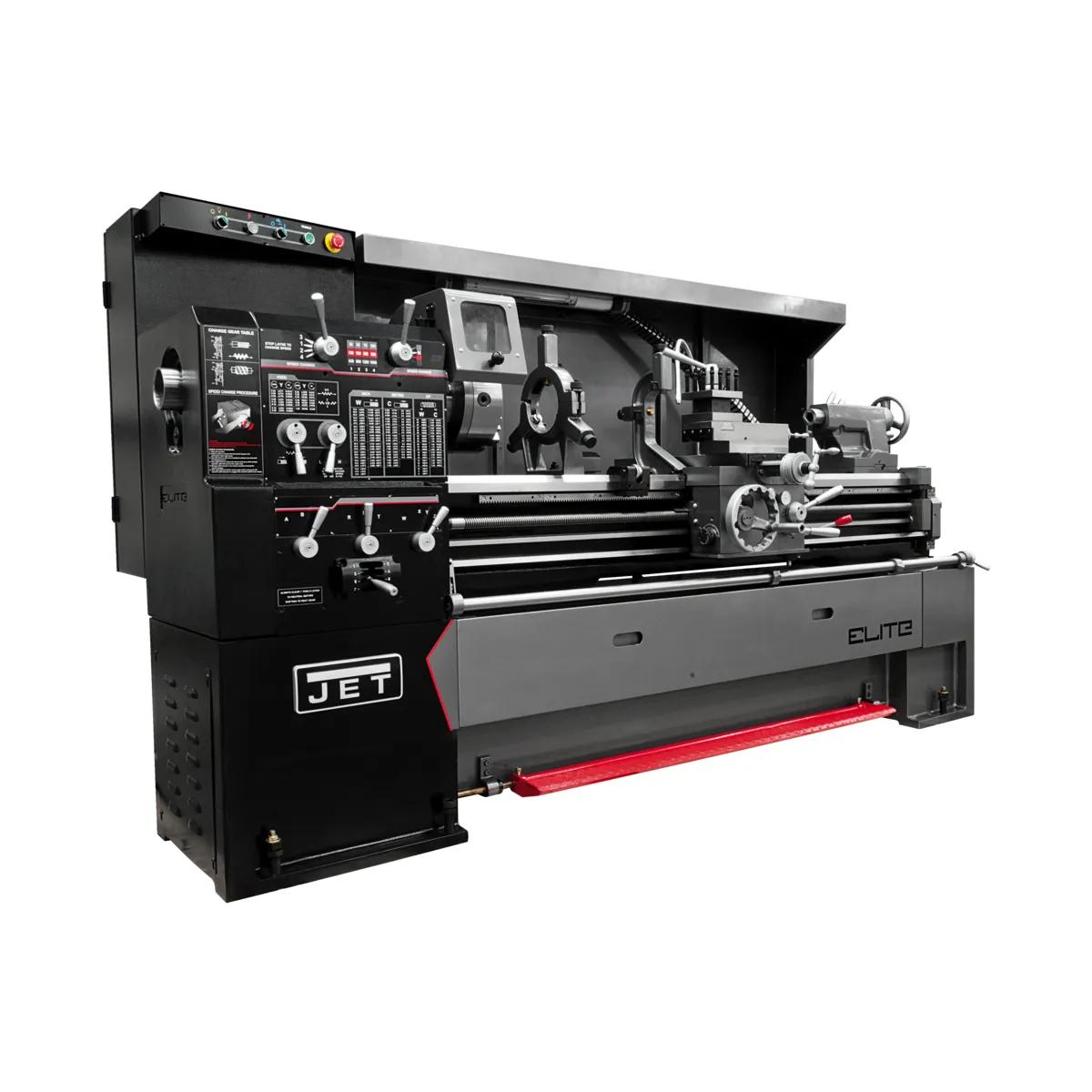

Bar work, shaft work, repair work — all covered. Engineered around small shops, school programs, and engineering labs, the EGH-1740 earns its place. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, production-grade results.
Features
- Engineered 17-inch swing matches the chuck and tool-holding capacity for the round-stock work production schedules generate.
- Sealed 7.5 HP induction motor protects against the dust, chips, and humidity of production cutting.
- Shop-rated 40 in. bed length covers long-shaft work for the long-shaft envelope production turning generates.
- Heavy-duty 3-1/8 in. spindle bore provides bar-feeding capacity for long-bar work production turning generates.
- Certified Meehanite load-bearing castings resist wear and deflection for the harmonic dampening fine-finish work demands.
- Continuous-duty hardened drivetrain components — delivering the dimensional stability precision work measures, engineered for repeatable feed rates across long cycles.
Specifications
- SKUJT9-892508
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserNo
- Digital ReadoutAcu-Rite 303
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892508
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325283068
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
