Product Details

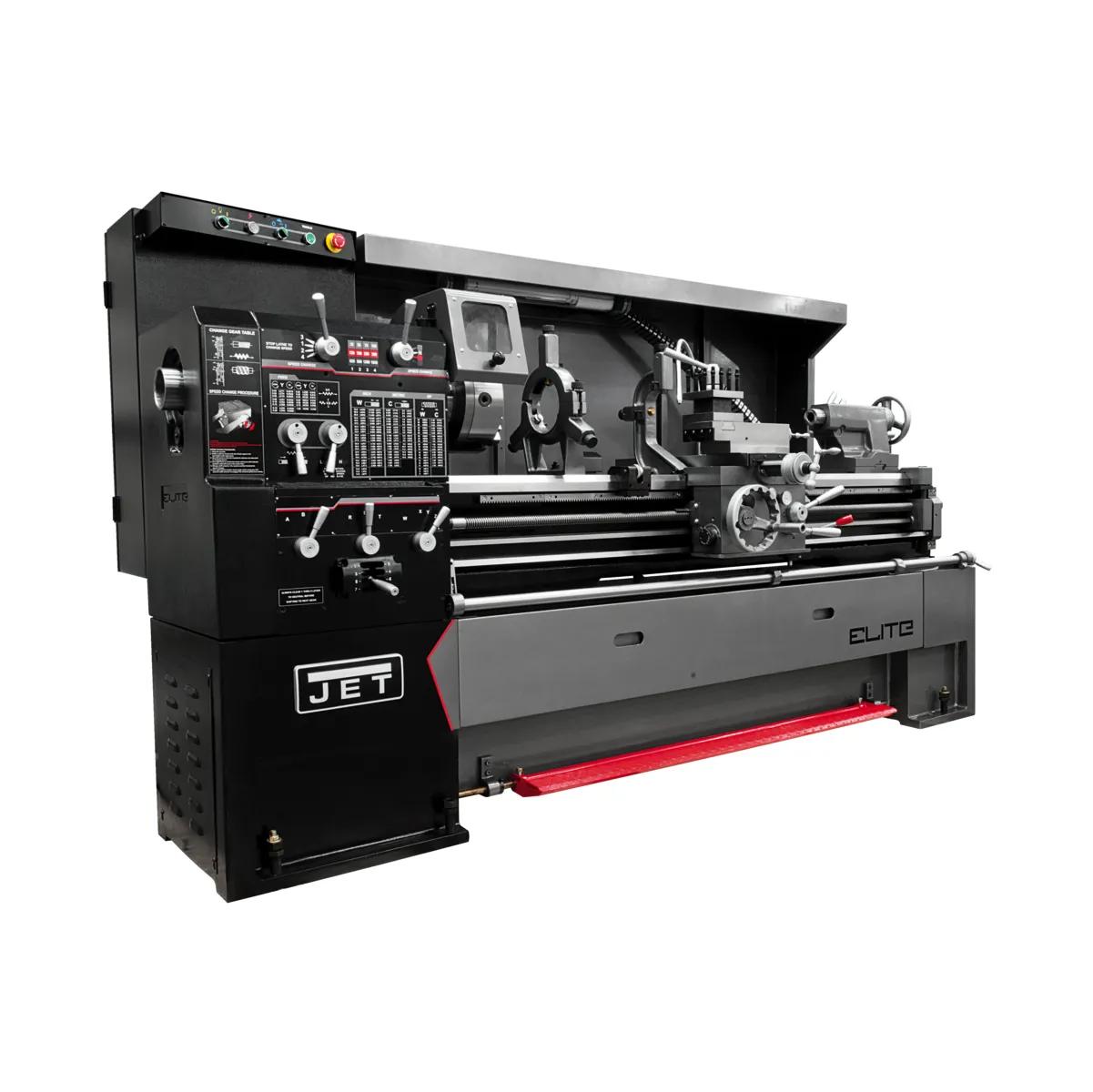

Where round work starts: the lathe that holds tolerance through every cycle. Built around small shops, school programs, and engineering labs, the EGH-1740 delivers production-grade results. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.
Features
- Generous 17-inch swing-over-bed delivers larger-diameter parts for the round stock and chuck setups operators run daily.
- 7.5 HP three-phase induction motor sized for mixed-material work envelopes.
- 40 in. between-centers — covering the bed-length envelope production work demands, engineered for the long-shaft work that defines production turning.
- 3-1/8 in. spindle bore — putting long bar work in reach without sacrificing spindle rigidity across production turning.

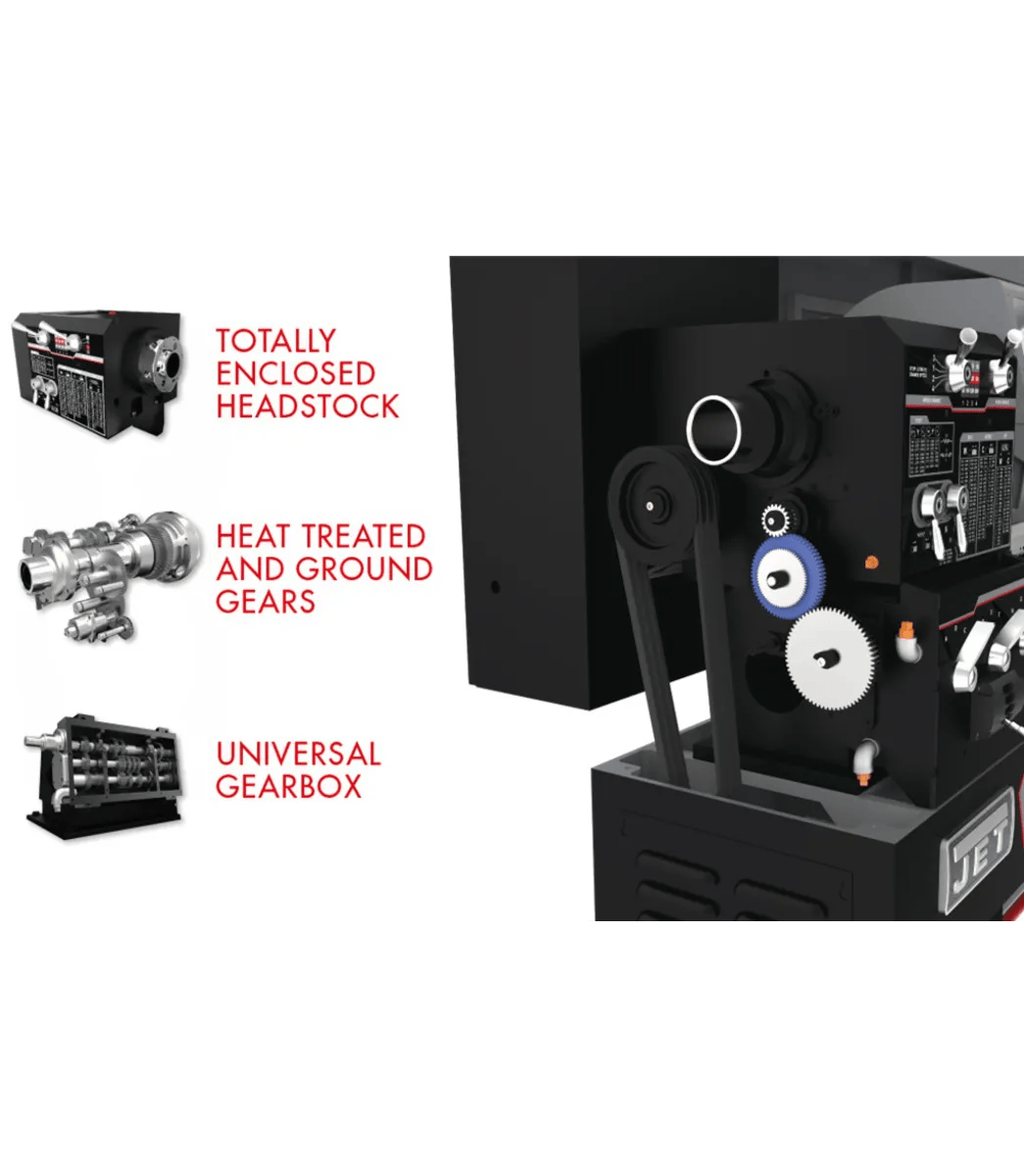

- Vibration-dampening Meehanite headstock castings keep finish quality consistent across precision turning environments.

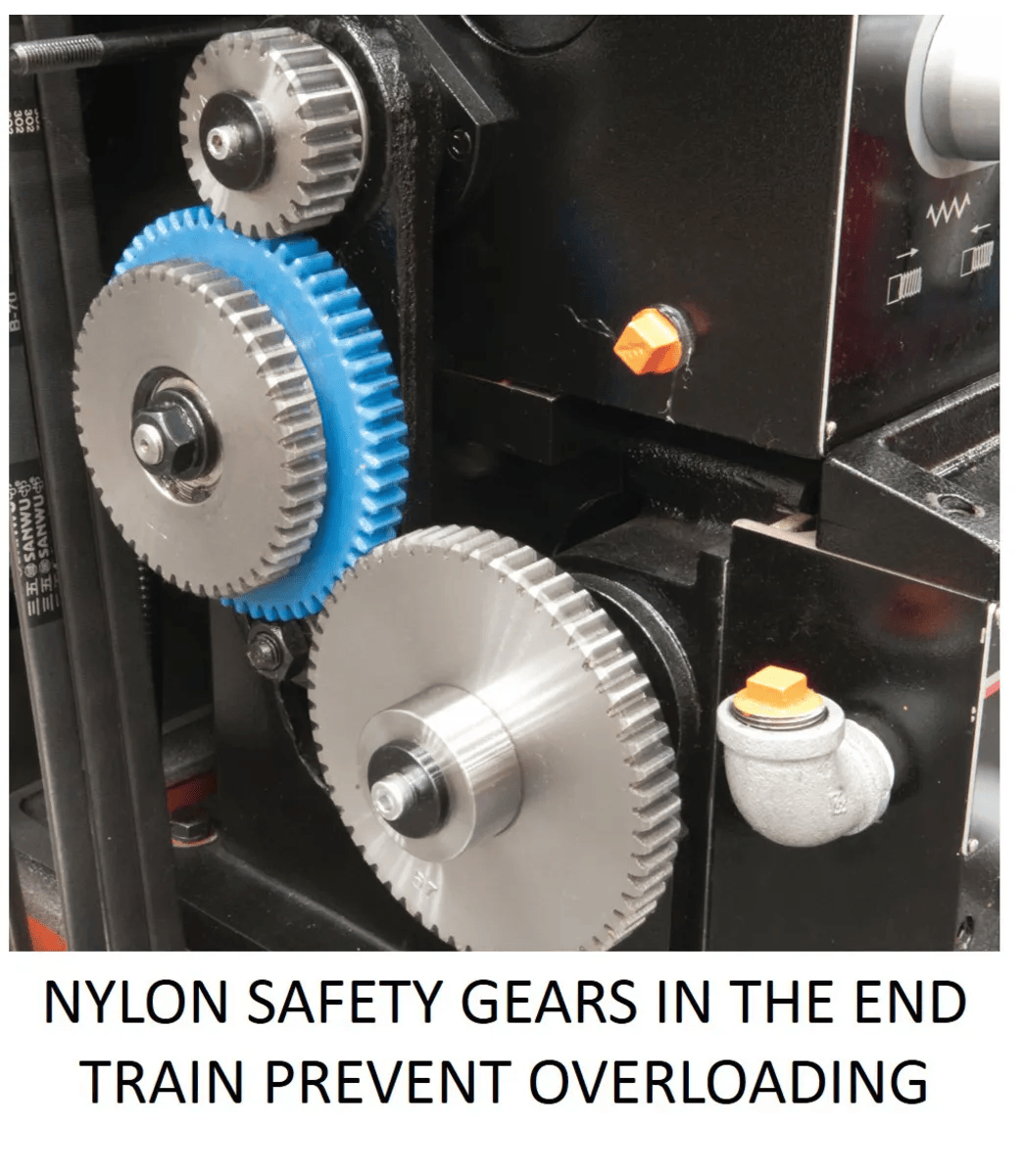

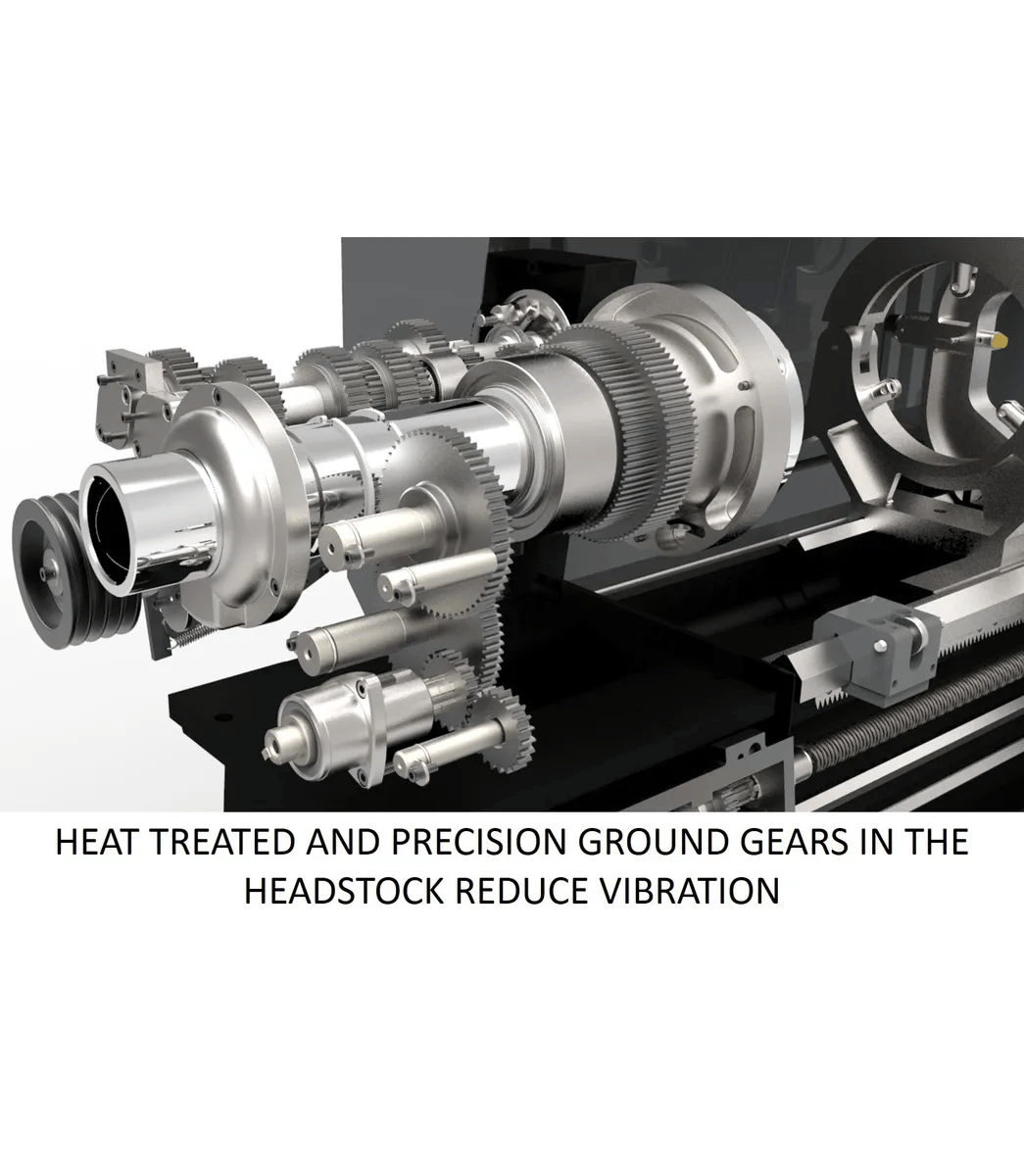

- Heat-treated and surface-ground change gears resist wear across precision production work.
Specifications
- SKUJT9-892501
- Assembled Dimensions94.5 x 44 x 69 in.
- Collet CloserYes
- Digital ReadoutNo
- Distance Between Centers40 in.
- Drive TypeGeared Head
- Length of Gap7-2/3 in.
- Maximum Tool Size1 x 1 in.
- Modular Pitch Threads Number18
- Number of Inch Threads45
- Number of Metric Threads39
- Number of Spindle Speeds12
- Old Material Number892501
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.00075 - 0.02 in./rev
- Range Of Inch Threads Tpi26330 TPI
- Range Of Longitudal Feeds in/rev0.0015 - 0.04 IPR
- Range Of Spindle Speeds36 - 1800 RPM
- Range of Metric Threads0.2 - 14 mm
- SAP Gross Weight4,409
- SAP Net weight3,748
- Spindle Bore3-1/8 in.
- Spindle MountD1-6
- Spindle TaperMT5
- Steady Rest Capacity3/8 - 6-3/4 in.
- Style TypeEngine
- Swing Over Bed17 in.
- Swing Through Gap24-1/4 in.
- Tailstock Spindle Travel5 in.
- Taper in Tailstock SpindleMT4
- UPC731325282993
- WarrantyThree Years
- Width Of Bed12 in.
- Motor HP7.5 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)23 A
