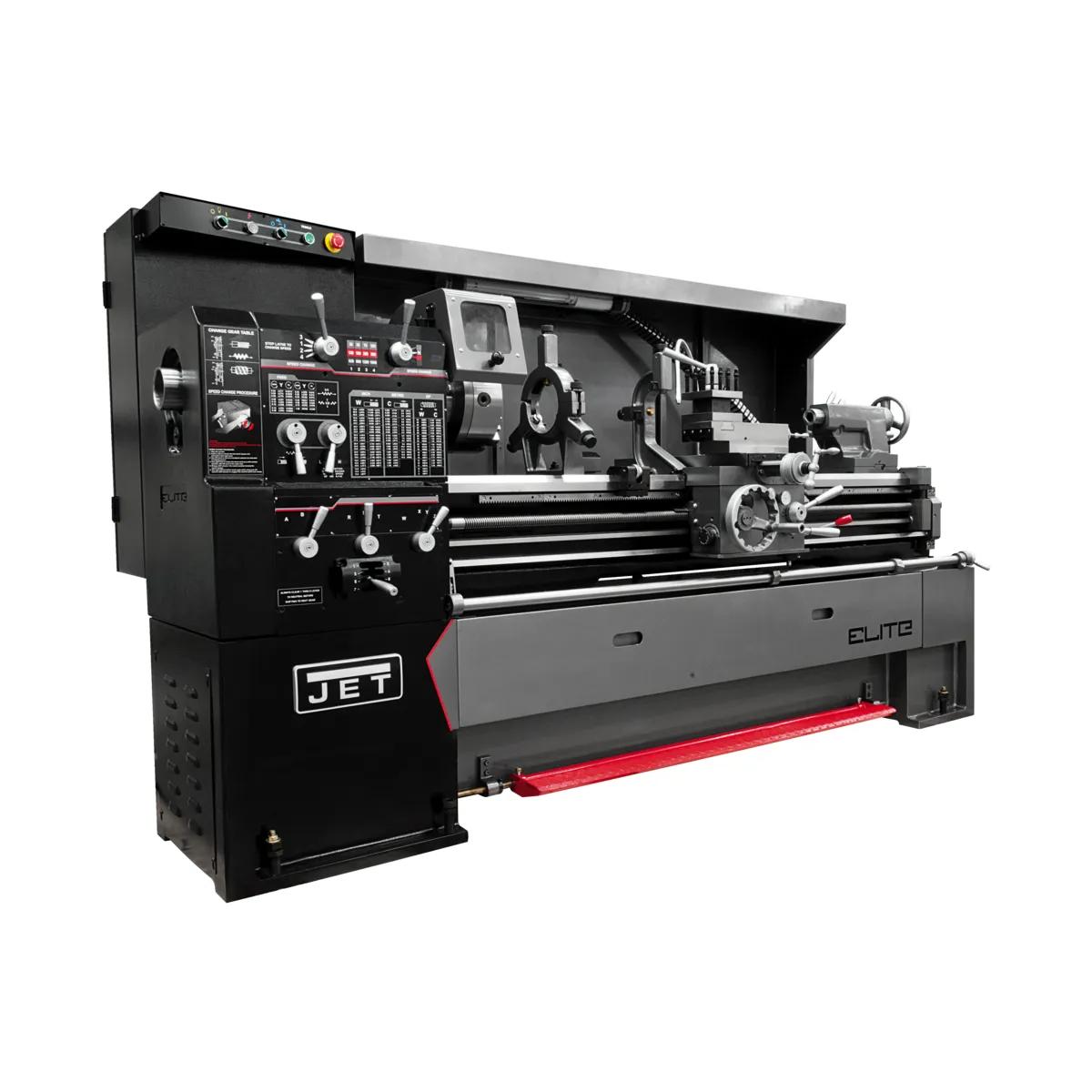

17" x 40" Lg Spindle Bore Geared Head Lathe w/ NMS800 DRO w/ Taper Attachment, 7.5HP, 230V 3PH(EGH-1740)

Stock Number: JT9-892512

0 Reviews

No reviews yet.

  • 7.5 HP, 230/460V, three-phase
  • 17" swing, 40" centers
  • 3-1/8 in. spindle bore
  • 36 - 1,800 RPM
BUY NOW
JET 3 Year Warranty

Product Details

Compact footprint, shop-floor authority. The EGH-1740 is built for repair shops, fab shops, and tool-room turning. Equipped with a 7.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by the JET 2-year warranty.

Features

  • Professional-grade 17-inch swing matches the chuck and tool-holding capacity for the round-stock work production schedules generate.
  • 7.5 HP, 230/460V three-phase induction motor — holding speed under load when lighter motors stall, sized for the duty range working shops actually run.
  • Shop-rated 40 in. bed length handles long-shaft work for spindle-end-to-tailstock-end work.
  • Industrial 3-1/8 in. spindle bore supports bar-feeding capacity for the bar diameters production work actually runs.

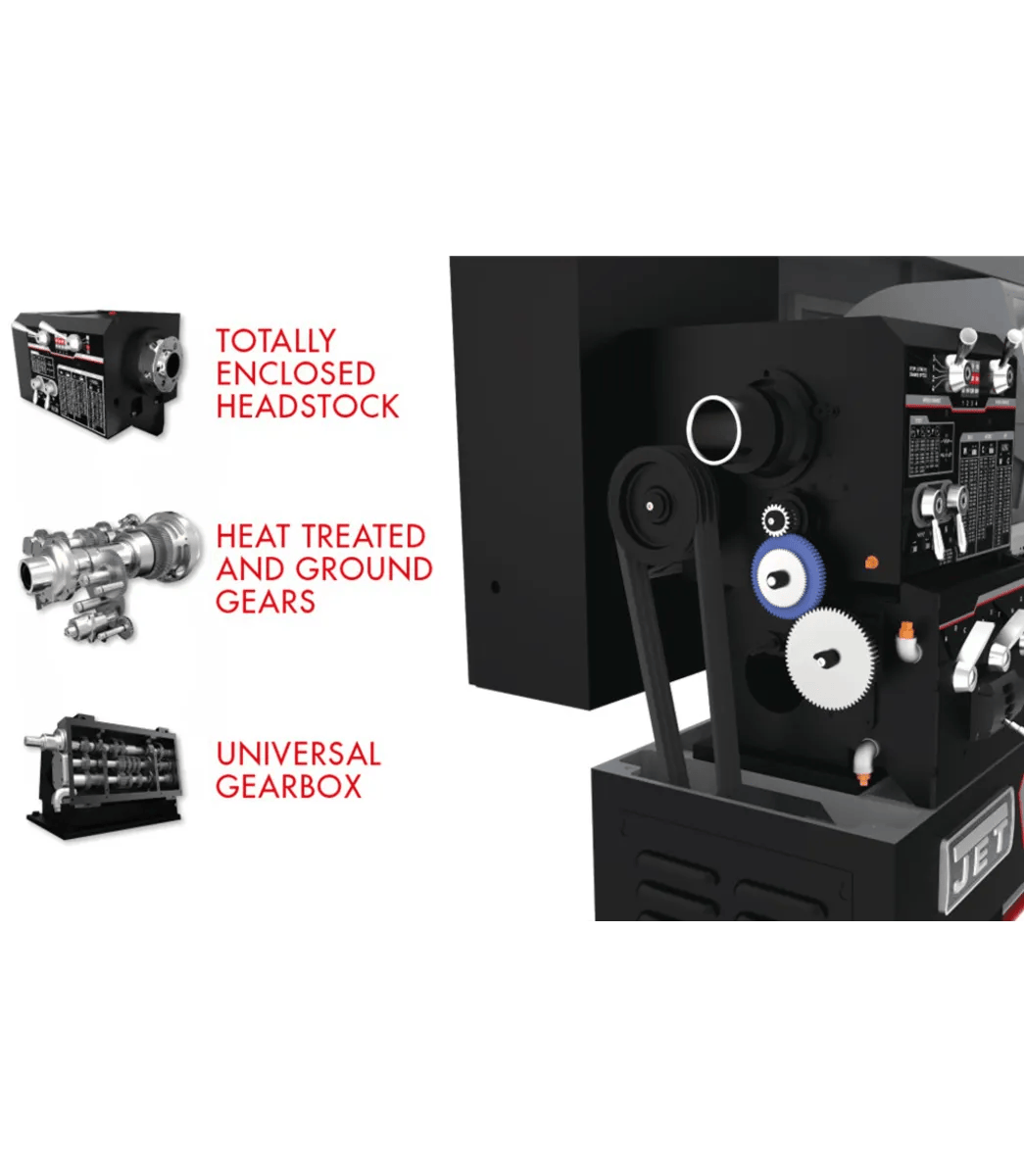

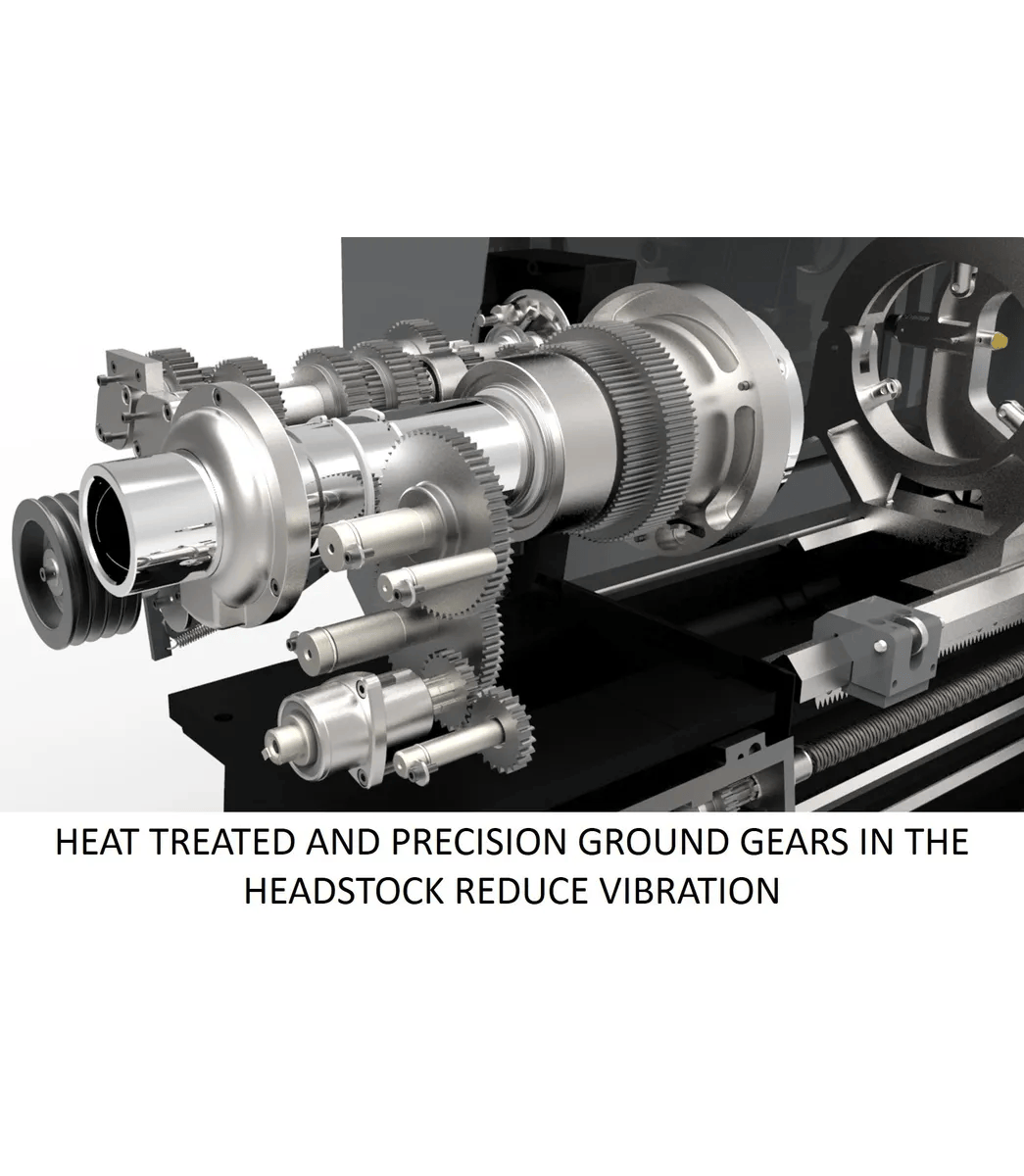

  • Meehanite-cast headstock castings dampen vibration — absorbing the cutting harmonics that compromise finish quality.

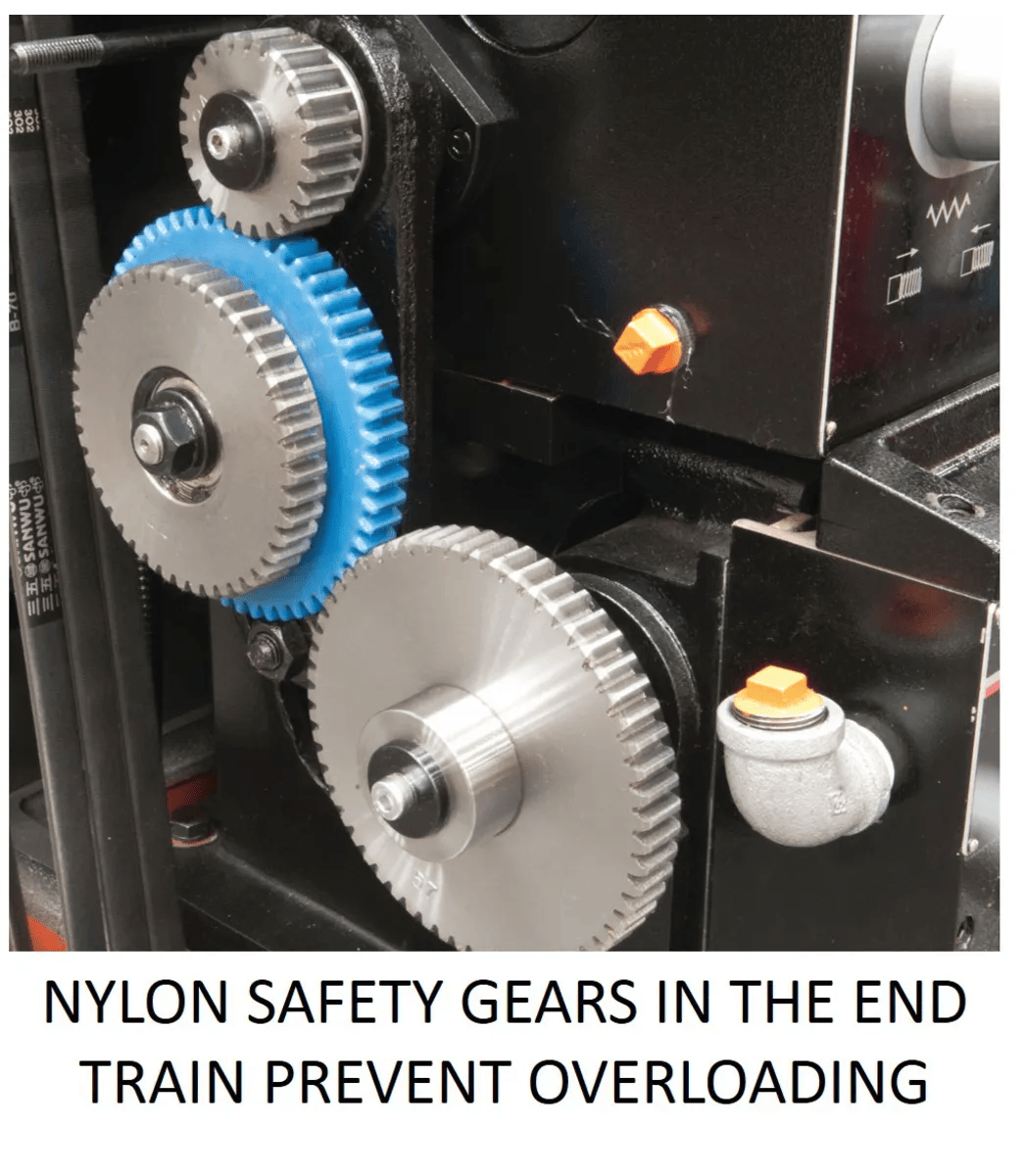

  • Hardened-steel threading gears deliver the working precision for tolerance retention across years of cycles.

Specifications

  • SKU
    JT9-892512
  • Assembled Dimensions
    94.5 x 44 x 69 in.
  • Collet Closer
    No
  • Cross Slide Travel
    9-1/4 in.
  • Digital Readout
    Newall NMS800
  • Distance Between Centers
    40 in.
  • Drive Type
    Geared Head
  • Length of Gap
    7-2/3 in.
  • Maximum Tool Size
    1 x 1 in.
  • Modular Pitch Threads Number
    18
  • Number of Inch Threads
    45
  • Number of Metric Threads
    39
  • Number of Spindle Speeds
    12
  • Old Material Number
    892512
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.00075 - 0.02 in./rev
  • Range Of Inch Threads Tpi
    26330 TPI
  • Range Of Longitudal Feeds in/rev
    0.0015 - 0.04 IPR
  • Range Of Spindle Speeds
    36 - 1800 RPM
  • Range of Metric Threads
    0.2 - 14 mm
  • SAP Gross Weight
    4,409
  • SAP Net weight
    3,748
  • Spindle Bore
    3-1/8 in.
  • Spindle Mount
    D1-6
  • Spindle Taper
    MT5
  • Steady Rest Capacity
    3/8 - 6-3/4 in.
  • Style Type
    Engine
  • Swing Over Bed
    17 in.
  • Swing Over Cross Slide
    11 in.
  • Swing Through Gap
    24-1/4 in.
  • Tailstock Spindle Travel
    5 in.
  • Taper Attachment
    Yes
  • Taper in Tailstock Spindle
    MT4
  • Top Slide Travel
    6-2/7 in.
  • UPC
    731325283105
  • Warranty
    Three Years
  • Width Of Bed
    12 in.
  • Motor HP
    7.5 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Amp Draw (amps)
    23 A
