Product Details

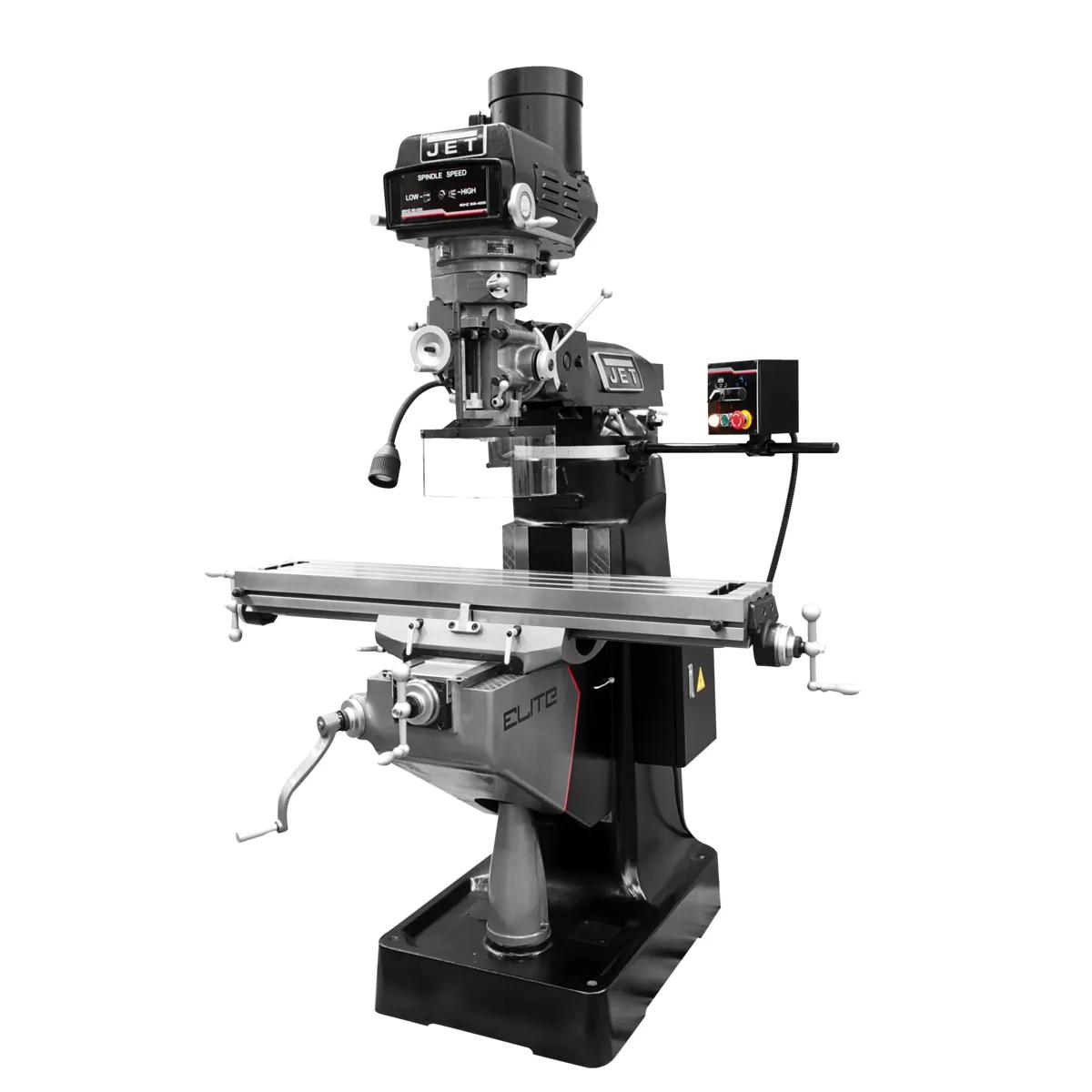

From prototype to production, the same mill earns its place. The ETM-949 answers the work generated by machinists who measure success in tenths. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Industrial 3 HP induction motor: holding RPM under cutting load that would stall lighter motors, designed for production environments.
- 9 in. x 49 in. working surface covers the fixture-and-vise library for the part library production milling actually runs.
- Production-grade 5-inch spindle travel — handling the depth-of-cut production demands across production milling.
- Industrial-grade 60 - 4,500 RPM range — matching cut velocity to material density without manual reconfiguration.

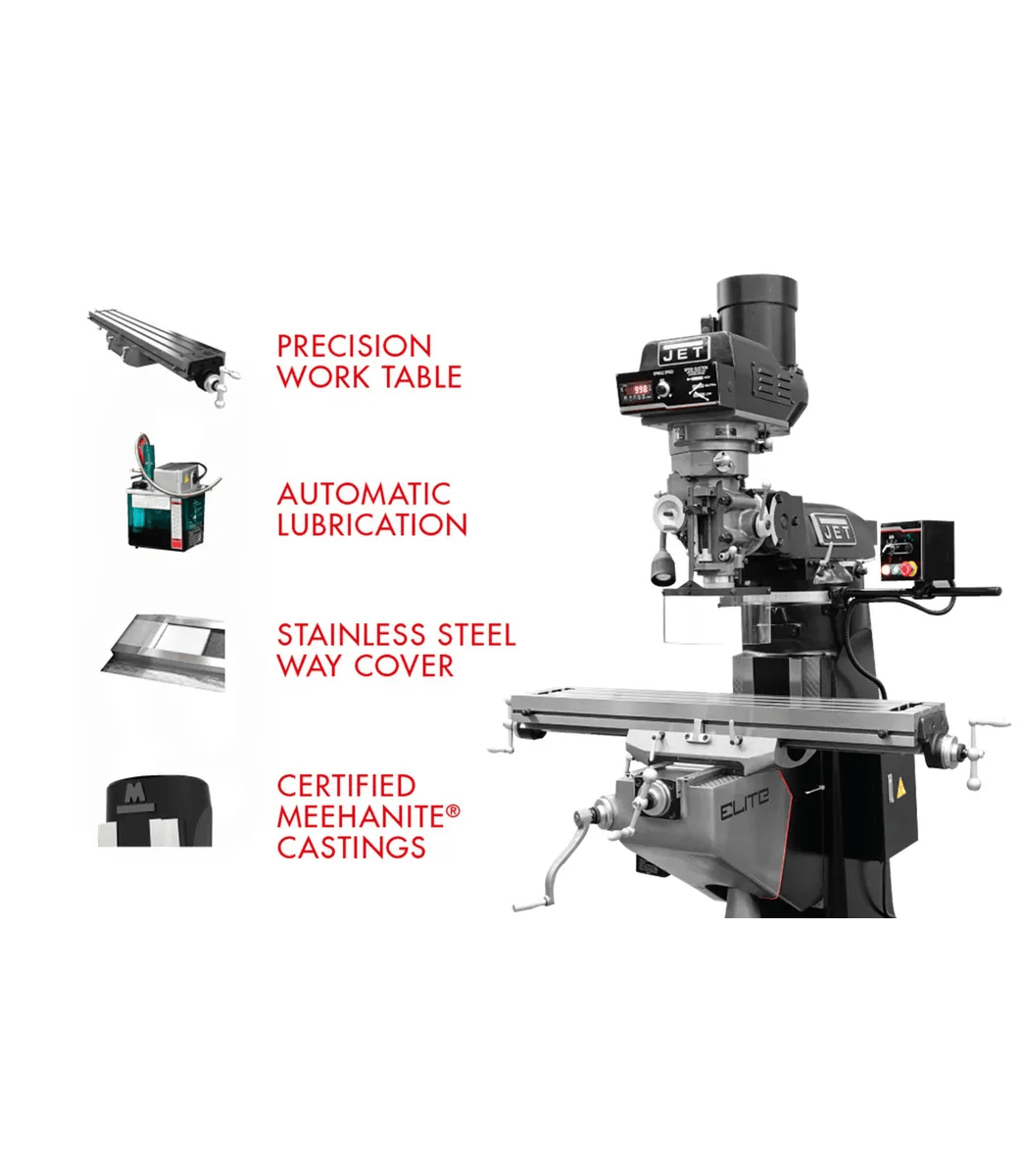

- Meehanite bed castings match the rigidity for finish quality production cutting requires.

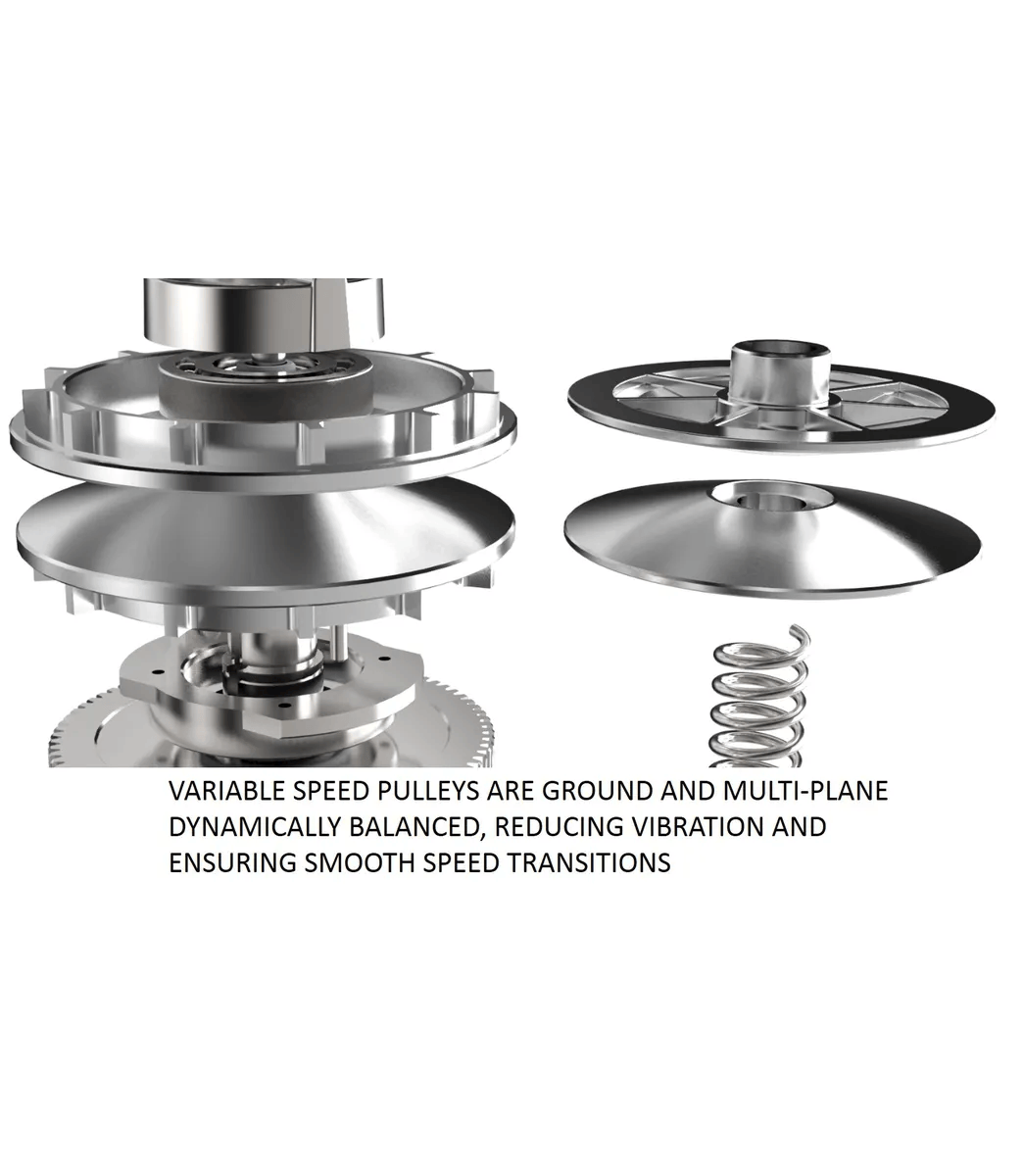

- Heat-treated, ground, and matched drive gears run as a precision system across tolerance-grade machining.
Specifications
- SKUJT9-894110
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2 AXIS Acu-Rite 203
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894110
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286502
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
