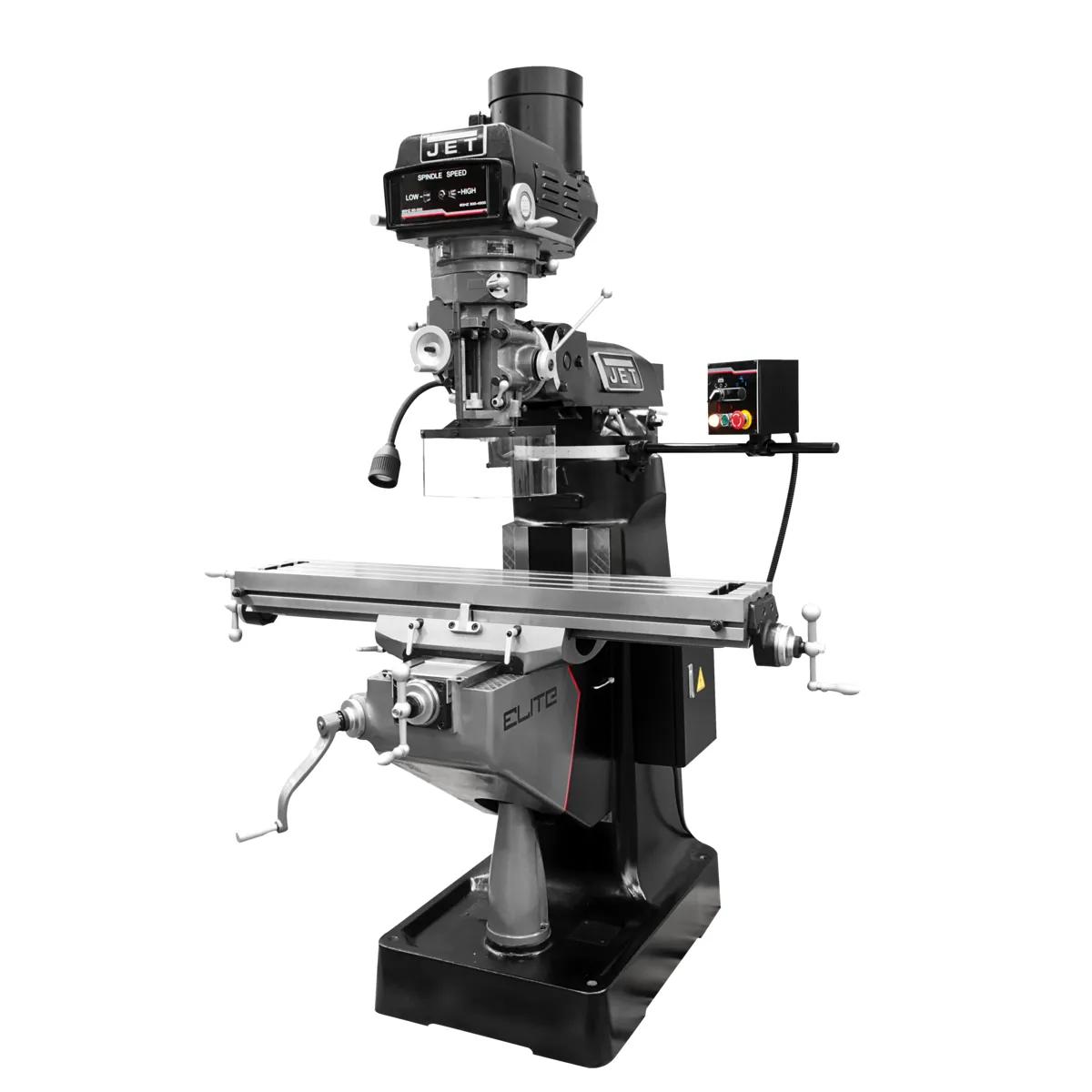

Product Details
Engineered for the long cuts and the tight tolerances. The ETM-949 fits shops that hold tolerance through full production runs — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Industrial-grade 3 HP three-phase drive — running tens of thousands of hours without service intervention, built for manufacturing cells.

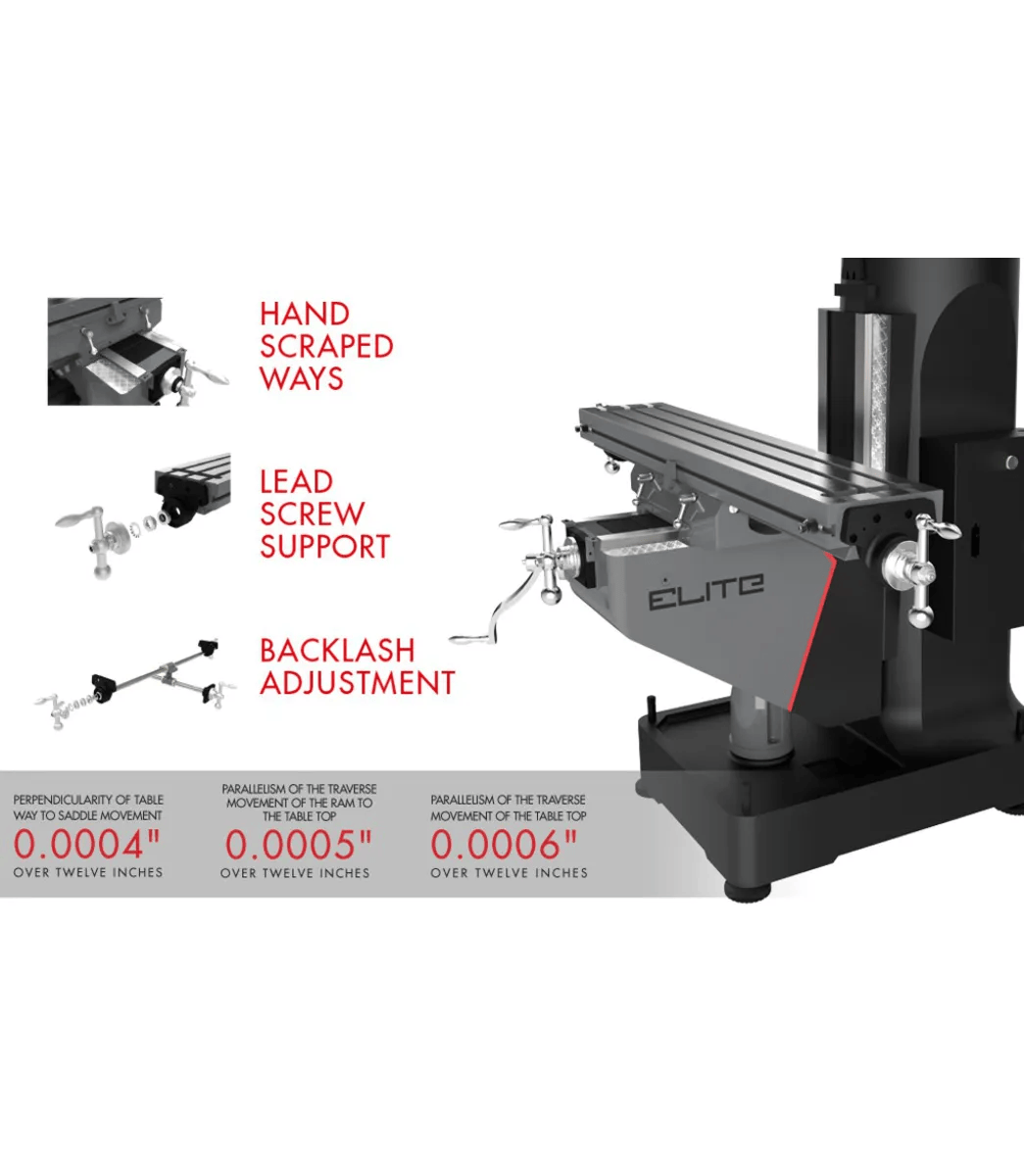

- Premium-grade 9 in. x 49 in. table accommodates production setups for the table-bolt patterns production shops already drill.
- Production-grade 5-inch spindle travel — delivering vertical reach production work actually requires across production milling.
- 60 - 4,500 RPM envelope matches the speed range for the speed library industrial cutting requires.

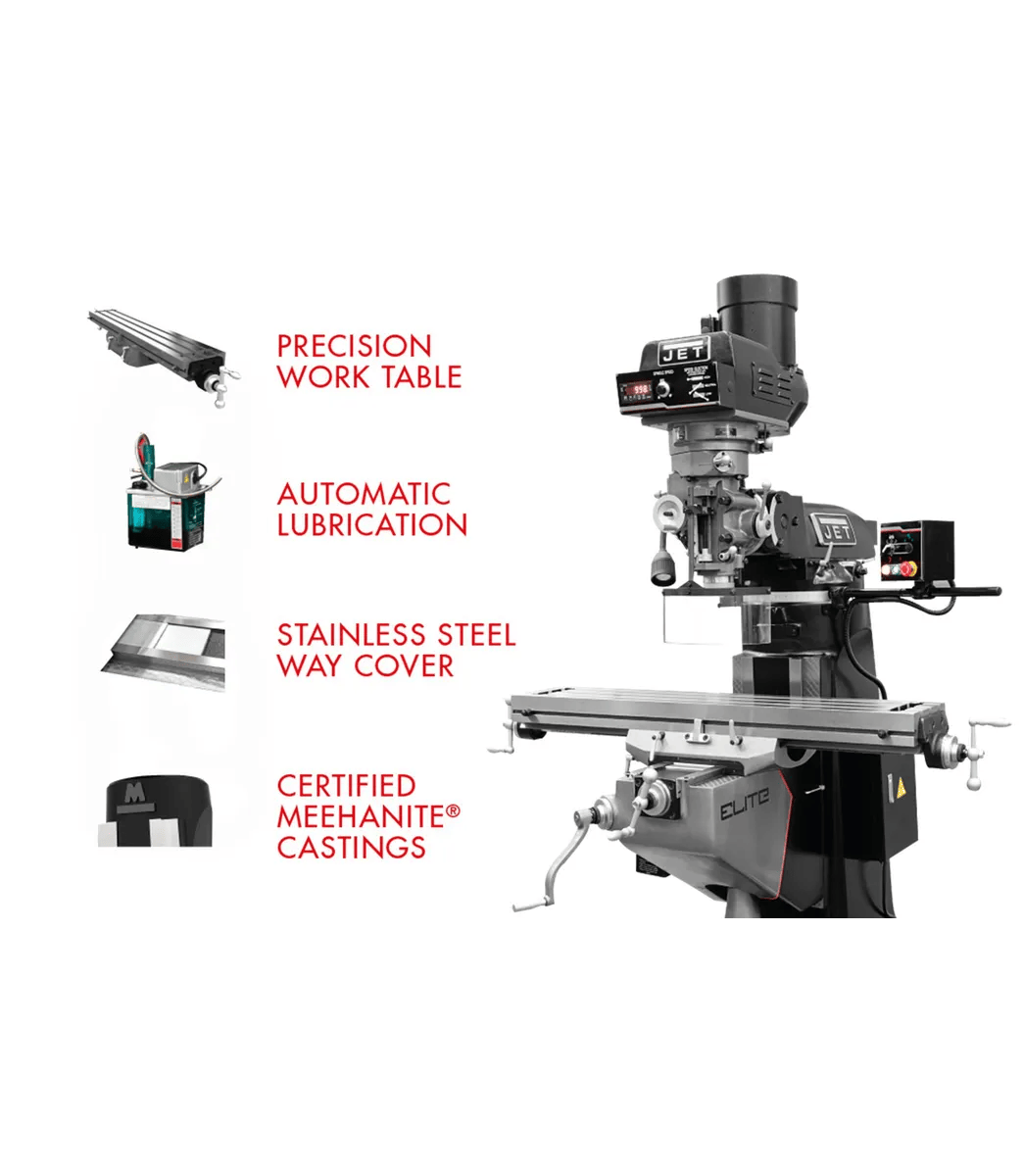

- Heat-treated Meehanite knee castings deliver rigidity for finish quality production cutting requires.
- Tolerance-grade hardened and ground gear sets deliver dimensional stability without the slop softer drivetrains develop.
Specifications
- SKUJT9-894113
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutAcu-Rite 203
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894113
- Power FeedX-Axis/Y-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.

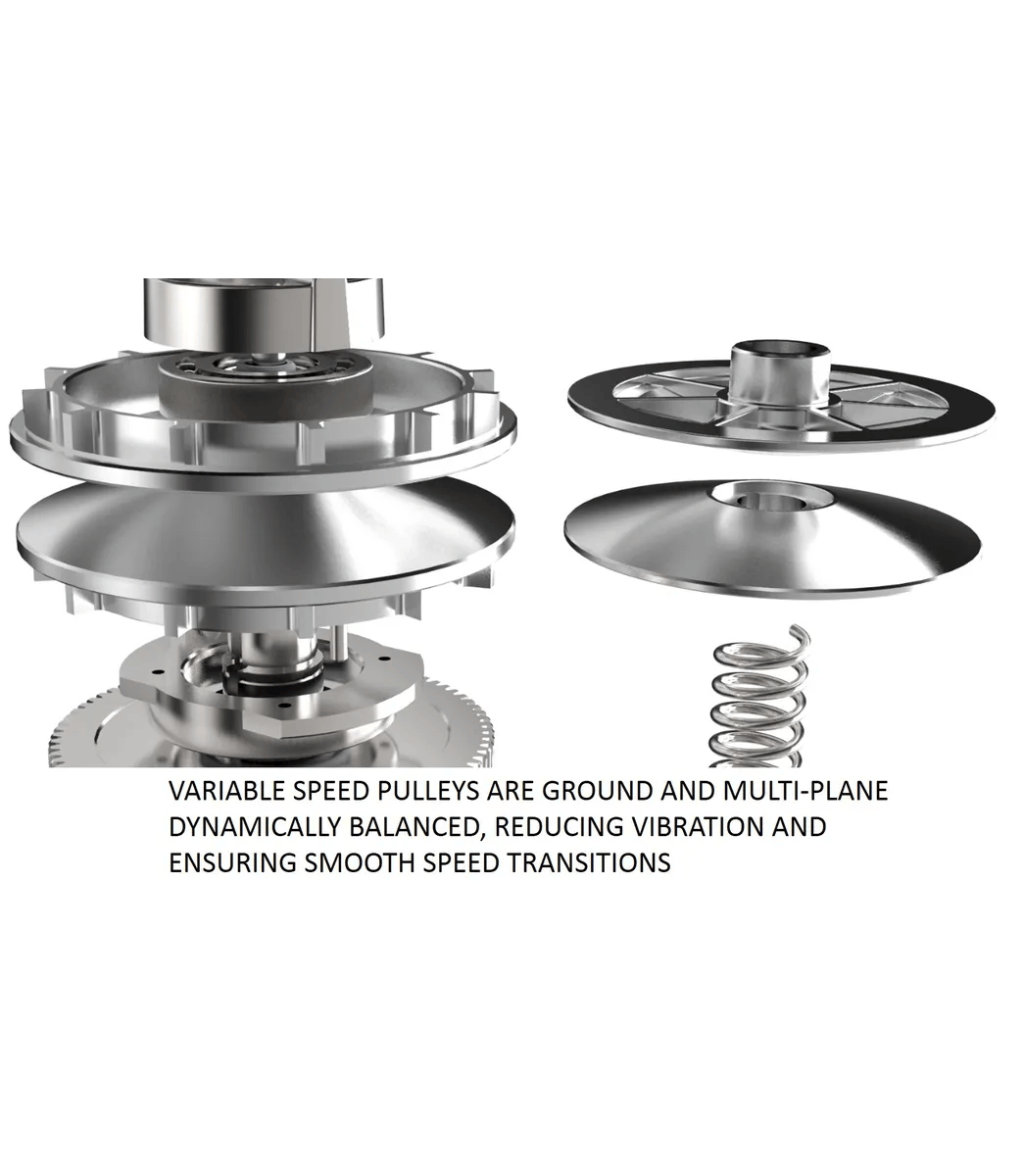

- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286533
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
