Product Details

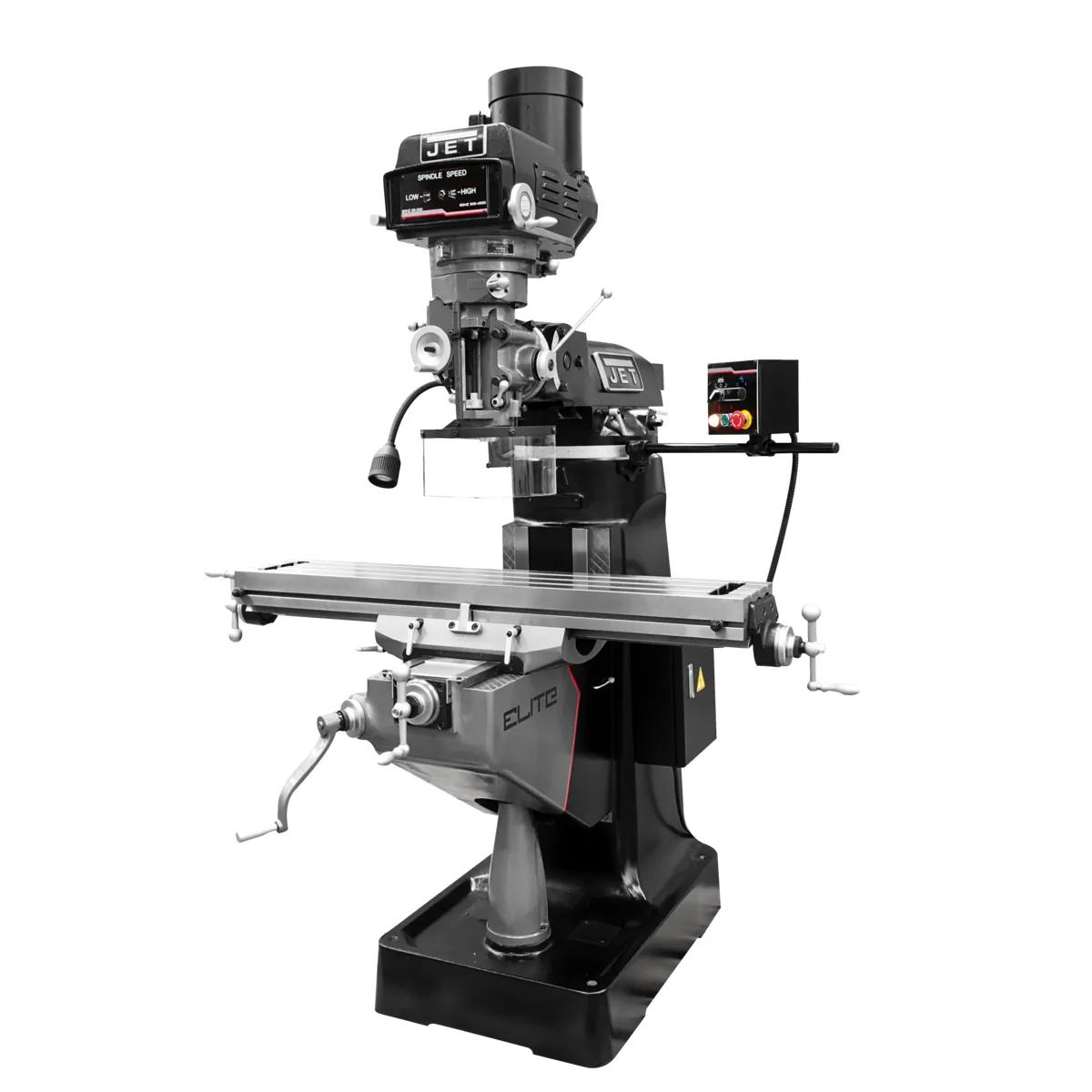

From prototype to production, the same mill earns its place. Designed for industrial machining environments running long-cycle production, the ETM-949 stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.
Features
- Heavy-duty 3 HP drive matches consistent torque for long-cycle production work.
- Tolerance-grade 9 in. x 49 in. table accommodates production setups for the workpiece sizes production milling demands.
- Tolerance-grade 5-inch spindle travel — expanding the working envelope without sacrificing stroke control across tool-room machining.
- Production-grade 60 - 4,500 RPM range — covering the full material library production shops run.

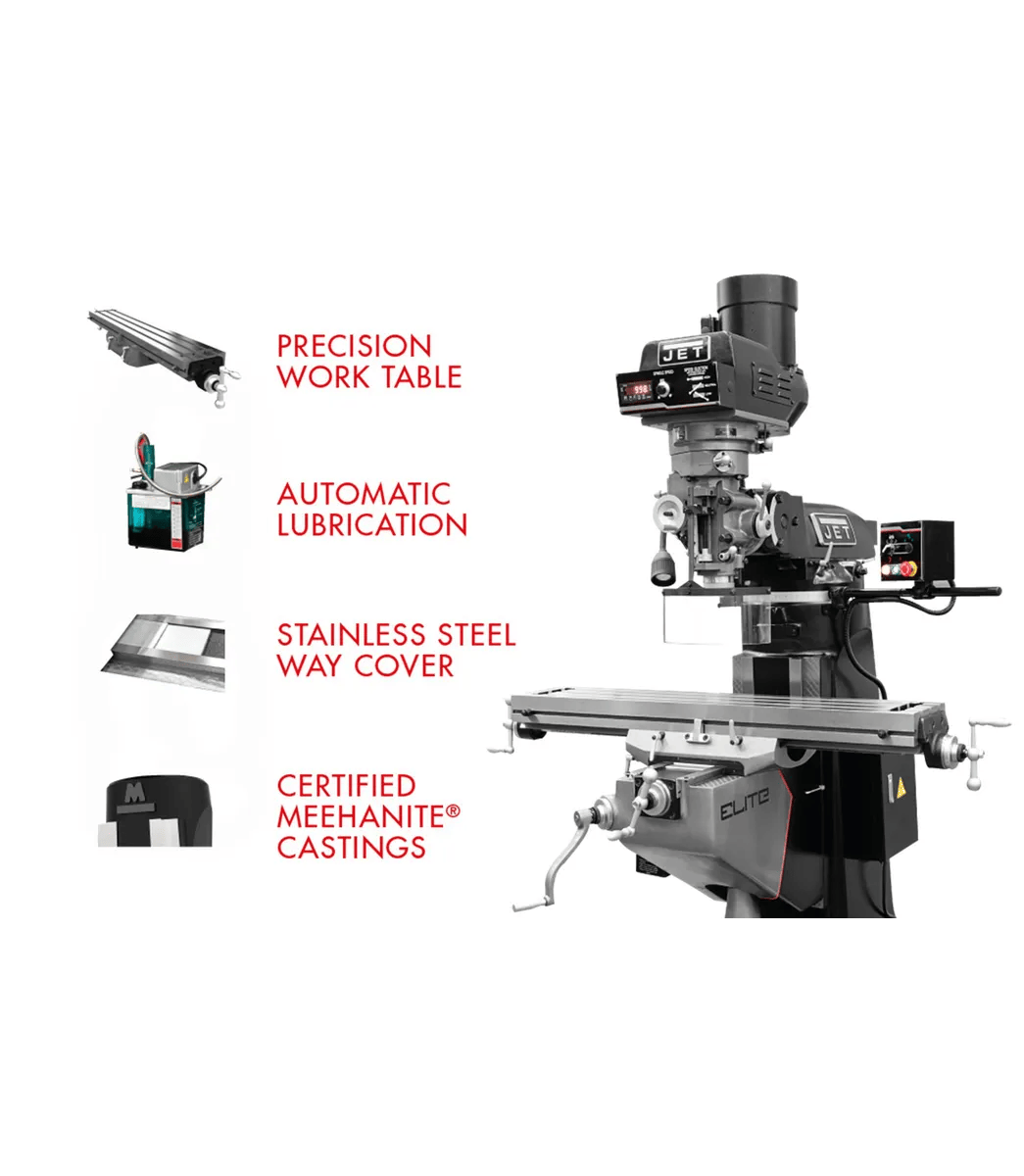

- Vibration-dampening Meehanite main castings keep finish quality consistent across production turning.
- Hardened and matched saddle gears — resisting the wear pattern that defeats softer components, sized for repeatable feed rates across long cycles.
Specifications
- SKUJT9-894114
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2 AXIS Acu-Rite 203
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894114
- Power FeedX-Axis/Y-Axis/Z-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.

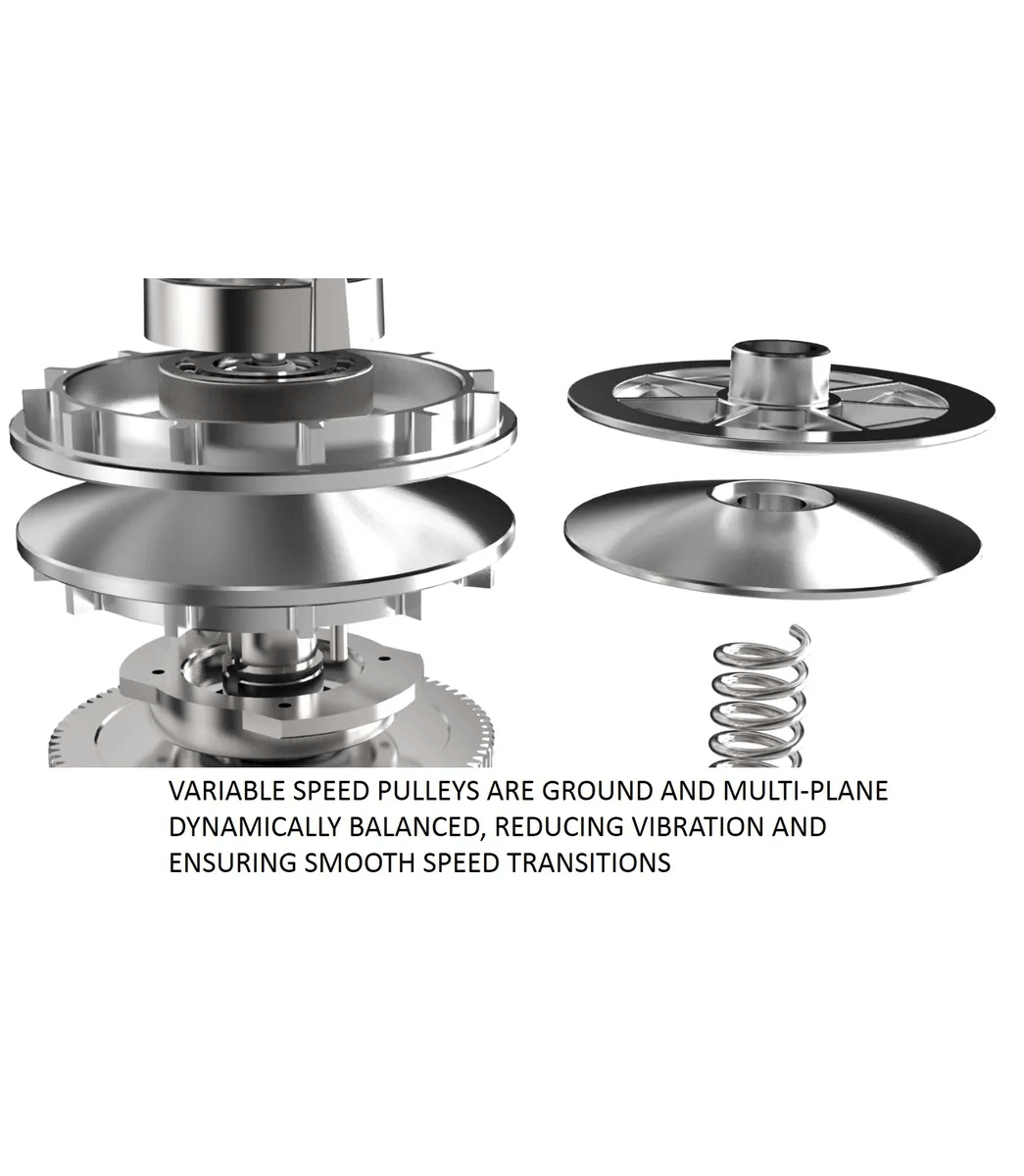

- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286540
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
