Product Details

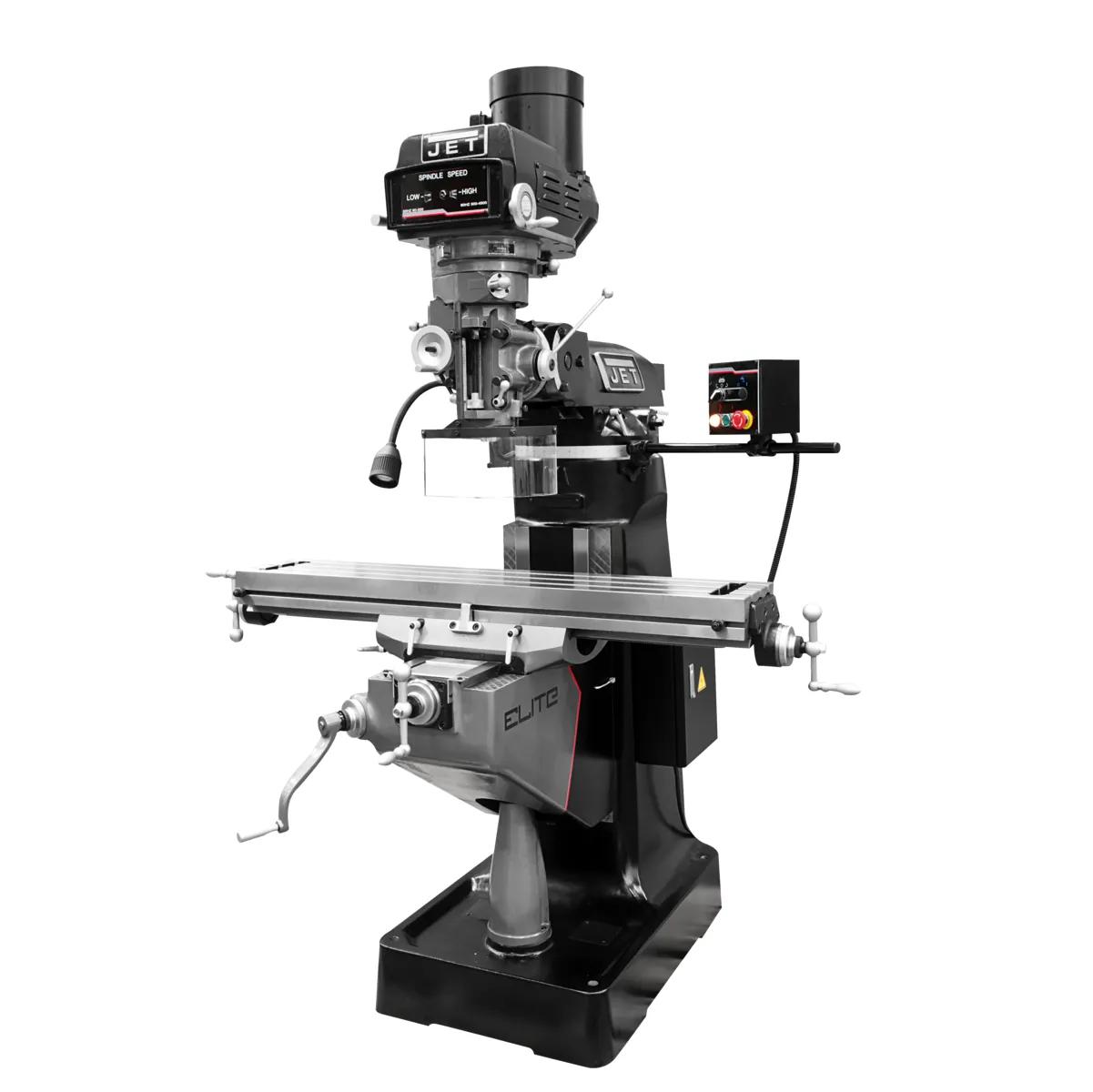

Where setups become parts. Built around fabrication and tool-room work that demands tolerance, the ETM-949 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.
Features
- Production-grade 3 HP motor with sealed bearings — delivering full-rated power to the cut, not the brush dust across working shops.

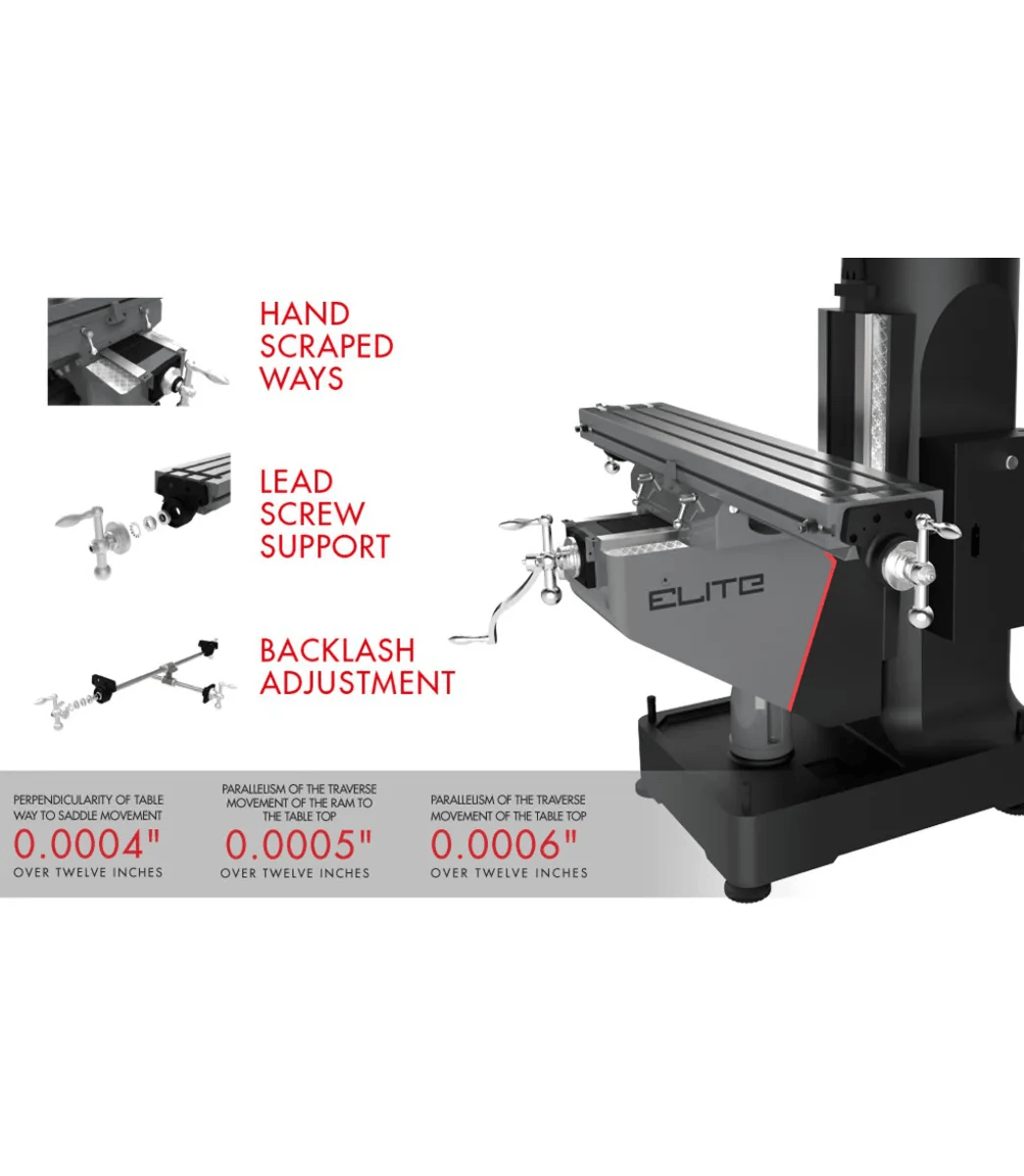

- Industrial 9 in. x 49 in. table — covering the workpiece sizes daily milling generates, sized for the workpiece envelope production milling targets.

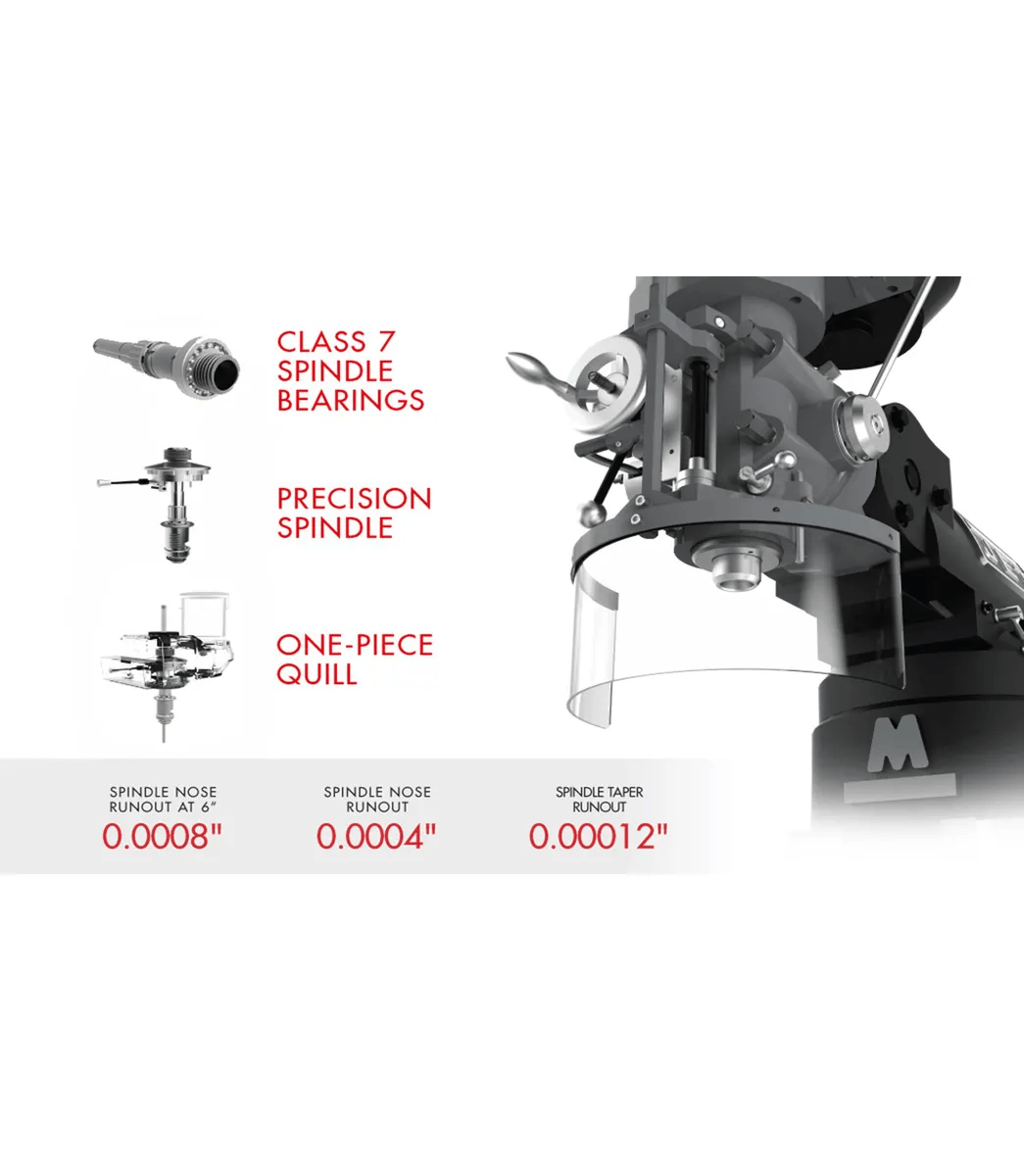

- Production-grade 5-inch spindle travel — expanding the operating envelope without compromise across tool-room machining.
- Shop-rated 60 - 4,500 RPM range — matching cut velocity to material density without manual reconfiguration.

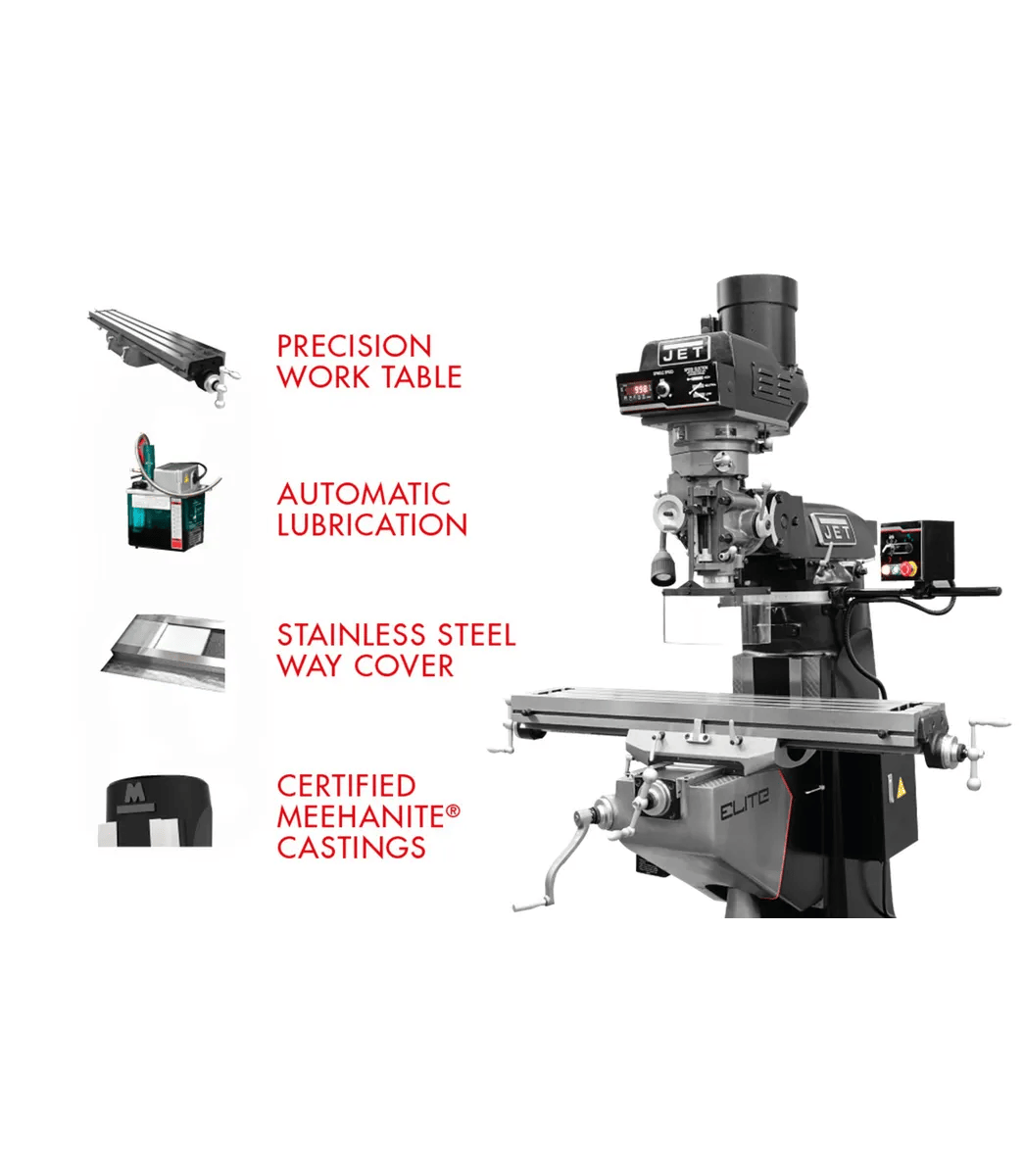

- Certified Meehanite saddle castings resist wear and deflection for the cycle counts production turning generates.
- Hardened and matched feed gears — resisting the wear pattern that defeats softer components, sized without backlash drift that costs you finish quality.
Specifications
- SKUJT9-894131
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2 AXIS Acu-Rite 303
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.

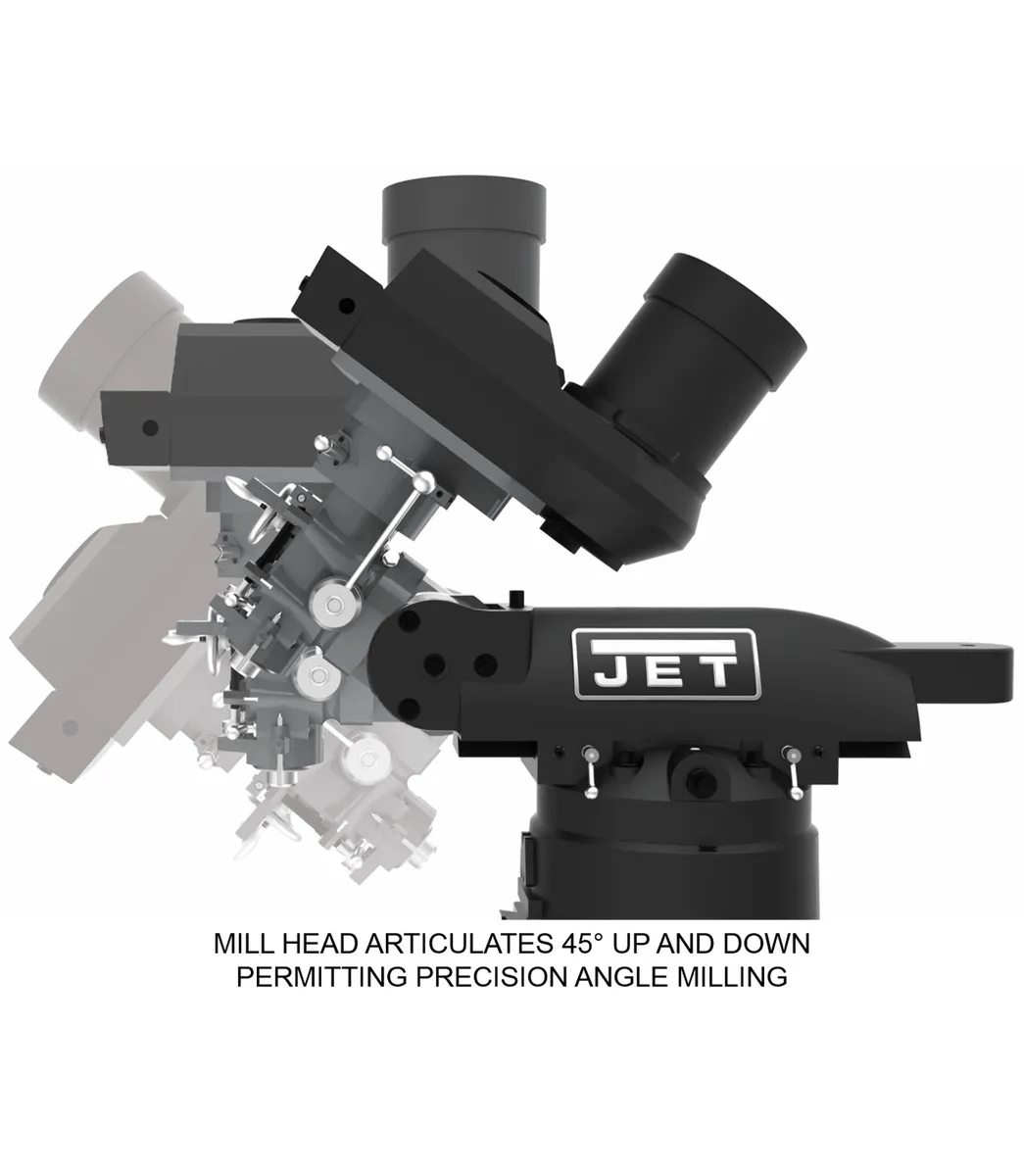

- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894131
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.

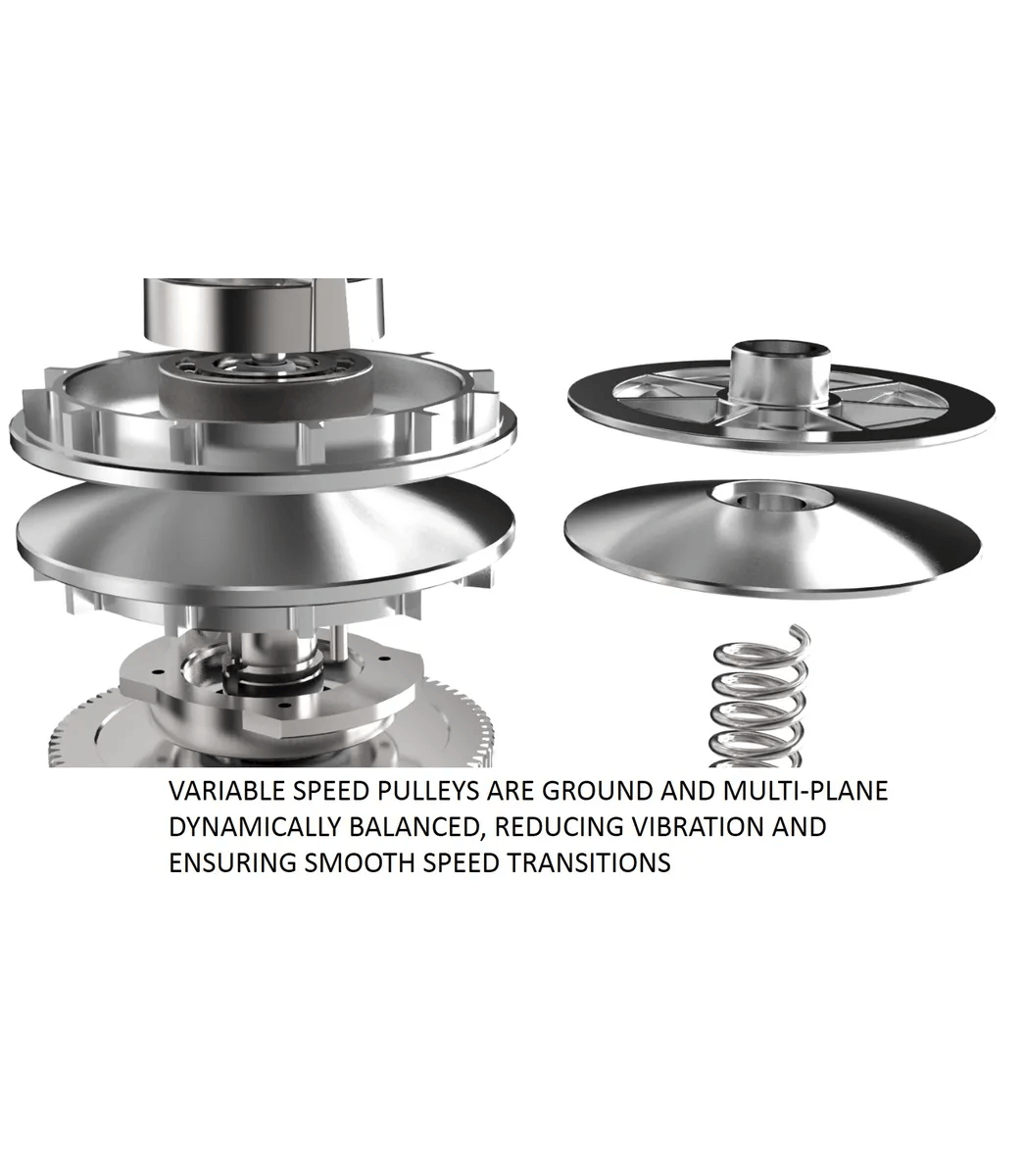

- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286717
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
