9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)

9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)

Stock Number: JT9-894040

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Built around the spindle, the table, and the operator who runs them. Designed for machinists who measure success in tenths, the ETM-949 CNC stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.

Features

  • Brushless 3 HP induction motor design means decades of service across production cutting.
  • Industrial 9 in. x 49 in. table — putting larger-part milling in reach without compromise, sized for the workpiece sizes production milling demands.
  • Production-spec 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across industrial drilling.
  • Spindle RPM range of 60 - 4,500 matches the cuts for matching cuts to material across the operating envelope.

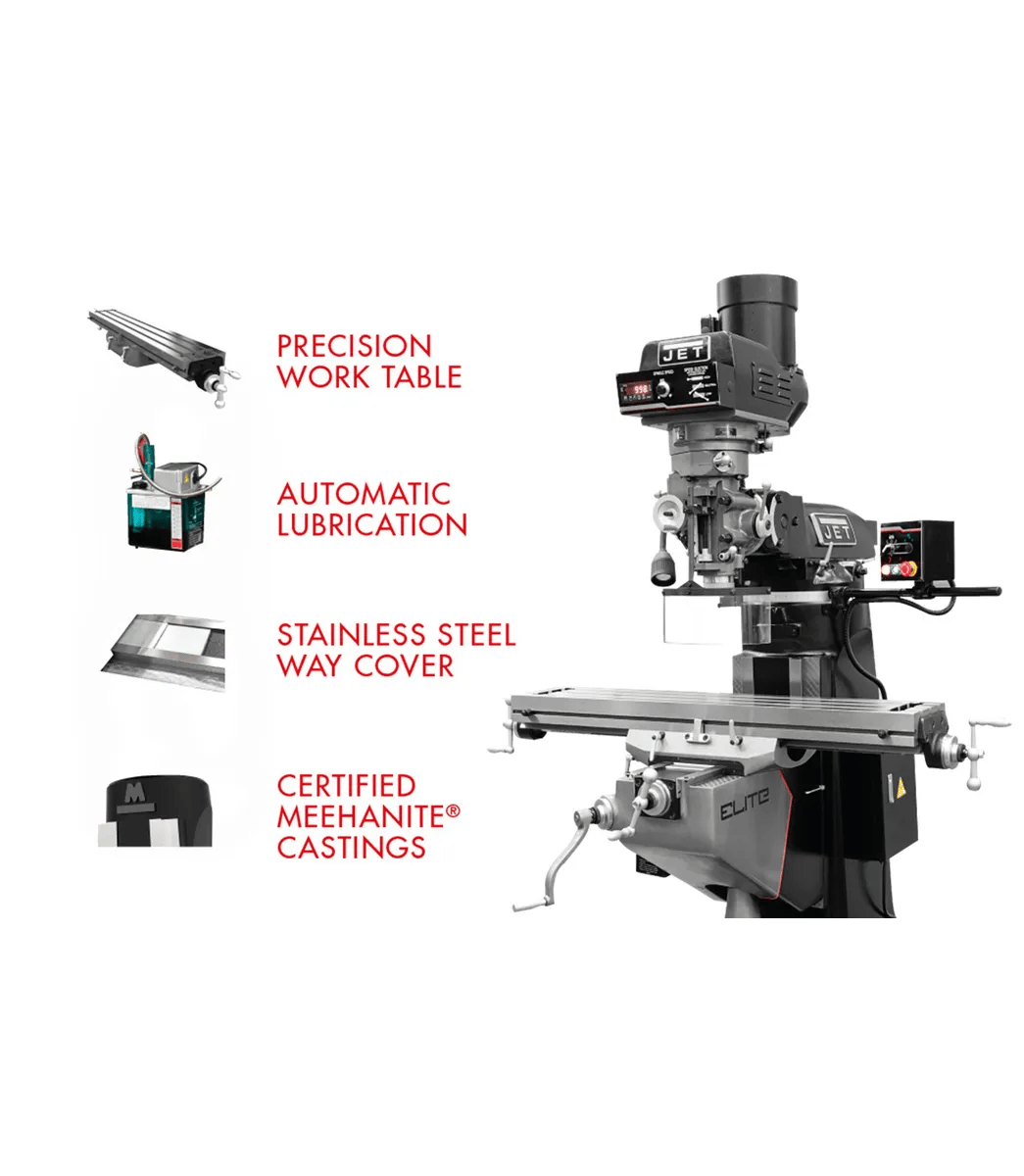

  • Industrial Meehanite column castings — holding true under loads that warp commercial-grade iron across industrial machine shops.
  • Tolerance-grade hardened and ground drive train components deliver dimensional stability for tolerance retention across years of cycles.

Specifications

  • SKU
    JT9-894040
  • Air Powered Drawbar
    No
  • Amp Draw (amps)
    19 A
  • Assembled Dimensions
    64 x 66 x 84 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 2 Axis
  • Distance Spindle to Column (Max.)
    21-2/5 in.
  • Distance Spindle to Column (Min.)
    6 in.
  • Head Movement
    90 Deg. (R & L), 45 Deg. (F & B)
  • Maximum Distance Spindle To Table
    18-3/4 in.
  • Model Number
    ETM-949 CNC
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    894040
  • Product Type
    Machines
  • Prop 65
    Cancer
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    0.0015 - 0.003 - 0.006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,600
  • SAP Net weight
    2,600
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    16 in.
  • Travel Of Ram
    14 in.
  • UPC
    731325290219
  • Warranty
    Three Years
  • Work Table Weight Capacity
    750 lbs
