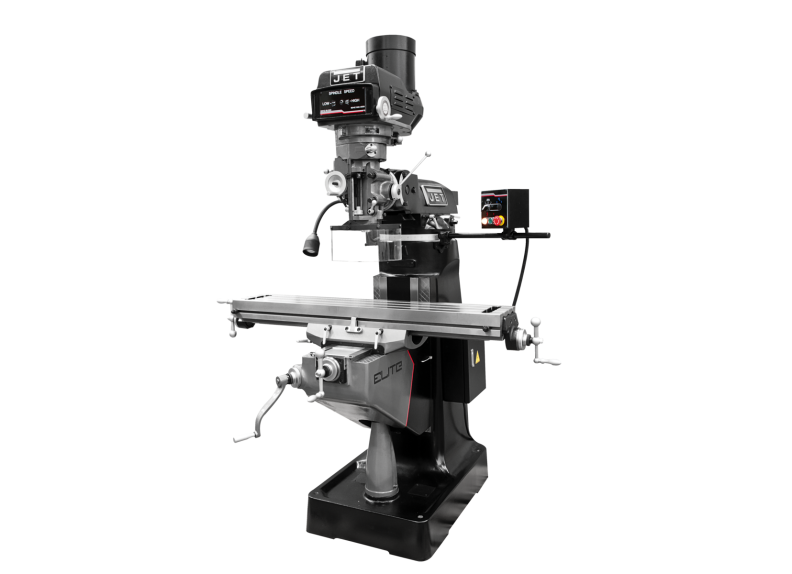

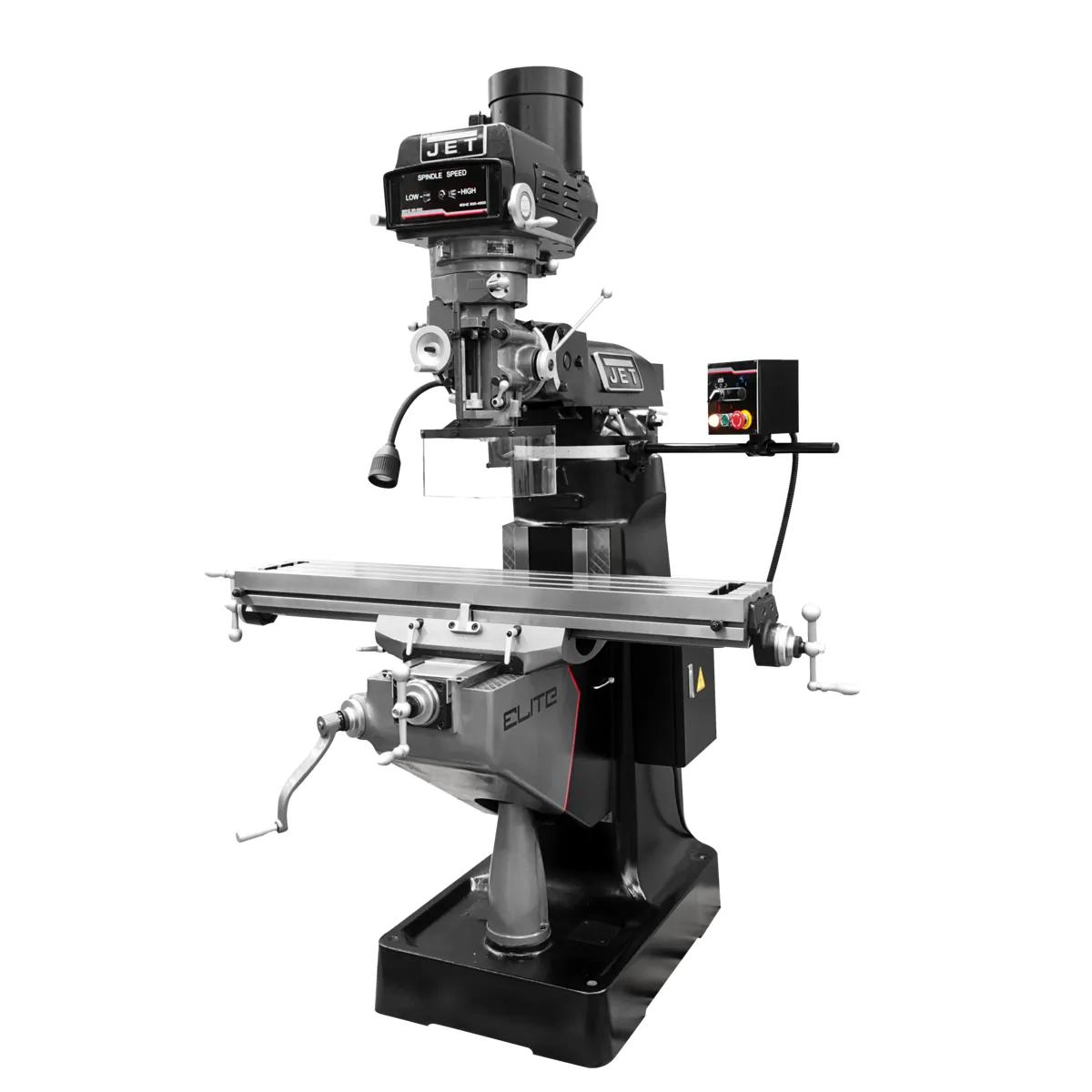

Product Details
From prototype to production, the same mill earns its place. Built around shops that hold tolerance through full production runs, the ETM-949 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features

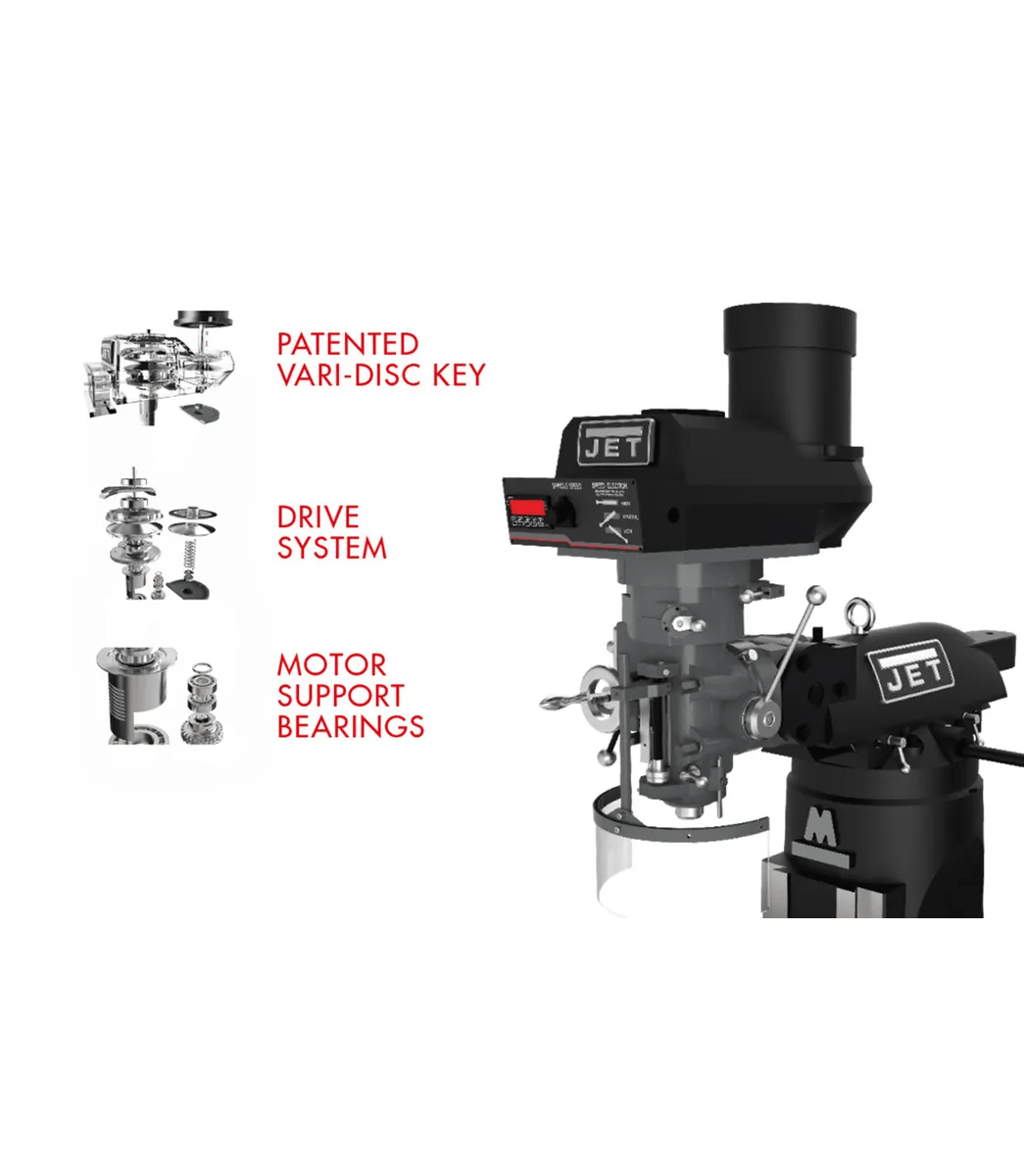

- Engineered 3 HP three-phase induction drive: running cooler under sustained load than equivalents, sized for the operating envelope production demands.
- 9 in. x 49 in. working surface matches the fixture-and-vise library for the part library production milling actually runs.
- Professional-grade 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across tool-room machining.
- 60 - 4,500 RPM envelope delivers the speed range for the cutting envelope production cuts demand.

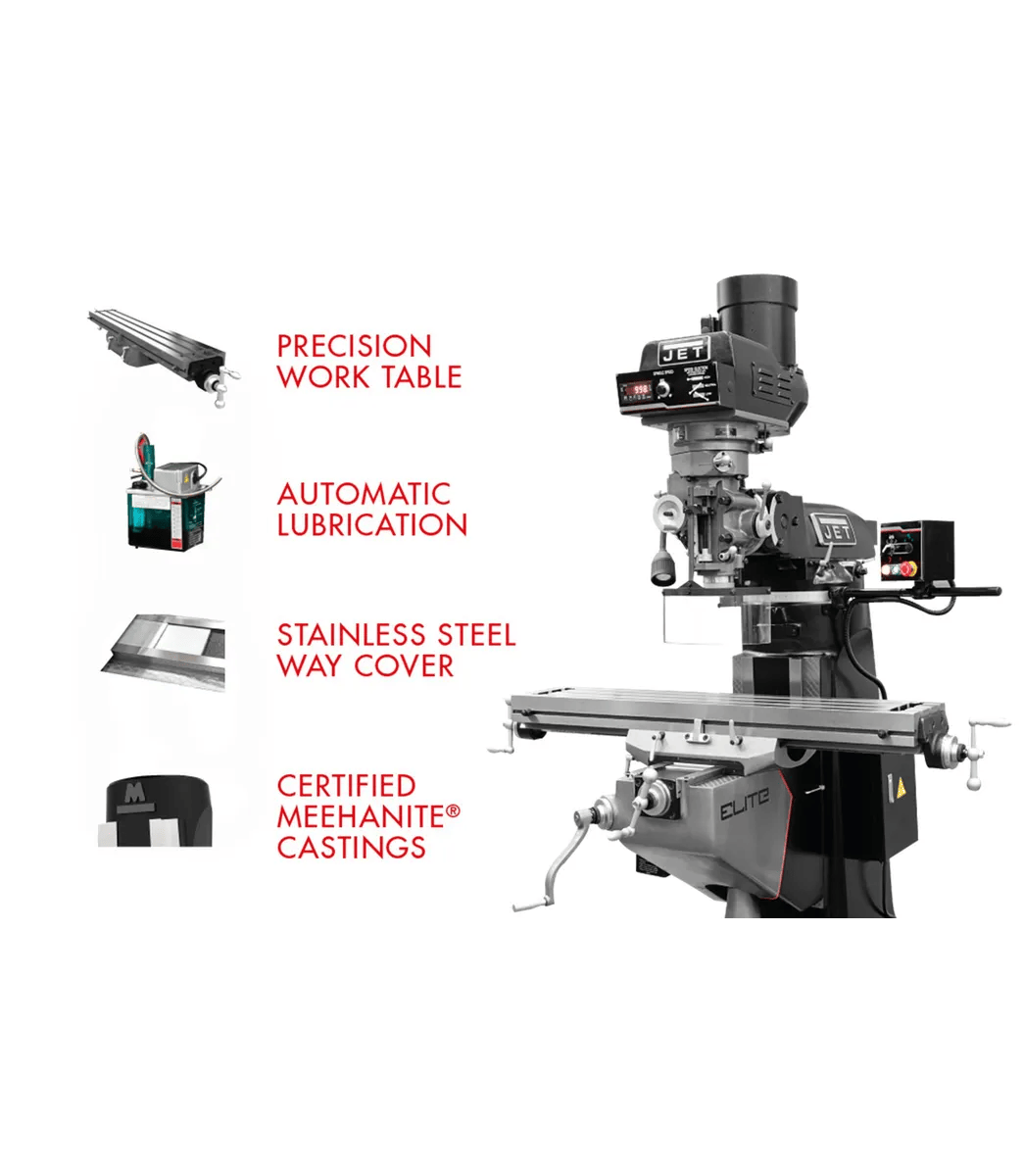

- Factory-tested Meehanite column castings — outlasting commercial-grade iron in the same operating envelope, sized for finish quality production cutting requires.
- Heat-treated power-down-feed gears hold spec — holding tolerance well past the warranty period across fabrication and tool-room work.
Specifications
- SKUJT9-894157
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2-Axis Newall NMS800
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894157
- Power FeedX-Axis/Y-Axis/Z-Axis
- Product TypeMachines
- Prop 65Cancer

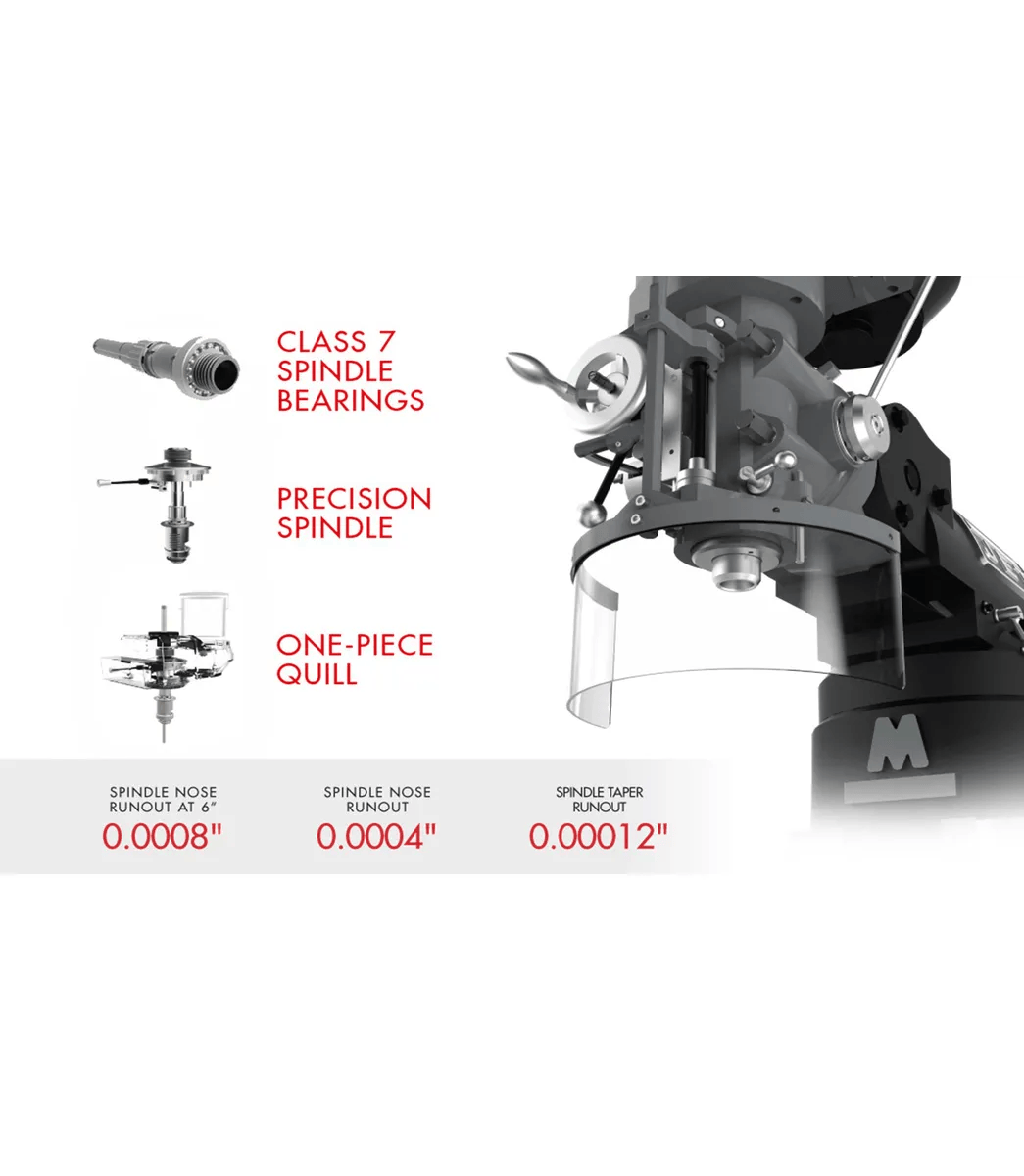

- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.

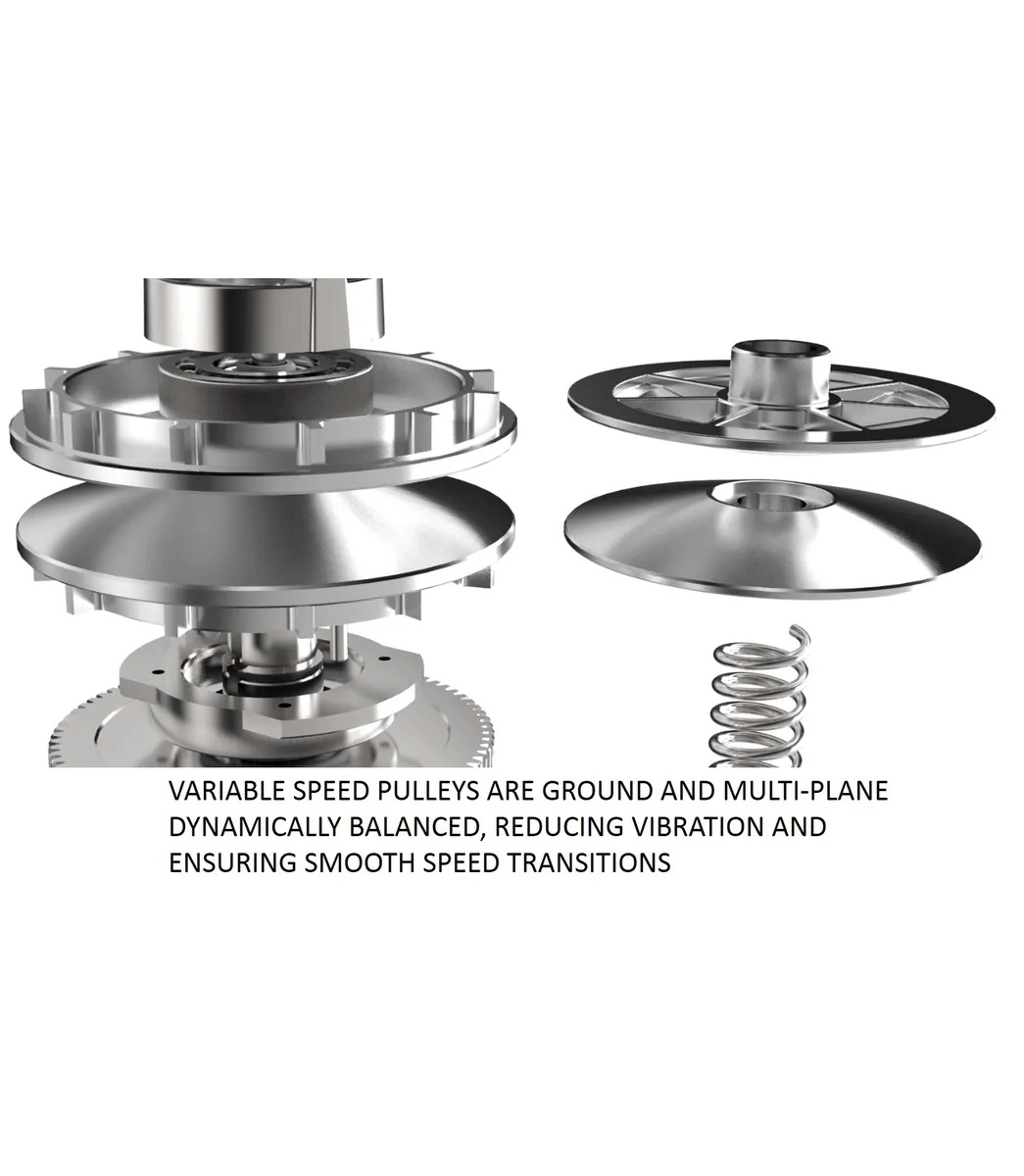

- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.

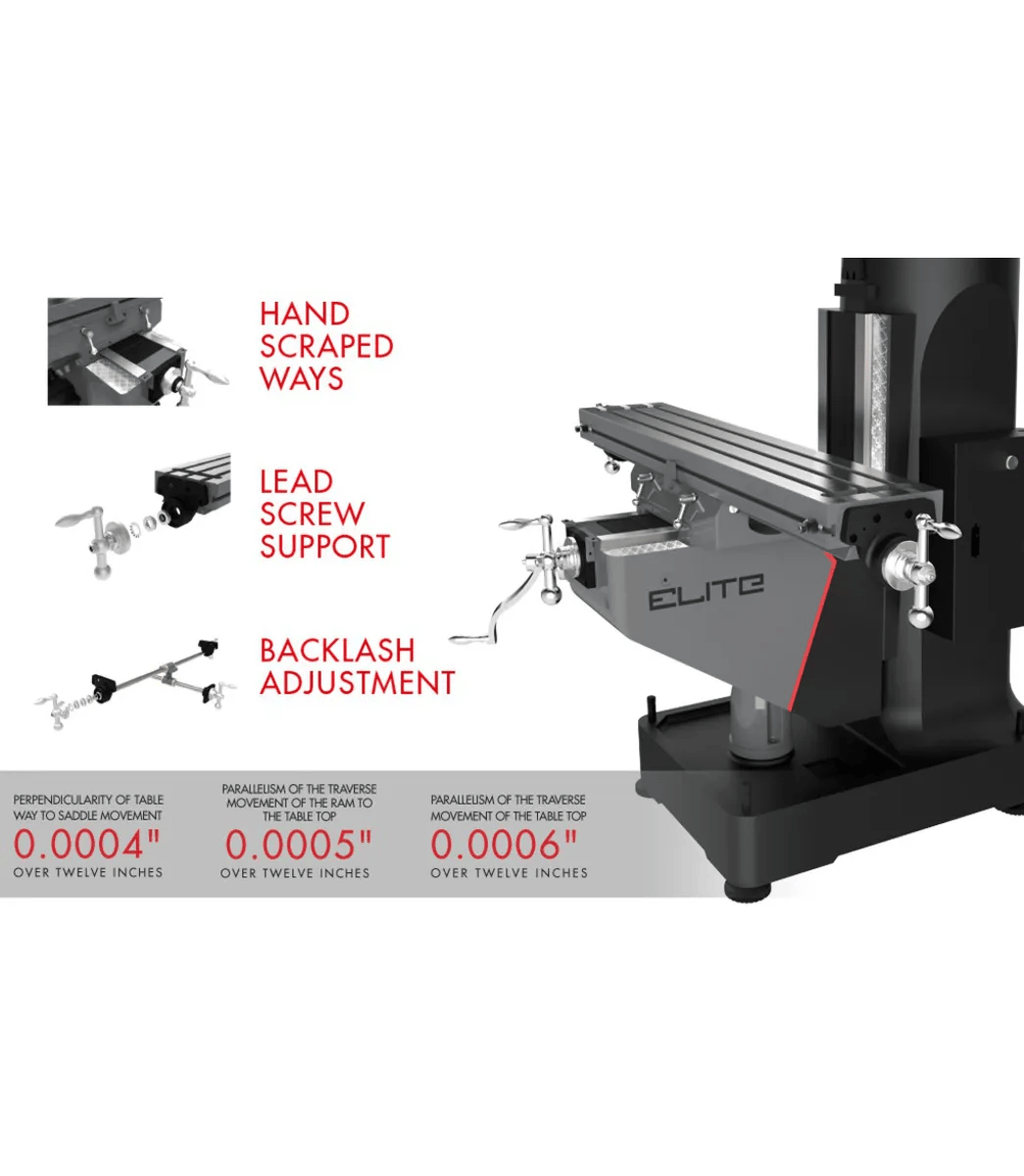

- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286977
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
