Product Details

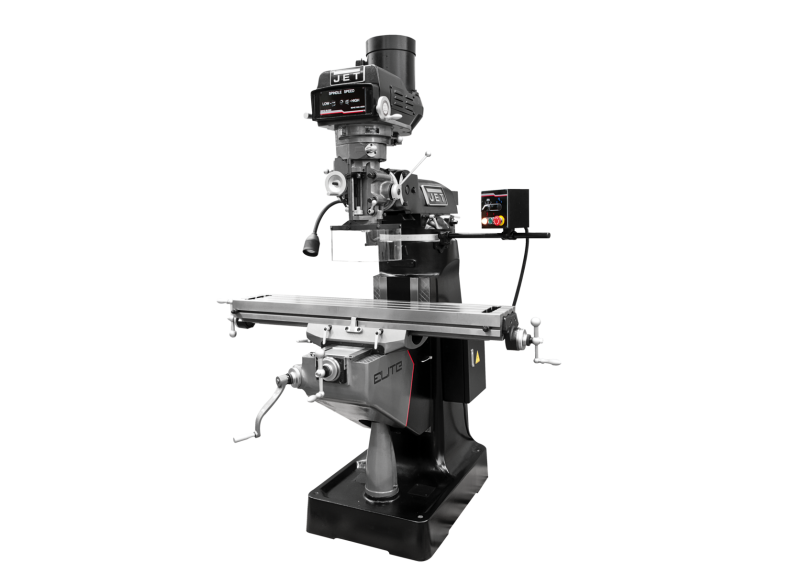

The mill is where the work gets defined. Built around machinists who measure success in tenths, the ETM-949 delivers production-grade results. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Industrial 3 HP induction motor: holding speed under load when lighter motors stall, designed for production environments.
- Generous 9 in. x 49 in. table surface — covering the workpiece sizes daily milling generates across tool-room work.
- Production-spec 5-inch spindle travel — putting deep-hole work in reach without secondary setups across production fabrication.
- 60 - 4,500 RPM envelope supports the speed range for matching cuts to material across the operating envelope.
- Meehanite-cast saddle castings dampen vibration — holding reference flat.
- Professional-grade hardened feed gears — resisting the wear pattern that defeats softer components, engineered for finish quality across long production runs.
Specifications
- SKUJT9-894124
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutAcu-Rite 200
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Old Material Number894124
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286649
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
