Product Details

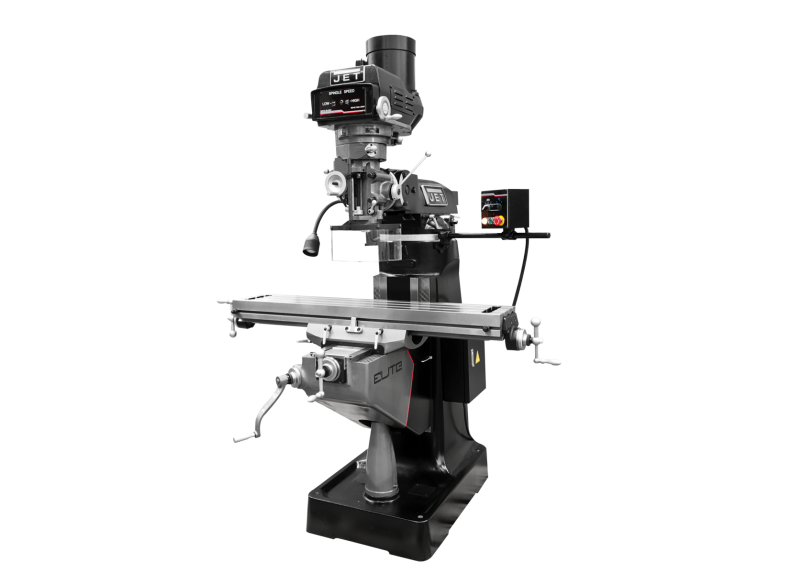

The mill is where the work gets defined. The ETM-949 is built for shops that hold tolerance through full production runs. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Built for the long cycles that define production milling.
Features
- Engineered 3 HP three-phase induction drive: running quieter and cooler than equivalent open-frame designs, sized for the operating realities of production environments.
- Generous 9 in. x 49 in. table surface — expanding the working envelope without expanding the shop footprint across professional shop floors.
- Premium-grade 5-inch spindle travel — expanding the operating envelope without compromise across tool-room machining.
- Working-grade 60 - 4,500 RPM range — delivering the speed envelope production cutting demands.
- Industrial Meehanite knee castings — resisting wear and deflection across tolerance-grade production.
- Surface-ground power-down-feed gears deliver dimensional stability for the dimensional stability precision work demands.
Specifications
- SKUJT9-894119
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Acu-Rite 203(Quill)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Old Material Number894119
- Power FeedX-Axis/Y-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286595
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
