Product Details

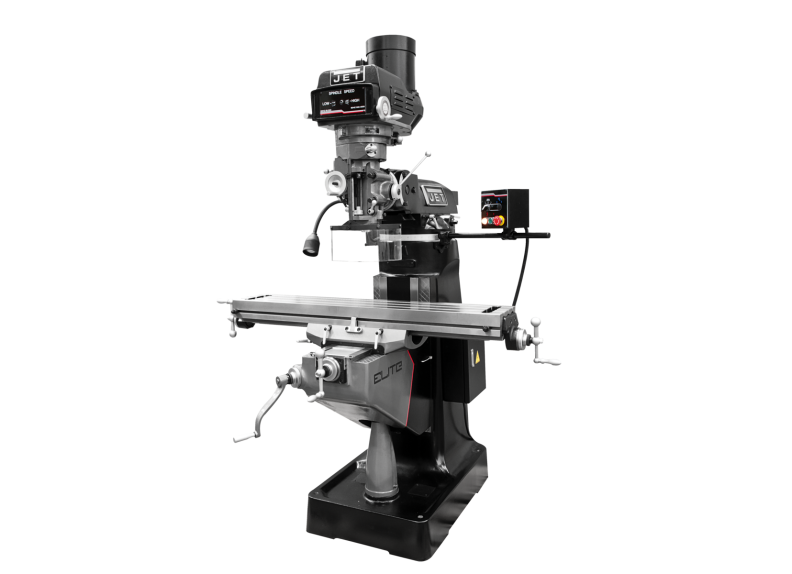

Built around the spindle, the table, and the operator who runs them. The ETM-949 answers the work generated by industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.
Features
- Heavy-duty 3 HP induction motor handles working speed under load — running at nameplate output.
- Heavy 9 in. x 49 in. table delivers the workholding envelope for the workpiece sizes production milling actually generates.
- Industrial-grade 5-inch spindle travel — expanding the operating envelope without compromise across professional cutting environments.
- Industrial 60 - 4,500 RPM range — handling slow torque-heavy work and high-speed finishing in one machine.
- Vibration-dampening Meehanite main castings keep finish quality consistent across industrial machine shops.
- Shop-rated hardened and ground feed gears deliver dimensional stability for repeatable feed rates across long cycles.
Specifications
- SKUJT9-894144
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital ReadoutAcu-Rite 300
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Old Material Number894144
- Power FeedNo
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325286847
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
