9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)
9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)

9" x 49" Mill w/ 3-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949 CNC)

Stock Number: JT9-894041

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

The mill is where the work gets defined. The ETM-949 CNC was sized for industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • The 3 HP three-phase drive covers the working torque for the operating envelope production demands.
  • Industrial 9 in. x 49 in. table — matching the workpiece library production milling targets, sized for the workholding patterns production milling depends on.
  • Tolerance-grade 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across production fabrication.

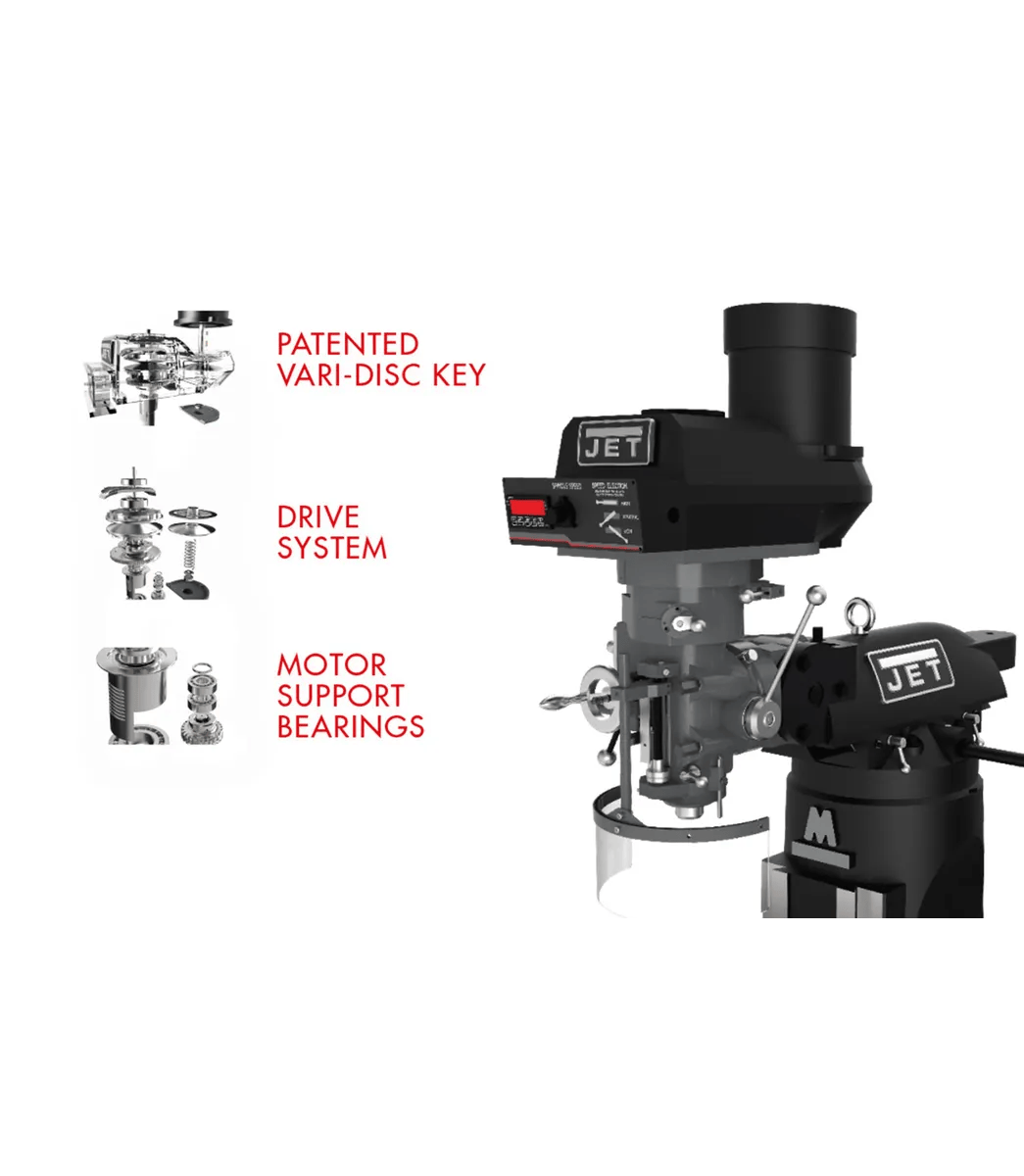

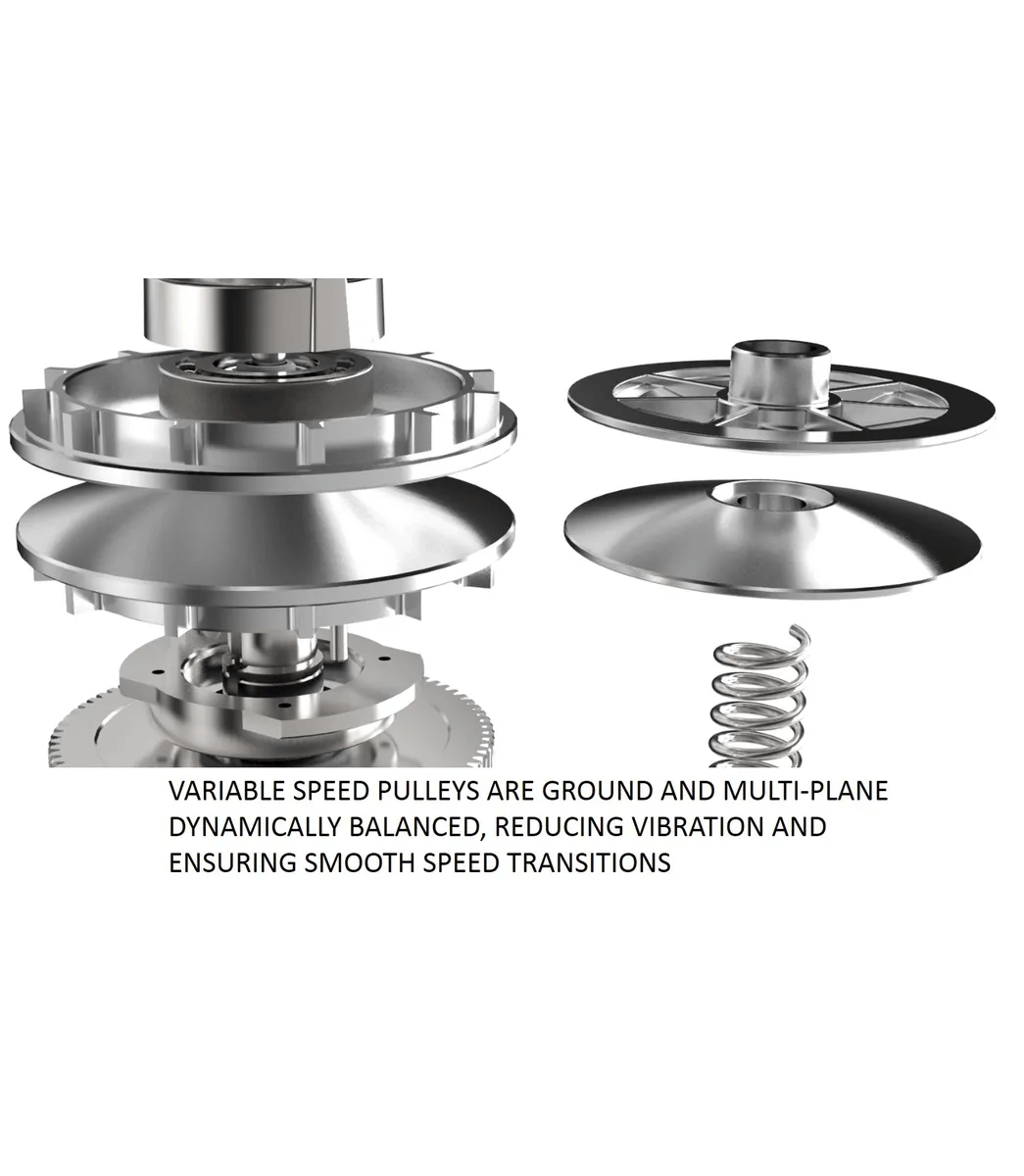

  • Premium-grade 60 - 4,500 RPM range — matching cut requirements without belt-pulley reconfiguration.

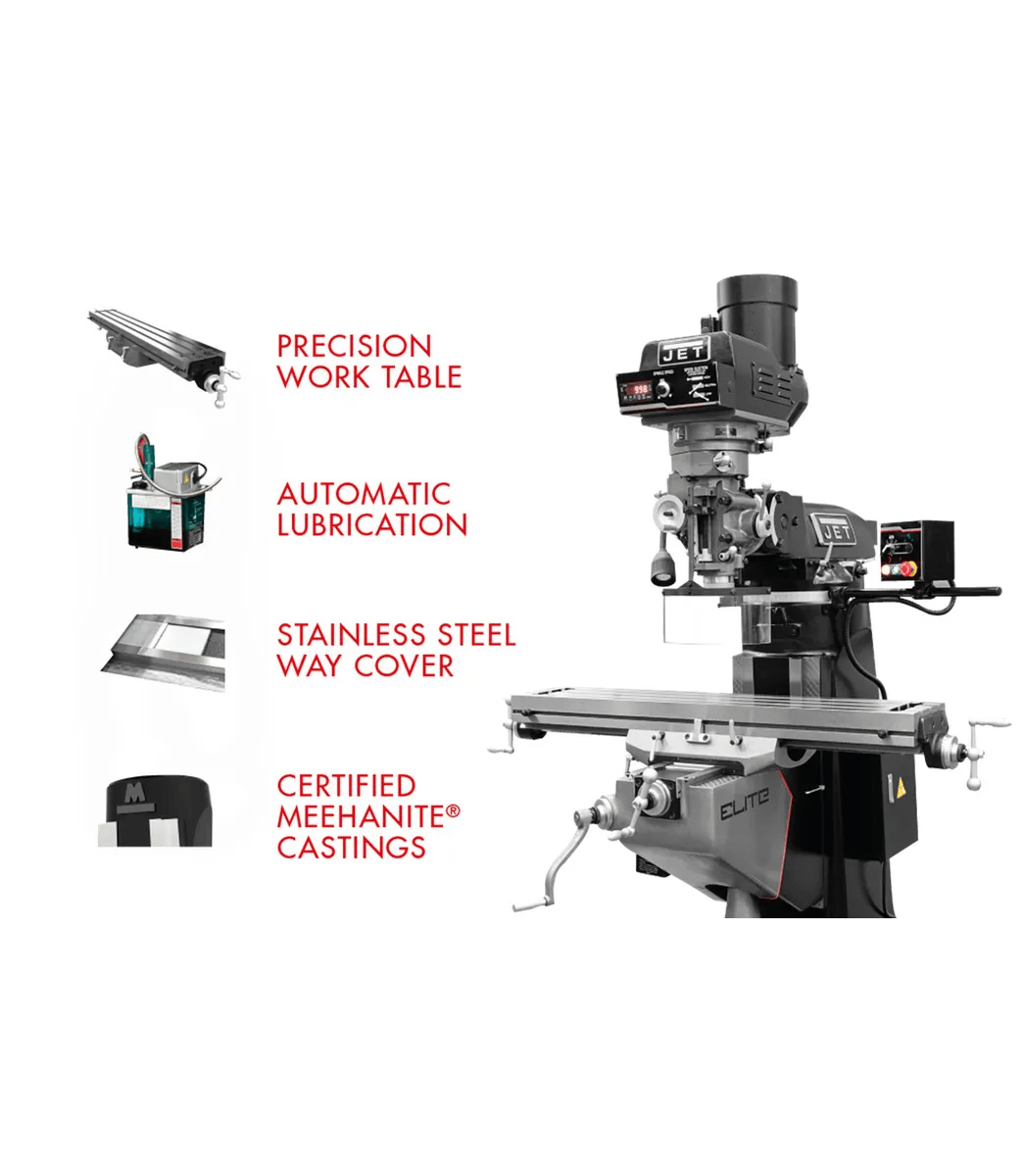

  • Meehanite-cast knee castings dampen vibration — delivering structural authority commercial-grade iron lacks.
  • Heat-treated, ground, and matched drive gears run as a precision system across industrial duty cycles.

Specifications

  • SKU
    JT9-894041
  • Air Powered Drawbar
    No
  • Amp Draw (amps)
    19 A
  • Assembled Dimensions
    64 x 66 x 84 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 3 Axis
  • Distance Spindle to Column (Max.)
    21-2/5 in.
  • Distance Spindle to Column (Min.)
    6 in.
  • Head Movement
    90 Deg. (R & L), 45 Deg. (F & B)
  • Maximum Distance Spindle To Table
    18-3/4 in.
  • Model Number
    ETM-949 CNC
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    894041
  • Product Type
    Machines
  • Prop 65
    Cancer
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    0.0015 - 0.003 - 0.006 IPR
  • Range Of Spindle Speeds
    60 - 4500 RPM
  • SAP Gross Weight
    2,600
  • SAP Net weight
    2,600
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    16 in.
  • Travel Of Ram
    14 in.
  • UPC
    731325290226
  • Warranty
    Three Years
  • Work Table Weight Capacity
    750 lbs
