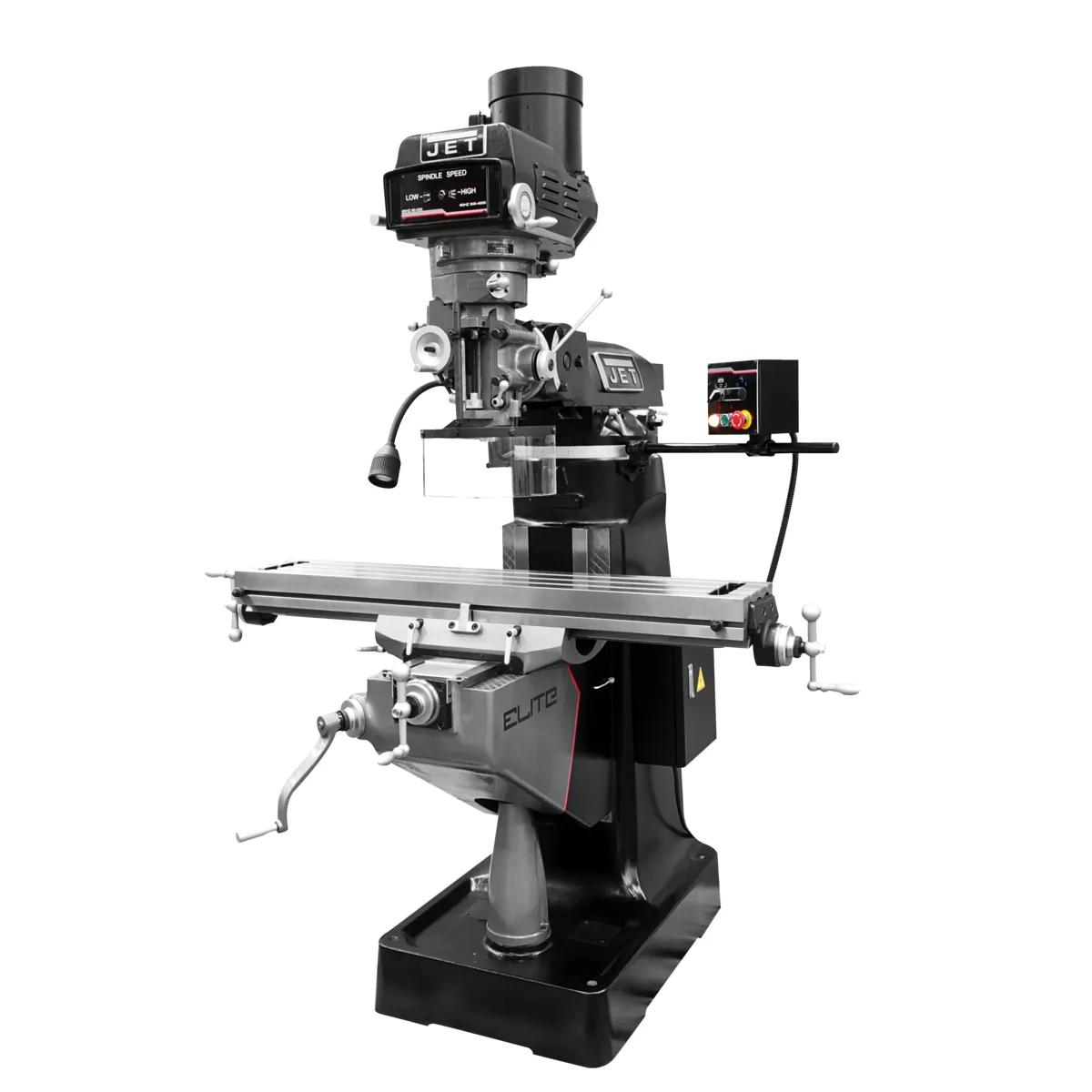

Product Details
Built around the spindle, the table, and the operator who runs them. Engineered around production shops that turn programs into parts daily, the ETM-949 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Production-grade 3 HP, 230V drive — outlasting brush-driven alternatives across decades.
- Industrial 9 in. x 49 in. table — accommodating the fixture-and-vise library most production shops keep, sized for the part library production milling actually runs.
- Continuous-duty 5-inch spindle travel — putting deep-hole work in reach without secondary setups across tool-room machining.
- 60 - 4,500 RPM envelope handles the speed range for the material library production shops actually run.

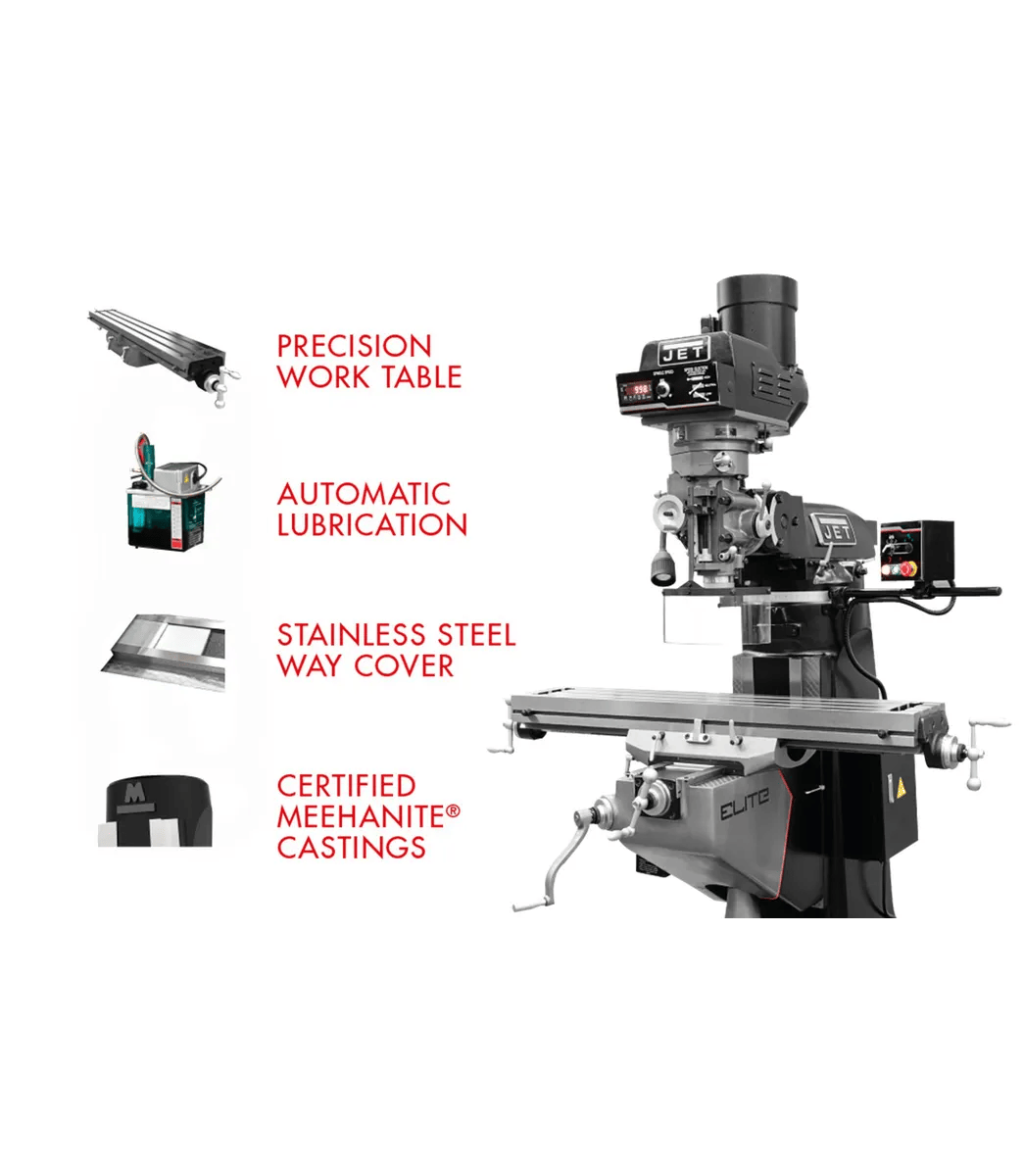

- Certified Meehanite reference surfaces cover structural authority for the structural authority production turning demands.
- Hardened and matched knee gears — transferring spindle torque without the wear softer drivetrains develop, sized for repeatable feed rates across long cycles.
Specifications
- SKUJT9-894168
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Newall NMS800(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Old Material Number894168
- Power FeedX-Axis/Y-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 4500 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287080
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
