9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)
9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)

9" x 49" Mill w/ 2-Axis ACU-RITE MILLPWR G2 CNC, 3HP, 230V 3PH(ETM-949EVS CNC)

Stock Number: JT9-894090

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Engineered for the long cuts and the tight tolerances. Engineered around fabrication and tool-room work that demands tolerance, the ETM-949EVS CNC earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Industrial-grade 3 HP three-phase drive — outlasting brush-driven alternatives across decades, built for service shops.
  • 9 in. x 49 in. working surface supports the fixture-and-vise library for the table-bolt patterns production shops already drill.
  • Industrial-spec 5-inch spindle travel — covering the depth-of-cut envelope production milling generates across tool-room machining.
  • Wide 60 - 5,000 RPM range — delivering operator-side speed control.

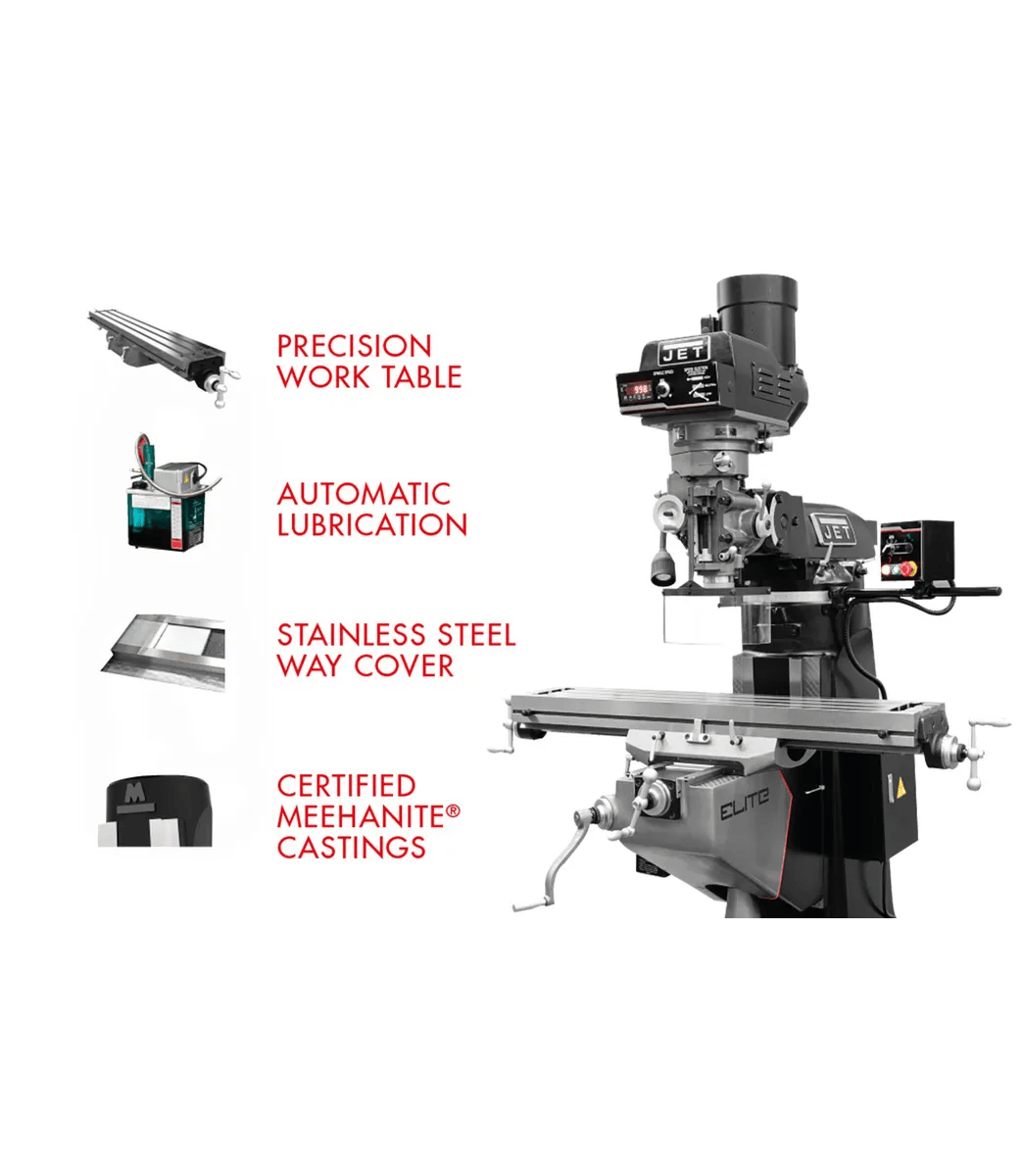

  • Industrial Meehanite saddle castings — holding true under loads that warp commercial-grade iron across tolerance-grade production.
  • Industrial-grade hardened table-feed gears run quieter and longer than commercial-grade alternatives across long service life.

Specifications

  • SKU
    JT9-894090
  • Air Powered Drawbar
    No
  • Amp Draw (amps)
    19 A
  • Assembled Dimensions
    64 x 66 x 84 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    Acu-Rite 2 Axis
  • Distance Spindle to Column (Max.)
    21-2/5 in.
  • Distance Spindle to Column (Min.)
    6 in.
  • Head Movement

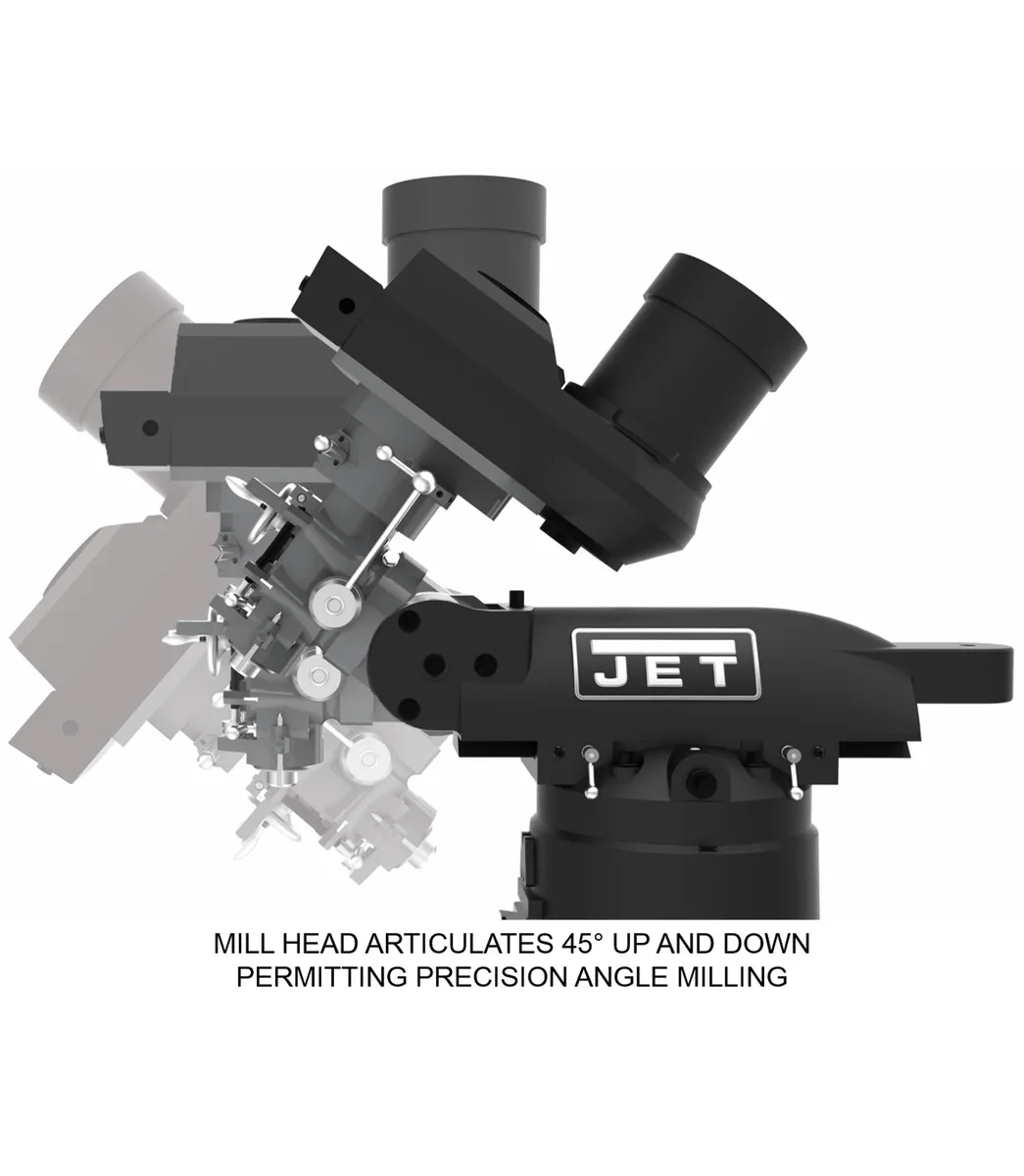

    90 Deg. (R & L), 45 Deg. (F & B)
  • Maximum Distance Spindle To Table
    18-3/4 in.
  • Model Number
    ETM-949EVS CNC
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    894090
  • Product Type
    Machines
  • Prop 65
    Cancer
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    0.0015 - 0.003 - 0.006 IPR
  • Range Of Spindle Speeds
    60 - 5000 RPM
  • SAP Gross Weight
    2,600
  • SAP Net weight
    2,600
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    16 in.
  • Travel Of Ram
    14 in.
  • UPC
    731325290233
  • Warranty
    Three Years
  • Work Table Weight Capacity
    750 lbs
