20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)
20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)

20" Vert. Bandsaw, 2HP, 230/460V 3PH(EVBS-20)

Stock Number: JT9-891100

0 Reviews

No reviews yet.

  • 2 HP, 230/460V, three-phase
  • Variable 50-5000 blade speed
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. Engineered around fabrication shops running daily cuts, the EVBS-20 earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

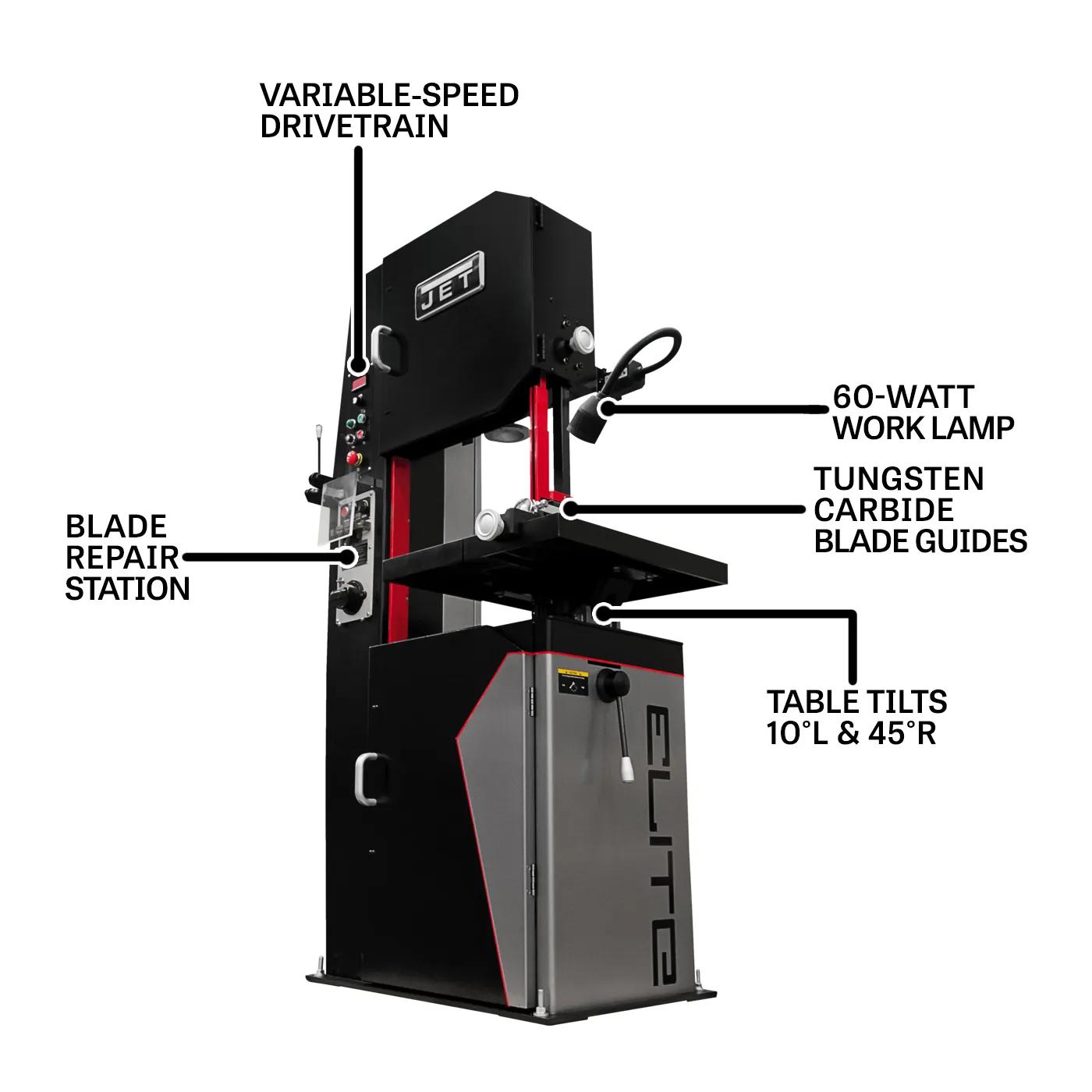

Features

  • 2 HP, 230/460V three-phase induction motor — holding speed under load when lighter motors stall, sized for the cycle counts industrial use generates.
  • Variable 50-5000 cutting speed — delivering the cutting velocity production fabrication requires across fabrication shops.
  • Continuous-duty saw frame provides blade alignment for cut quality consistency across long runs.

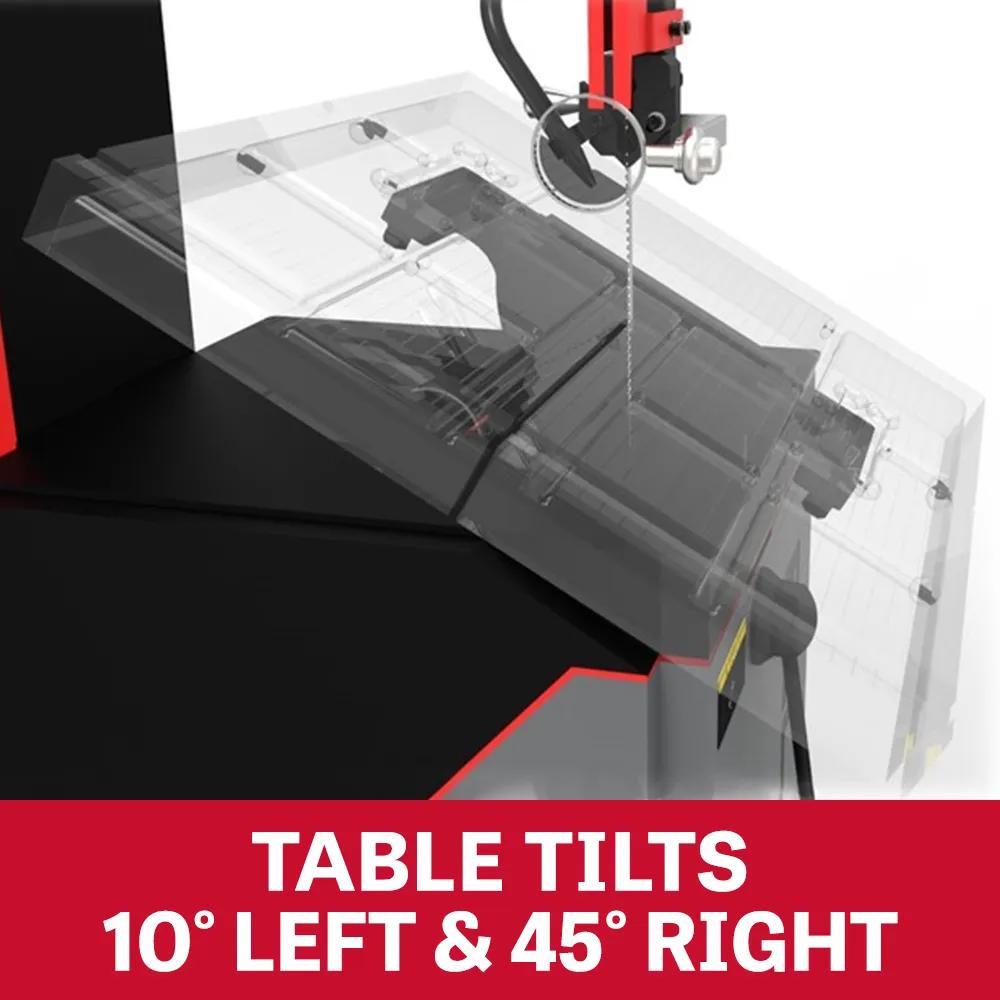

  • Professional-grade tilting table — extending the working envelope, engineered for miter and bevel cuts that defeat fixed-table saws.
  • Production-grade cutting envelope provides workpiece sizes for the workpiece sizes production sawing actually runs.

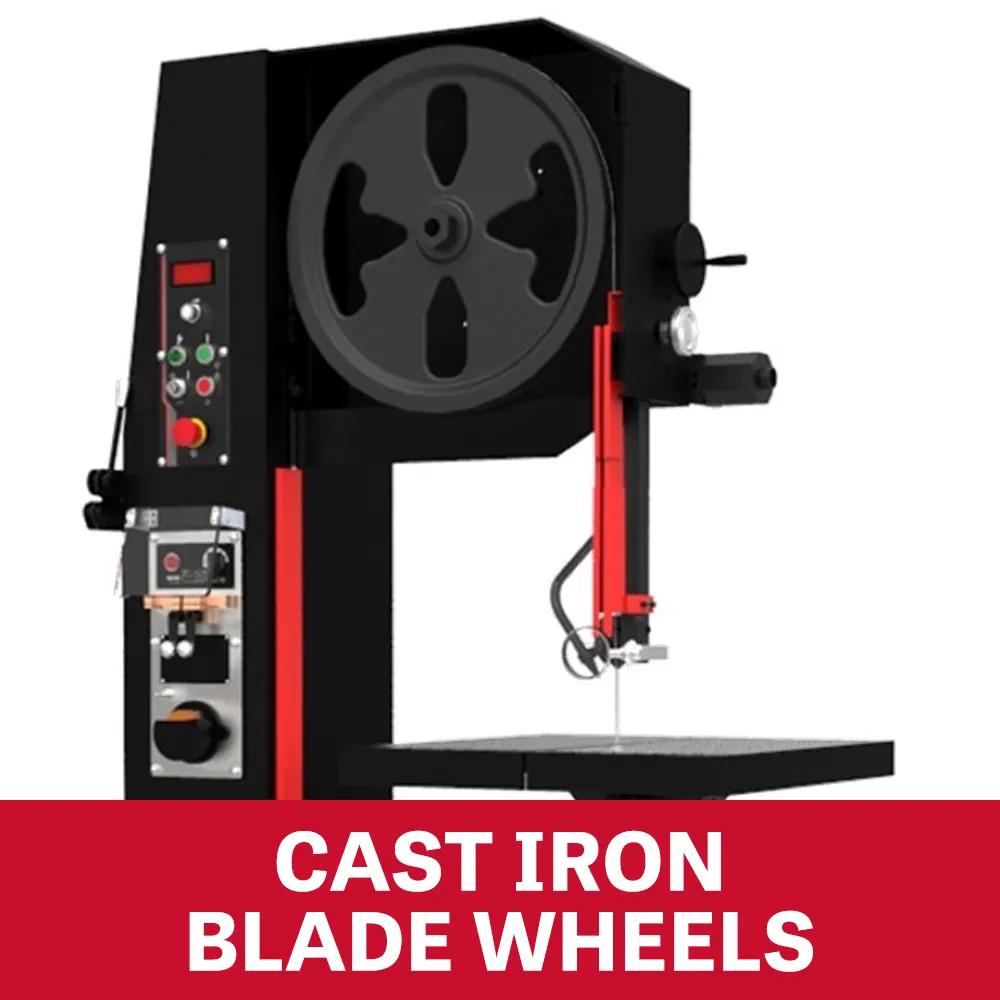

  • Industrial-grade cast iron frames earn their place for the structural stability shop work demands.

Specifications

  • SKU
    JT9-891100
  • Assembled Dimensions
    40 x 29 x 77-1/2 in.
  • Bed Height
    39-3/8 in.
  • Blade Length
    151-1/2 in.
  • Blade Speed
    Variable 50-5000
  • Blade Width
    1.125 in.
  • Cutting Capacity - Height
    7 in.
  • Drive Type
    Variable Speed
  • Height
    77-1/2 in.
  • Height Capacity Max
    13 in.
  • Horse Power
    1/8 HP
  • Input Power
    230/460 V 3 Ph
  • Model Number
    EVBS-20
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230/460 V
  • Old Material Number
    891100
  • Overall Assembled (Bow Lowered)
    50 x 31-1/2 x 72-29/64 in.
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    20 A
  • SAP Gross Weight
    1,400
  • SAP Net weight
    1,102
  • Table Height
    39-3/8 in.
  • Table Size
    24 x 22 in.
  • Throat Depth
    20 in.
  • UPC
    731325265606
  • Warranty
    Three Years

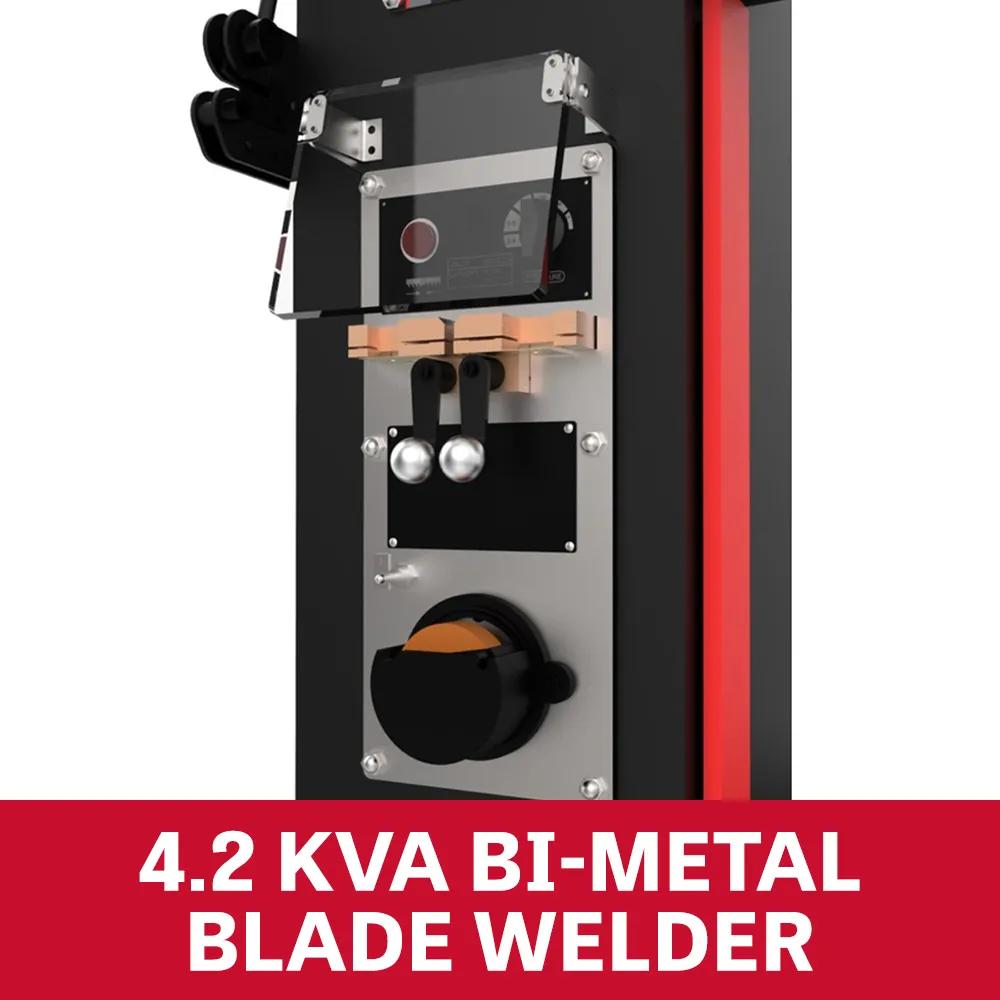

  • Welding Voltage V
    4.2 KVA Bi-Metal Welder
