Product Details
Cut quality starts with a saw built for the work. The EVBS-26 is built for shops cutting varied stock through long-cycle work. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Production-spec 2 HP drive provides consistent torque for industrial-grade duty cycles.
- Variable 50-5000 blade speed — covering hard and soft material cuts in one machine.
- Professional-grade saw frame supports blade alignment for blade-tracking accuracy production sawing requires.

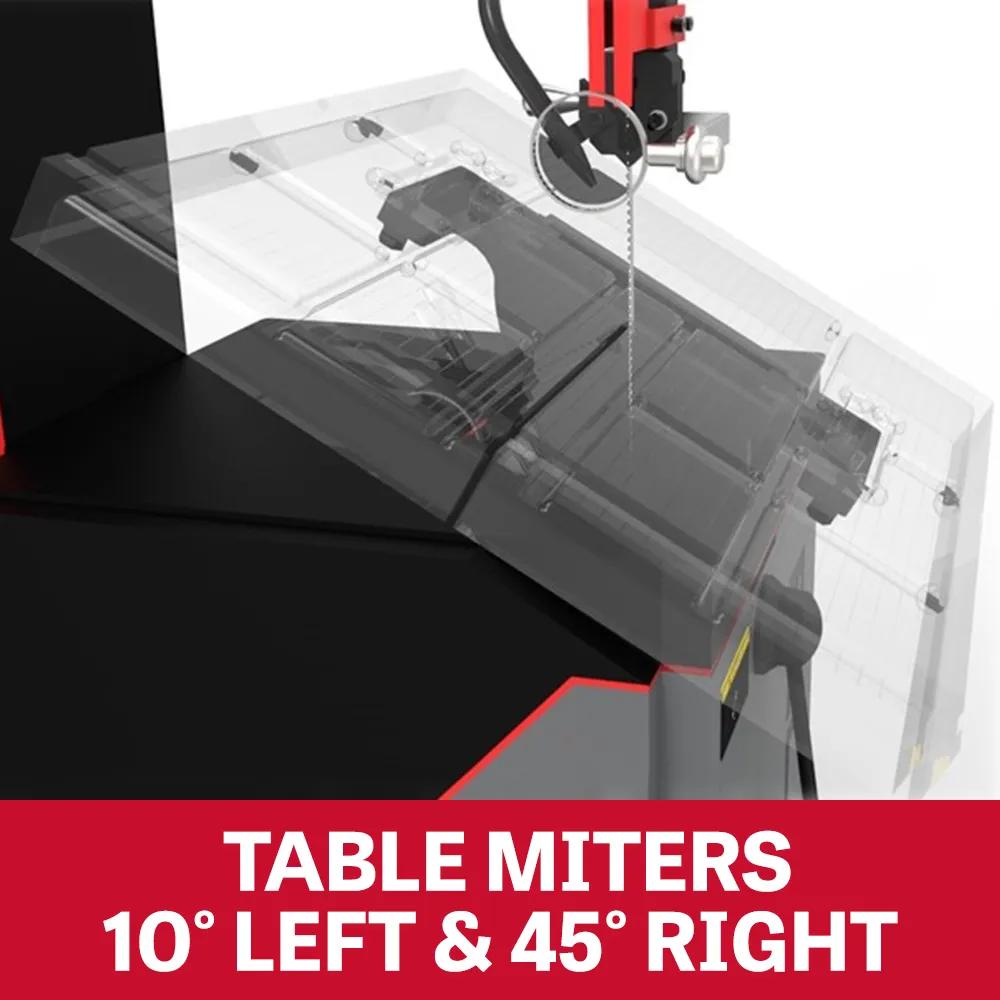

- Engineered tilting table — delivering angle accuracy precision work expects, engineered for miter and bevel cuts that defeat fixed-table saws.
- Premium-grade cutting envelope supports workpiece sizes for the workpiece sizes production sawing actually runs.
- Working-grade cast iron tables dampen harmonics across industrial tool-room work.
Specifications
- SKUJT9-891115
- Assembled Dimensions52 x 32 x 83-1/2 in.
- Bed Height39-3/8 in.
- Blade Length185-1/2 in.
- Blade SpeedVariable 50-5000
- Blade Width1.125 in.
- Cutting Capacity - Height7 in.
- Drive TypeVariable Speed
- Height83-1/2 in.
- Height Capacity Max14 in.
- Horse Power1/8 HP
- Input Power230/460 V 3 Ph
- Model NumberEVBS-26
- Motor HP2 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number891115
- Overall Assembled (Bow Lowered)51 x 32 x 83-1/2 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- SAP Gross Weight1,741
- SAP Net weight1,433
- Table Height39-3/8 in.
- Table Size27-1/2 x 23-1/2 in.
- Throat Depth26 in.
- UPC731325265613
- WarrantyThree Years
- Welding Voltage V4.2 KVA Bi-Metal Welder
