Product Details

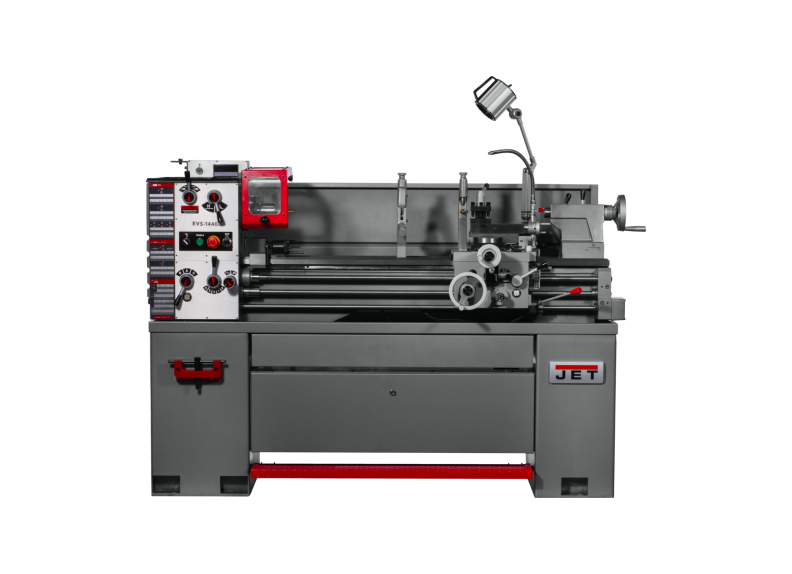

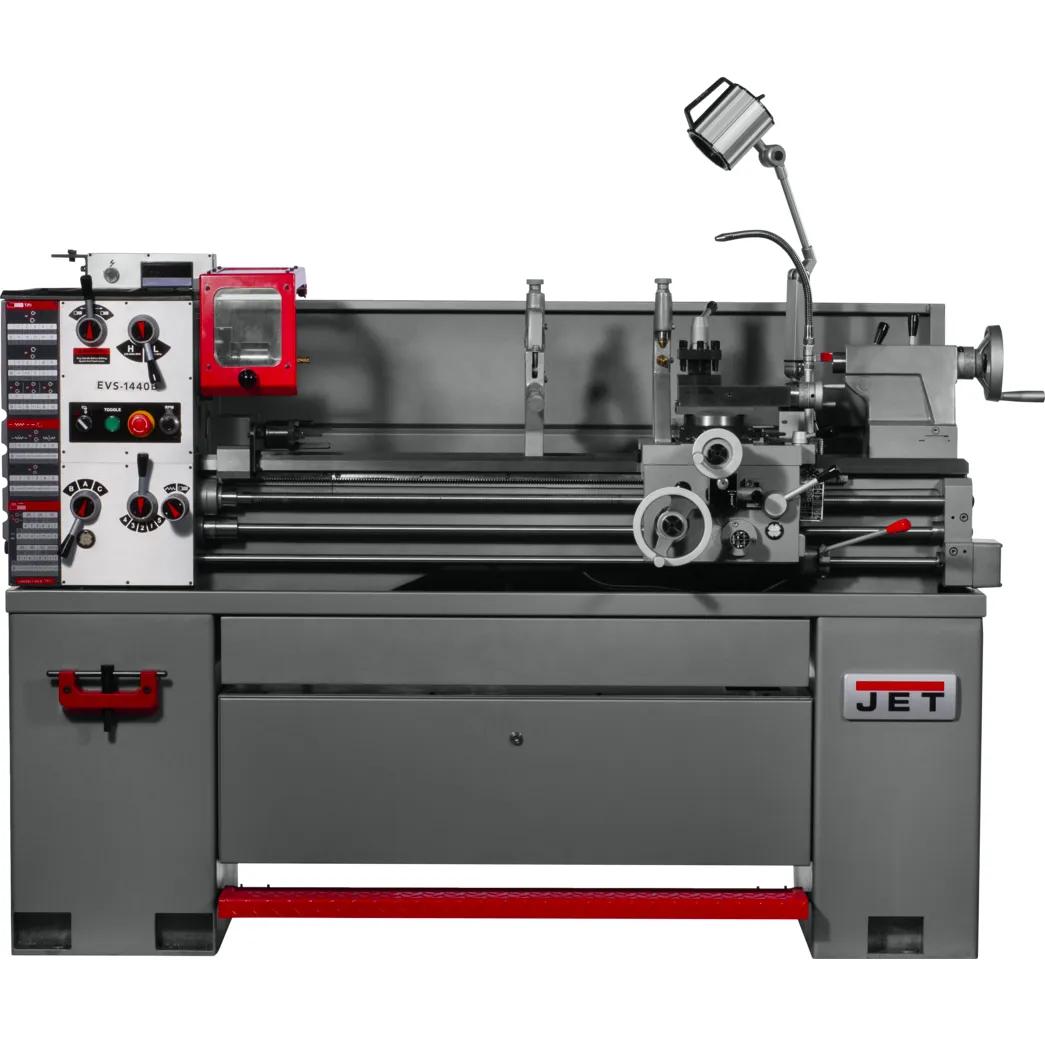

Compact footprint, shop-floor authority. The EVS-1440B fits industrial machine shops with daily turning work — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.
Features

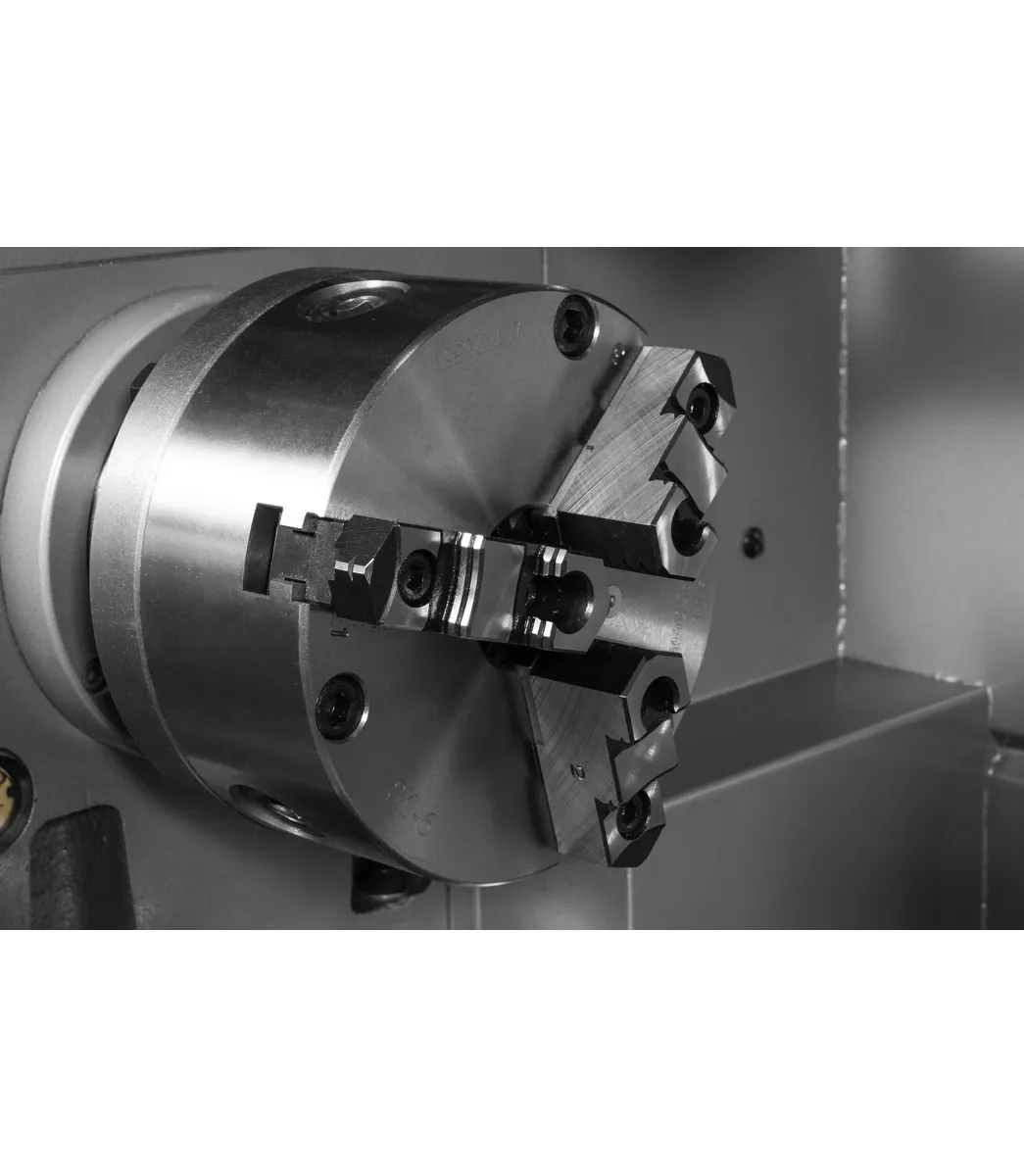

- Wide 14-inch swing-over-bed expands the working envelope for the chuck-and-faceplate library shops already maintain.
- Industrial 3 HP three-phase induction motor delivers torque for long-cycle production work.
- Generous 40 in. bed length covers shaft turning for repair and fabrication shaft work.
- Industrial-grade 1-9/16 in. spindle bore matches bar-feeding capacity for the bar-stock library production shops keep.
- Meehanite-cast load-bearing castings dampen vibration — delivering the rigidity production turning depends on.

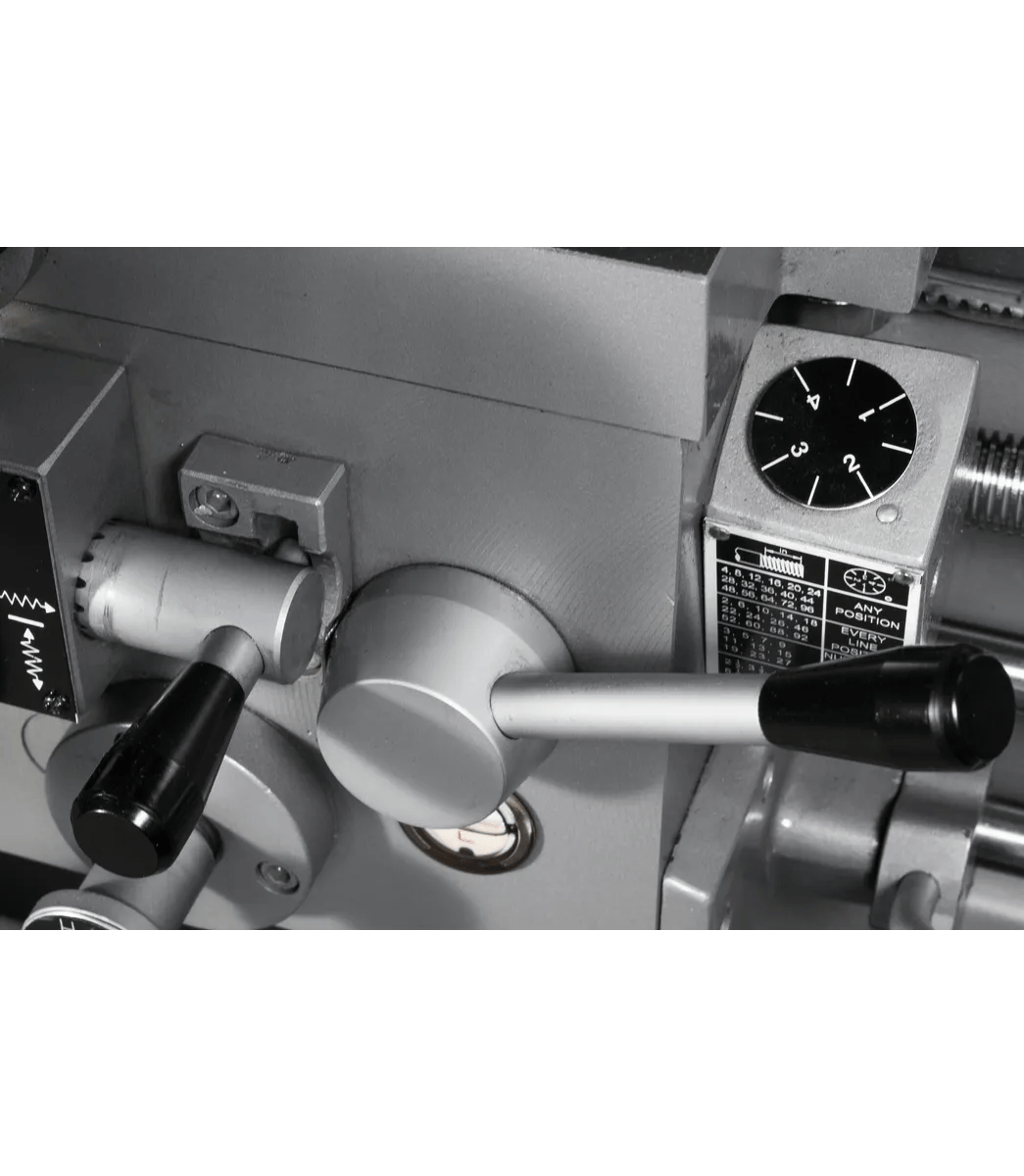

- Inch and metric thread capacity delivers threading work for fastener-grade thread cutting.
Specifications
- SKUJT9-311442
- Assembled Dimensions68.5 x 28.3 x 50 in.
- Carriage Travel35-1/2 in.

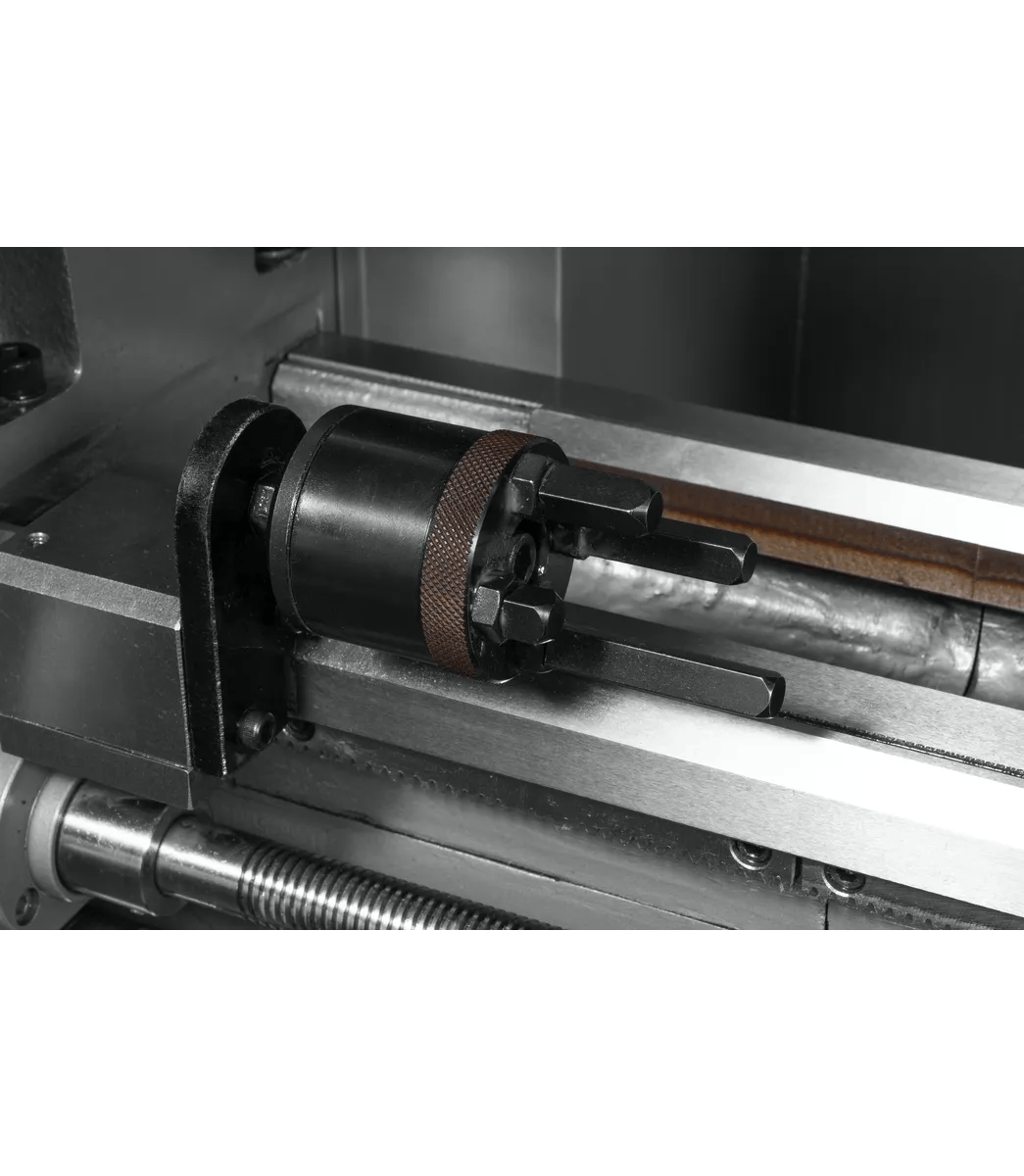

- Collet CloserYes
- Digital ReadoutNo
- Distance Between Centers40 in.
- Drive TypeEVS
- Lead Screw Diameter7/8 in.
- Leadscrew Thread Pitch8 TPI
- Length of Gap9-1/2 in.
- Maximum Tool Size3/4 x 3/4 in.
- Number of Inch Threads34
- Number of Longitudal And Cross Feed Rates25/25
- Number of Metric Threads34
- Old Material Number311442
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.0005 - 0.015 in./rev
- Range Of Inch Threads Tpi2 - 56 TPI
- Range Of Longitudal Feeds in/rev0.0016 - 0.046 IPR
- Range Of Spindle Speeds40 - 2000 RPM
- Range of Metric Threads0.5 - 12 mm
- SAP Gross Weight1,584
- SAP Net weight1,320
- Spindle Bore1-9/16 in.
- Spindle MountD1-4
- Spindle Taper with SleeveMT5

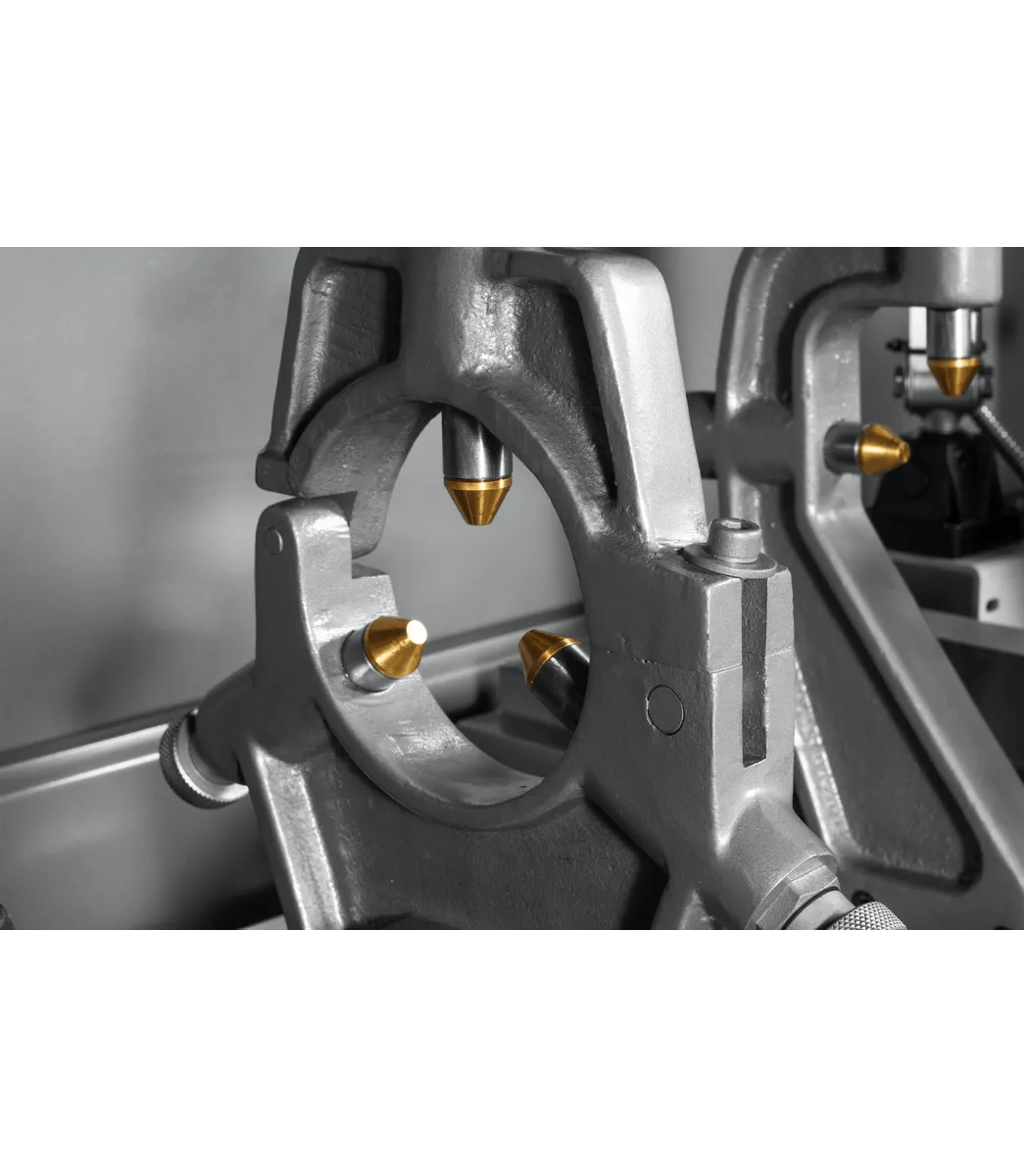

- Steady Rest Capacity0.23 - 0.61 in. Copper Shaft (Standard) 0.20 - 2.36 in. Bearing Roller (OP)
- Swing Over Bed14 in.
- Swing Through Gap19-1/2 in.
- Tailstock Spindle Travel4 in.
- Taper in Tailstock SpindleMT3
- UPC731325789690
- WarrantyTwo Years
- Width Of Bed7.48 in.
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
