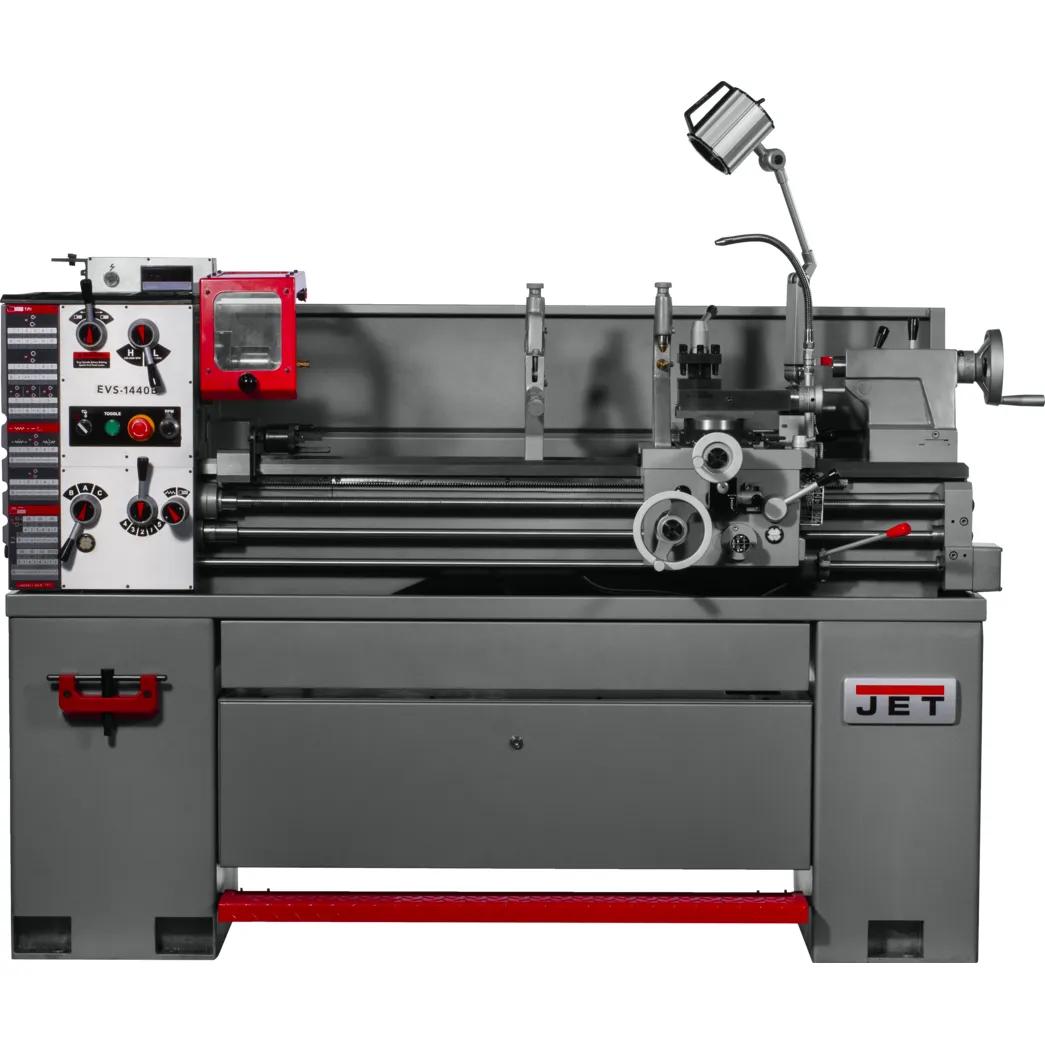

14" x 40" EVS Lathe w/ NMS800 DRO & Taper Attachment, 3HP, 230V 3PH(EVS-1440B)

Stock Number: JT9-311450

0 Reviews

No reviews yet.

  • 3 HP, 230/460V, three-phase
  • 14" swing, 40" centers
  • 1-9/16 in. spindle bore
  • 40-2000 RPM
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Bar work, shaft work, repair work — all covered. The EVS-1440B is built for shops that turn parts, repair shafts, and cut threads on the same machine. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the long cycles that define production turning.

Features

  • Continuous-duty 14-inch swing matches the chuck and tool-holding capacity for the workpiece diameters production turning generates.
  • 3 HP, 230/460V three-phase induction motor — holding speed under load when lighter motors stall, sized for the operating realities of production environments.
  • Industrial 40 in. bed length covers long-shaft work for center-and-tail work across the full bed.
  • Tolerance-grade 1-9/16 in. spindle bore delivers bar-feeding capacity for long-bar work production turning generates.
  • Certified Meehanite headstock castings support structural authority for the structural rigidity tolerance-grade work demands.

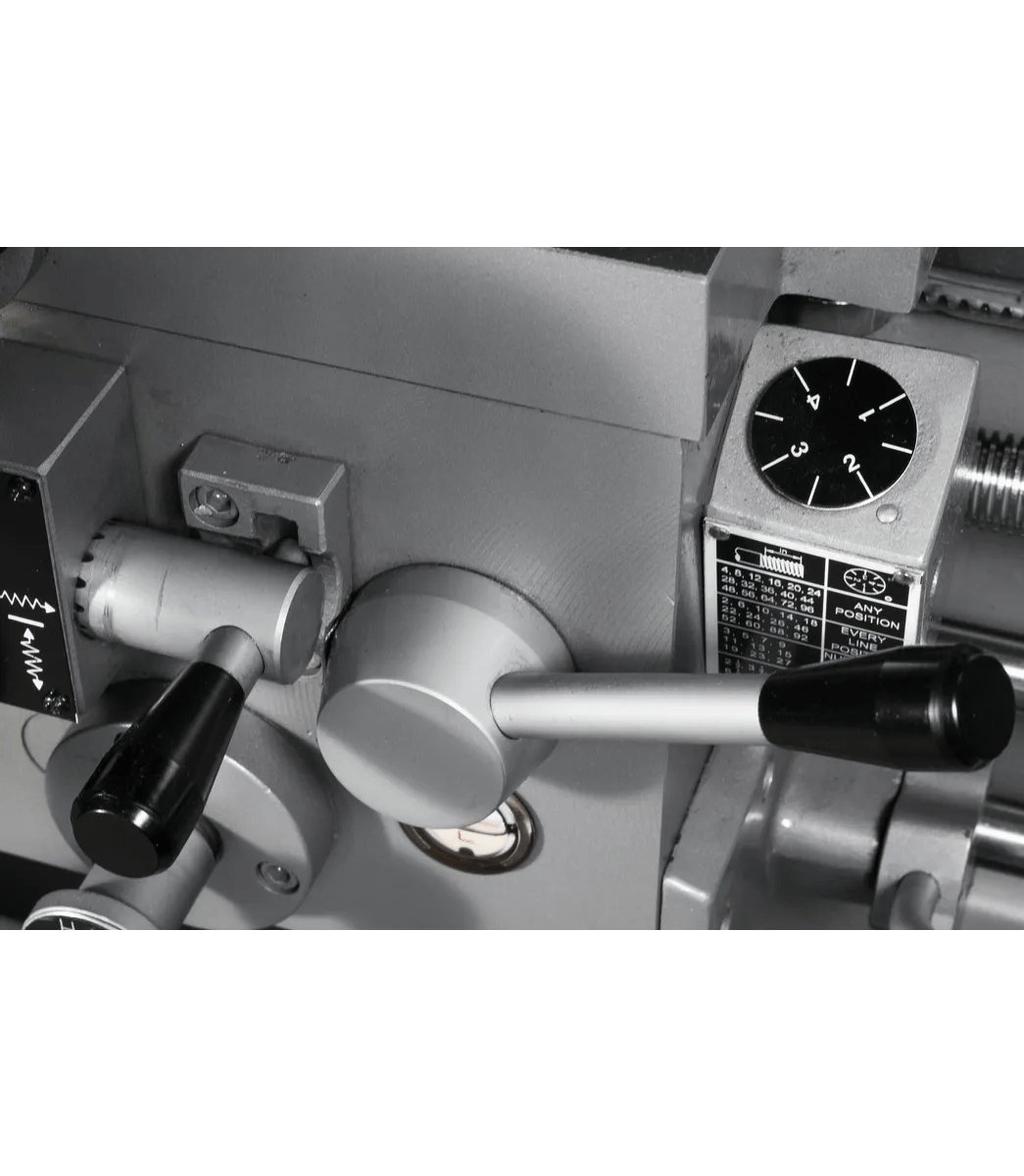

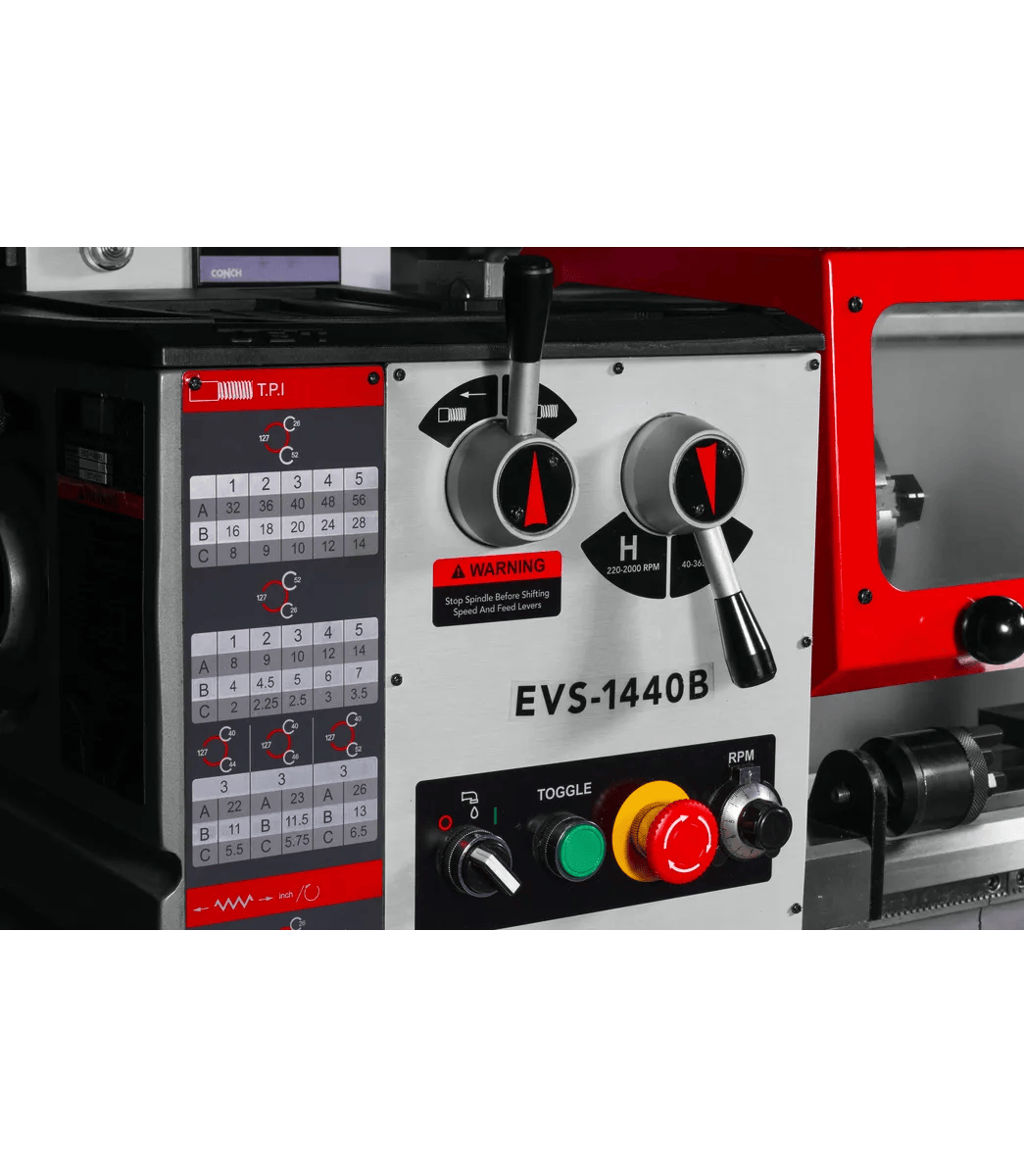

  • Hardened thread-cutting gear set delivers repeatable thread quality for fastener-grade thread cutting.

Specifications

  • SKU
    JT9-311450
  • Assembled Dimensions
    68.5 x 28.3 x 50 in.
  • Carriage Travel
    35-1/2 in.
  • Collet Closer
    No
  • Compound Slide Travel
    3-1/2 in.
  • Cross Slide Travel
    6-1/8 in.
  • Digital Readout
    Newall DP700 DRO
  • Distance Between Centers
    40 in.
  • Drive Type
    EVS
  • Lead Screw Diameter
    7/8 in.
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap
    9-1/2 in.
  • Maximum Tool Size
    3/4 x 3/4 in.
  • Number of Inch Threads
    34
  • Number of Longitudal And Cross Feed Rates
    25/25
  • Number of Metric Threads
    34
  • Old Material Number
    311450
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.0005 - 0.015 in./rev
  • Range Of Inch Threads Tpi
    2 - 56 TPI
  • Range Of Longitudal Feeds in/rev
    0.0016 - 0.046 IPR
  • Range Of Spindle Speeds
    40 - 2000 RPM
  • Range of Metric Threads
    0.5 - 12 mm
  • SAP Gross Weight
    1,584
  • SAP Net weight
    1,320
  • Spindle Bore
    1-9/16 in.
  • Spindle Mount
    D1-4
  • Spindle Taper with Sleeve
    MT5

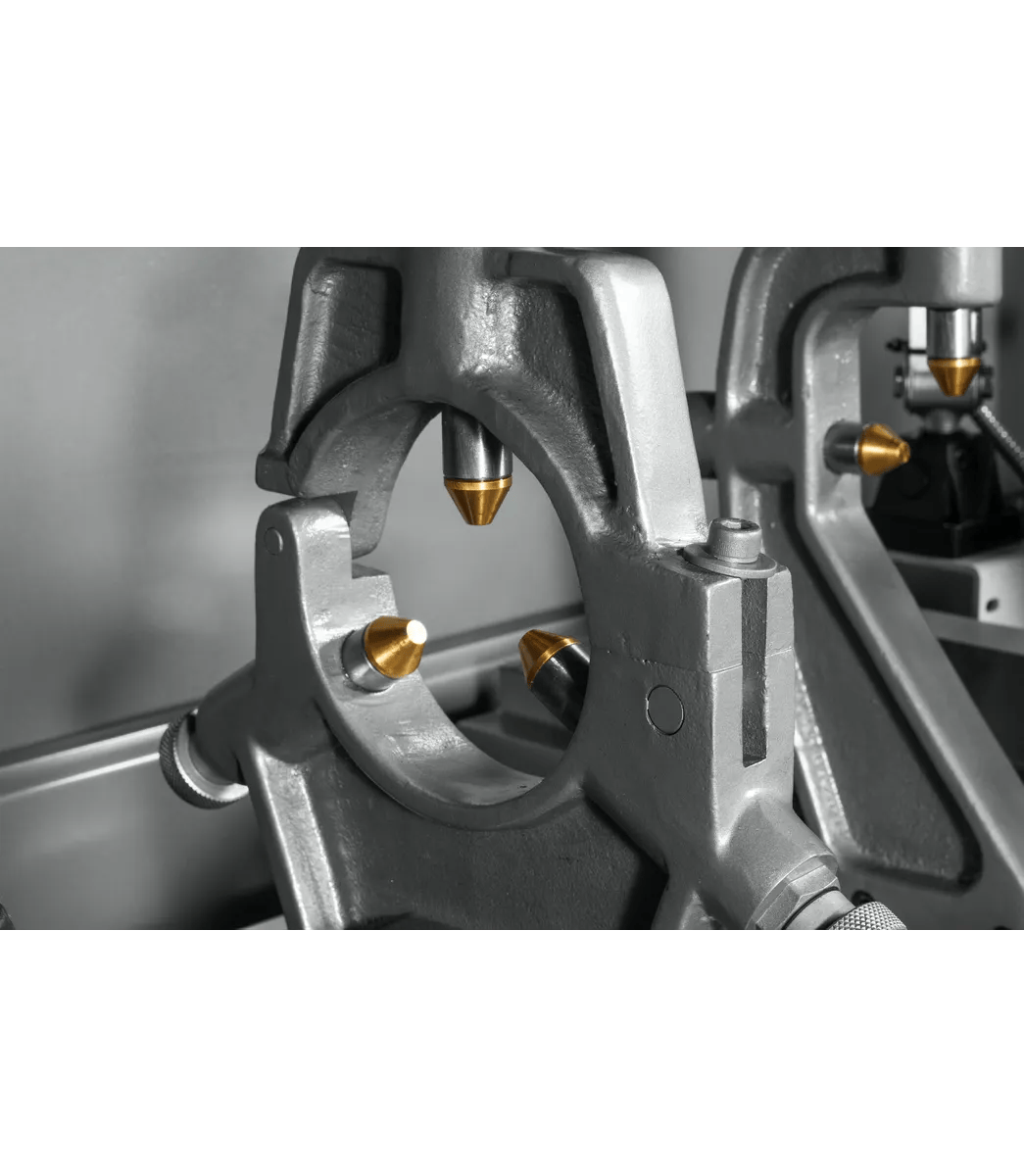

  • Steady Rest Capacity
    0.23 - 0.61 in. Copper Shaft (Standard) 0.20 - 2.36 in. Bearing Roller (OP)
  • Swing Over Bed
    14 in.
  • Swing Over Cross Slide
    9-1/16 in.
  • Swing Through Gap
    19-1/2 in.
  • Tailstock Spindle Travel
    4 in.
  • Taper Attachment
    Yes
  • Taper in Tailstock Spindle
    MT3
  • UPC
    731325792034
  • Warranty
    Two Years
  • Width Of Bed
    7.48 in.
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
