Product Details

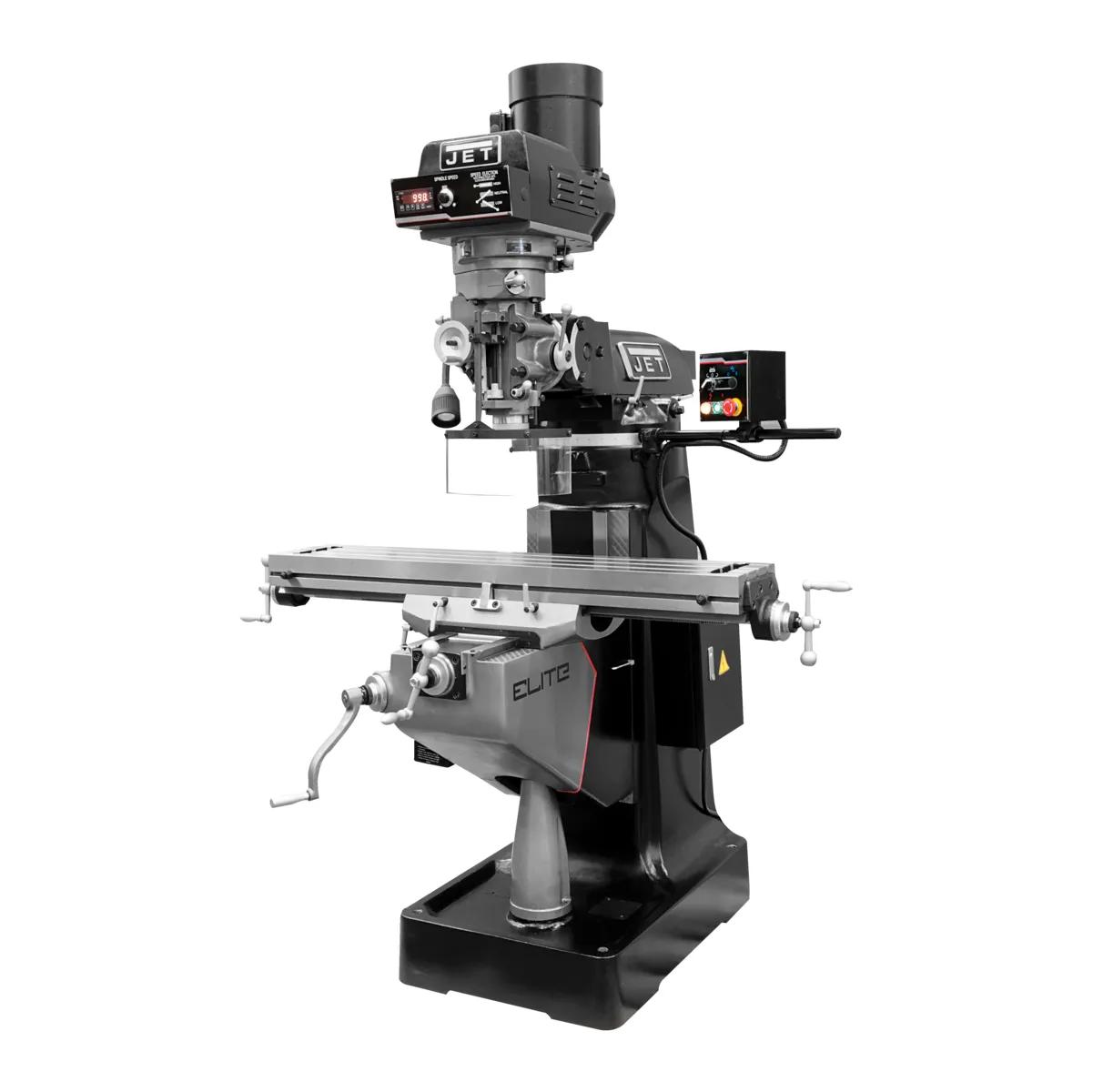

Built around the spindle, the table, and the operator who runs them. Engineered around machinists who measure success in tenths, the EVS-949 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.
Features
- Premium-grade 3 HP induction motor — holding speed under load when lighter motors stall, engineered for mixed-material work envelopes.
- 9 in. x 49 in. working surface handles the fixture-and-vise library for the workholding patterns production setups generate.
- Shop-rated 5-inch spindle travel — delivering vertical reach production work actually requires across industrial drilling.
- Wide 60 - 5,000 RPM range — handling slow torque-heavy work and high-speed finishing in one machine.
- Aged-and-stress-relieved Meehanite column castings stay true for tolerance retention through years of cycles.
- Hardened and ground drive gears keep the drivetrain transmitting power for the dimensional stability precision work demands.
Specifications
- SKUJT9-894330
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2-Axis Acu-Rite 303
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894330
- Power FeedNo
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287424
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
