Product Details

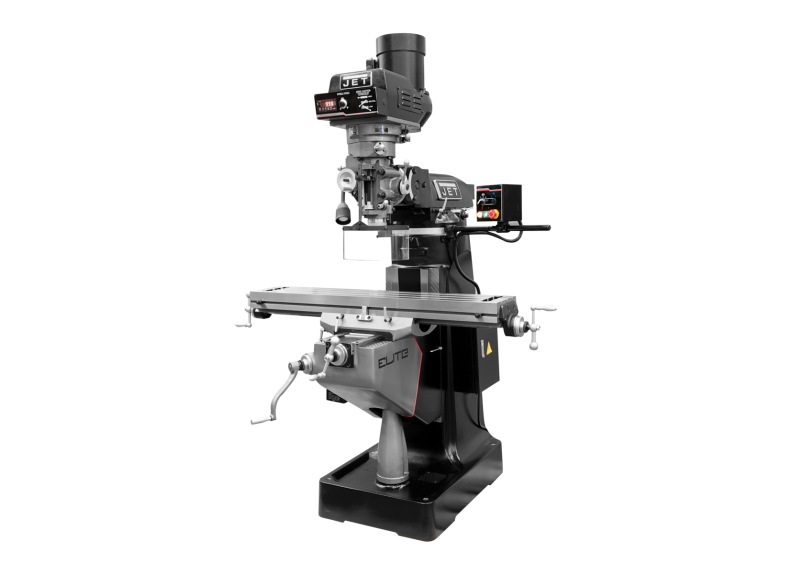

The mill is where the work gets defined. The EVS-949 answers the work generated by industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Industrial-grade 3 HP three-phase drive — running tens of thousands of hours without service intervention, built for working shops.
- 9 in. x 49 in. table surface supports the workpiece sizes for the workholding patterns production milling depends on.
- Shop-rated 5-inch spindle travel — covering the workpiece envelope this machine targets across industrial drilling.
- 60 - 5,000 RPM envelope matches the speed range for the cutting envelope production cuts demand.
- Aged-and-stress-relieved Meehanite knee castings stay true for the structural rigidity tolerance-grade work demands.
- Premium-grade hardened and ground spindle bearings deliver dimensional stability for the cut quality production work depends on.
Specifications
- SKUJT9-894332
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2-Axis Acu-Rite 303
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Net Weight2,200
- Number of Axis2
- Old Material Number894332
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287448
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
