Product Details

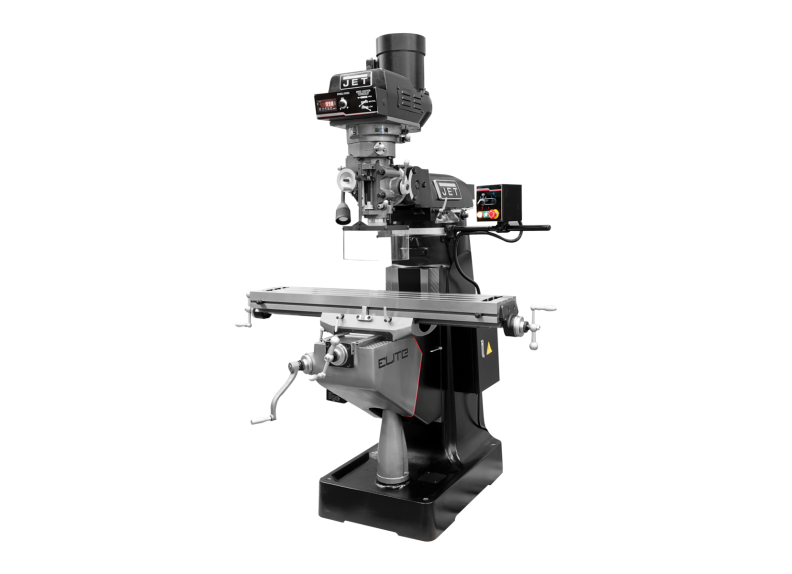

Rigid construction, accurate cuts, repeatable results. The EVS-949 answers the work generated by production shops that turn programs into parts daily. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.
Features
- Industrial 3 HP drive delivers consistent torque for the power output industrial cutting requires.
- Industrial 9 in. x 49 in. table — delivering the workholding capacity production work demands, sized for the workpiece sizes production milling demands.
- Industrial-spec 5-inch spindle travel — putting deep-hole work in reach without secondary setups across industrial drilling.
- Spindle RPM range of 60 - 5,000 matches the cuts for the working envelope production cutting generates.
- Industrial Meehanite bed castings — outlasting commercial-grade iron in the same operating envelope, sized for the structural rigidity tolerance-grade work demands.
- Hardened-steel gear sets cover the working precision for the cycle counts industrial use generates.
Specifications
- SKUJT9-894352
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout2-Axis Newall NMS800
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis2
- Old Material Number894352
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287646
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
