Product Details

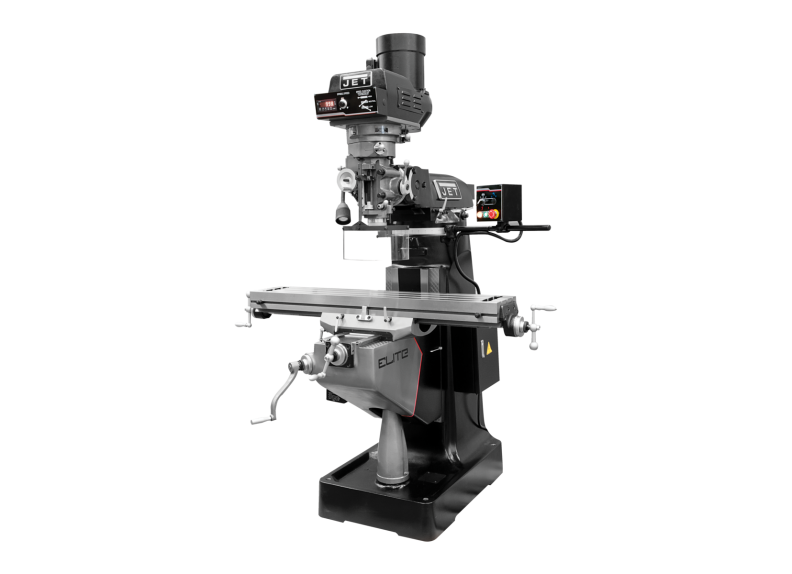

Built around the spindle, the table, and the operator who runs them. Engineered around industrial machining environments running long-cycle production, the EVS-949 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.
Features
- 3 HP, 230V three-phase induction motor — standing up to the dust, chips, and humidity of working shops, sized for full-capacity production runs.
- 9 in. x 49 in. table surface provides the workpiece sizes for the part library production milling actually runs.
- Industrial-spec 5-inch spindle travel — handling the depth-of-cut production demands across industrial drilling.
- Spindle RPM range of 60 - 5,000 matches the cuts for the material library production shops actually run.
- Certified Meehanite column castings resist wear and deflection for finish quality production cutting requires.
- Surface-ground drive train components deliver dimensional stability for finish quality across long production runs.
Specifications
- SKUJT9-894325
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Acu-Rite 203(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Knee)
- Old Material Number894325
- Power FeedX-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287370
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
