Product Details

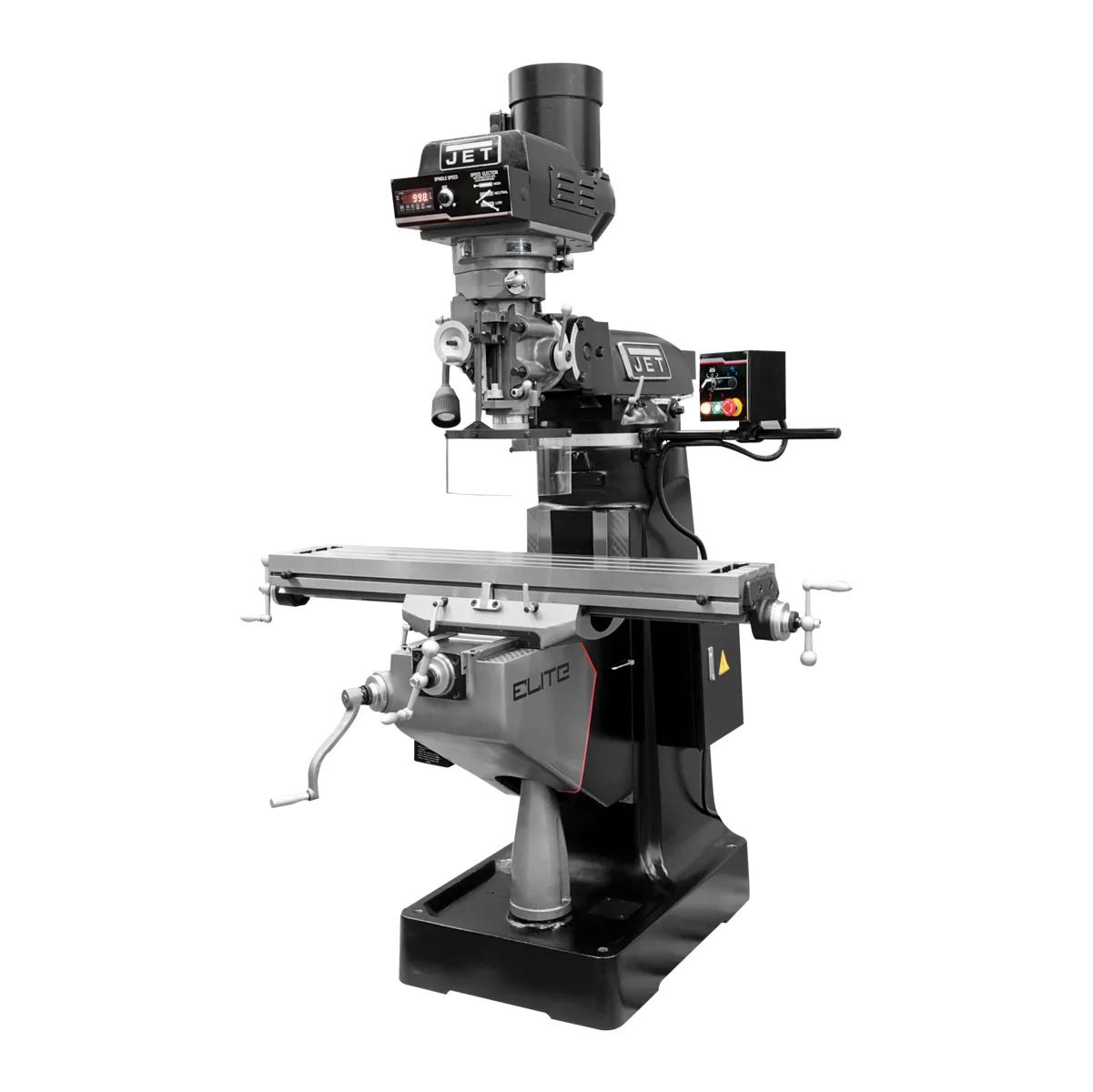

Built for the milling that turns programs into parts. Designed for fabrication and tool-room work that demands tolerance, the EVS-949 stands up to the duty cycle. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Production-grade 3 HP, 230V drive — holding RPM under cutting load that would stall lighter motors.
- Industrial 9 in. x 49 in. table — matching the workpiece library production milling targets, sized for the table-bolt patterns production shops already drill.
- Industrial 5-inch spindle travel — putting deep-hole work in reach without secondary setups across tool-room machining.
- Speeds across 60 - 5,000 RPM match cut requirements for the speed range production work generates.
- Certified Meehanite knee castings support structural authority for the precision work production turning generates.
- Heat-treated feed gears hold spec — transmitting power without slop or drift across industrial duty cycles.
Specifications
- SKUJT9-894326
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Acu-Rite 203(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Knee)
- Old Material Number894326
- Power FeedX-Axis/Y-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287387
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
