Product Details

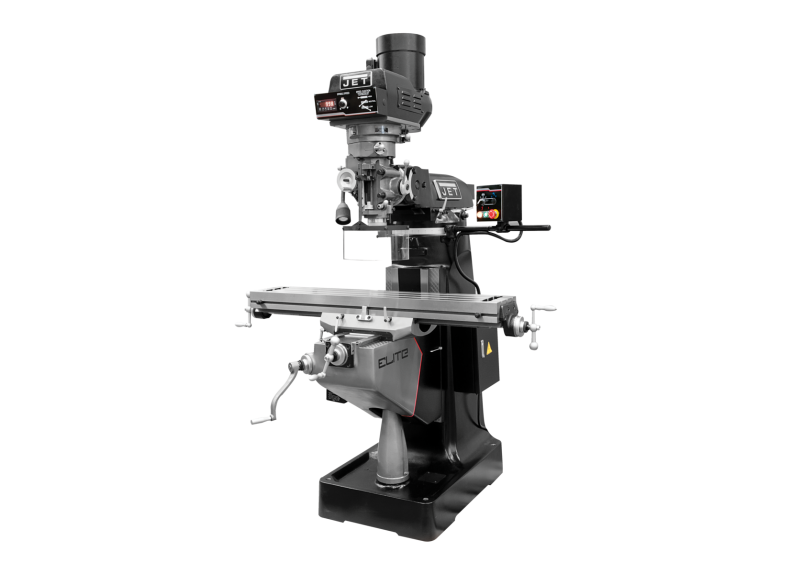

Built for the milling that turns programs into parts. The EVS-949 fits machinists who measure success in tenths — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production cells running.
Features
- The 3 HP, 230V induction motor handles full-capacity passes for full-shift continuous operation.
- Industrial 9 in. x 49 in. table — delivering the fixture mounting flexibility production work demands, sized for the workholding patterns production setups generate.
- Heavy-duty 5-inch spindle travel — expanding the working envelope without sacrificing stroke control across industrial drilling.
- Speeds across 60 - 5,000 RPM match cut requirements for the cutting envelope production cuts demand.
- Certified Meehanite column castings resist wear and deflection for the harmonic dampening fine-finish work demands.
- Heat-treated and surface-ground Z-axis gears resist wear across production cutting environments.
Specifications
- SKUJT9-894348
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Acu-Rite 303(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Knee)
- Old Material Number894348
- Power FeedX-Axis/Y-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287608
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
