Product Details

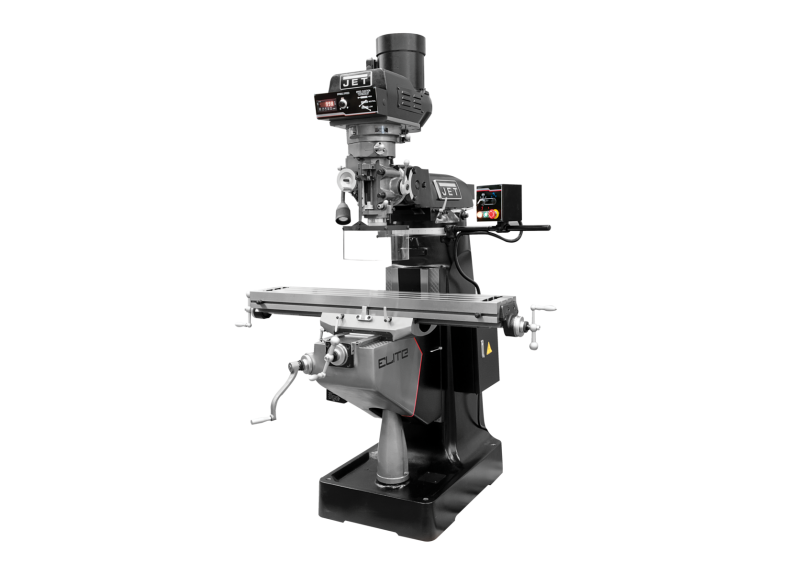

Built around the spindle, the table, and the operator who runs them. The EVS-949 is built for production shops that turn programs into parts daily. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.
Features
- Engineered 3 HP three-phase induction drive: running cooler under sustained load than equivalents, sized for full-shift continuous operation.
- Factory-tested 9 in. x 49 in. table accommodates production setups for the workpiece sizes production milling actually generates.
- Working-grade 5-inch spindle travel — delivering vertical reach production work actually requires across tool-room machining.
- Spindle RPM range of 60 - 5,000 matches the cuts for the cutting envelope production cuts demand.
- Engineered Meehanite bed castings — absorbing the cutting harmonics that compromise finish quality, sized for the harmonic dampening fine-finish work demands.
- Engineered hardened and ground drive components deliver dimensional stability for the dimensional stability precision work demands.
Specifications
- SKUJT9-894339
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Acu-Rite 303(Quill)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Quill)
- Old Material Number894339
- Power FeedX-Axis (JET)
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287516
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
