Product Details

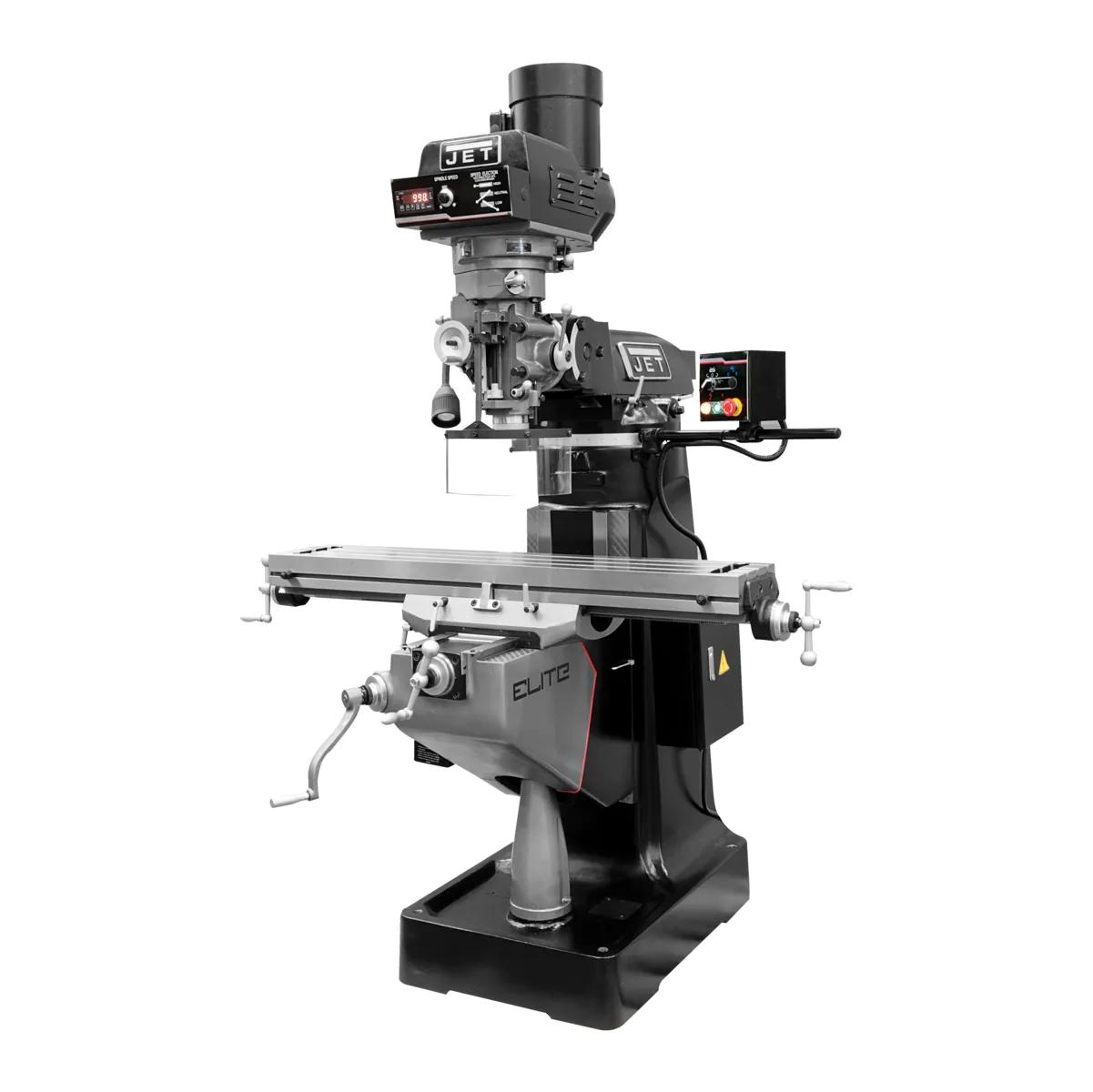

Engineered for the long cuts and the tight tolerances. The EVS-949 was sized for industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by industrial-grade warranty.
Features
- Industrial 3 HP induction motor: delivering full nameplate output, designed for high-volume working environments.
- 9 in. x 49 in. working surface delivers the fixture-and-vise library for the workpiece sizes production milling demands.
- Continuous-duty 5-inch spindle travel — handling the depth-of-cut production demands across production fabrication.
- Operating range of 60 - 5,000 RPM covers the cuts for the material library production shops actually run.
- Meehanite main castings handle the rigidity for the structural authority production turning demands.
- Surface-ground gear sets support dimensional stability without the slop softer drivetrains develop.
Specifications
- SKUJT9-894365
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Newall NMS800(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Knee)
- Old Material Number894365
- Power FeedNo
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287776
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
