Product Details

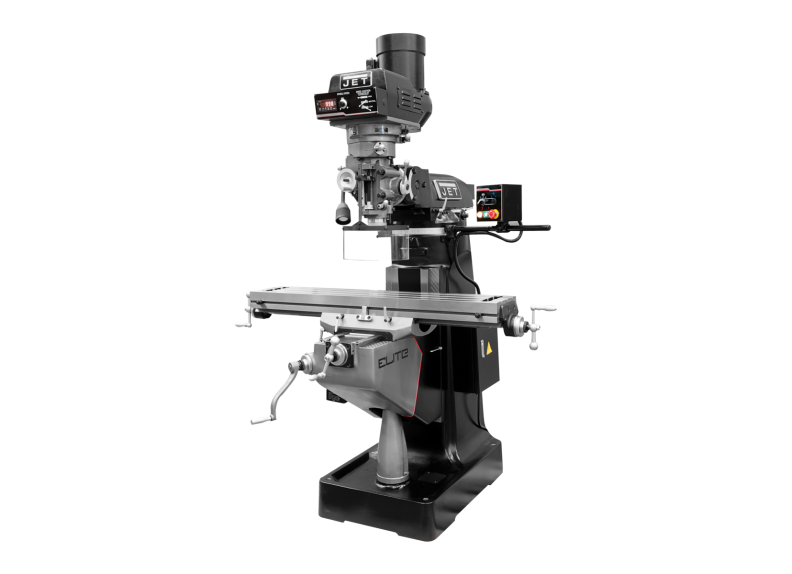

Built around the spindle, the table, and the operator who runs them. The EVS-949 fits machinists who measure success in tenths — and the cycle counts they generate. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production work actually generates.
Features
- Heavy-duty 3 HP induction motor — running quieter and cooler than equivalent open-frame designs, engineered for the operating realities of production environments.
- Industrial 9 in. x 49 in. table — expanding the workholding envelope without sacrificing rigidity, sized for the fixture-and-vise setups operators already use.
- Industrial-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across industrial drilling.
- Speeds across 60 - 5,000 RPM match cut requirements for slow torque-heavy work and high-speed finishing in one machine.
- Meehanite-cast bed castings dampen vibration — running cooler under sustained loads than commercial-grade castings.
- Hardened and ground drive gears keep the drivetrain transmitting power for the cut quality production work depends on.
Specifications
- SKUJT9-894366
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Newall NMS800(Knee)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Knee)
- Old Material Number894366
- Power FeedX-Axis
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287783
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
