Product Details

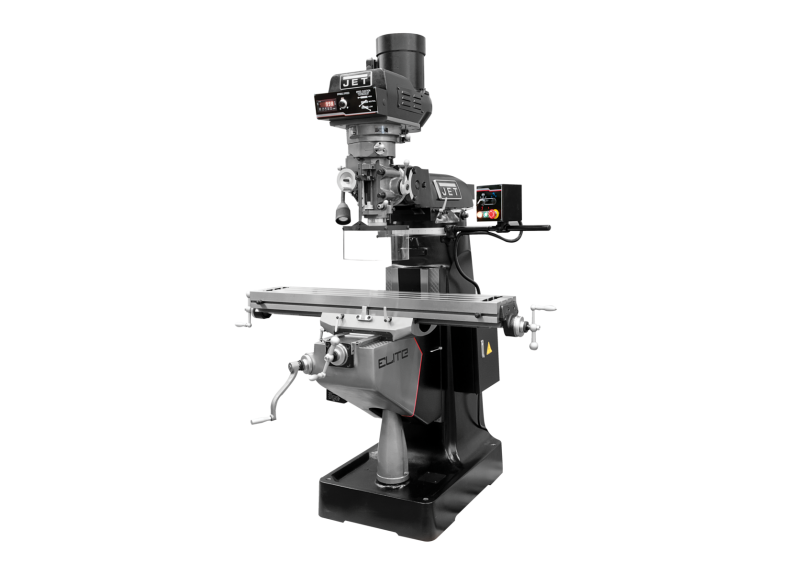

Where setups become parts. The EVS-949 was sized for industrial machining environments running long-cycle production. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.
Features
- Industrial 3 HP induction motor: running tens of thousands of hours without service intervention, designed for high-volume working environments.
- Industrial 9 in. x 49 in. table — covering the workpiece sizes daily milling generates, sized for the table-bolt patterns production shops already drill.
- Shop-rated 5-inch spindle travel — expanding the operating envelope without compromise across production milling.
- 60 - 5,000 RPM envelope provides the speed range for variable cuts across hardwood, steel, and aluminum.
- Certified Meehanite bed castings provide structural authority for the dimensional stability tolerance work measures.
- Hardened and ground feed gears keep the drivetrain transmitting power for power-transmission accuracy production work depends on.
Specifications
- SKUJT9-894358
- Assembled Dimensions64 x 66 x 84 in.
- Collet Size1/8 - 7/8 in.
- Digital Readout3 Axis Newall NMS800(Quill)
- Distance Spindle to Column (Max.)21-2/5 in.
- Distance Spindle to Column (Min.)6 in.
- Head Movement90 Deg. (R & L), 45 Deg. (F & B)
- Maximum Distance Spindle To Table18-3/4 in.
- Number of Axis3 (Quill)
- Old Material Number894358
- Power FeedNo
- Product TypeMachines
- Prop 65Cancer
- Quill Diameter3-3/8 in.
- Quill Down Feed Rate0.0015 - 0.003 - 0.006 IPR
- Range Of Spindle Speeds60 - 5000 RPM
- SAP Gross Weight2,450
- SAP Net weight2,200
- Spindle TaperR8
- Spindle Taper X TpiR8
- Spindle Travel5 in.
- Style TypeVariable Speed
- T-Slot Centers2-1/2 in.
- T-Slots Number And Size3 and 5/8 in.
- Table Cross Travel12 in.
- Table Longitudal Travel36 in.
- Table Size9 x 49 in.
- Travel Of Knee16 in.
- Travel Of Ram14 in.
- UPC731325287707
- WarrantyThree Years
- Work Table Weight Capacity750 lbs
- Input Power230 V 3 Ph
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230 V
- Amp Draw (amps)19 A
