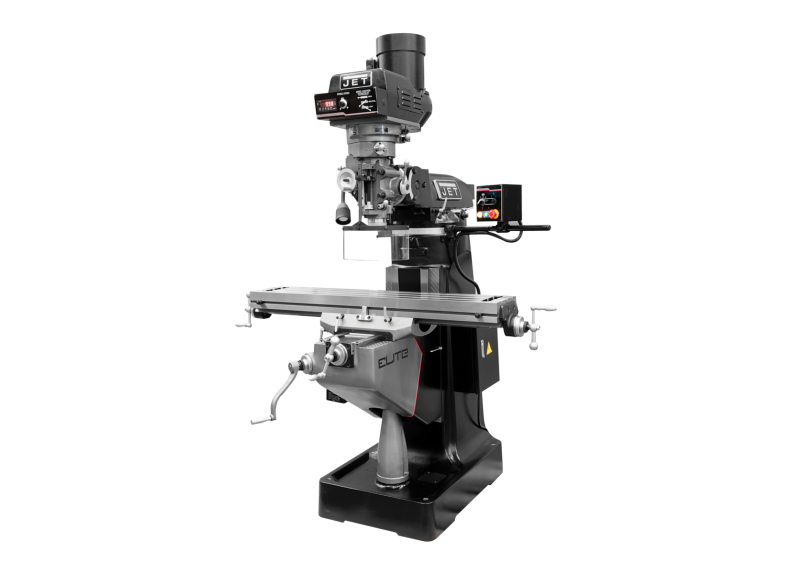

9" x 49" Mill w/ 3-Axis NMS800 (Q) DRO & X-Axis Powerfeed & Draw Bar, 3HP, 230V 3PH(EVS-949)

Stock Number: JT9-894360

0 Reviews

No reviews yet.

  • 3 HP, 230V, three-phase
  • 9" x 49" table
  • R-8 spindle taper
  • 5" spindle travel
BUY NOW
JET 3 Year Warranty

Product Details

Production-grade milling for the cuts that hold tolerance through long cycles. Engineered around production shops that turn programs into parts daily, the EVS-949 earns its place. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage.

Features

  • Production-grade 3 HP, 230V drive — holding speed under load when lighter motors stall.
  • Generous 9 in. x 49 in. table surface — delivering the workholding envelope production milling targets across tool-room machining.
  • Tolerance-grade 5-inch spindle travel — putting deep-hole work in reach without secondary setups across production milling.
  • Wide 60 - 5,000 RPM range — eliminating the speed compromises older designs forced.
  • Production-grade Meehanite bed castings — holding reference flat, sized for the structural rigidity tolerance-grade work demands.
  • Hardened and ground drive components transmit power for the cycle counts industrial use generates.

Specifications

  • SKU
    JT9-894360
  • Air Powered Drawbar
    Yes
  • Assembled Dimensions
    64 x 66 x 84 in.
  • Collet Size
    1/8 - 7/8 in.
  • Digital Readout
    3 Axis Newall NMS800(Quill)
  • Distance Spindle to Column (Max.)
    21-2/5 in.
  • Distance Spindle to Column (Min.)
    6 in.
  • Head Movement
    90 Deg. (R & L), 45 Deg. (F & B)
  • Maximum Distance Spindle To Table
    18-3/4 in.
  • Number of Axis
    3 (Quill)
  • Old Material Number
    894360
  • Power Draw Bar
    USA Made
  • Power Feed
    X-Axis
  • Product Type
    Machines
  • Prop 65
    Cancer
  • Quill Diameter
    3-3/8 in.
  • Quill Down Feed Rate
    0.0015 - 0.003 - 0.006 IPR
  • Range Of Spindle Speeds
    60 - 5000 RPM
  • SAP Gross Weight
    2,450
  • SAP Net weight
    2,200
  • Spindle Taper
    R8
  • Spindle Taper X Tpi
    R8
  • Spindle Travel
    5 in.
  • Style Type
    Variable Speed
  • T-Slot Centers
    2-1/2 in.
  • T-Slots Number And Size
    3 and 5/8 in.
  • Table Cross Travel
    12 in.
  • Table Longitudal Travel
    36 in.
  • Table Size
    9 x 49 in.
  • Travel Of Knee
    16 in.
  • Travel Of Ram
    14 in.
  • UPC
    731325287721
  • Warranty
    Three Years
  • Work Table Weight Capacity
    750 lbs
  • Input Power
    230 V 3 Ph
  • Motor HP
    3 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Amp Draw (amps)
    19 A
