14" x 40" Geared Head Bench Lathe, 2HP, 230V 1PH(GH-1440B)

Stock Number: JT9-331440

0 Reviews

No reviews yet.

  • 2 HP, 230V, single-phase
  • 14" swing, 36" centers
  • 2 in. spindle bore

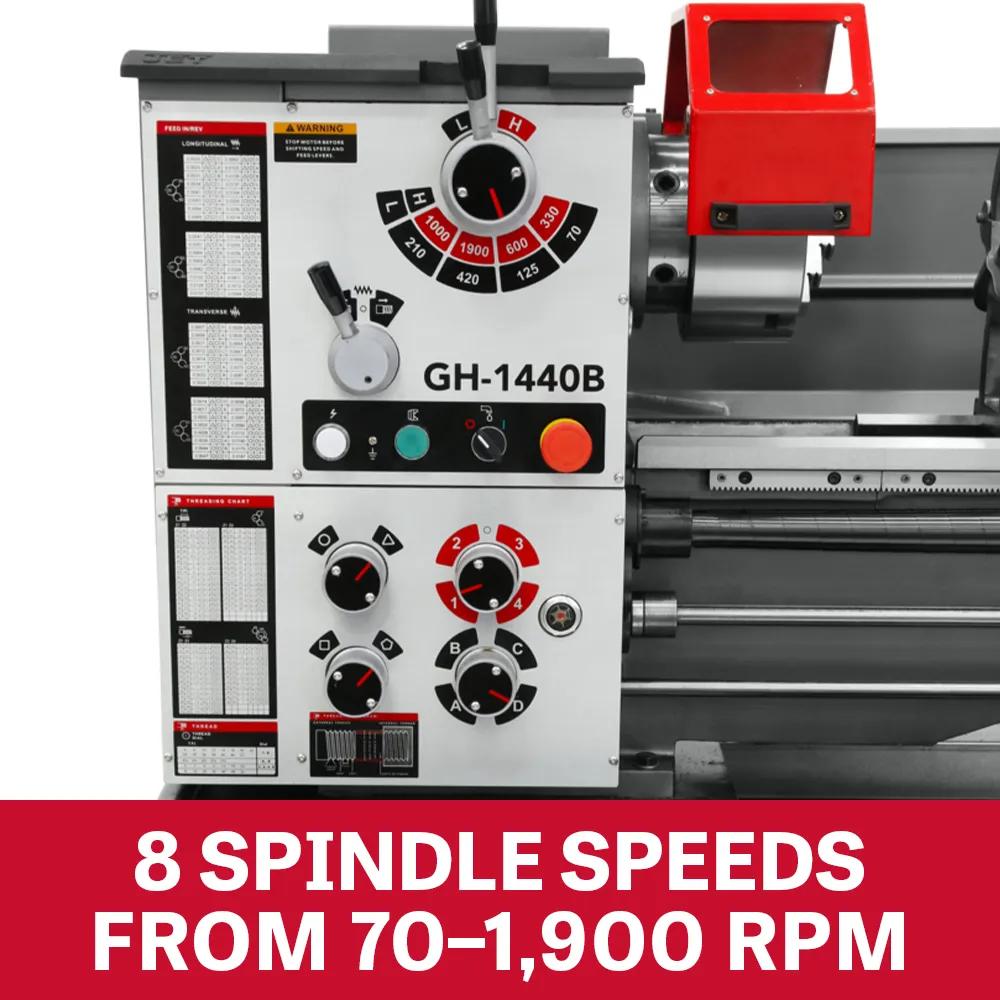

  • 70-1900 RPM
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Where round work starts: the lathe that holds tolerance through every cycle. Built around repair shops, fab shops, and tool-room turning, the GH-1440B delivers production-grade results. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the long cycles that define production turning.

Features

  • Generous 14-inch swing-over-bed delivers larger-diameter parts for the chuck-and-faceplate library shops already maintain.
  • Shop-rated 2 HP induction motor — running cooler under sustained load than equivalents, engineered for mixed-material work envelopes.
  • Factory-tested 36-7/8 in. bed length supports long-shaft work for center-and-tail work across the full bed.
  • Industrial-spec 2 in. spindle bore covers bar-feeding capacity for bar stock smaller lathes force you to cut down first.
  • Heavy-duty Meehanite support castings — dampening vibration that lesser castings transmit straight to the cut, sized for the dimensional stability tolerance work measures.

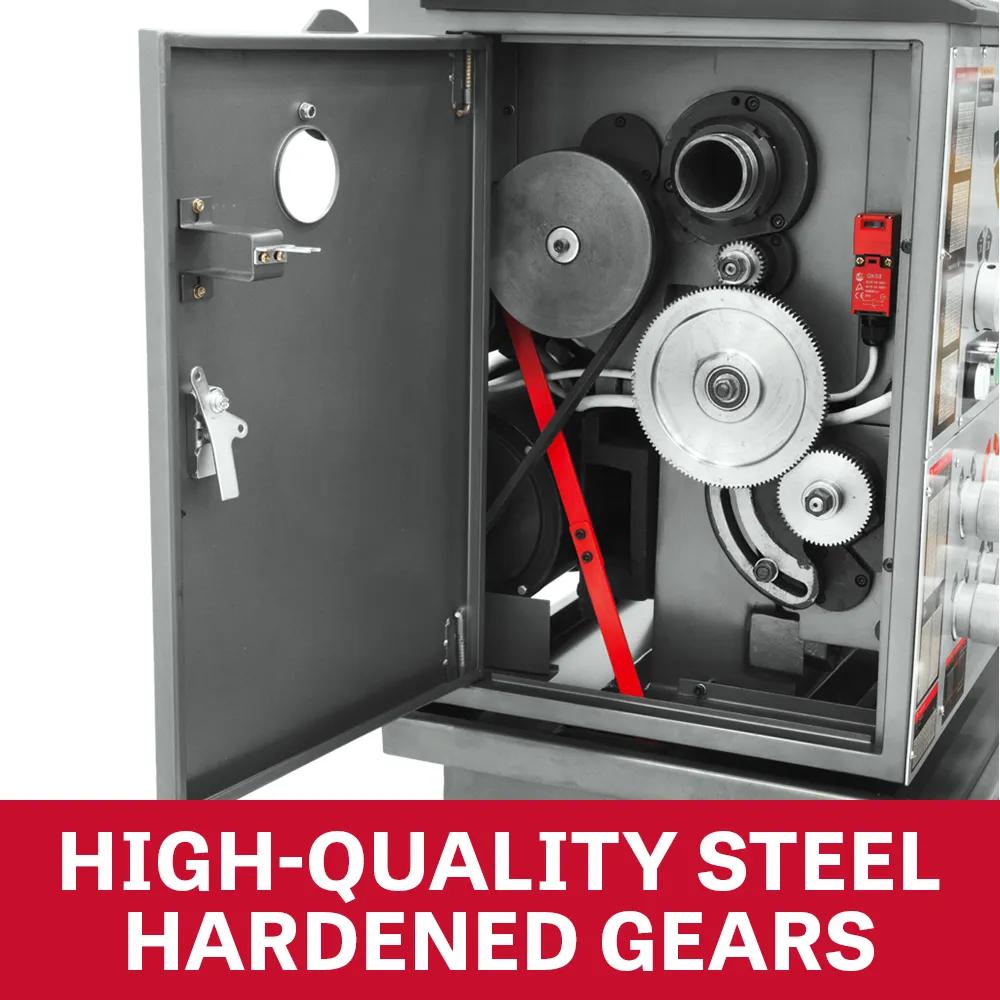

  • Engineered hardened apron gears — delivering tolerance-grade transmission, engineered for repeatable feed rates across long cycles.

Specifications

  • SKU
    JT9-331440
  • Assembled Dimensions
    76-2/5 x 29-15/16 x 59-4/5 in.
  • Carriage Travel
    37-2/5 in.
  • Collet Closer
    No
  • Compound Slide Travel
    3-1/2 in.
  • Cross Slide Travel
    7 in.
  • Digital Readout
    No
  • Distance Between Centers
    36-7/8 in.
  • Drive Type
    Geared Head
  • Horse Power
    2 HP
  • Length of Gap
    8 in.
  • Maximum Tool Size
    5/8 x 5/8 in.
  • Motor Amps
    13.3 A
  • Number of Inch Threads
    34
  • Number of Indexing Positions
    8
  • Number of Longitudal And Cross Feed Rates
    32/32
  • Number of Metric Threads
    26
  • Number of Spindle Speeds
    8
  • Old Material Number
    331440
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.007 - 0.0187 in./rev
  • Range Of Inch Threads Tpi
    4 - 56 TPI
  • Range Of Longitudal Feeds in/rev
    0.002 - 0.0548 IPR
  • Range Of Spindle Speeds
    70 - 1900 RPM
  • Range of Metric Threads
    0.4 - 7 mm
  • Recommended Circut Size Amp
    20 A
  • Reference Type
    Base Machine
  • SAP Gross Weight
    1,753
  • SAP Net weight
    1,572
  • Speed Range
    90 - 1800 RPM
  • Spindle Bore
    2 in.
  • Spindle Mount
    D1-5
  • Spindle Taper
    MT6
  • Spindle Taper with Sleeve
    MT4

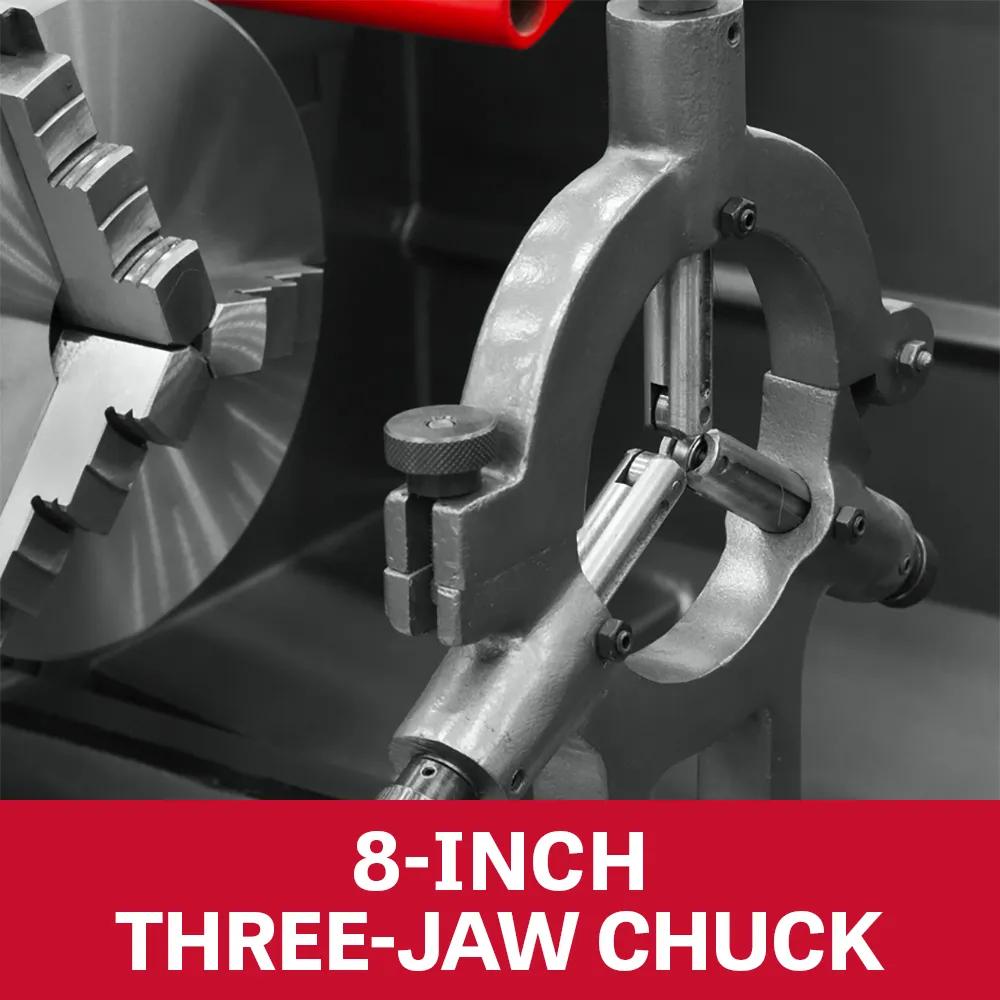

  • Steady Rest Capacity
    5/16 - 2-15/16 in. (8 - 74.6 mm)
  • Swing Over Bed
    14 in.
  • Swing Over Cross Slide
    8 in.
  • Swing Through Gap
    18 in.
  • Tailstock Spindle Travel
    4 in.
  • Taper Attachment
    No
  • Taper in Tailstock Spindle
    MT4

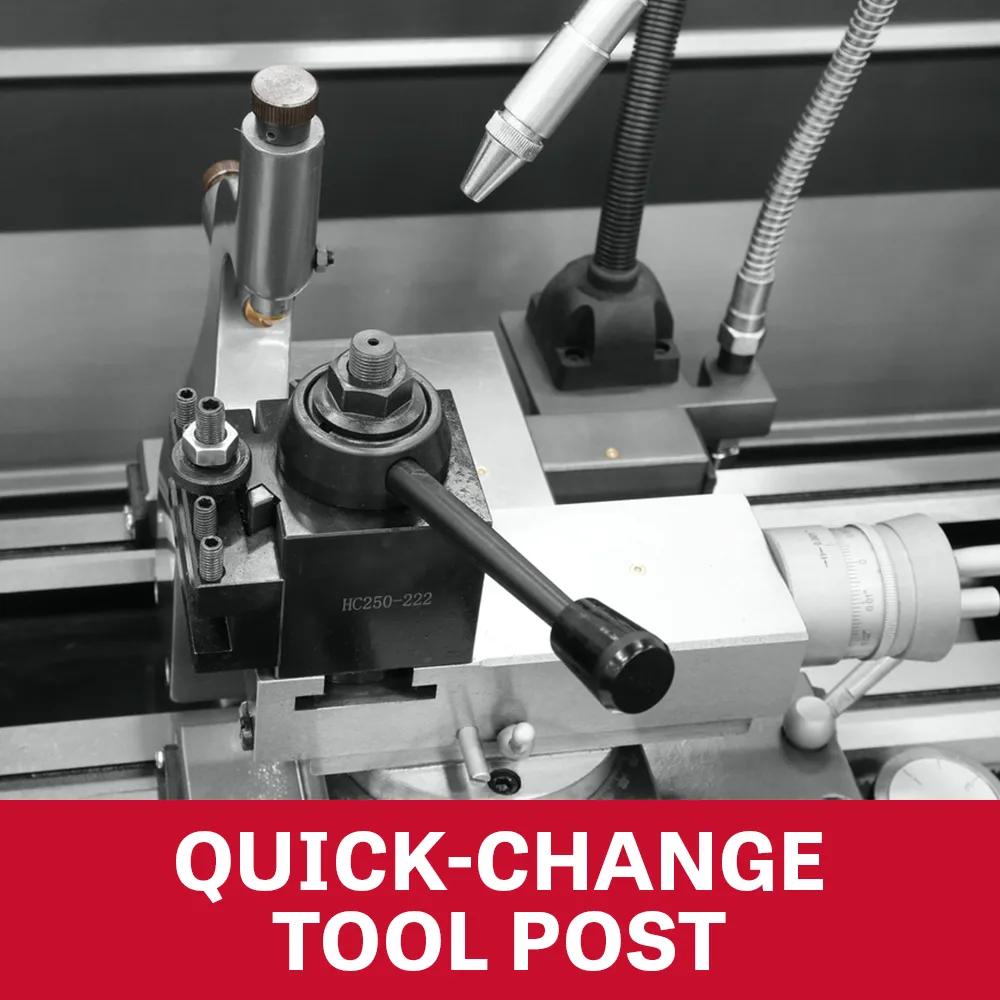

  • Tool Rest
    4-way
  • UPC
    731325545630
  • Warranty
    Two Years
  • Width Of Bed
    7-5/16 in.
  • Input Power
    230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
