Product Details

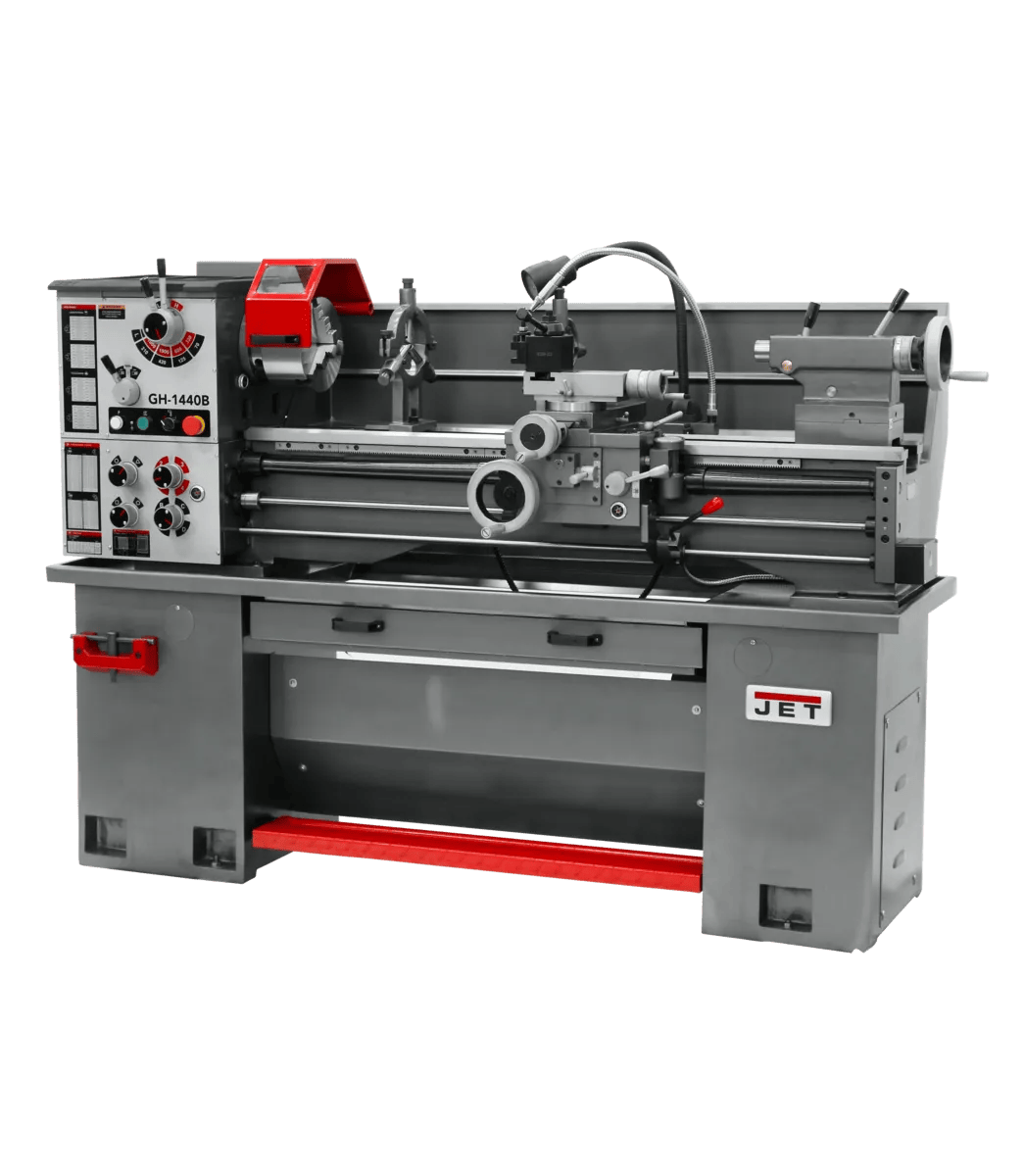

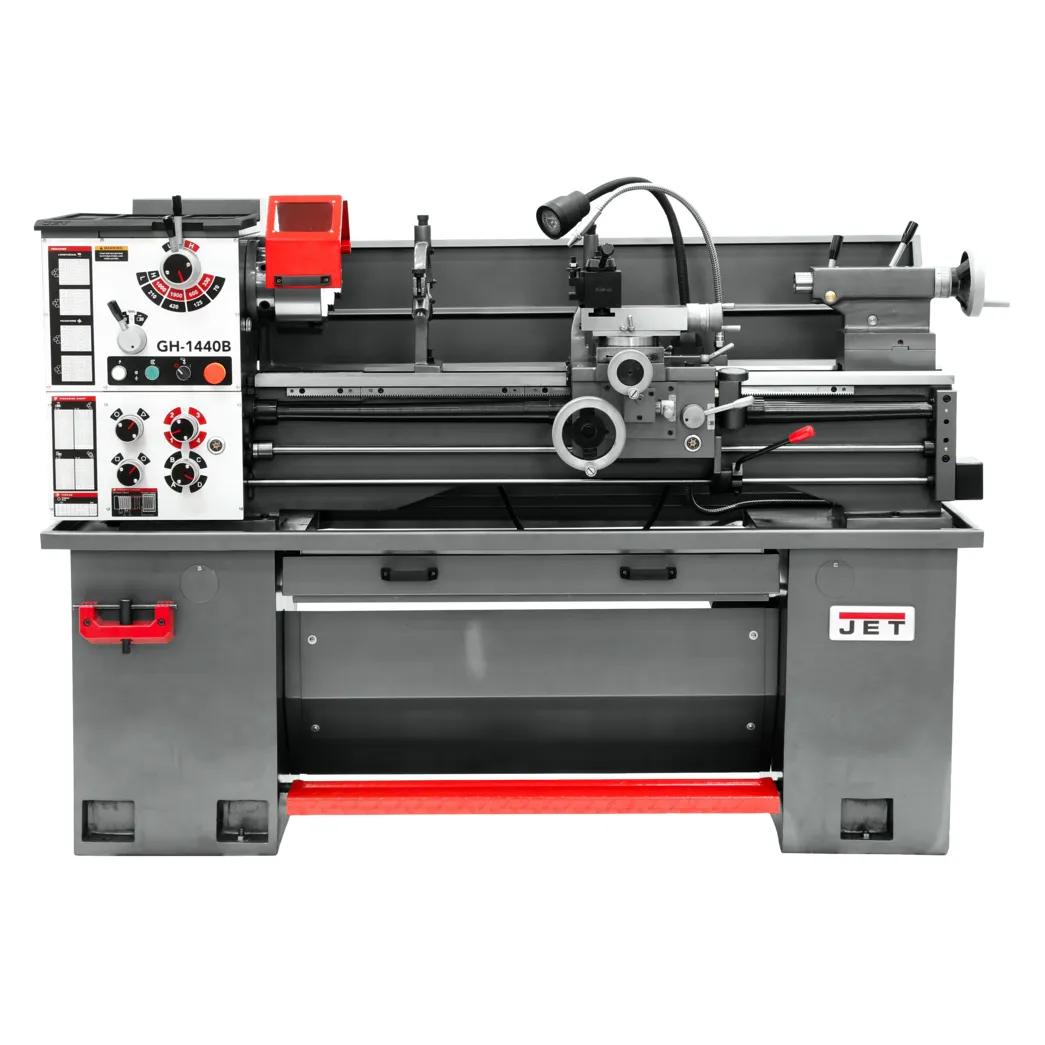

The bed, the spindle, the carriage — every component sized for serious turning. Engineered around production turning shops that demand consistency, the GH-1440B earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the long cycles that define production turning.
Features
- 14-inch swing-over-bed capacity covers the workpiece diameters for the round stock and chuck setups operators run daily.
- Tolerance-grade 2 HP drive delivers consistent torque for the duty range working shops actually run.
- 36-7/8 in. between-centers — covering the bed-length envelope production work demands, engineered for the long-shaft envelope production turning generates.
- Generous 2 in. spindle bore puts long bar work in reach for bar stock smaller lathes force you to cut down first.

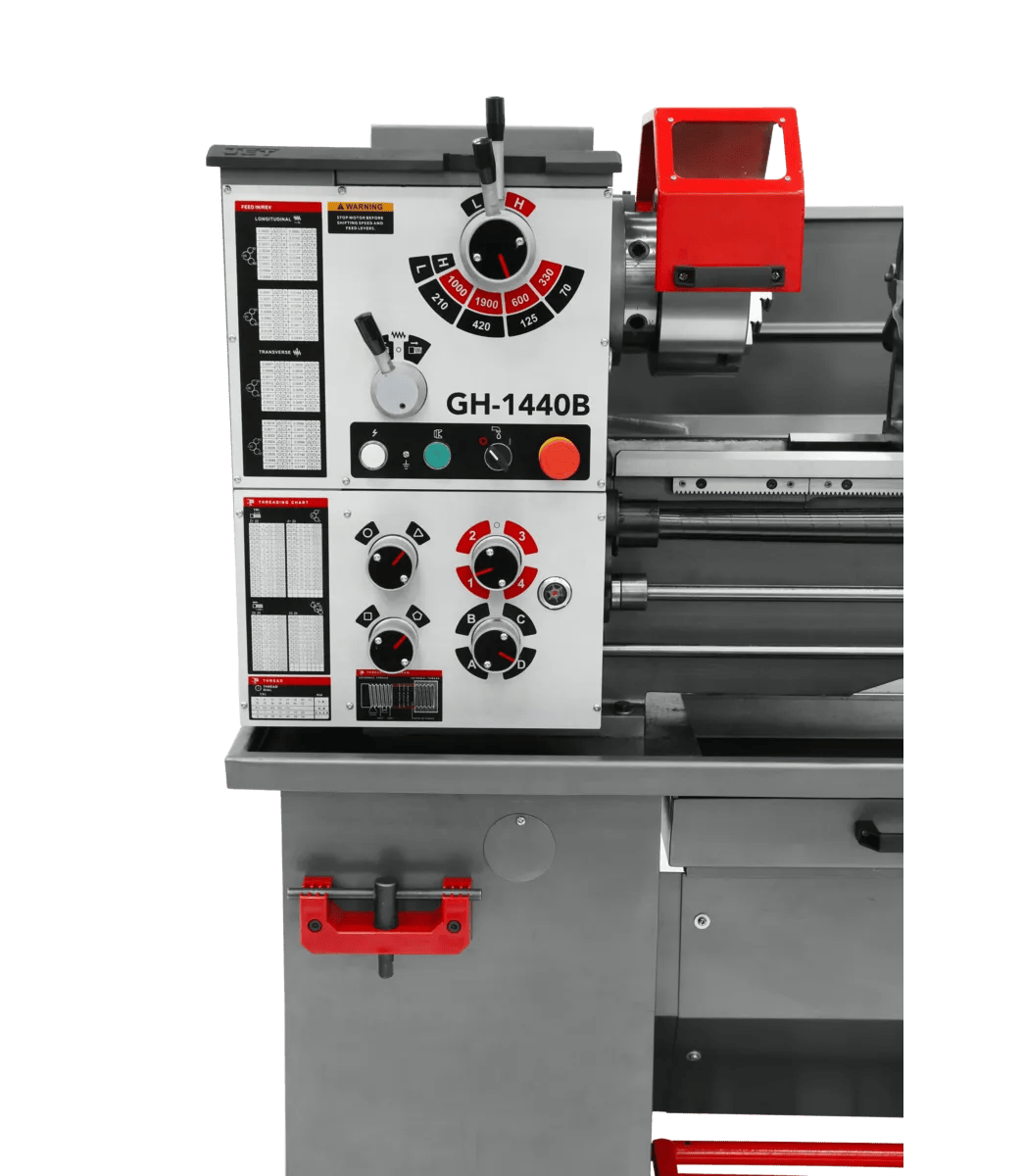

- Industrial-spec Meehanite headstock castings — resisting wear and deflection, sized for the structural rigidity tolerance-grade work demands.

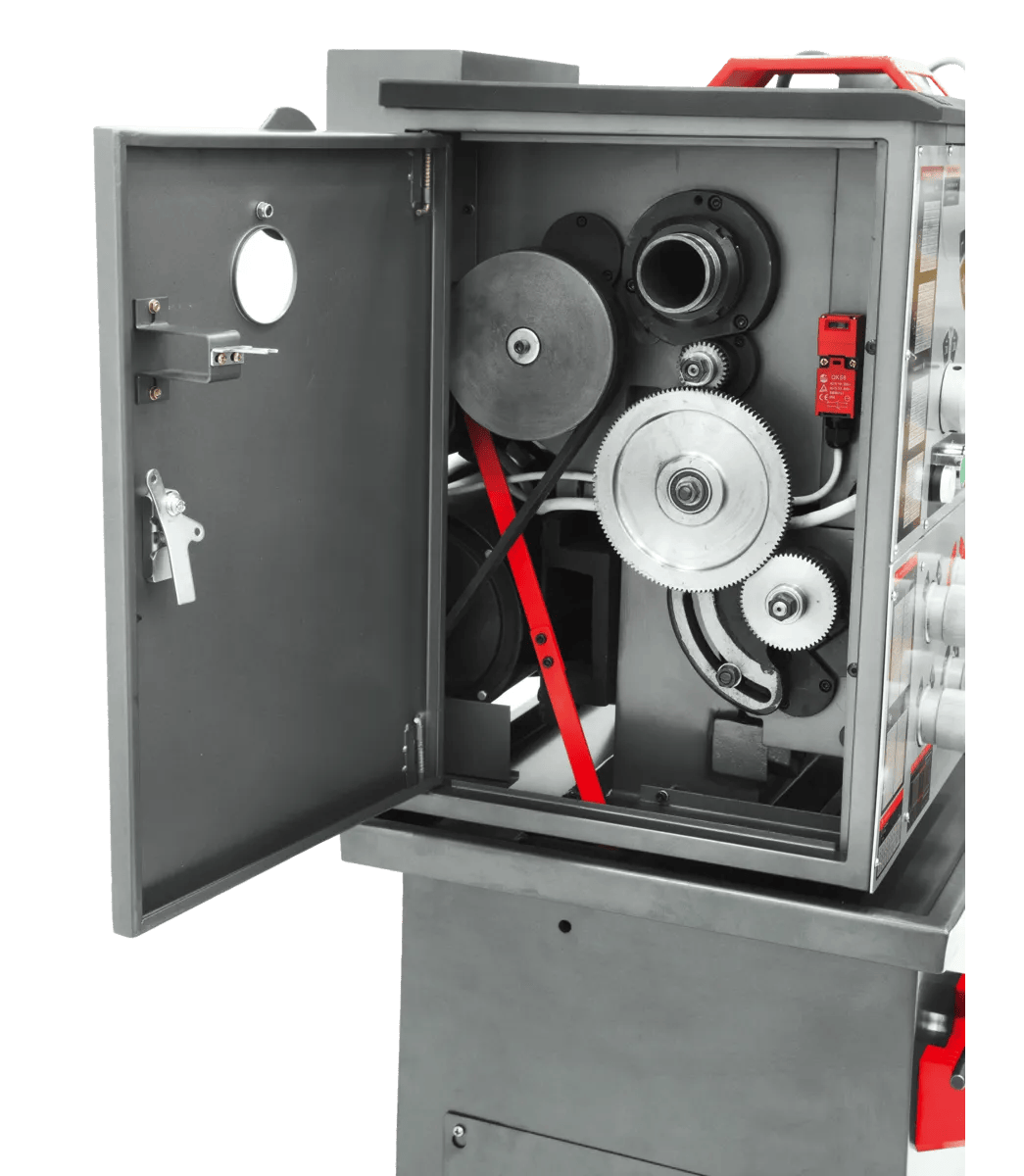

- Hardened-steel apron gears cover the working precision for the dimensional stability precision work demands.
Specifications
- SKUJT9-323440
- Assembled Dimensions76-2/5 x 29-15/16 x 59-4/5 in.
- Carriage Travel37-2/5 in.
- Collet CloserNo
- Digital ReadoutAcu-Rite 203
- Distance Between Centers36-7/8 in.
- Drive TypeGeared Head
- Horse Power2.4 HP
- Length of Gap8 in.

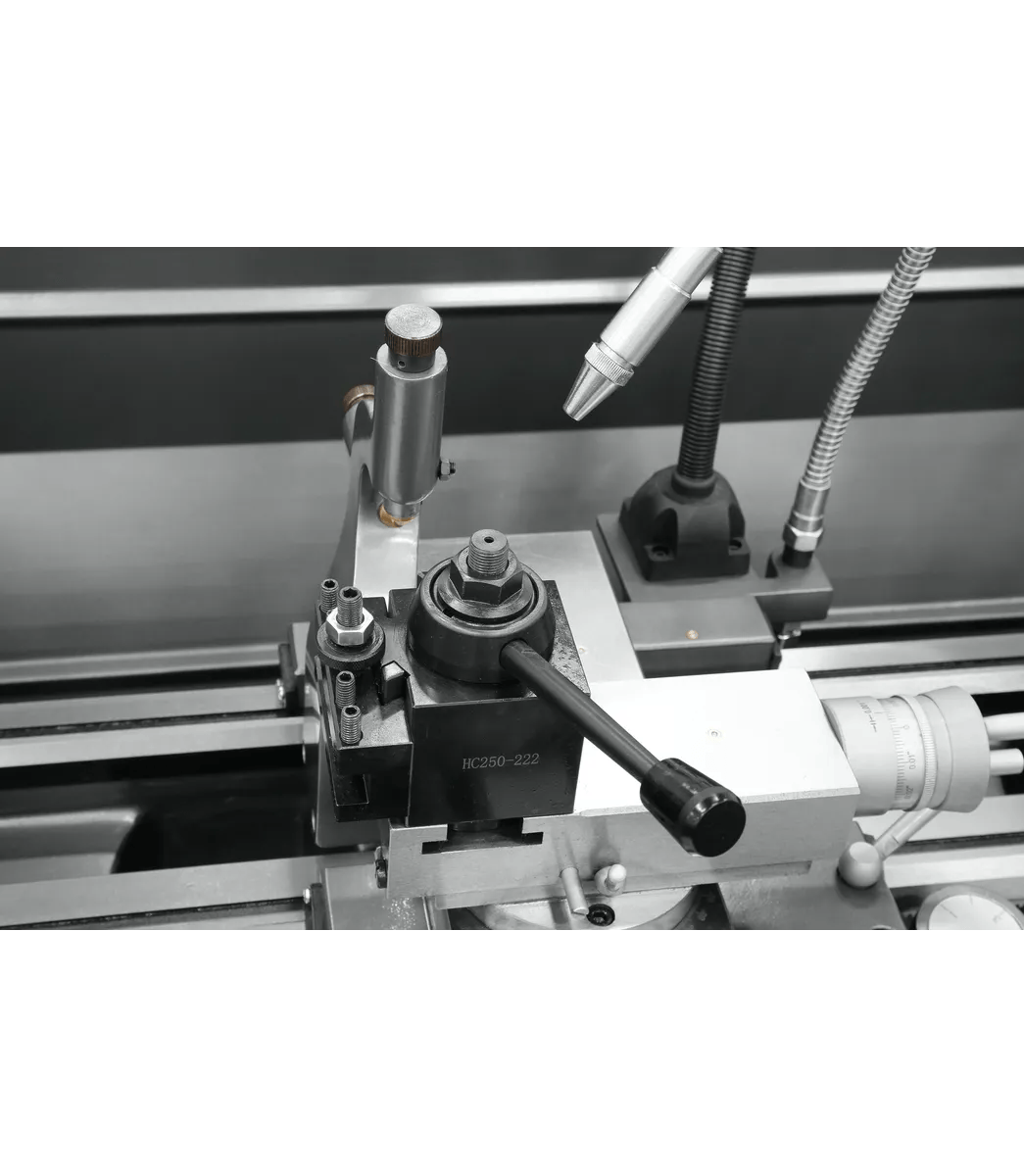

- Maximum Tool Size5/8 x 5/8 in.
- Number of Inch Threads34
- Number of Longitudal And Cross Feed Rates32/32
- Number of Metric Threads26
- Number of Spindle Speeds8
- Old Material Number323440
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.007 - 0.0187 in./rev
- Range Of Inch Threads Tpi4 - 56 TPI
- Range Of Longitudal Feeds in/rev0.002 - 0.0548 IPR
- Range Of Spindle Speeds70 - 1900 RPM
- Range of Metric Threads0.4 - 7 mm
- SAP Gross Weight1,798
- SAP Net weight1,617
- Spindle Bore2 in.
- Spindle MountD1-5
- Spindle TaperMT6
- Spindle Taper with SleeveMT4

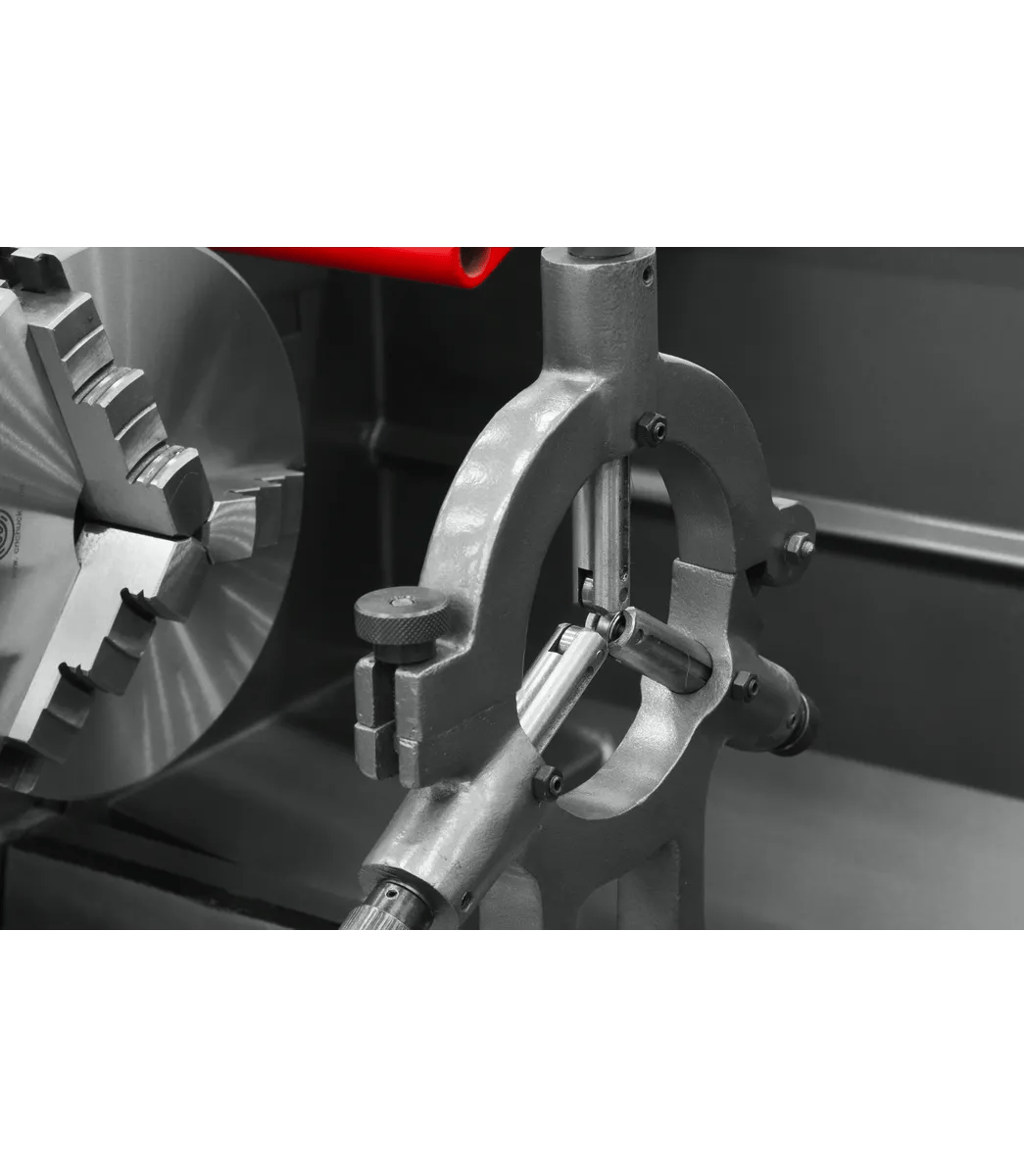

- Steady Rest Capacity5/16 - 2-15/16 in. (8 - 74.6 mm)
- Swing Over Bed14 in.
- Swing Through Gap18 in.
- Tailstock Spindle Travel4 in.
- Taper in Tailstock SpindleMT4
- UPC731325733938
- WarrantyTwo Years
- Width Of Bed7-5/16 in.
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
