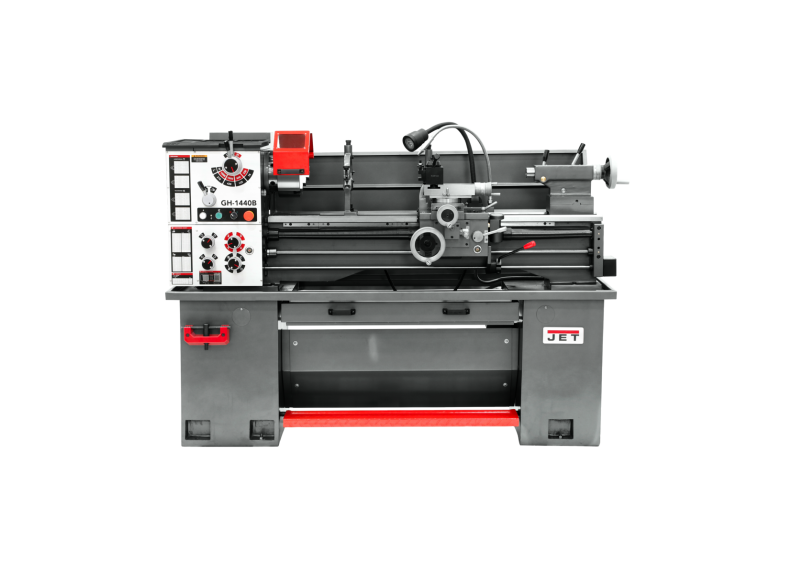

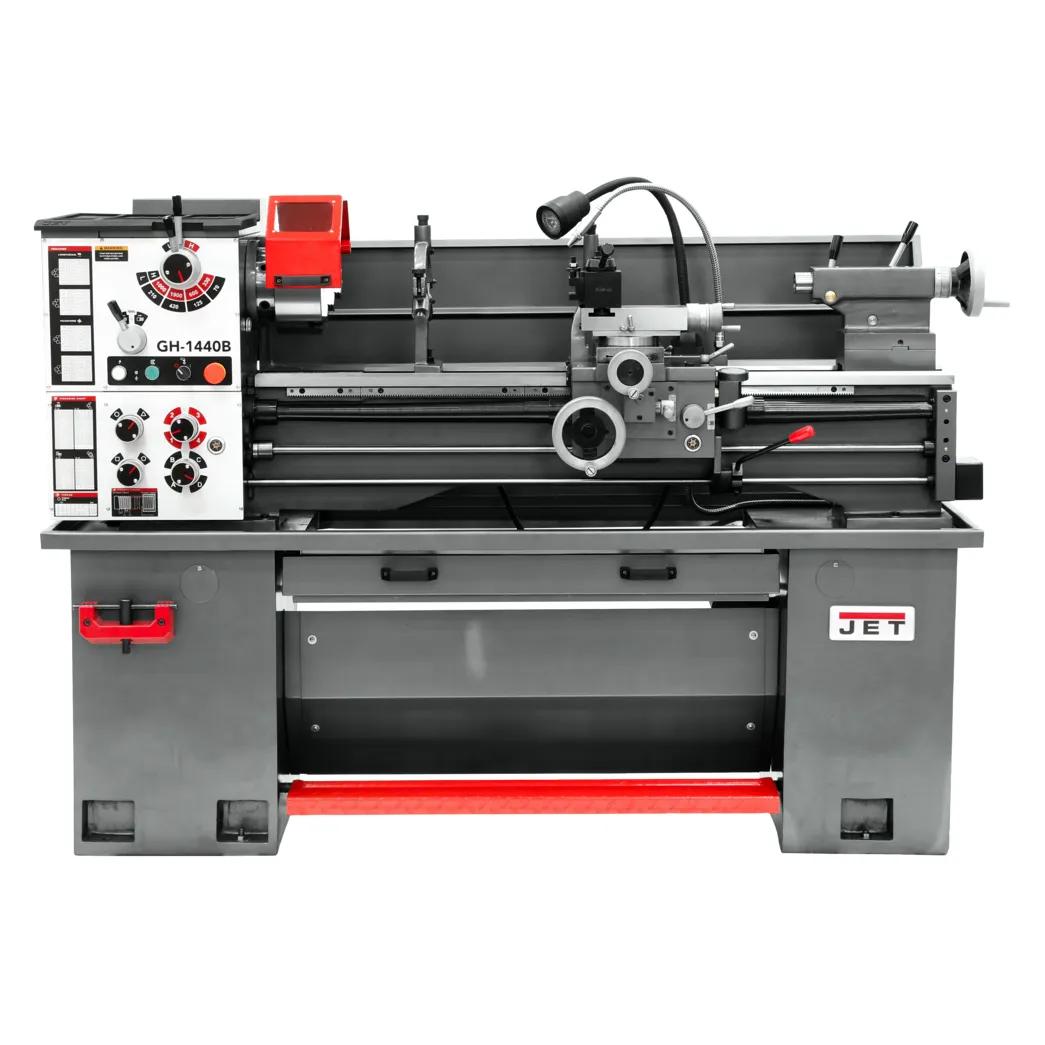

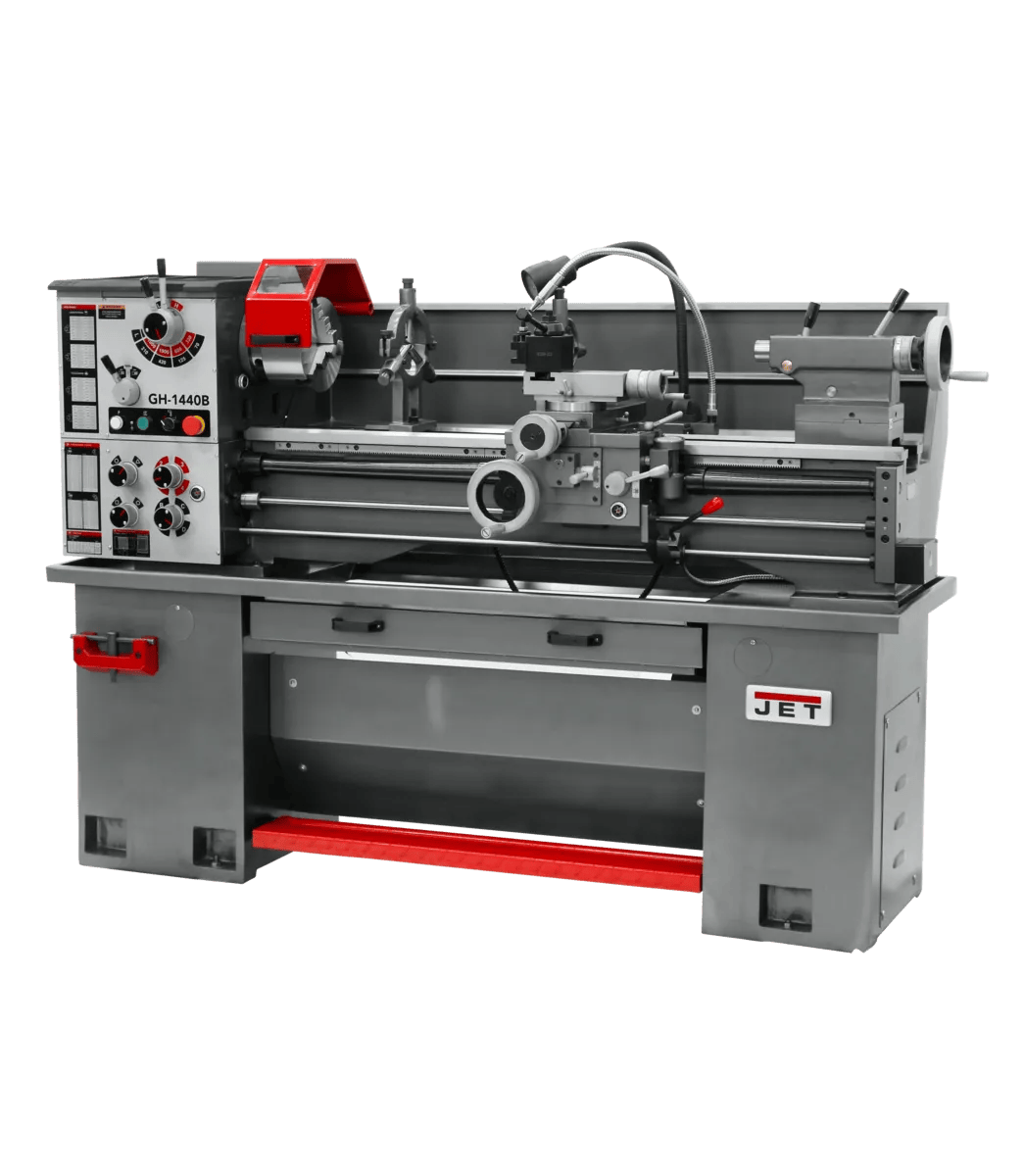

14" x 40" Geared Head Bench Lathe w/ ACU-RITE 203 DRO & Taper Attachment, 2HP, 230V 1PH(GH-1440B)

Stock Number: JT9-323444

0 Reviews

No reviews yet.

  • 2 HP, 230V, single-phase
  • 14" swing, 36" centers
  • 2 in. spindle bore
  • 70-1900 RPM
BUY NOW
JET 2Year Warranty Logo
Jet Need Parts

Product Details

Built for the turning work that defines a production shop. Built around repair shops, fab shops, and tool-room turning, the GH-1440B delivers production-grade results. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.

Features

  • 14-inch swing capacity — accommodating the chuck and tool-holding capacity production demands across professional machine shops.
  • Brushless 2 HP induction motor design means decades of service across professional shop floors.
  • Industrial-grade 36-7/8 in. bed length supports long-shaft work for the long-bed work production turning demands.
  • Heavy-duty 2 in. spindle bore covers bar-feeding capacity for the bar-stock library production shops keep.

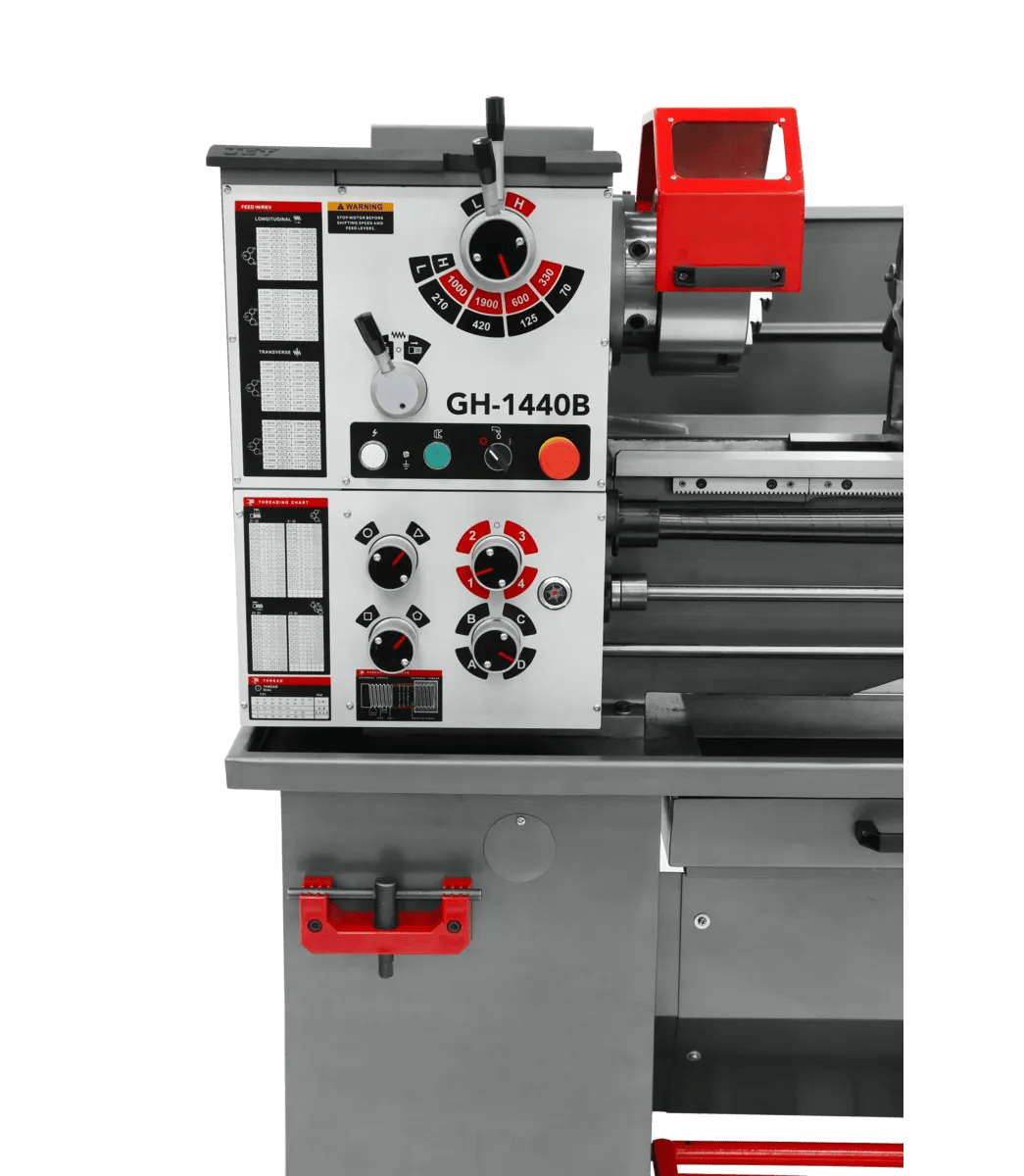

  • Premium-grade Meehanite headstock castings — resisting wear and deflection, sized for the harmonic dampening fine-finish work demands.

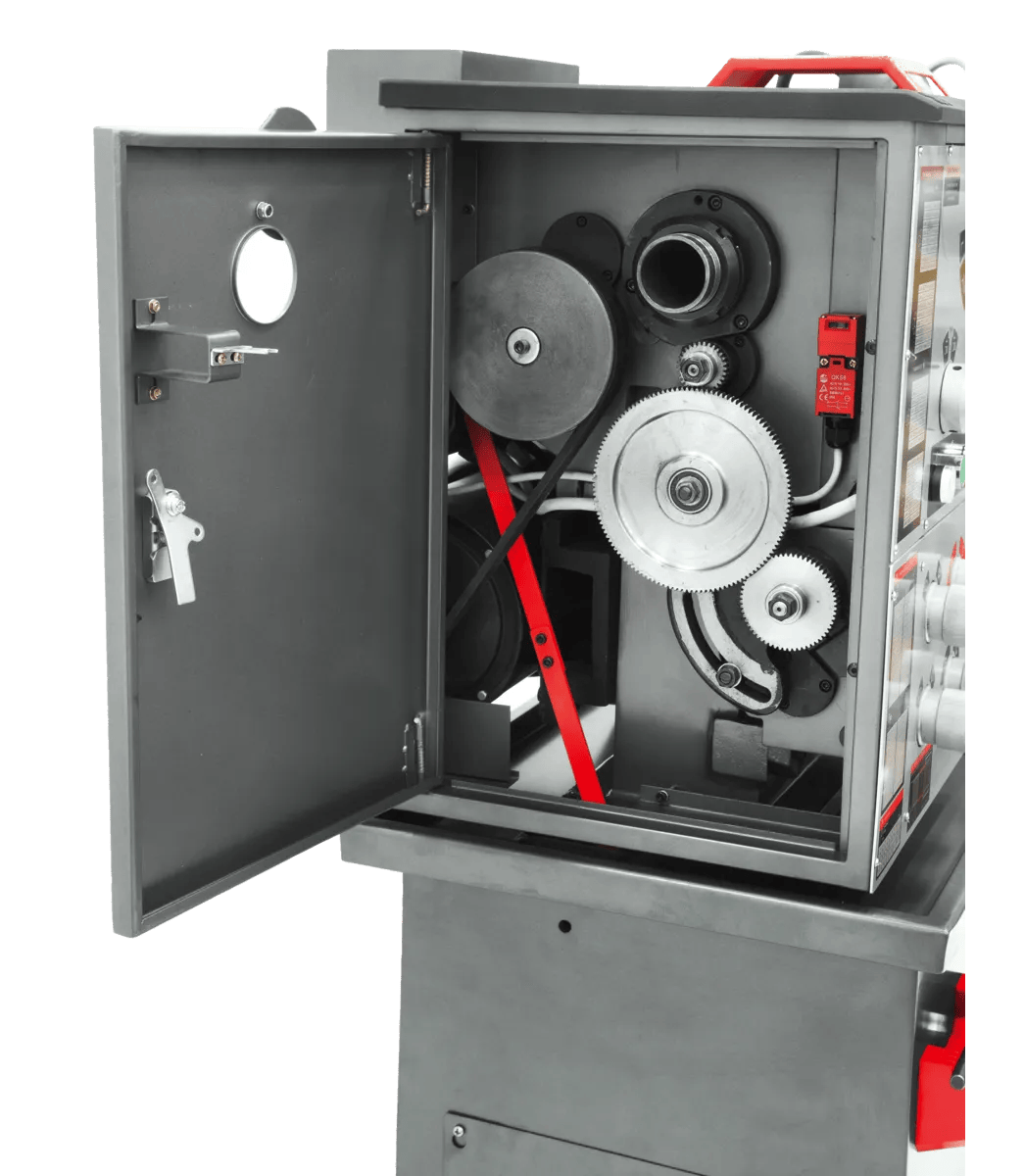

  • Engineered hardened headstock gears — holding feed rates without backlash compensation, engineered for the working precision shops measure in tenths.

Specifications

  • SKU
    JT9-323444
  • Assembled Dimensions
    76-2/5 x 29-15/16 x 59-4/5 in.
  • Carriage Travel
    37-2/5 in.
  • Collet Closer
    No
  • Compound Slide Travel
    3-1/2 in.
  • Cross Slide Travel
    7 in.
  • Digital Readout
    Acu-Rite 203
  • Distance Between Centers
    36-7/8 in.
  • Drive Type
    Geared Head
  • Length of Gap
    8 in.
  • Maximum Tool Size
    5/8 x 5/8 in.
  • Number of Inch Threads
    34
  • Number of Longitudal And Cross Feed Rates
    32/32
  • Number of Metric Threads
    26
  • Number of Spindle Speeds
    8
  • Old Material Number
    323444
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.007 - 0.0187 in./rev
  • Range Of Inch Threads Tpi
    4 - 56 TPI
  • Range Of Longitudal Feeds in/rev
    0.002 - 0.0548 IPR
  • Range Of Spindle Speeds
    70 - 1900 RPM
  • Range of Metric Threads
    0.4 - 7 mm
  • SAP Gross Weight
    1,836
  • SAP Net weight
    1,655
  • Spindle Bore
    2 in.
  • Spindle Mount
    D1-5
  • Spindle Taper
    MT6
  • Spindle Taper with Sleeve
    MT4

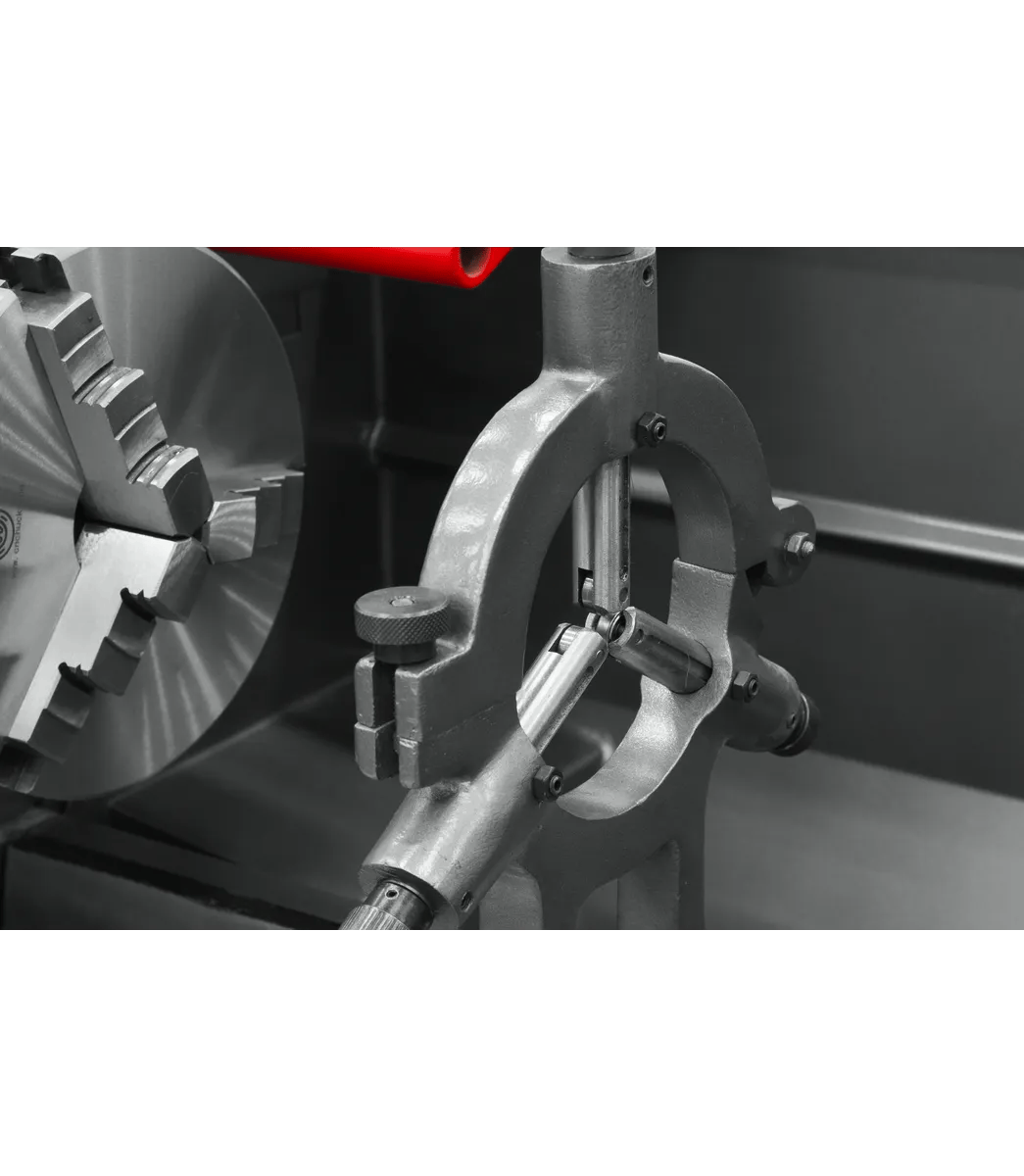

  • Steady Rest Capacity
    5/16 - 2-15/16 in. (8 - 74.6 mm)
  • Swing Over Bed
    14 in.
  • Swing Over Cross Slide
    8 in.
  • Swing Through Gap
    18 in.
  • Tailstock Spindle Travel
    4 in.
  • Taper Attachment
    Yes
  • Taper in Tailstock Spindle
    MT4
  • UPC
    731325733976
  • Warranty
    Two Years
  • Width Of Bed
    7-5/16 in.
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
