Product Details

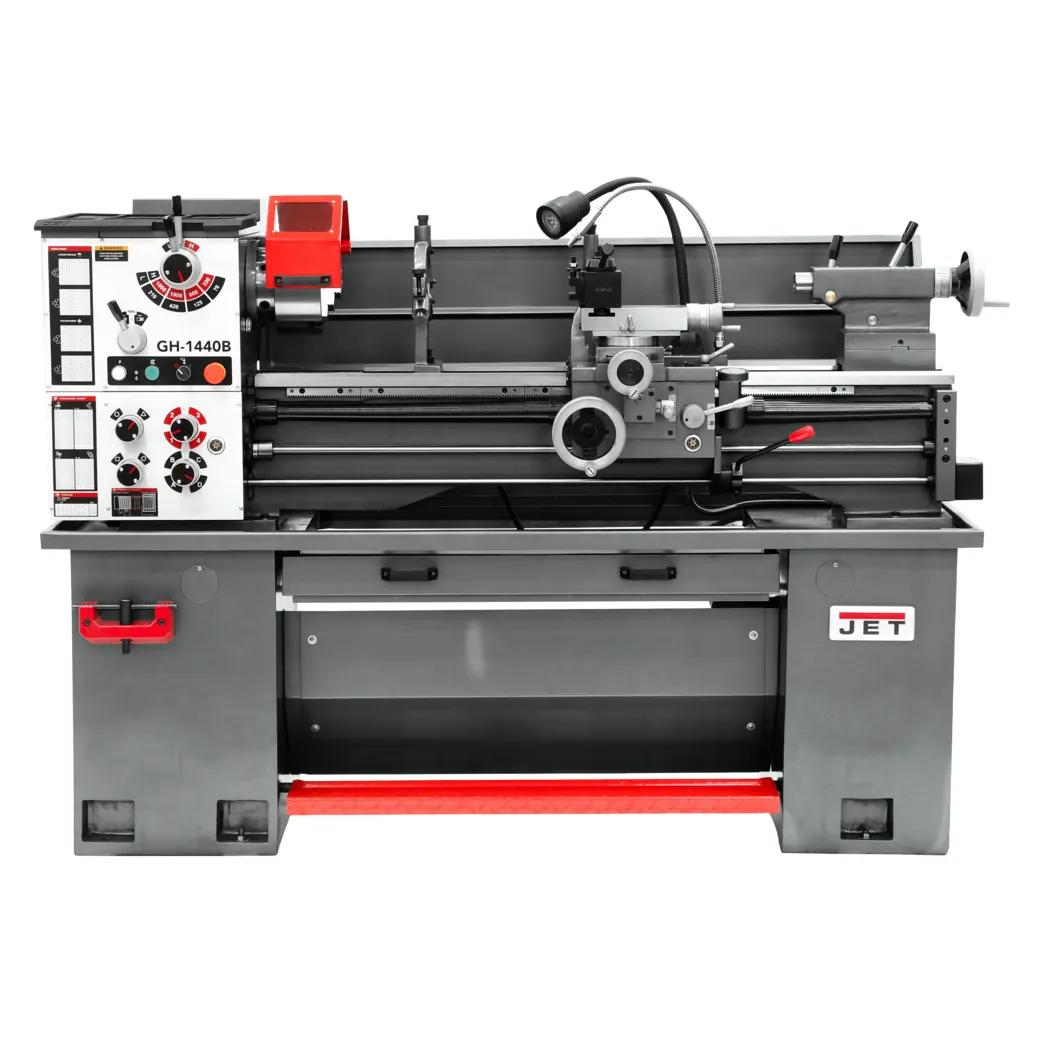

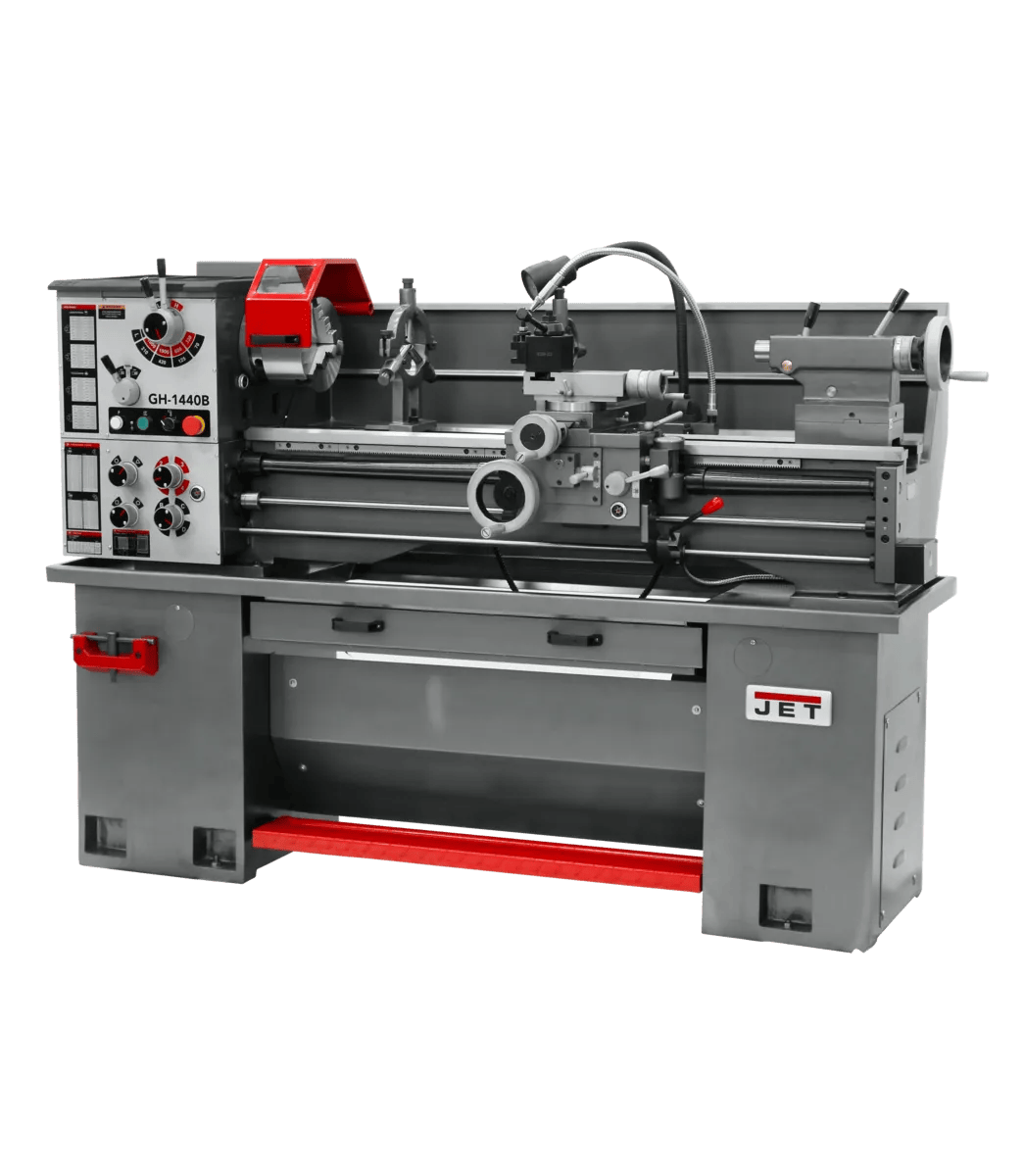

Production turning, designed around the operator. Designed for small shops, school programs, and engineering labs, the GH-1440B stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Production-grade build, production-grade results.
Features
- 14-inch swing-over-bed capacity handles the workpiece diameters for the round stock and chuck setups operators run daily.
- Engineered 2 HP single-phase induction drive: delivering full-rated power to the cut, not the brush dust, sized for the working loads daily production generates.
- Long 36-7/8 in. bed — handling shaft work production turning generates daily.
- Wide 2 in. spindle bore — expanding bar-feeding capacity.
- Working-grade Meehanite support castings — dampening vibration that lesser castings transmit straight to the cut, sized for finish quality production cutting requires.
- Surface-ground apron gears deliver dimensional stability without tolerance drift across the warranty period.
Specifications
- SKUJT9-323446
- Assembled Dimensions76-2/5 x 29-15/16 x 59-4/5 in.
- Carriage Travel37-2/5 in.
- Collet CloserNo
- Digital ReadoutNewall NMS300
- Distance Between Centers36-7/8 in.
- Drive TypeGeared Head
- Horse Power2.4 HP
- Length of Gap8 in.
- Maximum Tool Size5/8 x 5/8 in.
- Number of Inch Threads34
- Number of Longitudal And Cross Feed Rates32/32
- Number of Metric Threads26
- Number of Spindle Speeds8
- Old Material Number323446
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.007 - 0.0187 in./rev
- Range Of Inch Threads Tpi4 - 56 TPI
- Range Of Longitudal Feeds in/rev0.002 - 0.0548 IPR
- Range Of Spindle Speeds70 - 1900 RPM
- Range of Metric Threads0.4 - 7 mm
- SAP Gross Weight1,798
- SAP Net weight1,617
- Spindle Bore2 in.
- Spindle MountD1-5
- Spindle TaperMT6
- Spindle Taper with SleeveMT4

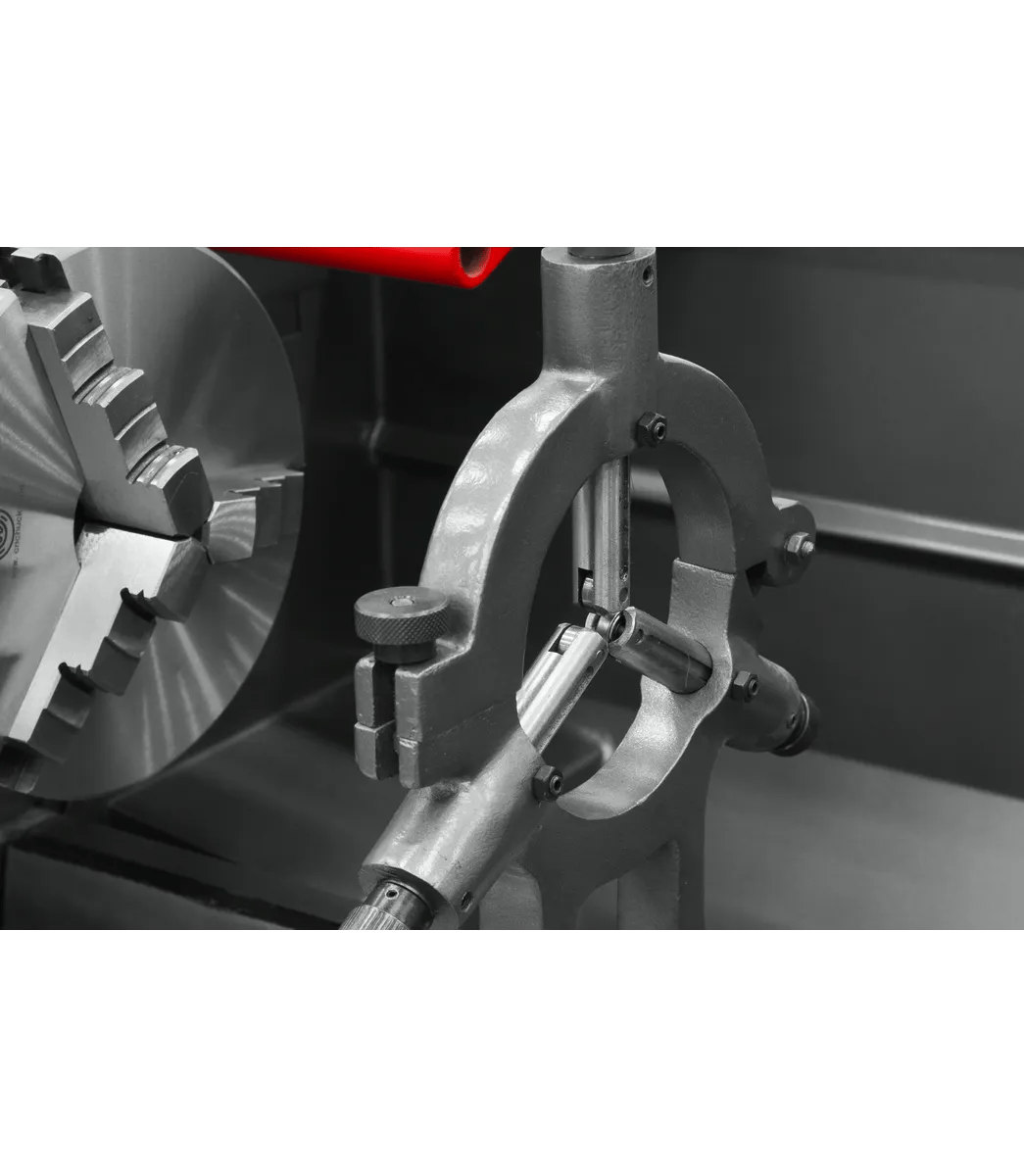

- Steady Rest Capacity5/16 - 2-15/16 in. (8 - 74.6 mm)
- Swing Over Bed14 in.
- Swing Through Gap18 in.
- Tailstock Spindle Travel4 in.
- Taper in Tailstock SpindleMT4
- UPC731325733990
- WarrantyTwo Years
- Width Of Bed7-5/16 in.
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
