Product Details

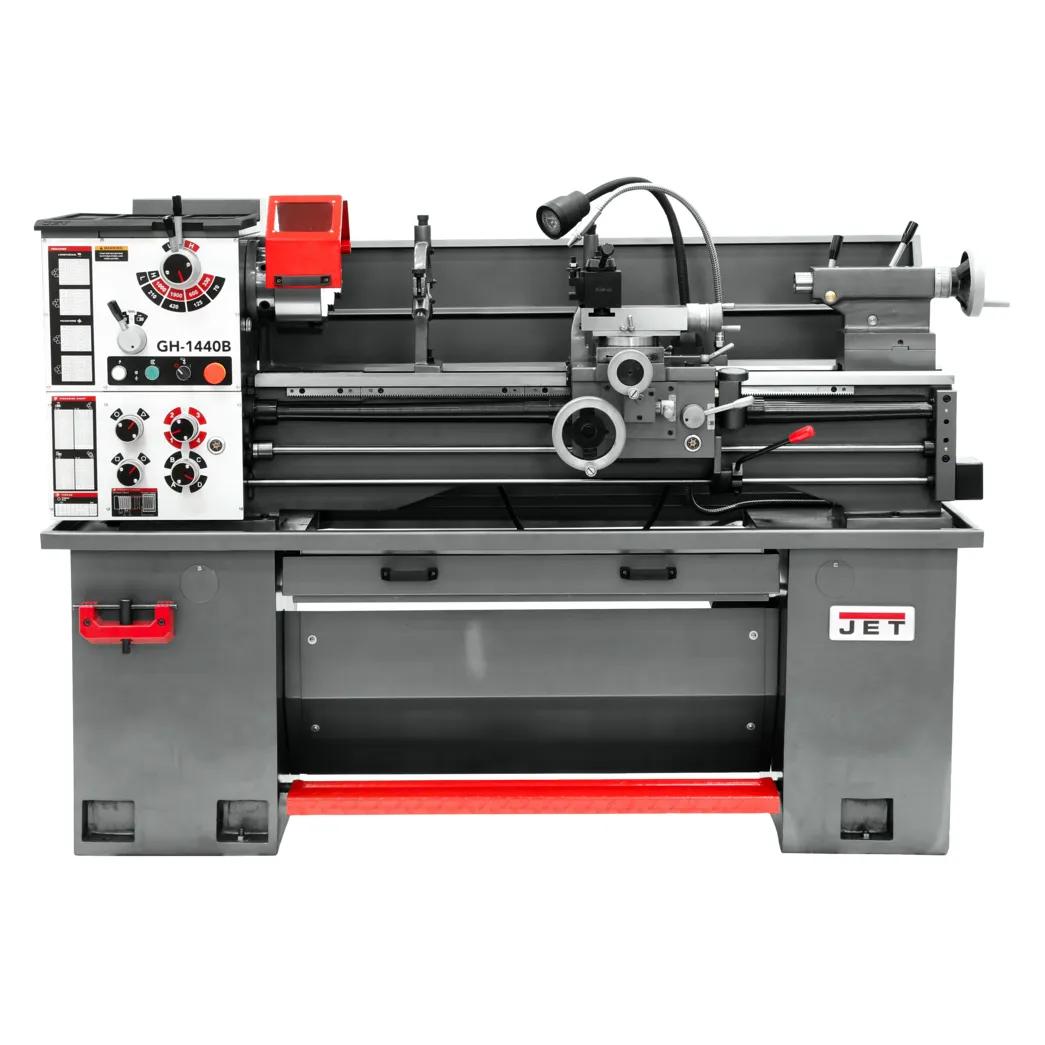

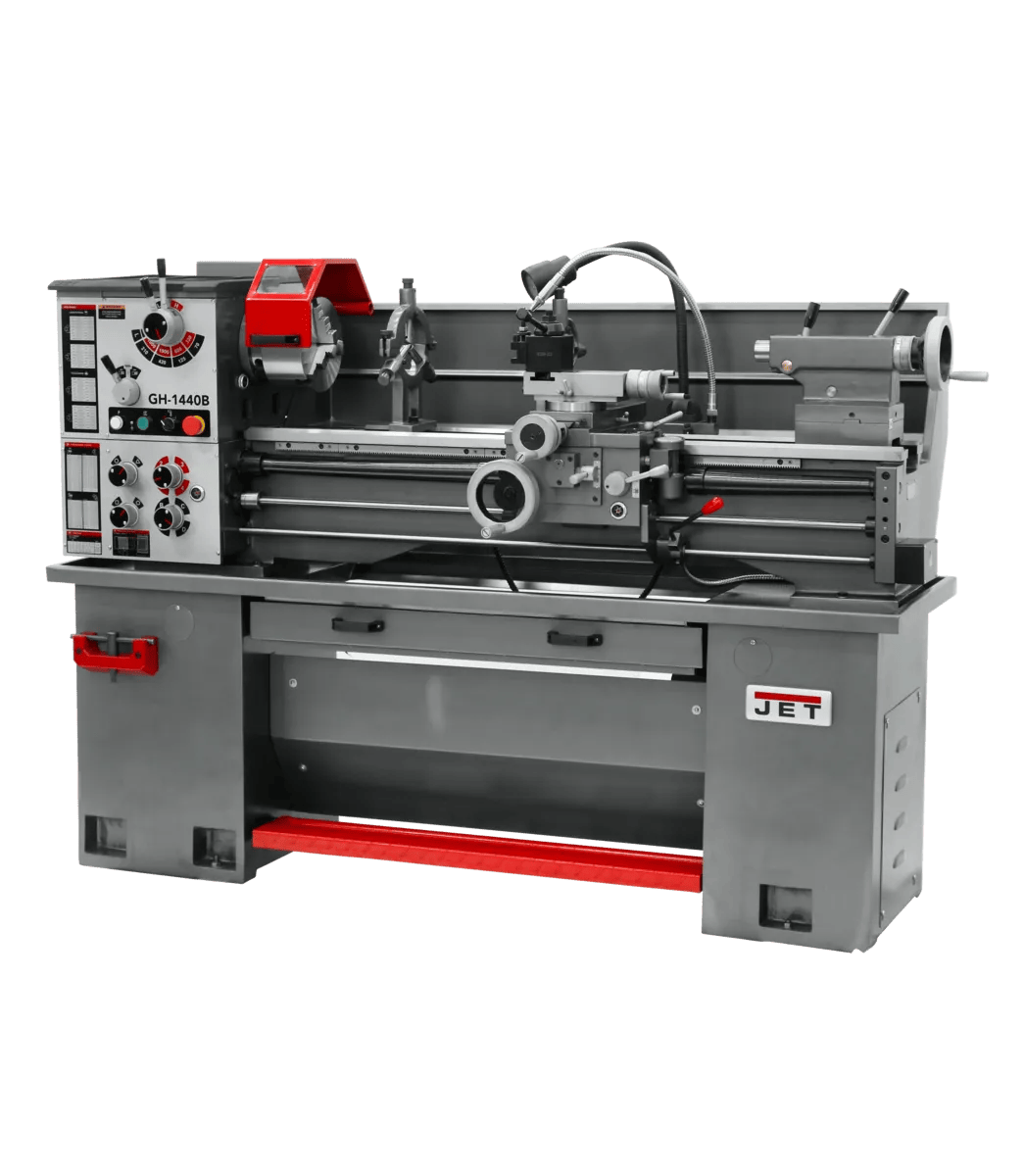

Tolerance-grade turning for shops that demand consistency. The GH-1440B is built for shops that turn parts, repair shafts, and cut threads on the same machine. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Backed by JET warranty coverage and the service network production shops actually use.
Features
- Generous 14-inch swing-over-bed handles larger-diameter parts for larger-diameter production parts.
- Premium-grade 2 HP induction motor — outlasting brush-driven alternatives across decades, engineered for the power output industrial cutting requires.
- Shop-rated 36-7/8 in. bed length provides long-shaft work for shaft turning production schedules generate.
- Professional-grade 2 in. spindle bore matches bar-feeding capacity for long-bar work production turning generates.
- Engineered Meehanite load-bearing castings — delivering the rigidity production turning depends on, sized for the harmonic dampening fine-finish work demands.

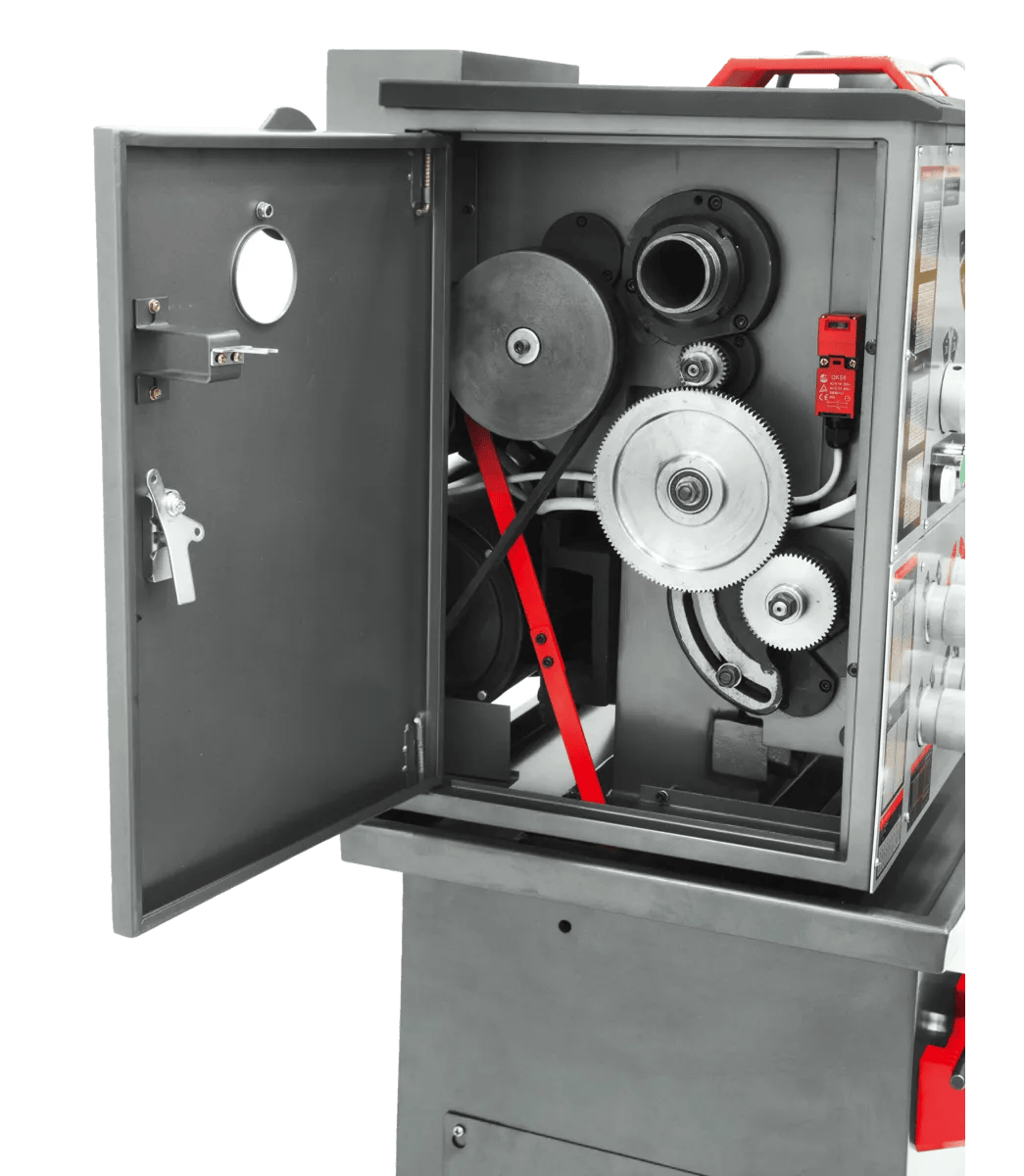

- Industrial hardened change gears — earning their place through service life, not just first-pass tolerance, engineered for finish quality across long production runs.
Specifications
- SKUJT9-323448
- Assembled Dimensions76-2/5 x 29-15/16 x 59-4/5 in.
- Carriage Travel37-2/5 in.
- Collet CloserNo
- Digital ReadoutNewall NMS300
- Distance Between Centers36-7/8 in.
- Drive TypeGeared Head
- Length of Gap8 in.
- Maximum Tool Size5/8 x 5/8 in.
- Number of Inch Threads34
- Number of Longitudal And Cross Feed Rates32/32
- Number of Metric Threads26
- Number of Spindle Speeds8
- Old Material Number323448
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range Of Cross Feeds0.007 - 0.0187 in./rev
- Range Of Inch Threads Tpi4 - 56 TPI
- Range Of Longitudal Feeds in/rev0.002 - 0.0548 IPR
- Range Of Spindle Speeds70 - 1900 RPM
- Range of Metric Threads0.4 - 7 mm
- SAP Gross Weight1,836
- SAP Net weight1,655
- Spindle Bore2 in.
- Spindle MountD1-5
- Spindle TaperMT6
- Spindle Taper with SleeveMT4

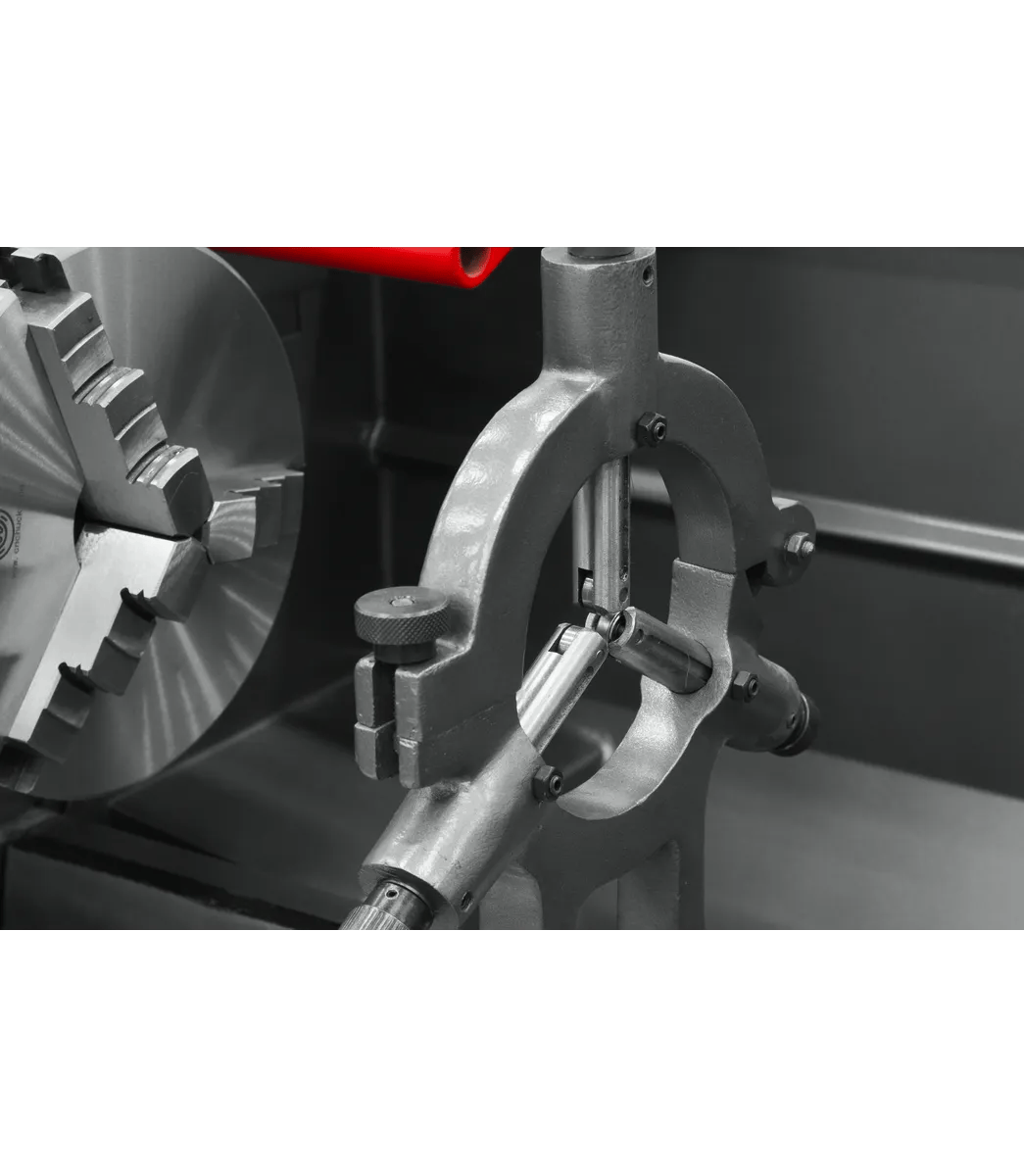

- Steady Rest Capacity5/16 - 2-15/16 in. (8 - 74.6 mm)
- Swing Over Bed14 in.
- Swing Through Gap18 in.
- Tailstock Spindle Travel4 in.
- Taper in Tailstock SpindleMT4
- UPC731325734010
- WarrantyTwo Years
- Width Of Bed7-5/16 in.
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
