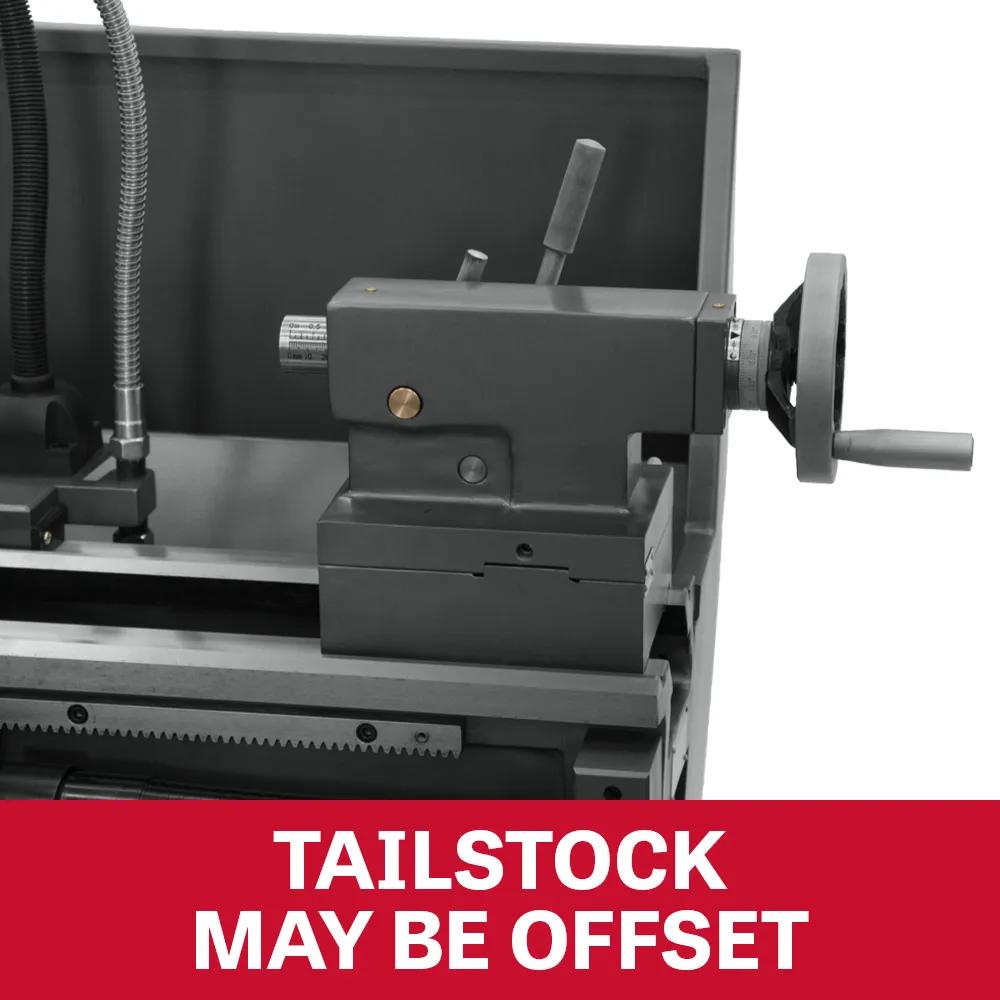

Tailstock may be offset
Product Image
Product Image

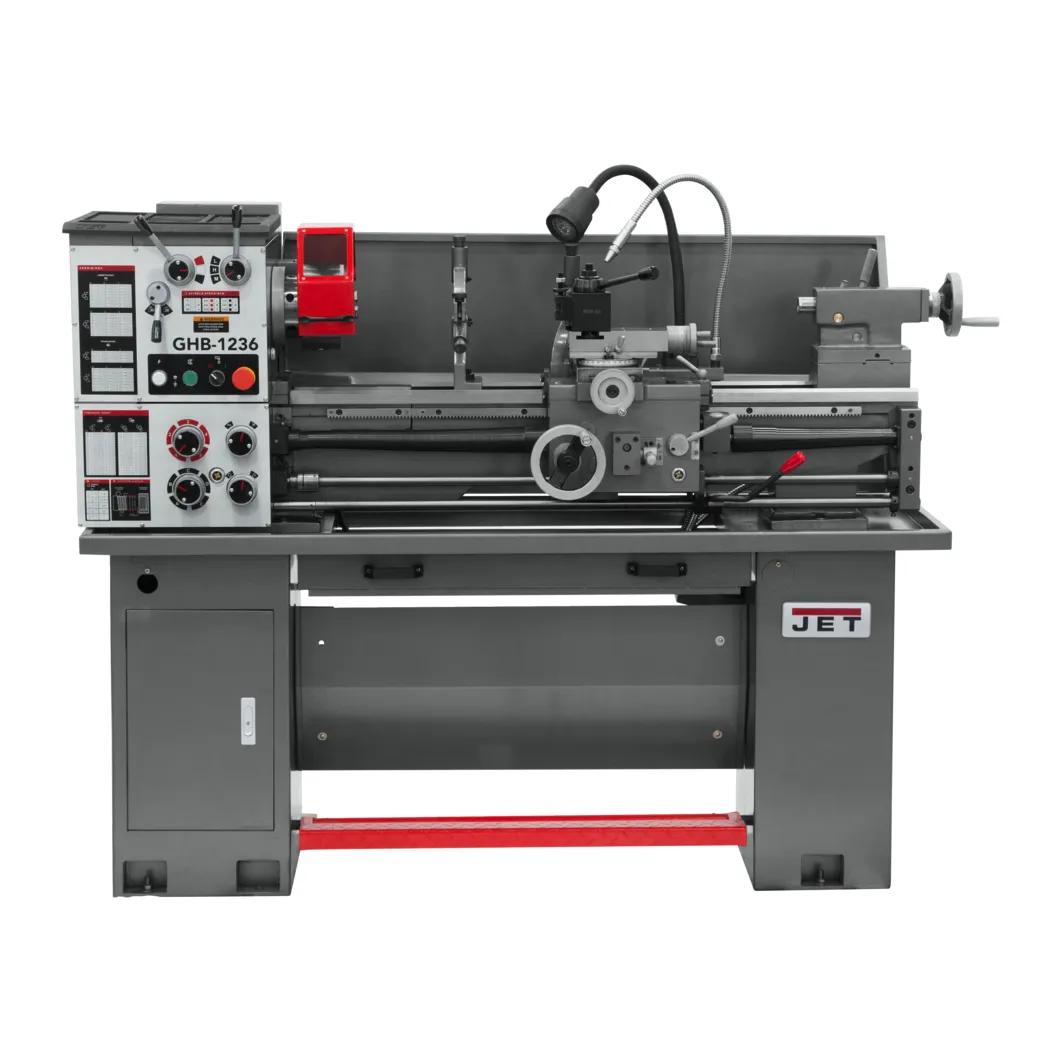

12" x 36" Geared Head Bench Lathe & Acu-Rite 203 DRO, 2HP, 230V 1PH(GHB-1236)

Stock Number: JT9-323230

0 Reviews

No reviews yet.

  • 2 HP, 230V, single-phase
  • 13" swing, 33" centers
  • 1-9/16 in. spindle bore

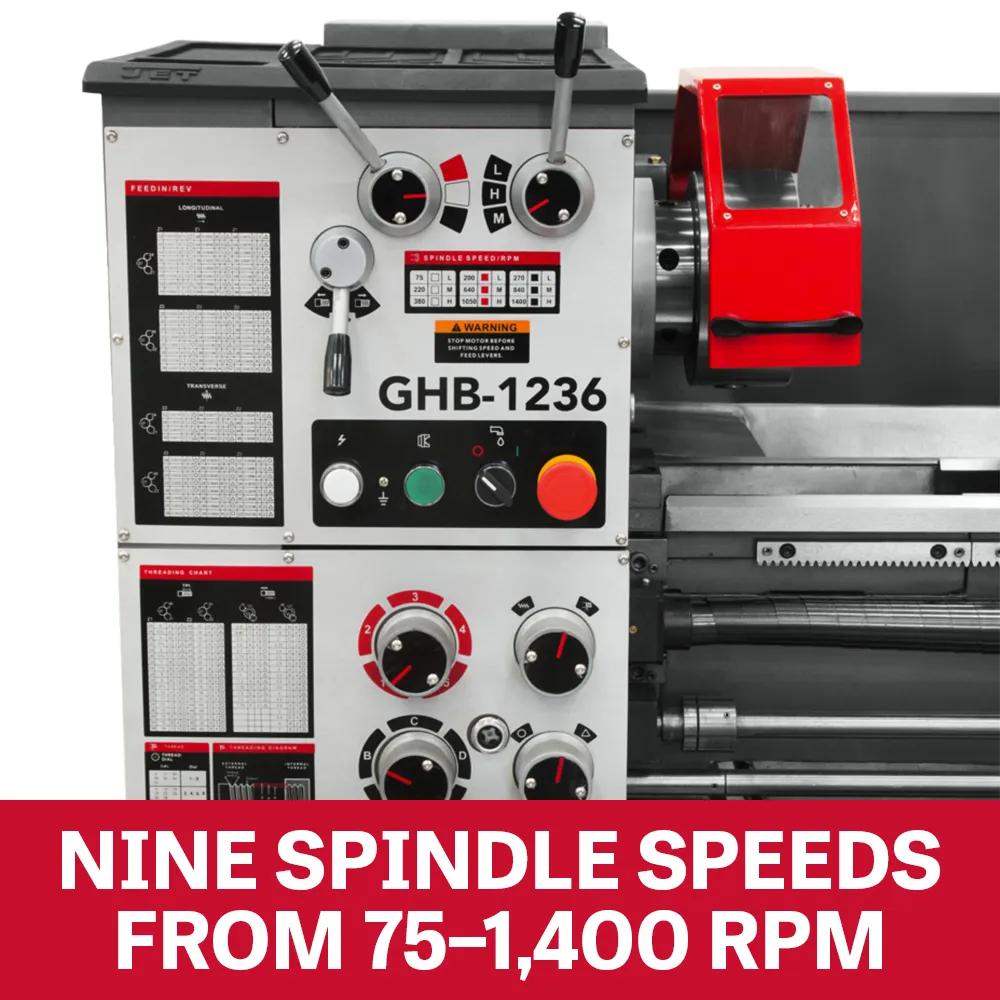

  • 75 - 1400 RPM
BUY NOW
Jet 90 Day Warranty
Jet Need Parts

Product Details

Built for the turning work that defines a production shop. Engineered around shops that turn parts, repair shafts, and cut threads on the same machine, the GHB-1236 earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial build quality, industrial warranty backing.

Features

  • Professional-grade 13-inch swing matches the chuck and tool-holding capacity for the workpiece diameters production turning generates.
  • 2 HP, 230V single-phase induction motor — running quieter and cooler than equivalent open-frame designs, sized for industrial-grade duty cycles.
  • Shop-rated 33 in. bed length matches long-shaft work for center-and-tail work across the full bed.
  • Precision-rated 1-9/16 in. spindle bore delivers bar-feeding capacity for long-bar work production turning generates.
  • Meehanite headstock castings match the rigidity for the structural authority production turning demands.

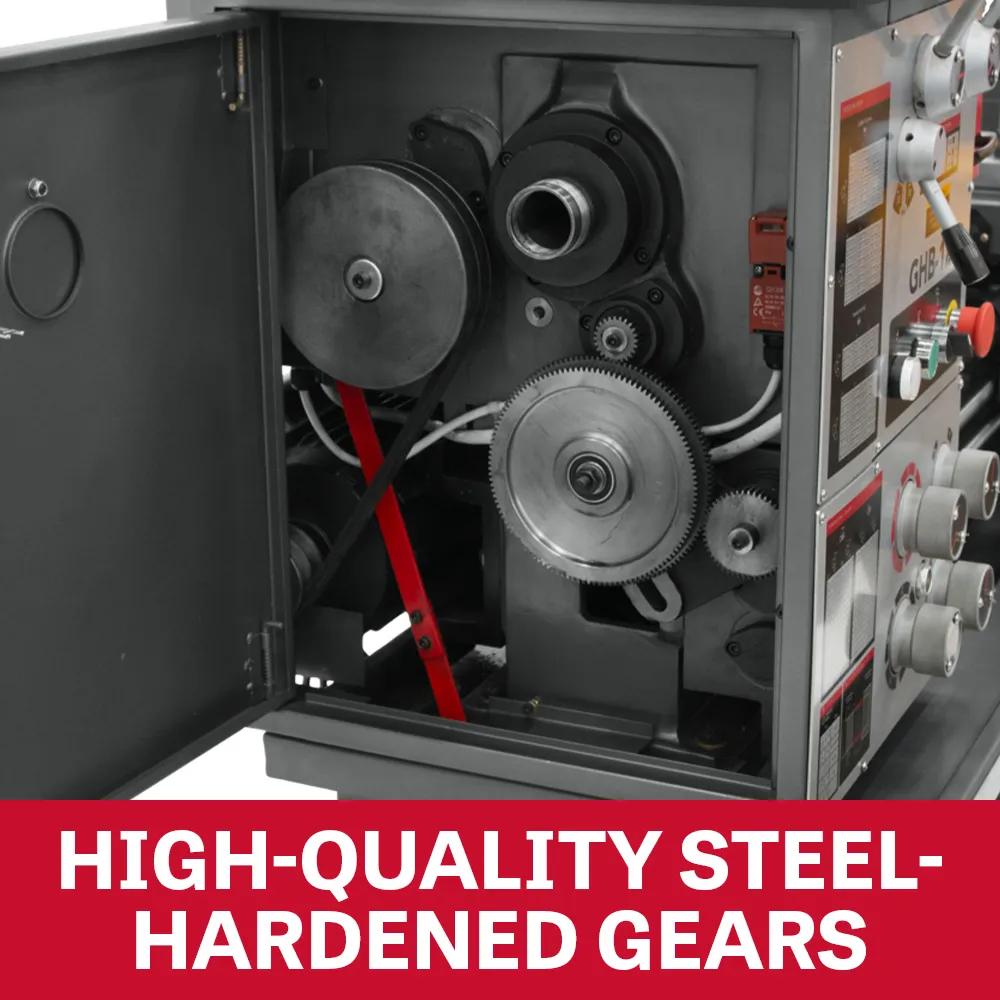

  • Hardened-steel gear assemblies support the working precision without tolerance drift across the warranty period.

Specifications

  • SKU
    JT9-323230
  • Assembled Dimensions
    66-3/16 x 29-1/2 x 57-1/2 in.
  • Carriage Travel
    27-3/8 in.
  • Collet Closer
    No
  • Compound Slide Travel
    3 in.
  • Cross Slide Travel
    5-1/2 in.
  • Digital Readout
    Acu-Rite 203
  • Distance Between Centers
    33 in.
  • Drive Type
    Geared Head
  • Horse Power
    2 HP
  • Lead Screw Diameter
    7/8 in.
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap
    8-3/4 in.
  • Maximum Tool Size
    3/4 x 3/4 in.
  • Number of Inch Threads
    36
  • Number of Longitudal And Cross Feed Rates
    48/36
  • Number of Metric Threads
    32
  • Number of Spindle Speeds
    9
  • Old Material Number
    323230
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range Of Cross Feeds
    0.0014 - 0.0116 in./rev
  • Range Of Inch Threads Tpi
    4 - 60 TPI
  • Range Of Longitudal Feeds in/rev
    0.0019 - 0.0472 IPR
  • Range Of Spindle Speeds
    75 - 1400 RPM
  • Range of Metric Threads
    0.4 - 7 mm
  • Recommended Circut Size Amp
    15 A
  • SAP Gross Weight
    1,297
  • SAP Net weight
    1,139
  • Sound Rating Db
    88 dB
  • Spindle Bore
    1-9/16 in.
  • Spindle Mount
    D1-4
  • Spindle Taper
    MT5
  • Spindle Taper with Sleeve
    MT3
  • Steady Rest Capacity
    5/16 - 2-15/16 in. (8 - 74.6 mm)
  • Swing Over Bed
    12 in.
  • Swing Over Cross Slide
    7-1/2 in.
  • Swing Through Gap
    18 in.
  • Tailstock Spindle Travel
    3-1/2 in.
  • Taper Attachment
    No
  • Taper in Tailstock Spindle
    MT3
  • Tool Rest
    4-way
  • UPC
    731325733914
  • Warranty
    Ninety Days
  • Width Of Bed
    7-1/8 in.
  • Input Power
    230 V 1 Ph
  • Motor HP
    2 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
