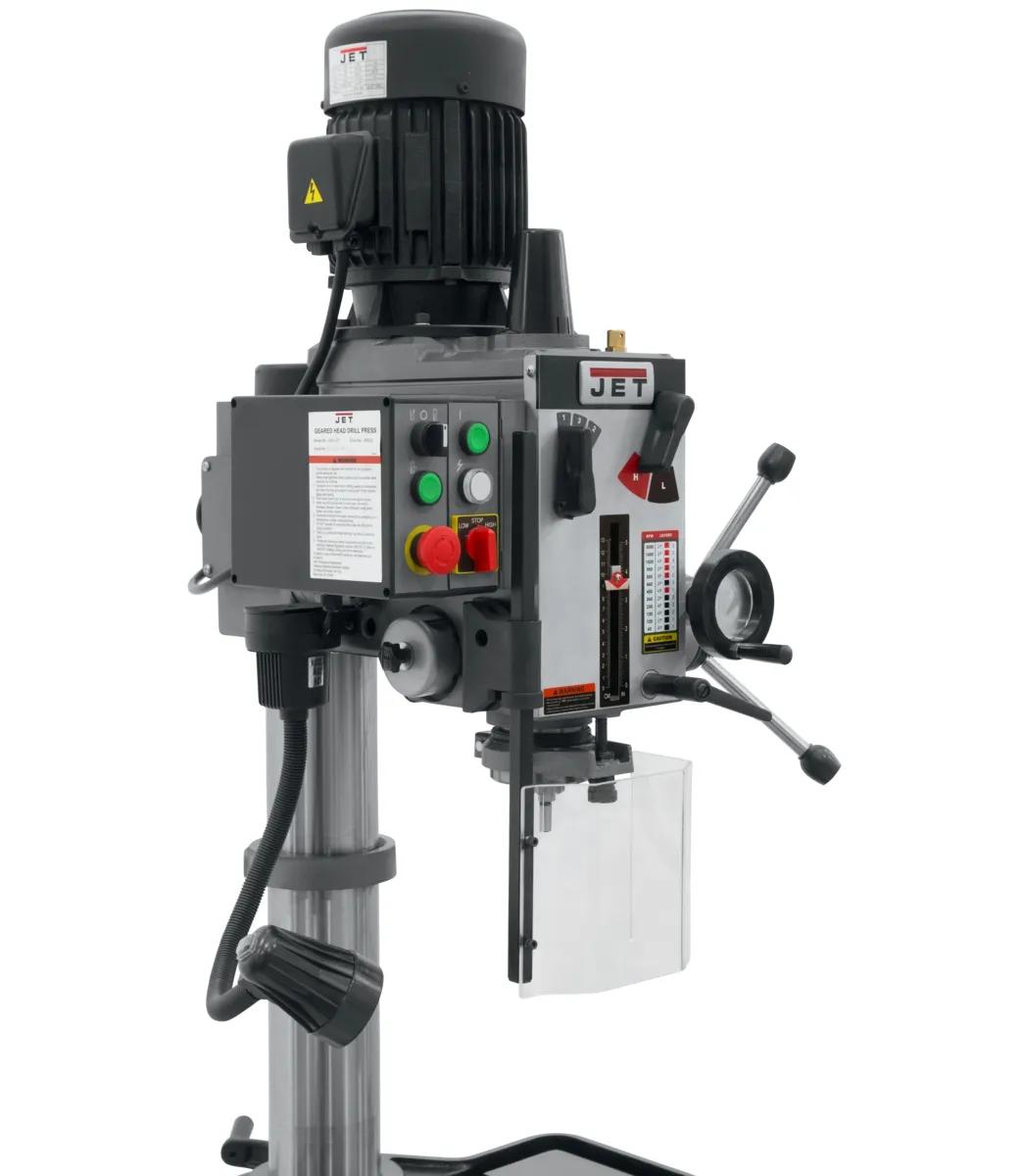

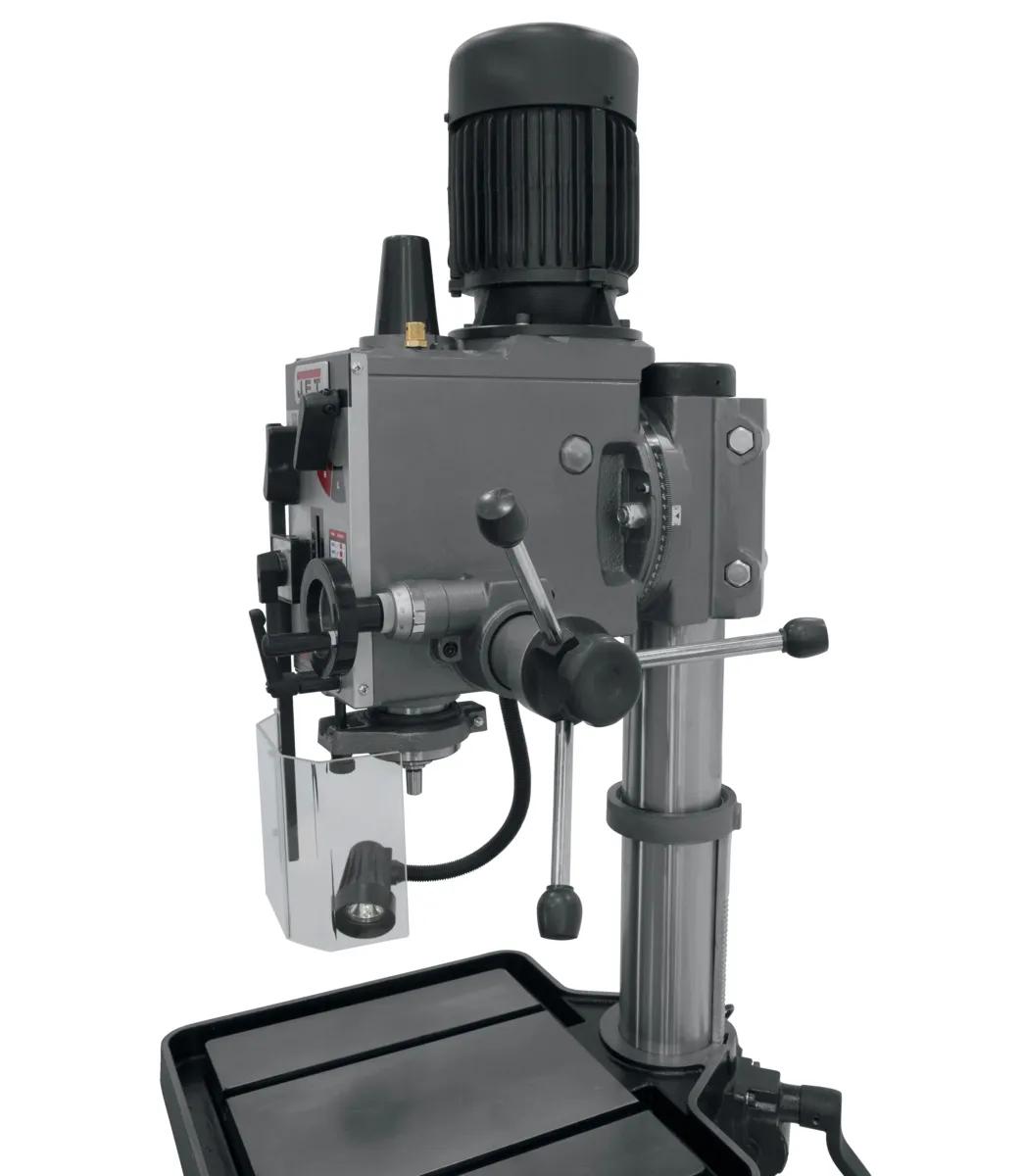

20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)
20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)
20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)
20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)
20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)

20" Gear Head Drill Press, 2HP, 230V 3PH(GHD-20)

Stock Number: JT9-354020

0 Reviews

No reviews yet.

  • 2 HP, 230V, three-phase
  • 20" drilling capacity
  • MT-3 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Drill press performance from setup to finish. Built around tool-room hole-making and repeat parts production, the GHD-20 delivers production-grade results. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for the cycle counts production drilling actually generates.

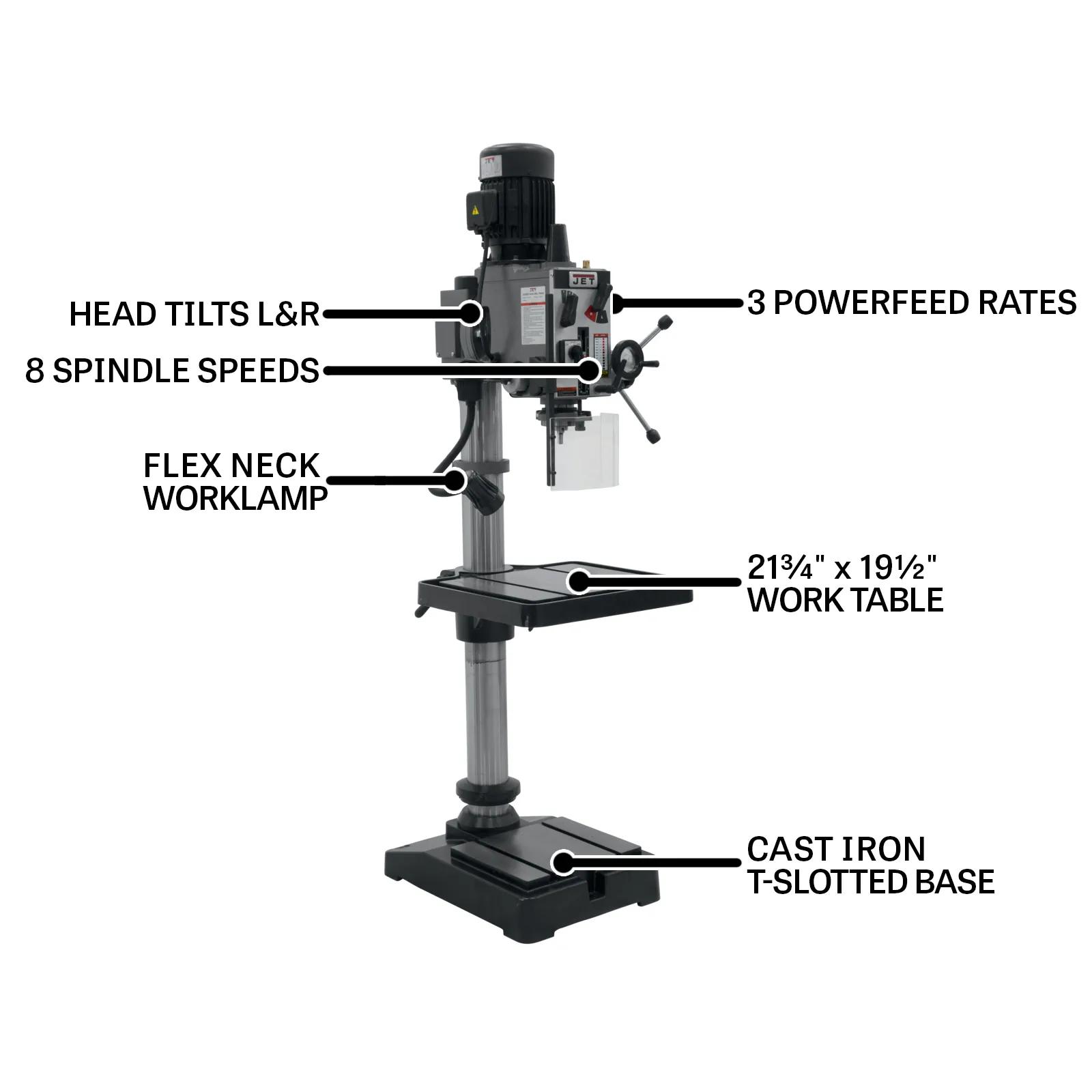

Features

  • 2 HP, 230V three-phase induction motor — running at nameplate output, sized for mixed-material work envelopes.
  • Precision-rated 20-inch drilling envelope — covering the hole library production drilling generates across professional shop floors.
  • MT-3 spindle standard means compatibility with the tools shops already own across production fabrication.
  • Generous 5-inch quill travel handles deep-hole and through-hole production work for the vertical envelope production milling targets.
  • Industrial-grade cast iron column castings earn their place for dimensional stability under sustained cutting loads.
  • Surface-ground headstock gears deliver dimensional stability for the cycle counts industrial use generates.

Specifications

  • SKU
    JT9-354020
  • Assembled Dimensions
    32 x 24 x 71 in.
  • Base Size
    26 x 18 in., 15-1/4 x 13 in.
  • Chuck Size
    1/2 x 20 in.
  • Collet Size
    4-1/2 in.
  • Distance Column to Spindle
    10 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drills to Center of Circle
    20 in.
  • Input Power
    230 V 3 Ph
  • Model Number
    GHD-20
  • Motor Amps
    6 A
  • Motor HP
    2 HP
  • Motor Phase
    Three
  • Motor Voltage
    230 V
  • Old Material Number
    354020
  • Prewired Voltage
    230 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Feed
    Manual
  • Range Of Spindle Speeds
    60, 120, 130, 230, 260, 450, 460, 800, 900, 1500, 1600, 3000 RPM
  • SAP Gross Weight
    698
  • SAP Net weight
    660
  • Spindle Distance To Base
    44-5/16 in.
  • Spindle Distance To Table Max
    30-1/2 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    5 in.
  • Style Type
    Geared Head
  • Swing
    20 in.
  • T-Slot Centers
    9 in.
  • Table Size
    21-3/4 x 19-1/2 in.
  • Table Tilt (L, R, C)
    45 Deg.
  • Table Travel
    25-1/2 in.
  • UPC
    662755803840
  • Warranty
    Two Years
  • Work Table Weight Capacity
    275 lbs
