20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)
20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)
20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)
20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)
20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)

20" Gear Head Tapping Drill Press w/ Power Down feed, 2HP, 230V 3PH(GHD-20PFT)

Stock Number: JT9-354026

0 Reviews

No reviews yet.

  • 2 HP
  • 20" drilling capacity
  • MT-3 spindle taper
BUY NOW

Product Details

Repeatable hole-making, run after run. Engineered around industrial drilling environments running through-hole and deep-hole work, the GHD-20PFT earns its place. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade build, industrial-grade warranty.

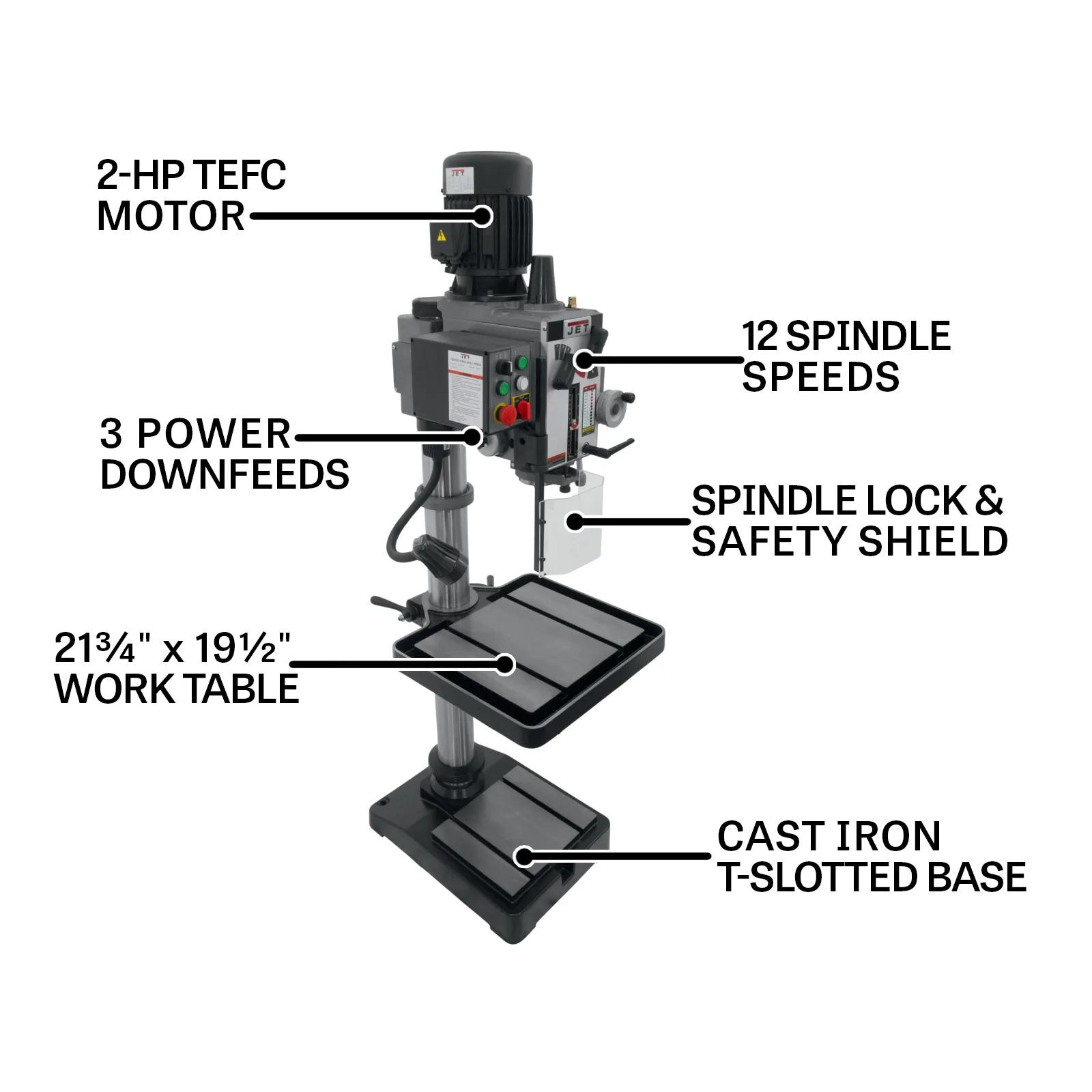

Features

  • 20-inch capacity covers the hole sizes for the production hole-making most shops actually run.
  • Precision-rated MT-3 spindle interface — handling the tooling loads production cutting generates.
  • Industrial 2 HP motor — handling startup loads where smaller motors stall across professional shop floors.
  • Cast iron base castings hold reference flat for the operating envelope precision cutting generates.
  • Hardened-steel quill assemblies handle the working precision without tolerance drift across the warranty period.
  • Precision-rated CSA/cUS listing — covering electrical safety compliance regulated sites actually verify across industrial production environments.

Specifications

  • SKU
    JT9-354026
  • Assembled Dimensions
    32 x 24 x 71 in.
  • Base Size
    26 x 18 in., 15-1/4 x 13 in.
  • Collet Size
    4-1/2 in.
  • Distance Column to Spindle
    10 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drills to Center of Circle
    20 in.
  • Model Number
    GHD-20PFT
  • Motor Amps
    6 A
  • Motor HP
    2 HP
  • Net Weight
    708
  • Old Material Number
    354026
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Feed
    Manual
  • Range Of Spindle Speeds
    60, 120, 130, 230, 260, 450, 460, 800, 900, 1500, 1600, 3000 RPM
  • SAP Gross Weight
    708
  • Spindle Distance To Base
    44-5/16 in.
  • Spindle Distance To Table Max
    30-1/2 in.
  • Spindle Taper X Tpi
    MT3
  • Style Type
    Geared Head
  • T-Slot Centers
    9 in.
  • Table Size
    21-3/4 x 19-1/2 in.
  • Table Travel
    25-1/2 in.
  • Tapping Capacity Cast Iron
    15/16 in.
  • Tapping Capacity Mild Steel
    15/16 in.
  • UPC
    662755161469
  • Warranty
    Two Years
  • Work Table Weight Capacity
    275 lbs
