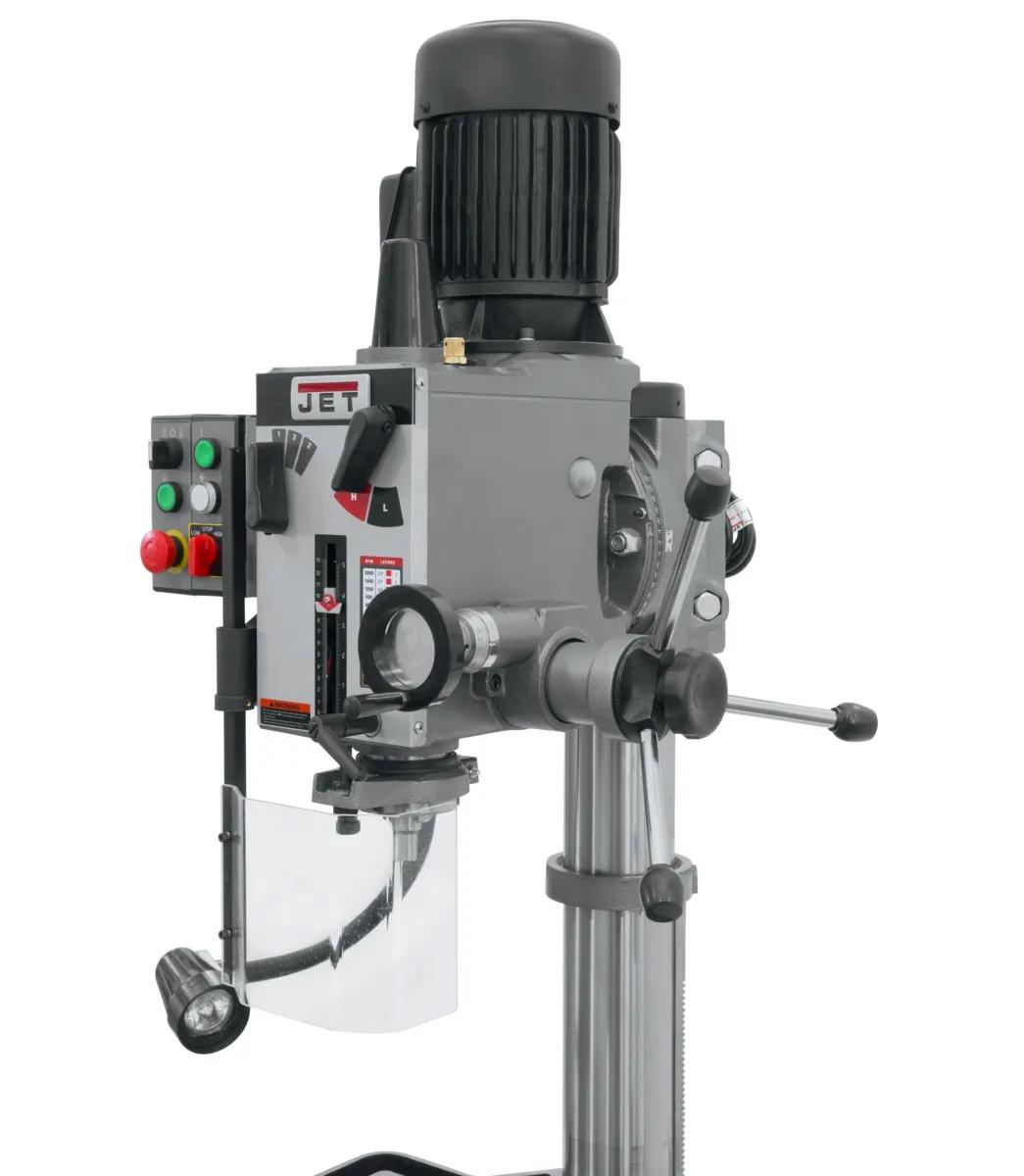

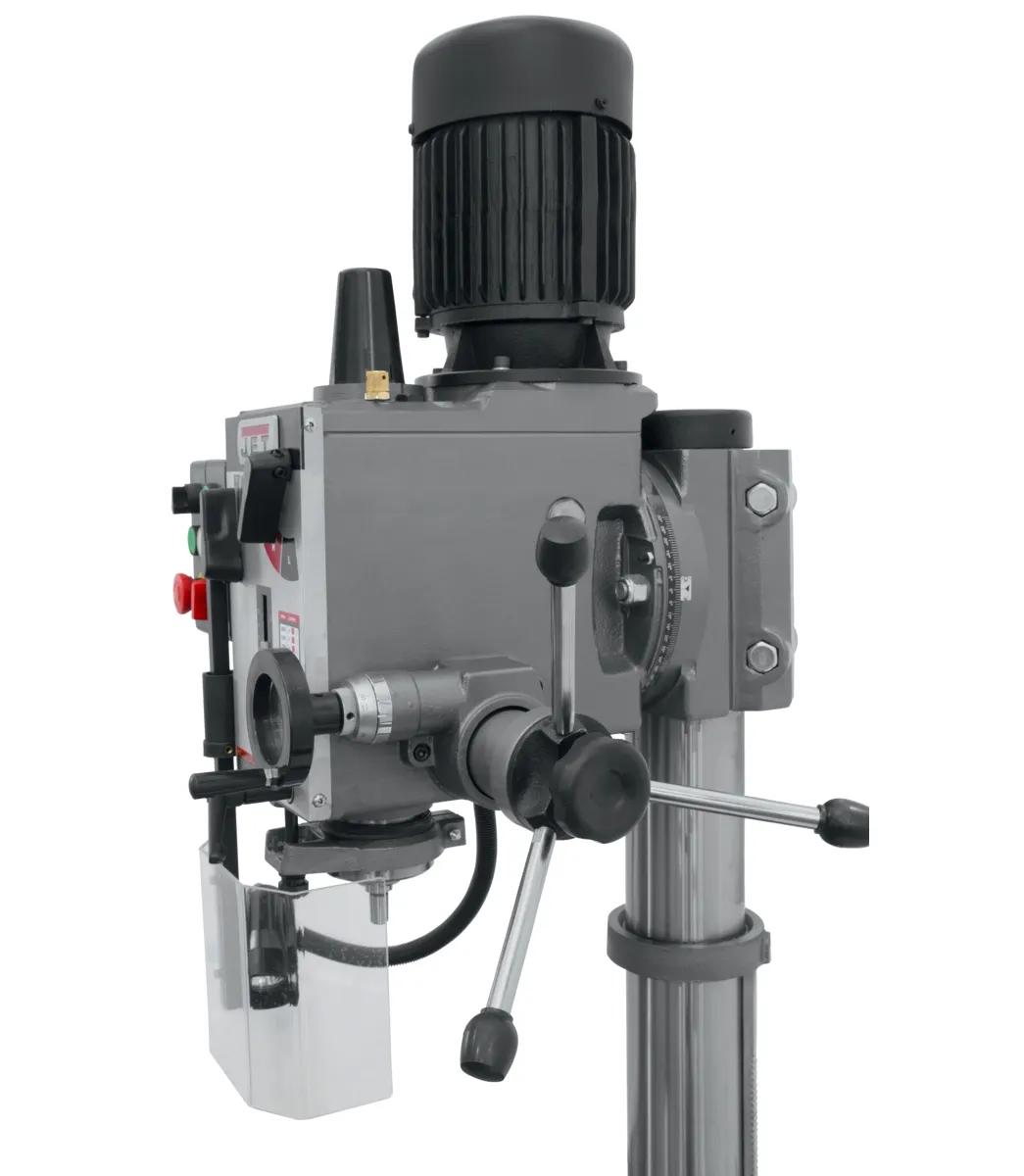

20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)
20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)
20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)
20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)
20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)

20" Gear Head Tapping Drill Press, 2HP, 230V 3PH(GHD-20T)

Stock Number: JT9-354022

0 Reviews

No reviews yet.

  • 2 HP
  • 20" drilling capacity
  • MT-3 spindle taper
  • 5" spindle travel
BUY NOW
Fetching Data...

Product Details

Built for the production drilling that defines repeat parts. Designed for shops where drilling capacity meets daily duty cycles, the GHD-20T stands up to the duty cycle. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage and the service network keep production drilling running.

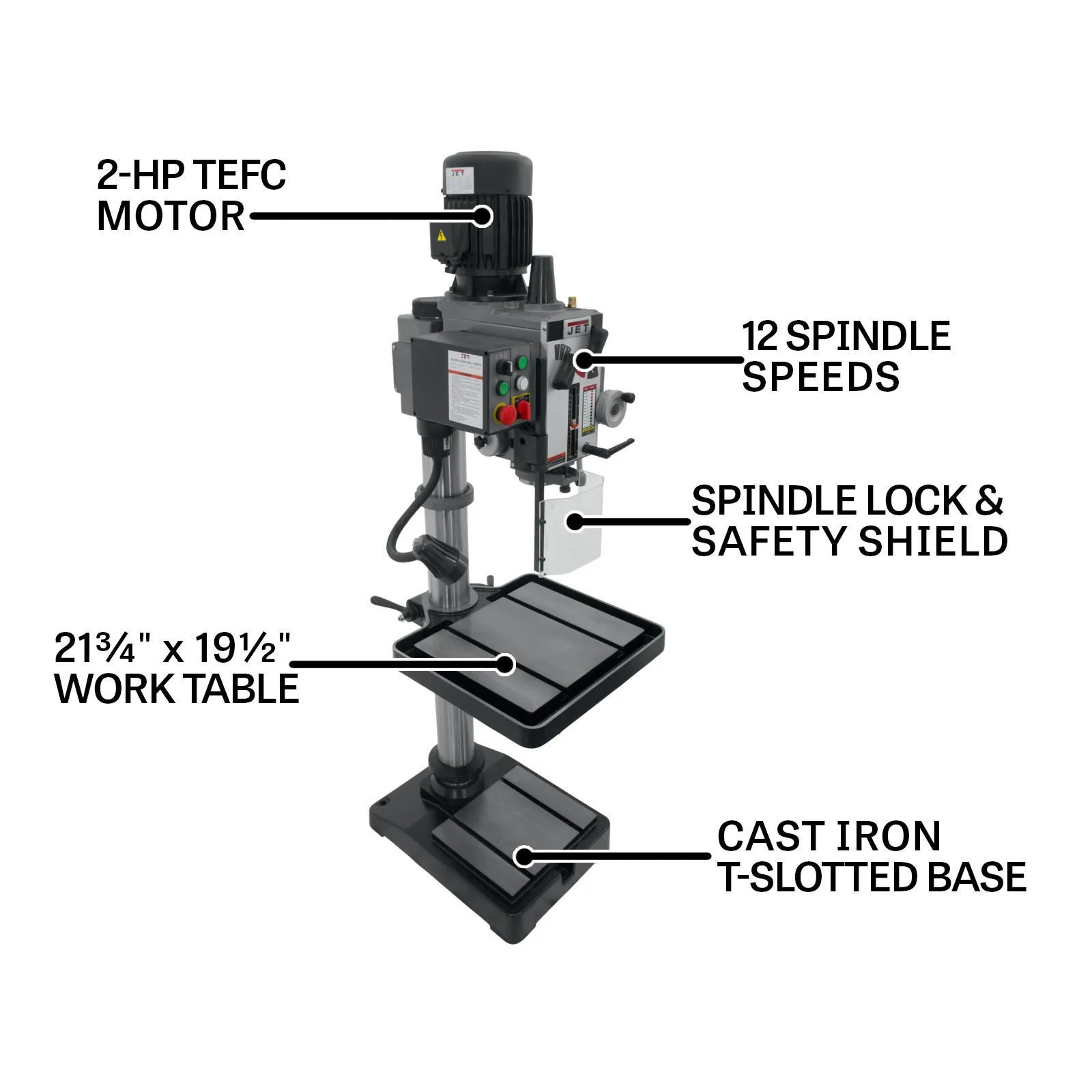

Features

  • 20-inch drilling capacity handles the production hole-making for repeatable hole-making across long runs.
  • MT-3 spindle taper matches the standard end-mill library for fast tool changes with the standard collet system.
  • Heavy-duty 2 HP motor sized for full-shift operation, not weekend project work.
  • Generous 5-inch quill travel handles deep-hole and through-hole production work for the through-hole work production drilling generates.
  • Cast iron construction in the table castings — resisting deflection under sustained cutting forces.
  • Precision-hardened and ground quill assemblies hold tolerance — running smoother and quieter than commercial-grade alternatives.

Specifications

  • SKU
    JT9-354022
  • Assembled Dimensions
    32 x 24 x 71 in.
  • Base Size
    26 x 18 in., 15-1/4 x 13 in.
  • Collet Size
    4-1/2 in.
  • Distance Column to Spindle
    10 in.
  • Drilling Capacity Cast Iron
    1-1/2 in.
  • Drilling Capacity Mild Steel
    1-1/4 in.
  • Drills to Center of Circle
    20 in.
  • Model Number
    GHD-20T
  • Motor Amps
    6 A
  • Motor HP
    2 HP
  • Old Material Number
    354022
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Diameter
    3 in.
  • Quill Feed
    Manual
  • Range Of Spindle Speeds
    60, 120, 130, 230, 260, 450, 460, 800, 900, 1500, 1600, 3000 RPM
  • SAP Gross Weight
    739
  • SAP Net weight
    700
  • Spindle Distance To Base
    44-5/16 in.
  • Spindle Distance To Table Max
    30-1/2 in.
  • Spindle Taper X Tpi
    MT3
  • Spindle Travel
    5 in.
  • Style Type
    Geared Head
  • T-Slot Centers
    9 in.
  • Table Size
    21-3/4 x 19-1/2 in.
  • Table Travel
    25-1/2 in.
  • Tapping Capacity Cast Iron
    15/16 in.
  • Tapping Capacity Mild Steel
    15/16 in.
  • UPC
    662755161452
  • Warranty
    Two Years
  • Work Table Weight Capacity
    275 lbs
