Product Details
Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The HBS-1018EVS is built for production environments where blade speed and frame rigidity both count. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.

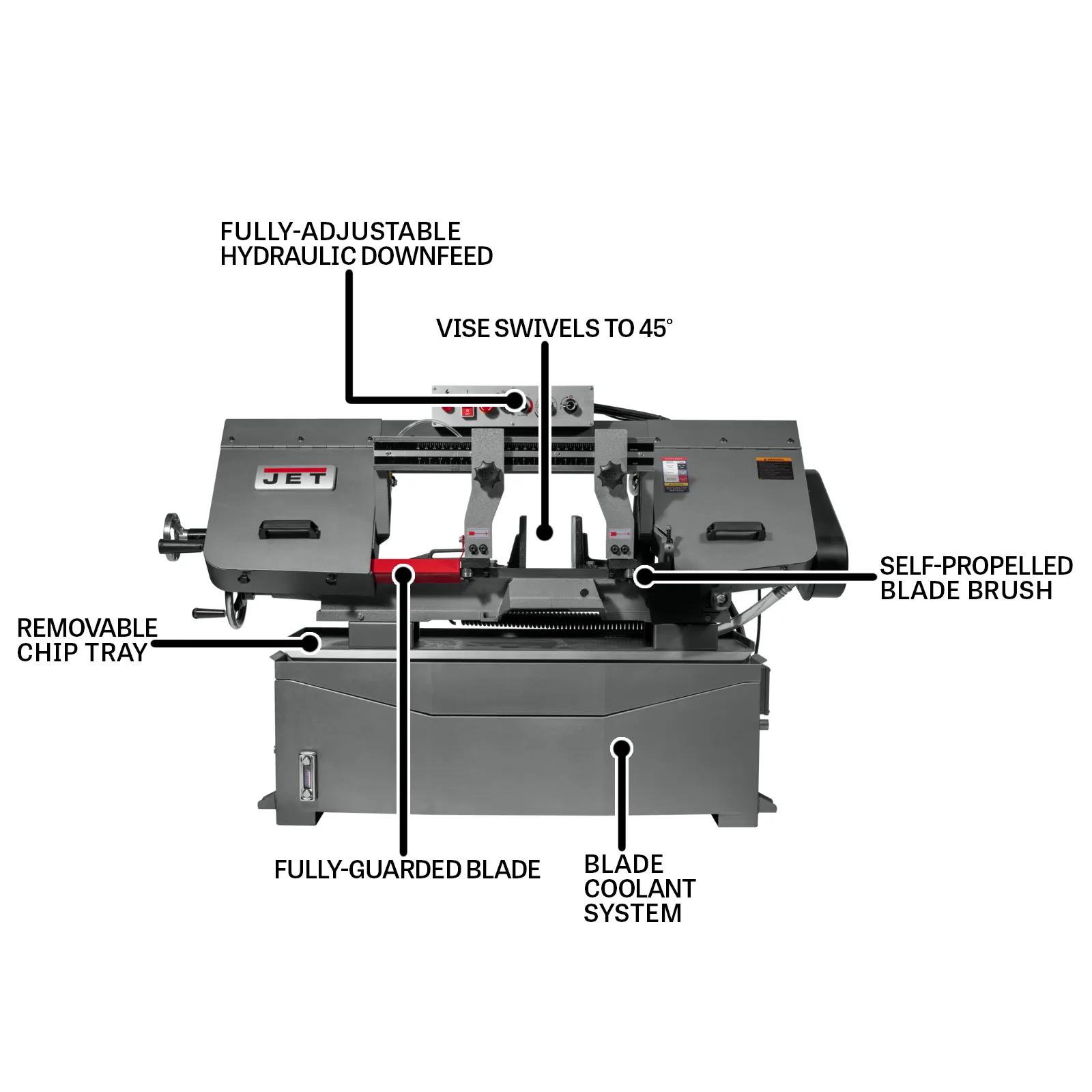

Features
- 2 HP, 115V single-phase induction motor — outlasting brush-driven alternatives across decades, sized for the working loads daily production generates.
- Variable blade speed up to (EVS ) 82-330 SFPM expands the cutting envelope for the material library production sawing actually faces.
- Industrial-spec saw frame matches blade alignment for blade alignment under sustained cutting.
- Premium-grade tilting table — extending the working envelope, engineered for the angle work production fabrication generates.
- Professional-grade cutting envelope supports workpiece sizes for the cut-length envelope industrial sawing requires.
- Vibration-dampening cast iron reference surfaces keep finish quality consistent for the structural authority production work demands.
Specifications
- SKUJT9-424470
- Amp Draw (amps)6.5 A
- Bed Height23.5 in.
- Blade Length130 in.
- Blade Size (In.)1 x .035 x 130 in.
- Blade Speed(EVS ) 82-330 sfpm
- Drive TypeEVS
- Input Power115 V 1 Ph
- Model NumberHBS-1018EVS
- Motor Amps5 A
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number424470
- Overall Assembled (Bow Lowered)68 x 28 x 70 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 45 Degrees10 x 7-1/2 in.
- Rectangle At 90 Degrees10 x 16 in. and 6-1/2 x 18 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight874
- SAP Net weight776
- UPC731325806892
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
