Product Details
Built for the cuts that production fabrication actually generates. The HBS-1018W answers the work generated by shops cutting varied stock through long-cycle work. Equipped with a 2 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Professional-grade 2 HP motor with sealed bearings — running quieter and cooler than equivalent open-frame designs across industrial machining.

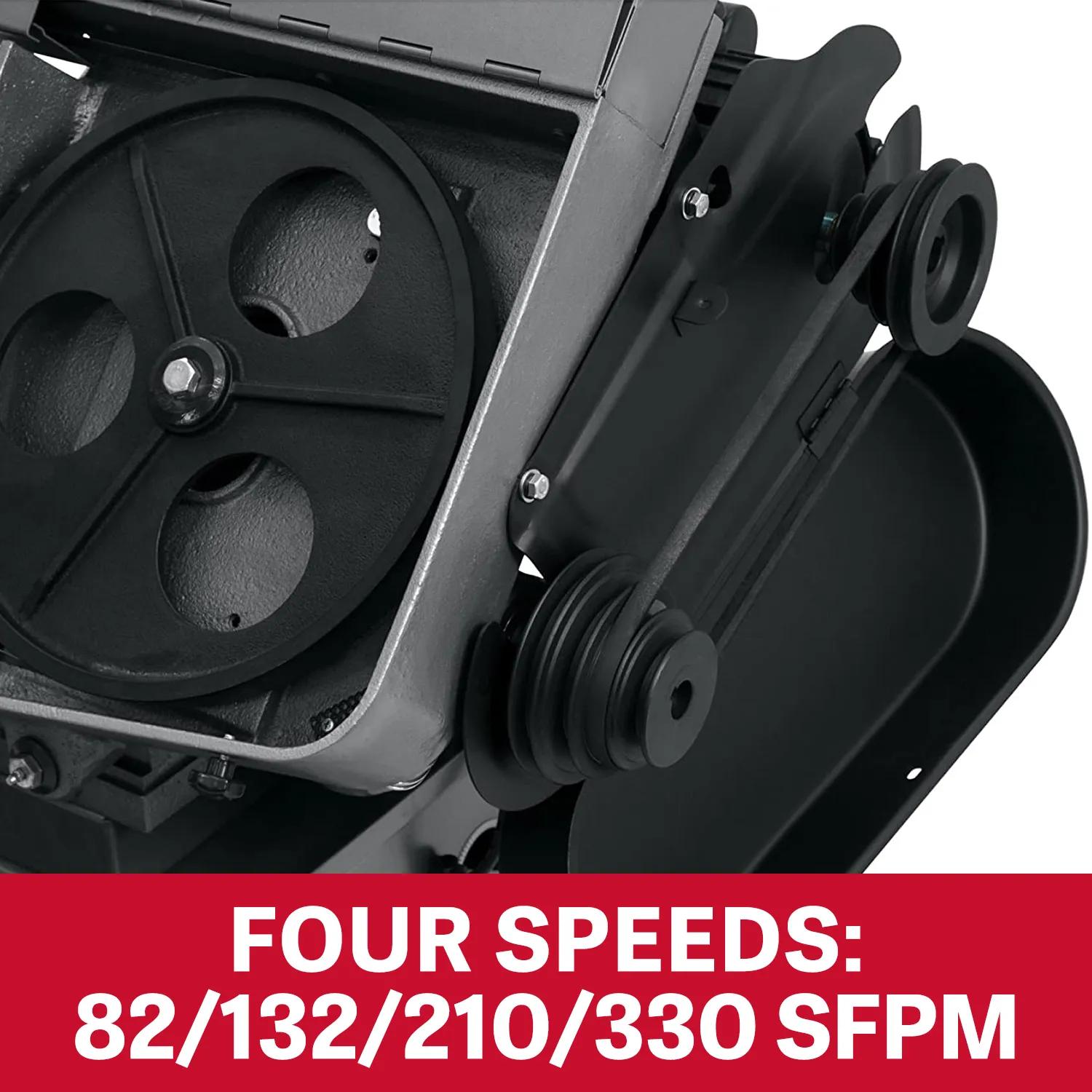

- 82, 132, 210, 330 SFPM cutting speed — covering the material library production sawing runs across fabrication shops.
- Premium-grade frame construction holds blade alignment for cut quality consistency across long runs.
- Tolerance-grade tilting table — handling miter and bevel cuts in one setup, engineered for the angle work production fabrication generates.
- Production cutting capacity — covering the workpiece library production sawing runs across production sawing.

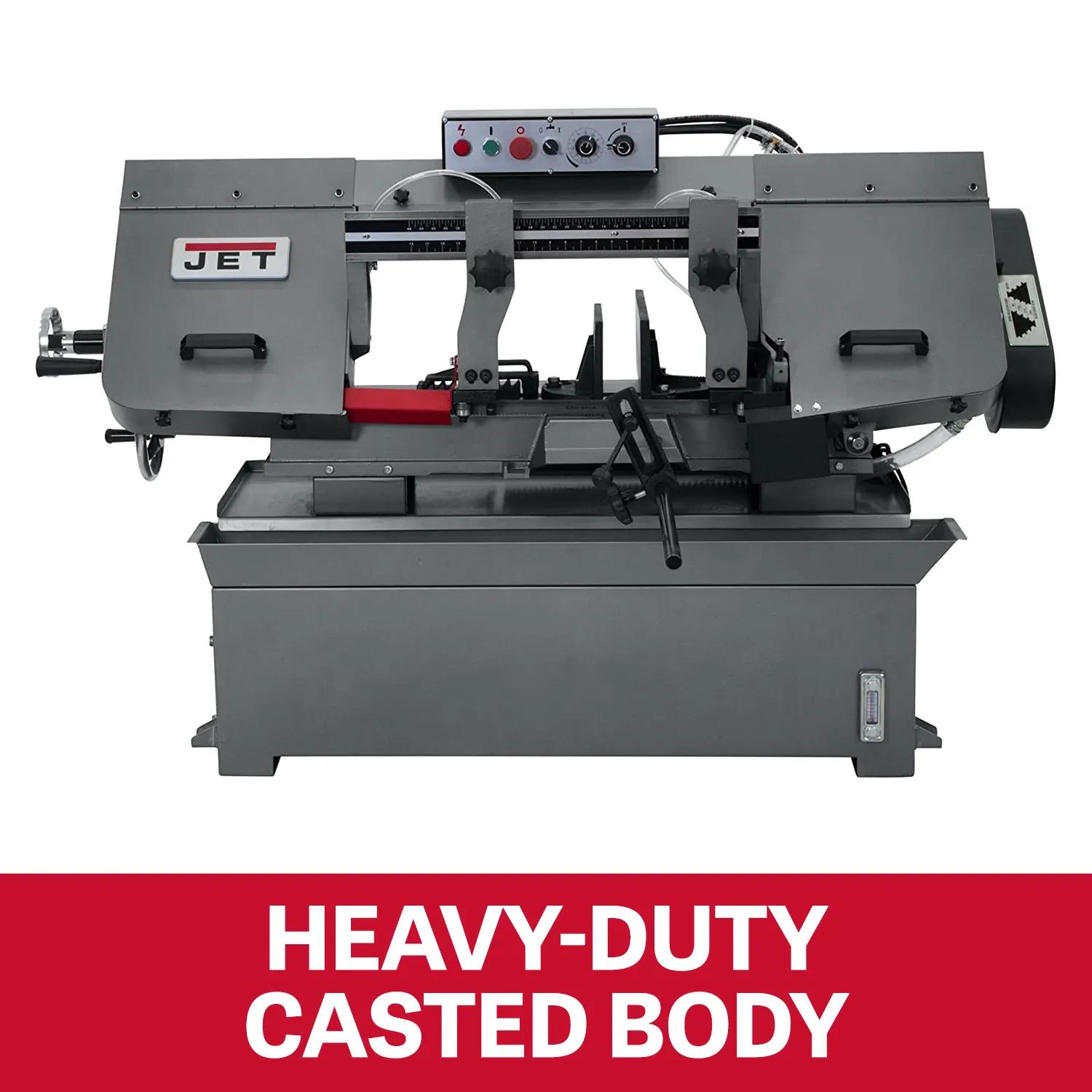

- Cast iron frames dampen vibration for the working loads industrial cutting generates.
Specifications
- SKUJT9-414473
- Amp Draw (amps)15 A
- Assembled Dimensions69 x 28 x 42-3/4 in.
- Bed Height23.5 in.
- Blade Diameter12 in.
- Blade Length150 in.
- Blade Size (In.)12 x 150 in.
- Blade Speed82, 132, 210, 330 sfpm
- Cutting Capacity - Height8 in.
- Drive TypeBelt Drive
- Height26 in.
- Horse Power2 HP
- Input Power230 V 1 Ph
- Model NumberHBS-1018W
- Motor HP2 HP
- Motor PhaseSingle
- Motor Voltage230 V
- Old Material Number414473
- Overall Assembled (Bow Lowered)51-1/2 x 18-1/8 x 44-7/8 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 45 Degrees10 x 7-1/2 in.
- Rectangle At 90 Degrees10 x 16 in. and 6-1/2 x 18 in.
- Round Capacity At 90 Degrees10 in.
- SAP Gross Weight906
- SAP Net weight864
- UPC662755753411
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter14 in.
