Product Details
Built for the cuts that production fabrication actually generates. The HBS-1321W was sized for fabrication shops running daily cuts. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.

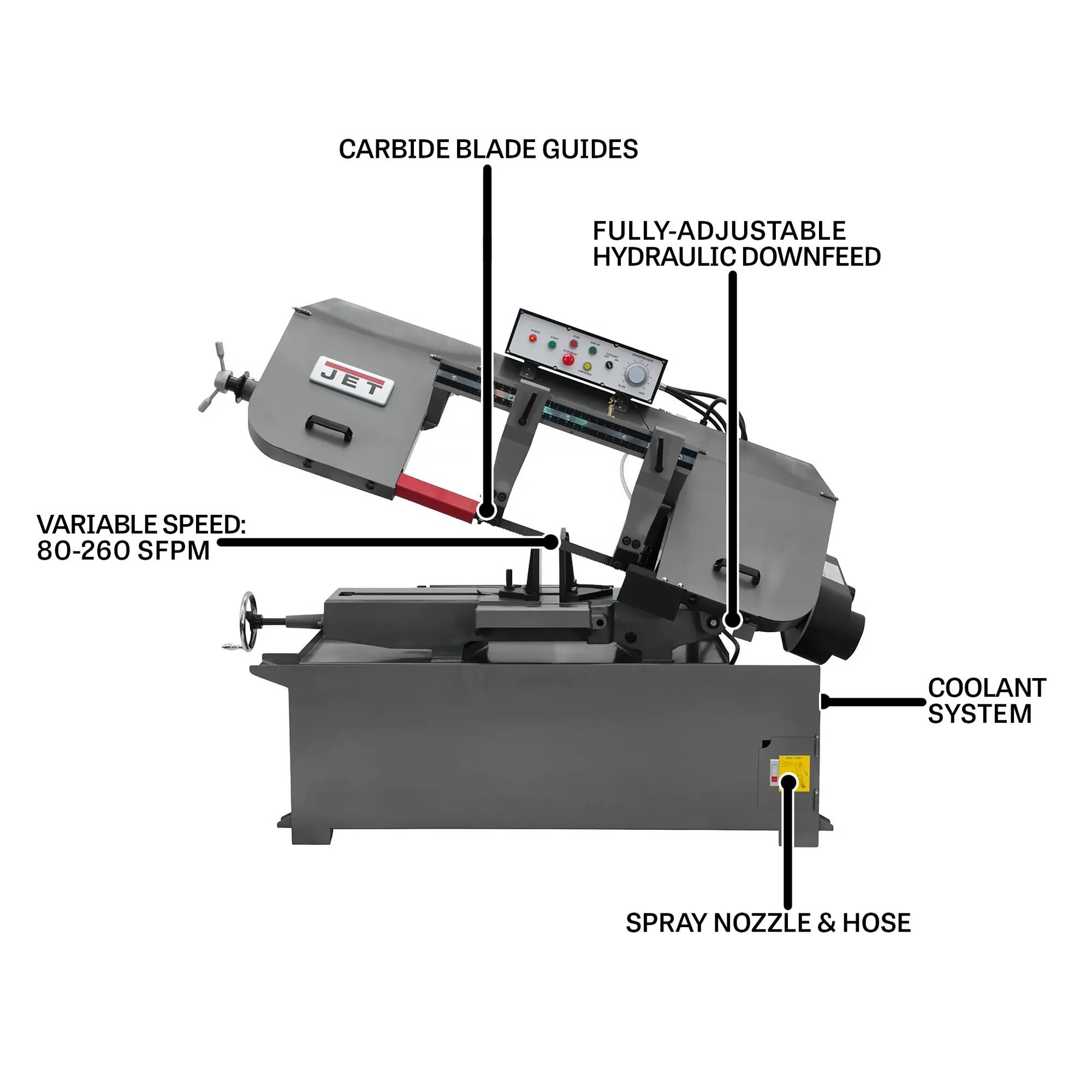

Features
- Professional-grade 3 HP motor with sealed bearings — running cooler under sustained load than equivalents across fabrication shops.
- Engineered blade speed at 80 - 260 SFPM covers cut velocity for the cutting velocity production sawing actually requires.
- Heavy-gauge welded frame covers structural rigidity for blade alignment under sustained cutting.
- Precision-rated tilting table — delivering angle accuracy precision work expects, engineered for miter and bevel cuts that defeat fixed-table saws.
- Premium-grade cutting envelope covers workpiece sizes for the cut-length envelope industrial sawing requires.
- Solid cast iron tables weigh in where stability counts most across industrial machining.
Specifications
- SKUJT9-414471-4
- Assembled Dimensions84 x 32-1/2 x 55 in.
- Bed Height38-3/4 in.
- Blade Diameter13 in.
- Blade Size (In.)Blade-style bandsaw
- Blade Speed80 - 260 sfpm
- CoatingPowder Coat
- Cutting Capacity - Height10 - 13 in.
- Drive TypeVariable Speed
- Height52 in.
- Horse Power2.5 HP
- Input Power460 V 3 Ph
- Model NumberHBS-1321W
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage460 V
- Old Material Number414471-4
- Overall Assembled (Bow Lowered)40 x 21 x 32 in.
- Prewired Voltage460 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 45 Degrees11-1/2 x 10-1/2 in.
- Rectangle At 90 Degrees10 x 21 in. and 13 x 19 in.
- Round Capacity At 90 Degrees13 in.
- SAP Gross Weight1,320
- SAP Net weight1,276
- UPC731325073614
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter18 in.
