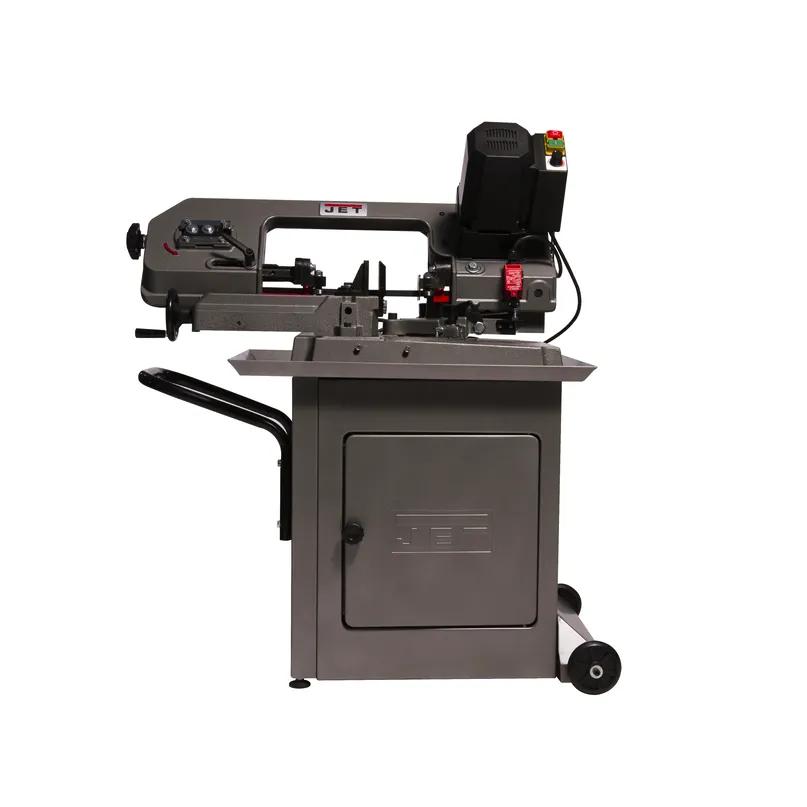

5" x 6" Vari. Speed, Mitering Horizontal Bandsaw, .5HP, 115V(HBS-56MVS)
5" x 6" Vari. Speed, Mitering Horizontal Bandsaw, .5HP, 115V(HBS-56MVS)
5" x 6" Vari. Speed, Mitering Horizontal Bandsaw, .5HP, 115V(HBS-56MVS)

5" x 6" Vari. Speed, Mitering Horizontal Bandsaw, .5HP, 115V(HBS-56MVS)

Stock Number: JT9-414558

0 Reviews

No reviews yet.

  • 0.5 HP, 115V, single-phase
  • Variable 80-230 SFPM
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Production-grade sawing for shops that need it daily. Engineered around production environments where blade speed and frame rigidity both count, the HBS-56MVS earns its place. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.

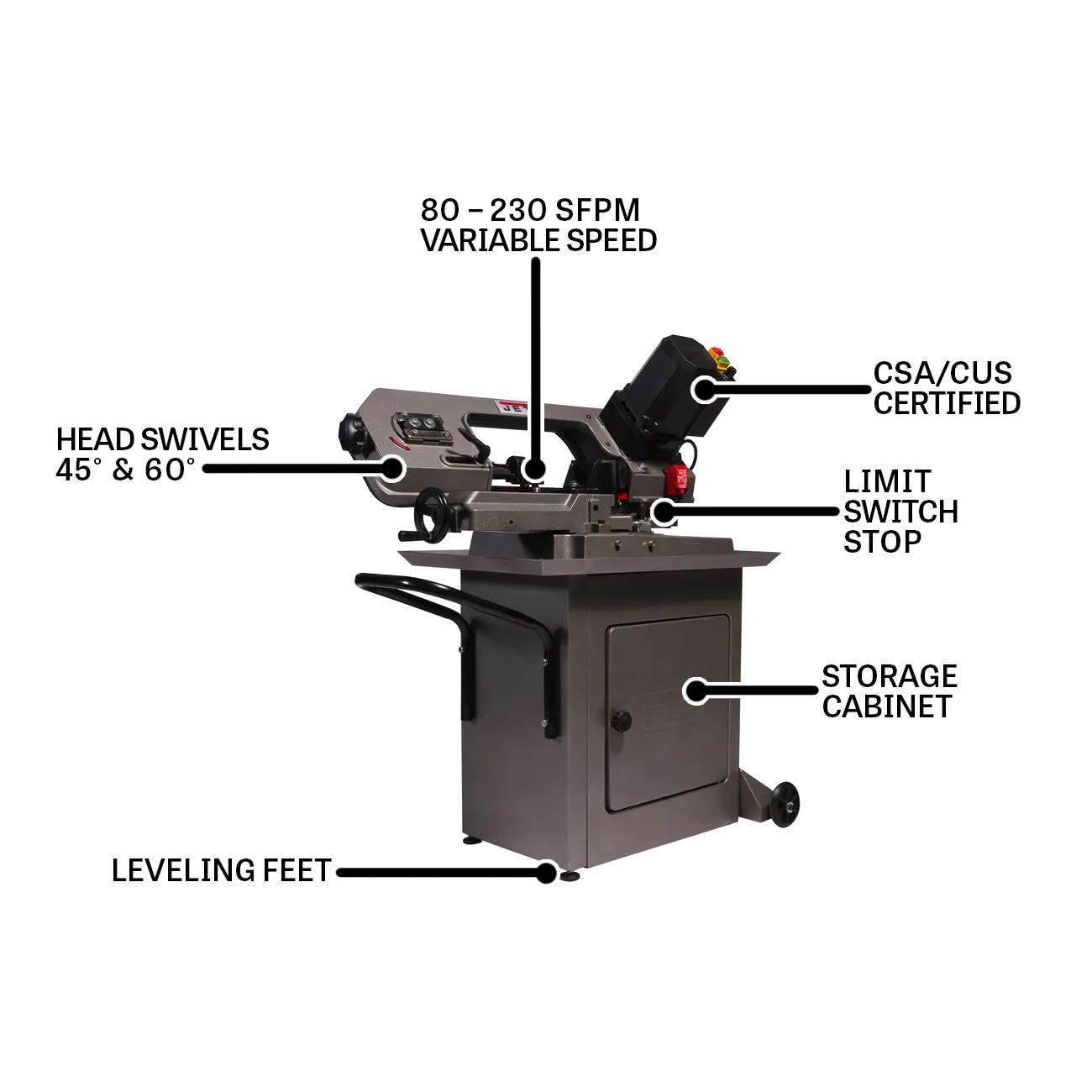

Features

  • Industrial-grade 0.5 HP single-phase drive — transmitting power smoothly, built for industrial production lines.
  • Blade speed of Variable 80-230 SFPM matches the cutting velocity for the cuts production sawing actually runs.
  • Industrial saw frame — absorbing harmonics that compromise cut quality on lighter saws across production sawing.
  • Industrial-spec tilting table — extending the working envelope, engineered for the angled cuts production fabrication actually runs.
  • Precision-rated cutting envelope delivers workpiece sizes for the cutting envelope production sawing demands.
  • Industrial-grade cast iron tables deliver rigidity for the structural authority production work demands.

Specifications

  • SKU
    JT9-414558
  • Amp Draw (amps)
    3.5 A
  • Assembled Dimensions
    38.58 x 20.47 x 43.3 in.
  • Bed Height
    28 in.
  • Blade Diameter
    7-3/8 in.
  • Blade Length
    72 in.
  • Blade Size (In.)
    1/2 x 0.025 x 64-1/2 in. (13 x 0.64 x 1638 mm)
  • Blade Speed
    Variable 80-230 sfpm
  • Cutting Capacity - Height
    5 x 6 in.
  • Drive Type
    Variable Speed
  • Height
    28 in.
  • Horse Power
    1/2 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    HBS-56MVS
  • Motor HP
    0.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Old Material Number
    414558
  • Overall Assembled (Bow Lowered)
    38.58 x 20.47 x 47.3 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Rectangle At 45 Degrees
    3-3/4 x 2-1/3 in.
  • Rectangle At 60 Degrees
    1-1/4 x 1-3/4 in., 5 x 1-3/4 in.
  • Rectangle At 90 Degrees
    5 x 6 in., 2 x 6 in.
  • Round Capacity At 90 Degrees
    5 in.
  • SAP Gross Weight
    176
  • SAP Net weight
    172
  • UPC
    731325727340
  • Vise Swivels Deg
    0 - 60 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    7-3/8 in.
