Product Details
Cut quality starts with a saw built for the work. The HBS-56S fits production environments where blade speed and frame rigidity both count — and the cycle counts they generate. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Engineered for production cycles, warrantied for the long run.
Features
- Factory-sealed 0.5 HP 115/230V induction motor stands up to manufacturing cells.
- 80, 120, 200 SFPM cutting speed — delivering blade velocity production sawing demands across professional sawing environments.
- Shop-rated frame construction holds blade alignment for the cutting forces production sawing generates.
- Precision table tilt mechanism delivers angle accuracy for angle accuracy production work expects.
- Industrial cutting envelope handles workpiece sizes for the stock library production fabrication actually generates.
- Cast iron trunnion castings deliver the structural mass for dimensional stability under sustained cutting loads.
Specifications
- SKUJT9-414457
- Assembled Dimensions37 x 20-3/4 x 41 in.
- Bed Height28 in.
- Blade Diameter5 in.
- Blade Length64-1/2 in.
- Blade Size (In.)5 x 72 in.

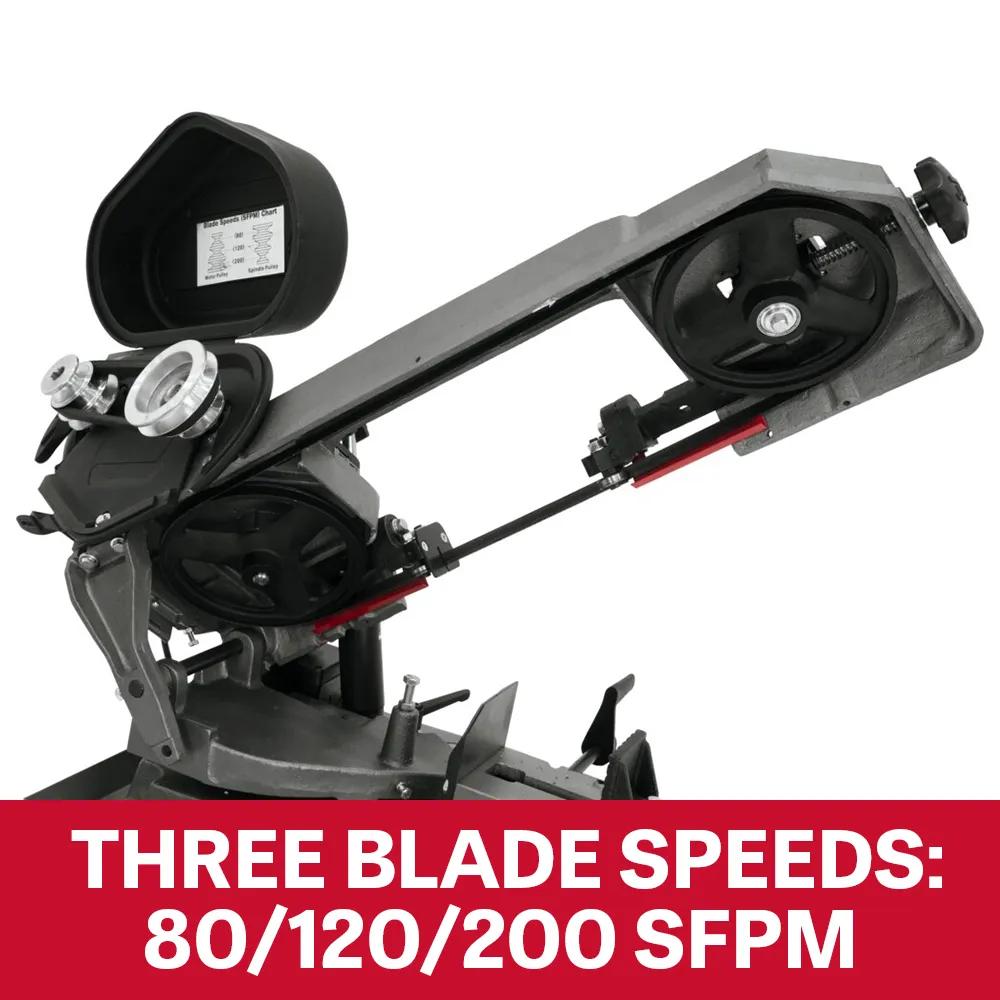

- Blade Speed80, 120, 200 sfpm
- Cutting Capacity - Height5 x 6 in.
- Drive TypeBelt Drive

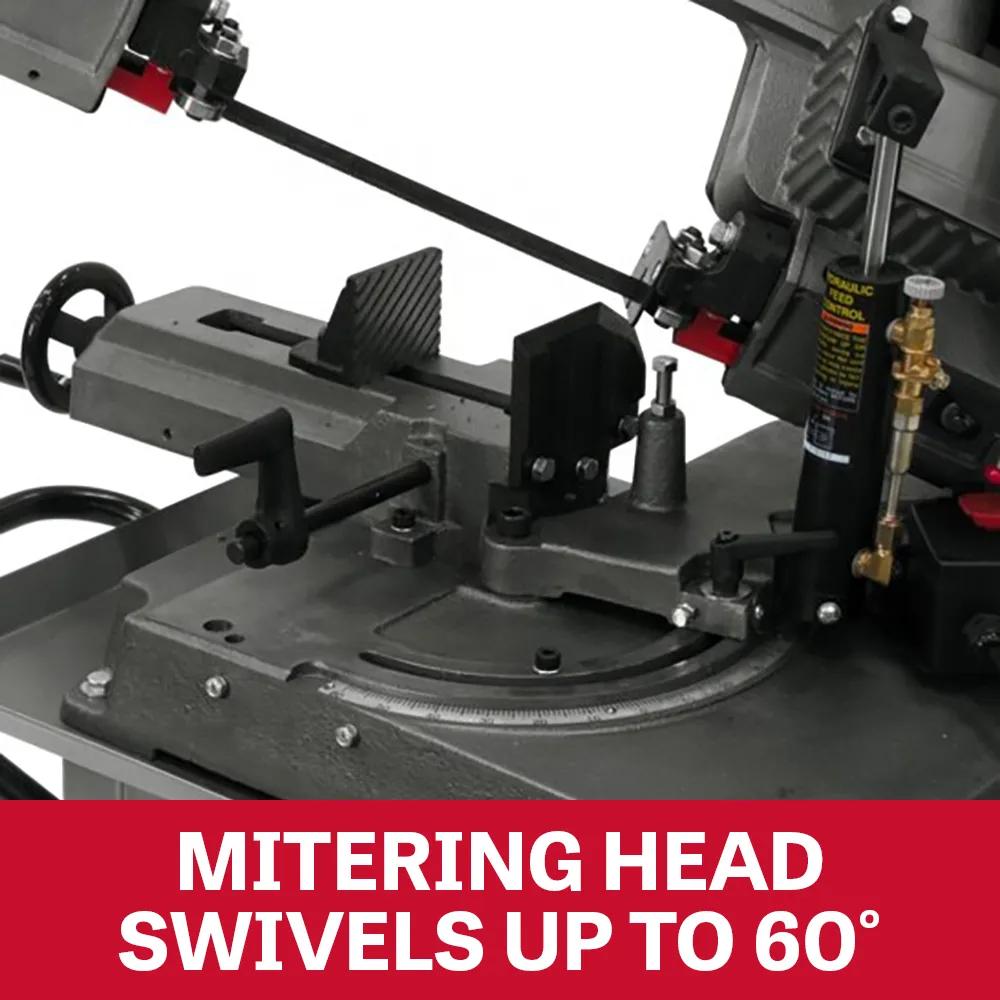

- Head Movement60 Deg.
- Height26 in.
- Horse Power1/2 HP
- Input Power115/230 V 1 Ph

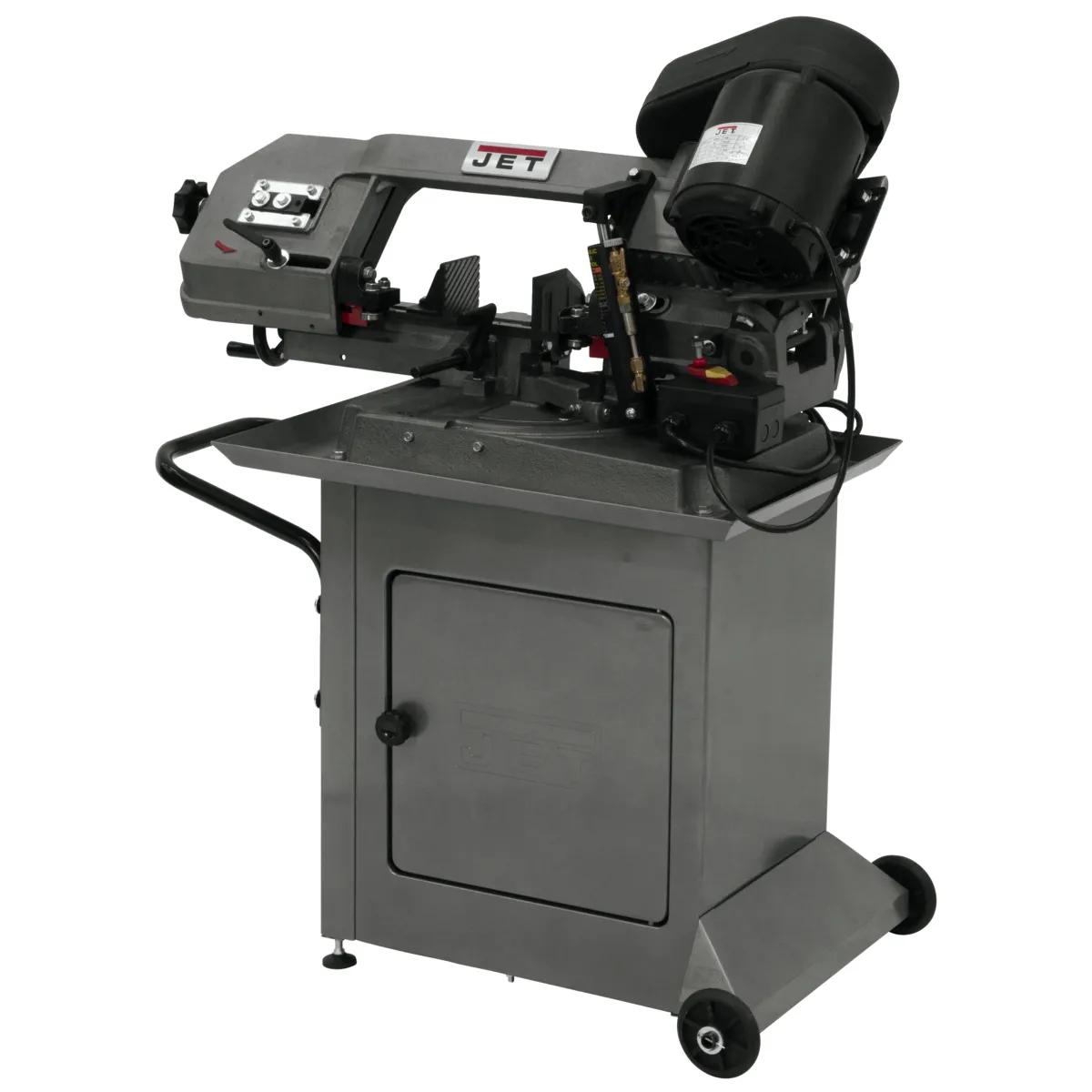

- Model NumberHBS-56S
- Motor HP0.5 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number414457
- Overall Assembled (Bow Lowered)51-1/2 x 18-1/8 x 44-7/8 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Rectangle At 45 Degrees4 x 2-3/4 in. and 2 x 3-3/4 in.
- Rectangle At 60 Degrees5 x 1-3/4 in.
- Rectangle At 90 Degrees5 x 6 in. and 2 x 6-3/4 in.
- Round Capacity At 45 Degrees3 in.
- Round Capacity At 90 Degrees5 in.
- SAP Gross Weight176
- SAP Net weight172
- UPC662755523045
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter7-3/8 in.
