9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)
9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)
9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)
9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)
9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)

9" x 16" Horizontal Bandsaw, 1.5HP, 115V 1PH(HBS-916)

Stock Number: JT9-414468

0 Reviews

No reviews yet.

  • 1.5 HP, 115V, single-phase
  • Heavy-duty welded steel frame
  • Adjustable blade tracking
BUY NOW
Fetching Data...

Product Details

Frame rigidity meets blade-speed flexibility. Engineered around fabrication shops running daily cuts, the HBS-916 earns its place. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.

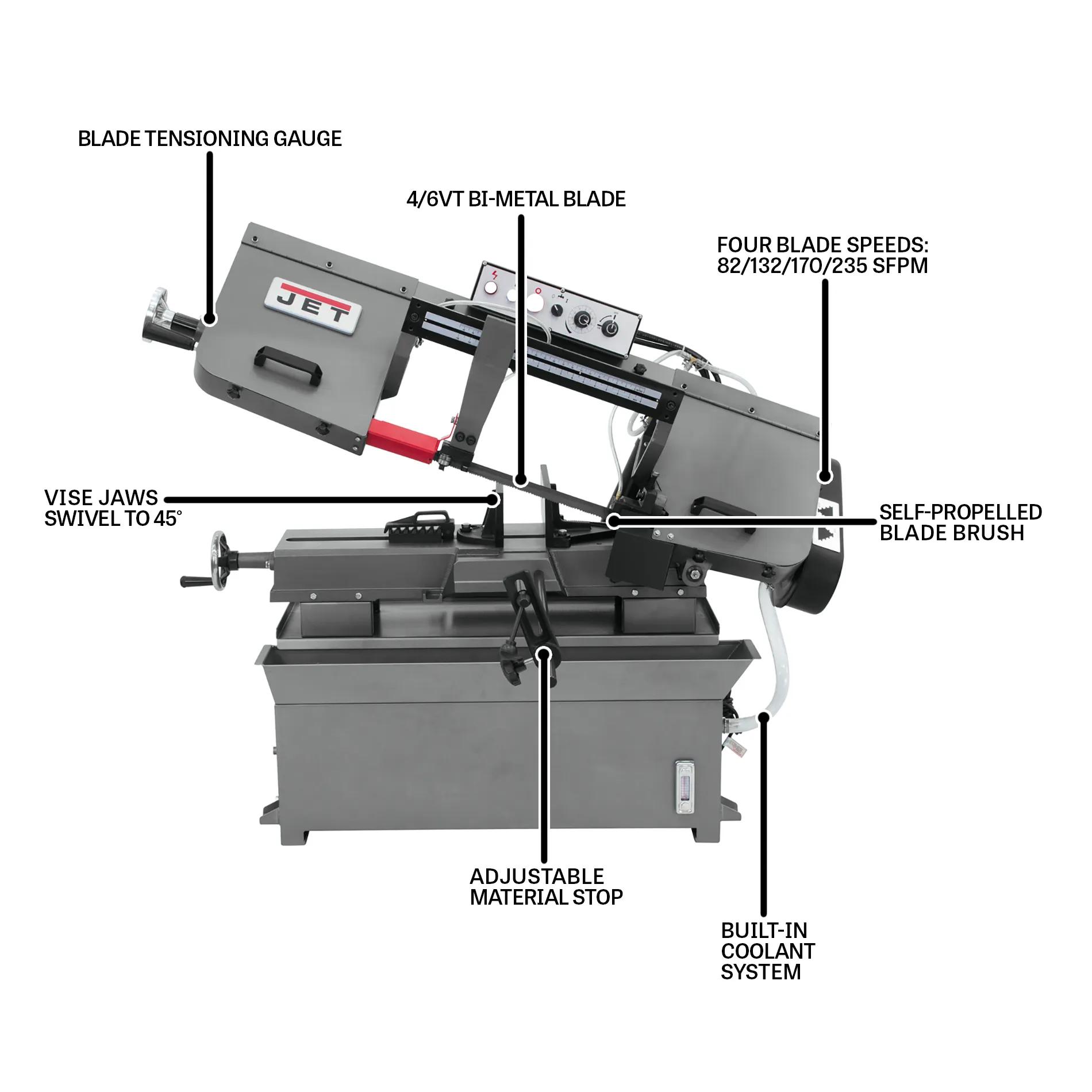

Features

  • 1.5 HP single-phase induction motor sized for the power output industrial cutting requires.
  • Premium-grade blade speed at 82, 132, 170, 23582, 132, 170, 235 SFPM handles cut velocity for the cutting envelope production fabrication generates.
  • Industrial saw frame — absorbing harmonics that compromise cut quality on lighter saws across industrial cutting.
  • Premium-grade tilting table — handling miter and bevel cuts in one setup, engineered for angle accuracy production work expects.
  • Production cutting capacity — delivering working capacity production sawing actually demands across production sawing.
  • Cast iron tables dampen vibration for finish quality consistency across speeds.

Specifications

  • SKU
    JT9-414468
  • Assembled Dimensions
    65 x 28 x 42 in.
  • Bed Height
    25 in.
  • Blade Diameter
    9 in.
  • Blade Length
    119-1/2 in.
  • Blade Size (In.)
    Blade-style bandsaw
  • Blade Speed
    82, 132, 170, 23582, 132, 170, 235 sfpm
  • Coating
    Powder Coat
  • Cutting Capacity - Height
    9 x 16 in.
  • Drive Type
    Belt Drive
  • Height
    42 in.
  • Horse Power
    1.75 HP
  • Input Power
    115 V 1 Ph
  • Model Number
    HBS-916
  • Motor Amps
    17/8.5 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Old Material Number
    414468
  • Overall Assembled (Bow Lowered)
    65 x 28 x 41~67 in.
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    15 A
  • Rectangle At 45 Degrees
    9 x 6-1/8 in.
  • Rectangle At 90 Degrees
    8-1/2 x 14 in. and 2 x 16 in.
  • Round Capacity At 90 Degrees
    9 in.
  • SAP Gross Weight
    704
  • SAP Net weight
    625
  • UPC
    662755607745
  • Vise Swivels Deg
    45 Deg.
  • Warranty
    Two Years
  • Wheel Diameter
    13 in.
