Product Details

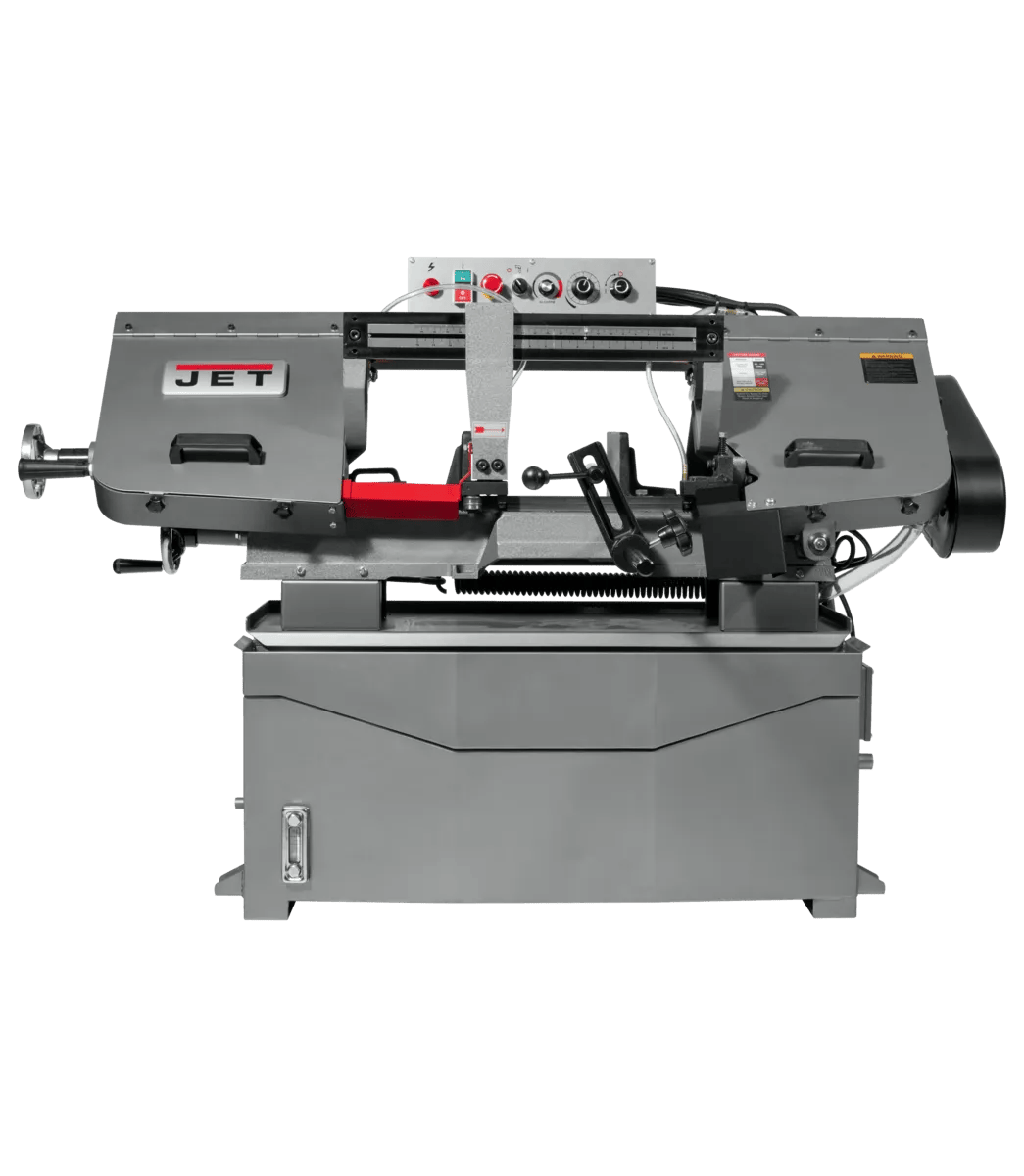

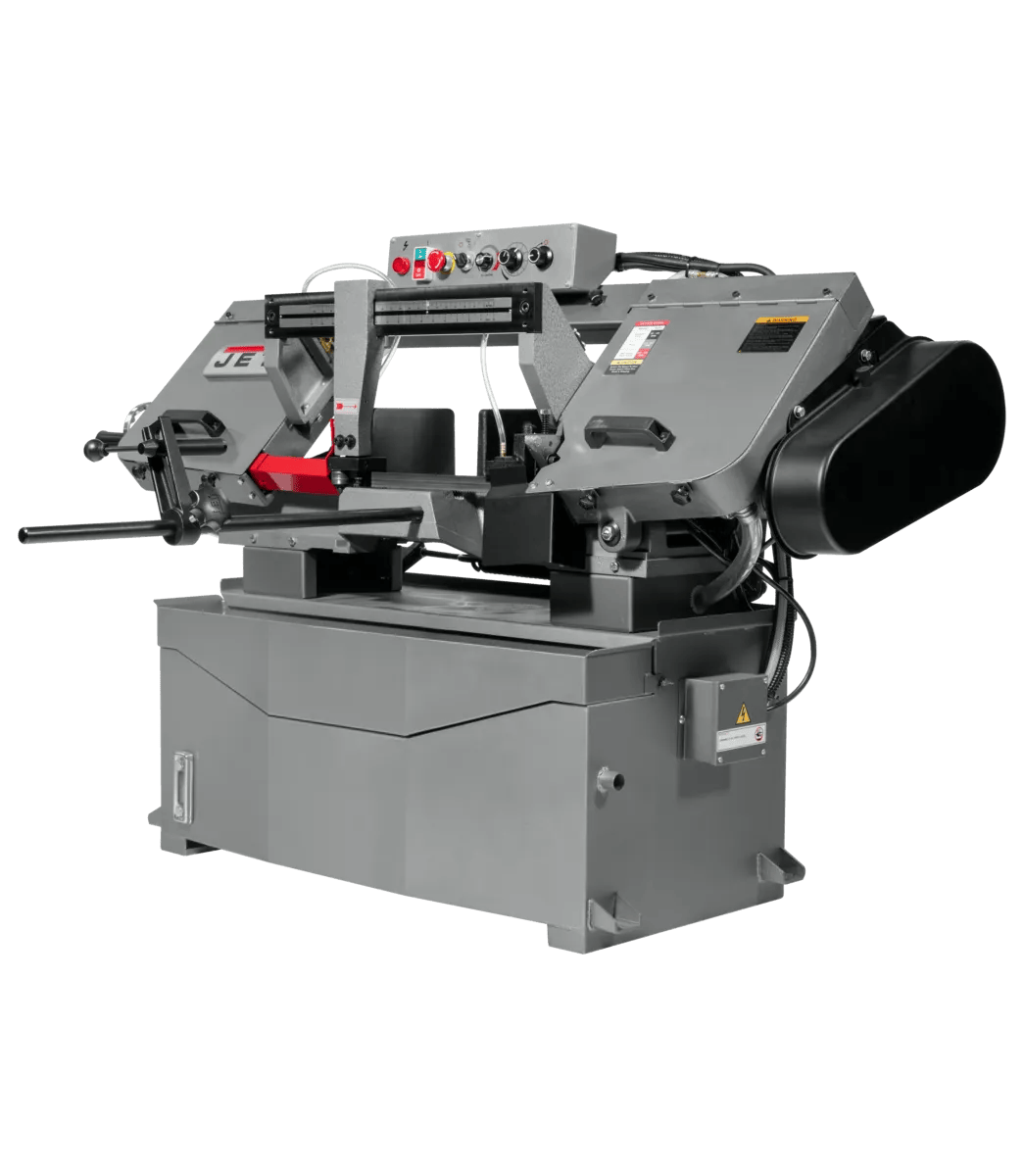

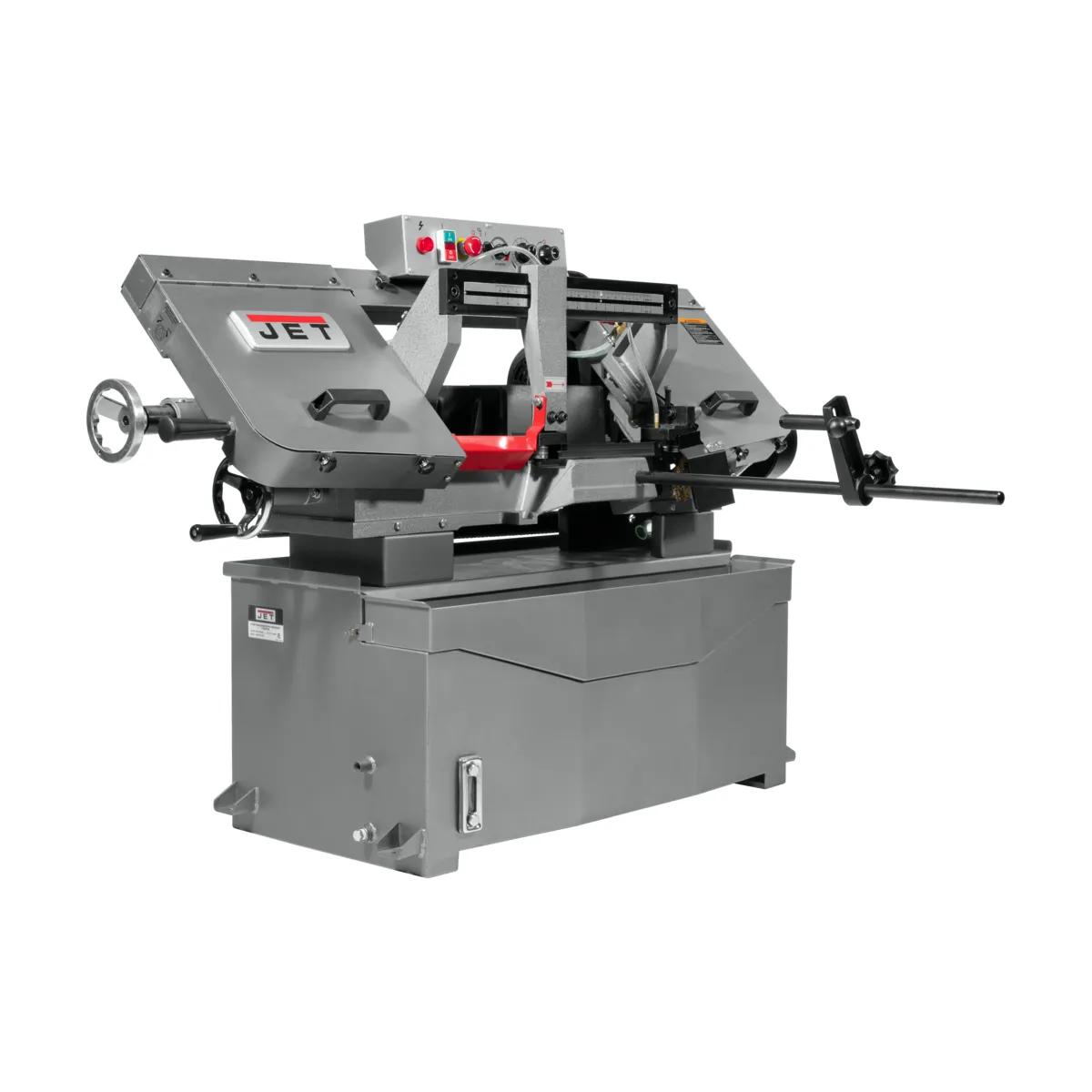

From benchtop to production floor, sized for the work that ships. Built around production environments where blade speed and frame rigidity both count, the HBS-916EVS delivers production-grade results. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Sealed 1.5 HP induction motor protects against the dust, chips, and humidity of industrial shop floors.
- (EVS ) 82-330 SFPM cutting speed — delivering the cutting velocity production fabrication requires across production sawing.
- Shop-rated frame construction holds blade alignment for the structural mass production sawing depends on.
- Heavy-duty tilting table — delivering the angle envelope production cutting demands, engineered for miter and bevel cuts that defeat fixed-table saws.
- Engineered cutting envelope delivers workpiece sizes for the cut-length envelope industrial sawing requires.
- Industrial-grade cast iron reference surfaces deliver rigidity for finish quality consistency across speeds.
Specifications
- SKUJT9-424469
- Amp Draw (amps)60 A
- Assembled Dimensions67 x 25 x 46-1/4 in., 65 x 25 x 67 in.
- Bed Height23.5 in.
- Blade Length119-1/2 in.
- Blade Speed(EVS ) 82-330 sfpm
- Drive TypeEVS
- Input Power115 V 1 Ph
- Model NumberHBS-916EVS
- Motor Amps5 A
- Motor HP1.5 HP
- Motor PhaseSingle
- Motor Voltage115 V
- Old Material Number424469
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Rectangle At 45 Degrees9 x 6-1/8 in.
- Rectangle At 90 Degrees8-1/2 x 14 in. and 2 x 16 in.
- Round Capacity At 90 Degrees9 in.
- SAP Gross Weight704
- SAP Net weight625
- UPC731325806885
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter13 in.
