Product Details
Built for the cuts that production fabrication actually generates. The HBS1220DC was sized for shops cutting varied stock through long-cycle work. Equipped with a 3 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features

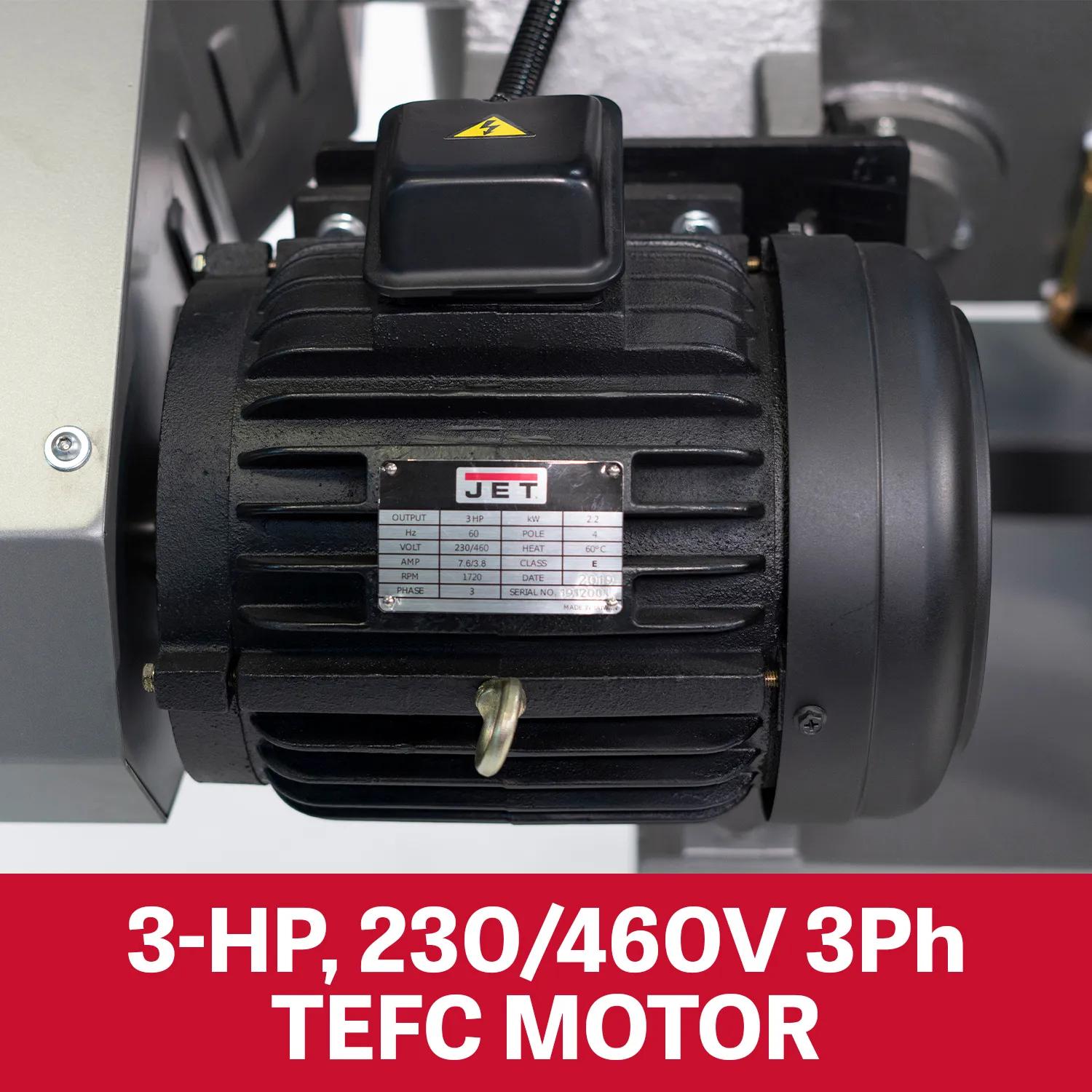

- Industrial-grade 3 HP three-phase drive — holding speed under load when lighter motors stall, built for working shops.

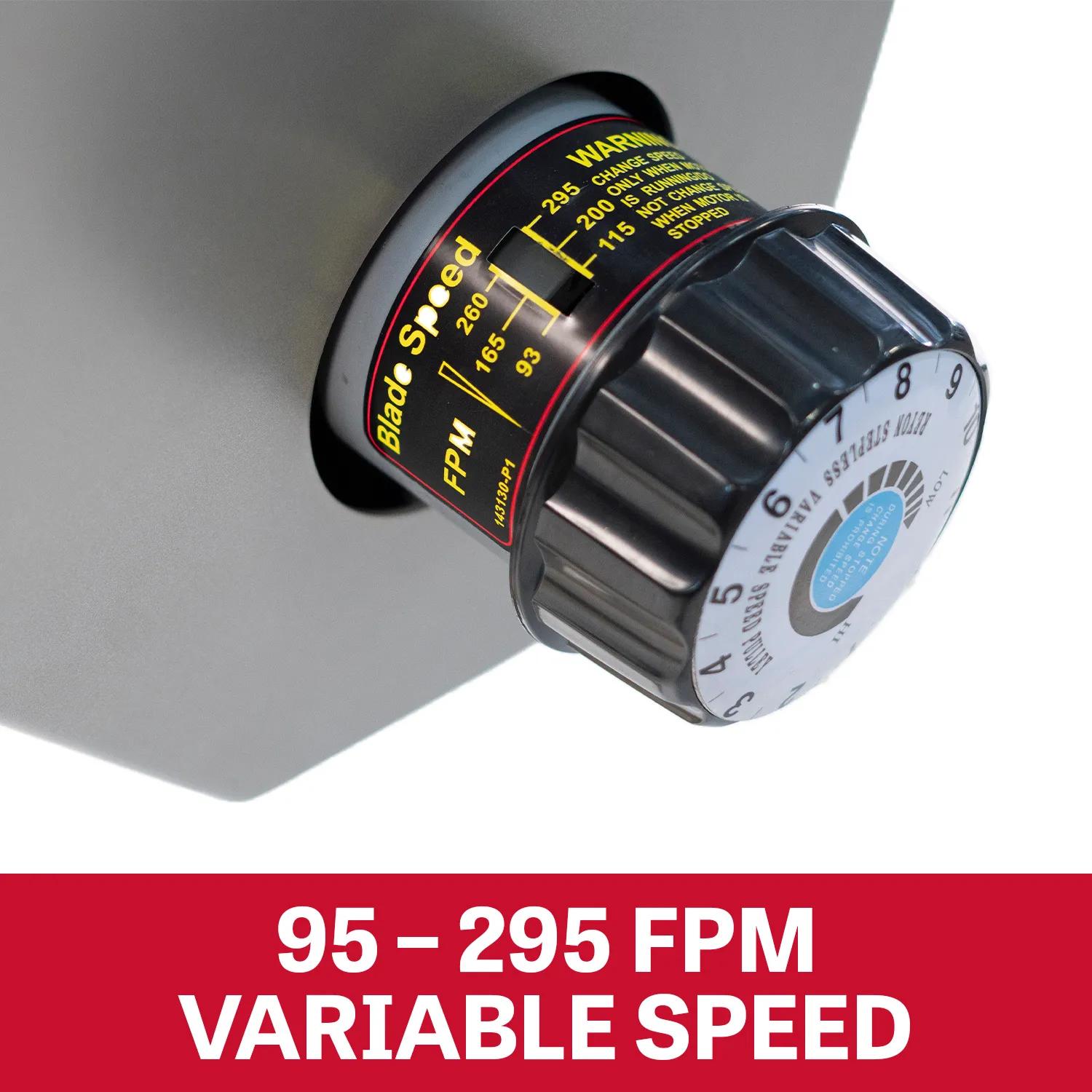

- variable within 95~295 FPM blade speed — delivering the cutting velocity production fabrication requires.
- Heavy-gauge welded frame handles structural rigidity for the cutting forces production sawing generates.
- Engineered tilting table — extending the working envelope, engineered for miter-and-bevel work in one setup.
- Engineered cutting geometry was sized for the cut-length envelope industrial sawing requires.
- Heavy-duty cast iron tables dampen harmonics across working shop environments.
Specifications
- SKUJT9-413400
- Assembled Dimensions81 x 42-1/2 x 54-1/2 in.
- Bed Height27 in.
- Blade Diameter16 in.
- Blade Length155-1/2 in.
- Blade Size (In.)1-1/8 x 0.043 x 155-1/2 in.
- Blade Speedvariable within 95~295 FPM
- Blade Width0.043 in.
- Capacity Rectangular12 x 20
- Capacity Round12
- Capacity Square12
- Cutting Capacity - Height19.6 in.
- Drive TypeMechanical Variable Speed
- Height27 in.
- Horse Power3 HP
- Hydraulic Motor Hp1 HP
- Input Power230/460 V 3 Ph
- Model NumberHBS-1220DC
- Motor HP3 HP
- Motor PhaseThree
- Motor Voltage230/460 V
- Old Material Number413400
- Overall Assembled (Bow Lowered)81 x 42-1/2 x 54-1/2 in.
- Prewired Voltage230 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 90 Degrees12 x 20 in.
- Round Capacity At 90 Degrees12 in.
- SAP Gross Weight1,740
- SAP Net weight1,420
- Square At 90 Degrees12 in.
- Table Size440 x 195 mm
- Throat Depth12 x 12 in.
- UPC731325868647
- WarrantyTwo Years
- Wheel Diameter16 in.
