Product Details
Engineered for clean cuts across hardwoods, softwoods, and metal stock. Designed for shops cutting varied stock through long-cycle work, the HVBS-710S stands up to the duty cycle. Equipped with a 1 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Industrial-grade 1 HP single-phase drive — handling startup loads where smaller motors trip, built for manufacturing cells.

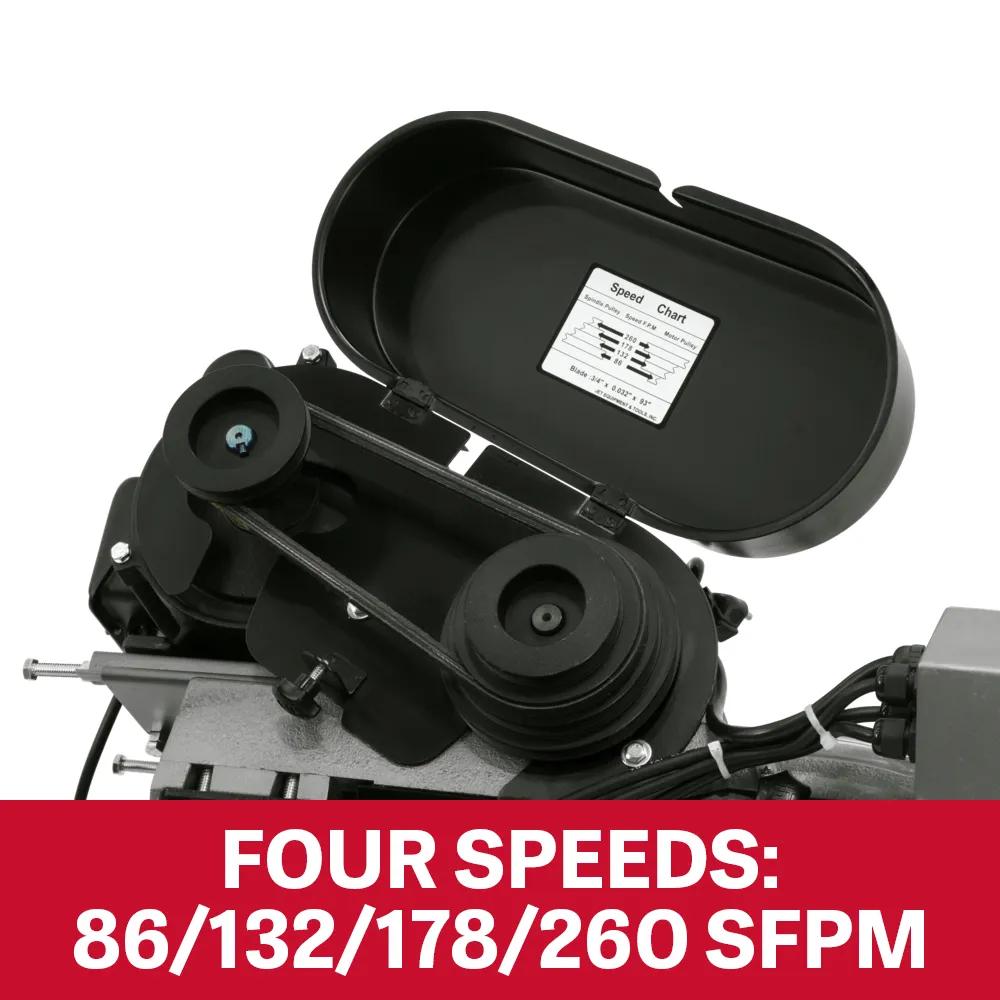

- Precision-rated blade speed at 86, 132, 178, 260 SFPM handles cut velocity for the cutting envelope production fabrication generates.
- Engineered saw frame provides blade alignment for the cutting authority industrial fabrication demands.

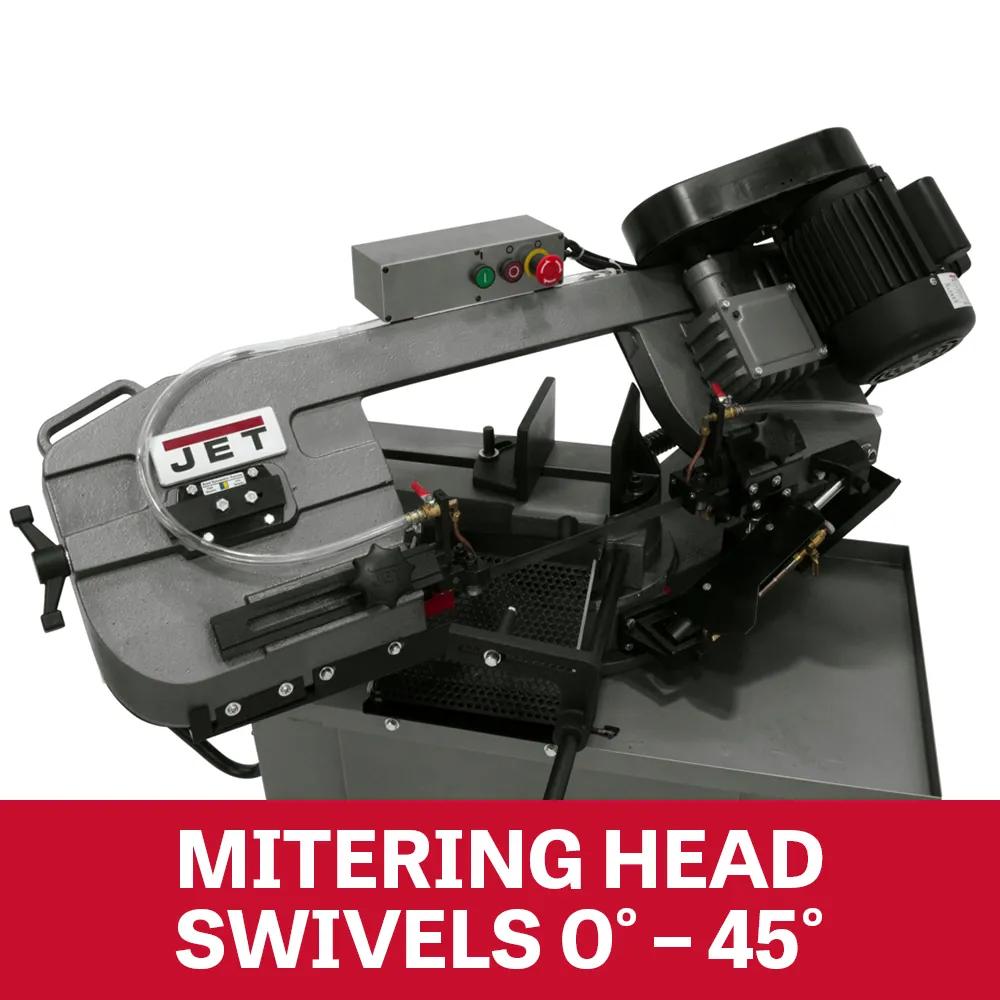

- Tolerance-grade tilting table — covering miter and bevel cuts production fabrication generates, engineered for angle accuracy production work expects.
- Continuous-duty cutting envelope delivers workpiece sizes for the cut-length envelope industrial sawing requires.
- Professional-grade cast iron frames dampen harmonics across production cutting environments.
Specifications
- SKUJT9-413451
- Assembled Dimensions51 x 22-1/2 x 41 in.
- Bed Height23 in.
- Blade Length93 in.
- Blade Size (In.)Blade-style bandsaw
- Blade Speed86, 132, 178, 260 sfpm
- CoatingPowder Coat
- Cutting Capacity - Height7 in.
- Drive TypeBelt Drive
- Height23 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberHVBS-710S
- Motor HP1 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number413451
- Overall Assembled (Bow Lowered)28 x 28 x 52 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp15 A
- Rectangle At 45 Degrees4-3/4 x 4 in.
- Rectangle At 90 Degrees7 x 10-1/2 in.
- Round Capacity At 45 Degrees4 in.
- Round Capacity At 90 Degrees7 in.
- SAP Gross Weight463
- SAP Net weight396
- UPC731325193572
- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter11-1/2 in.
