Product Details

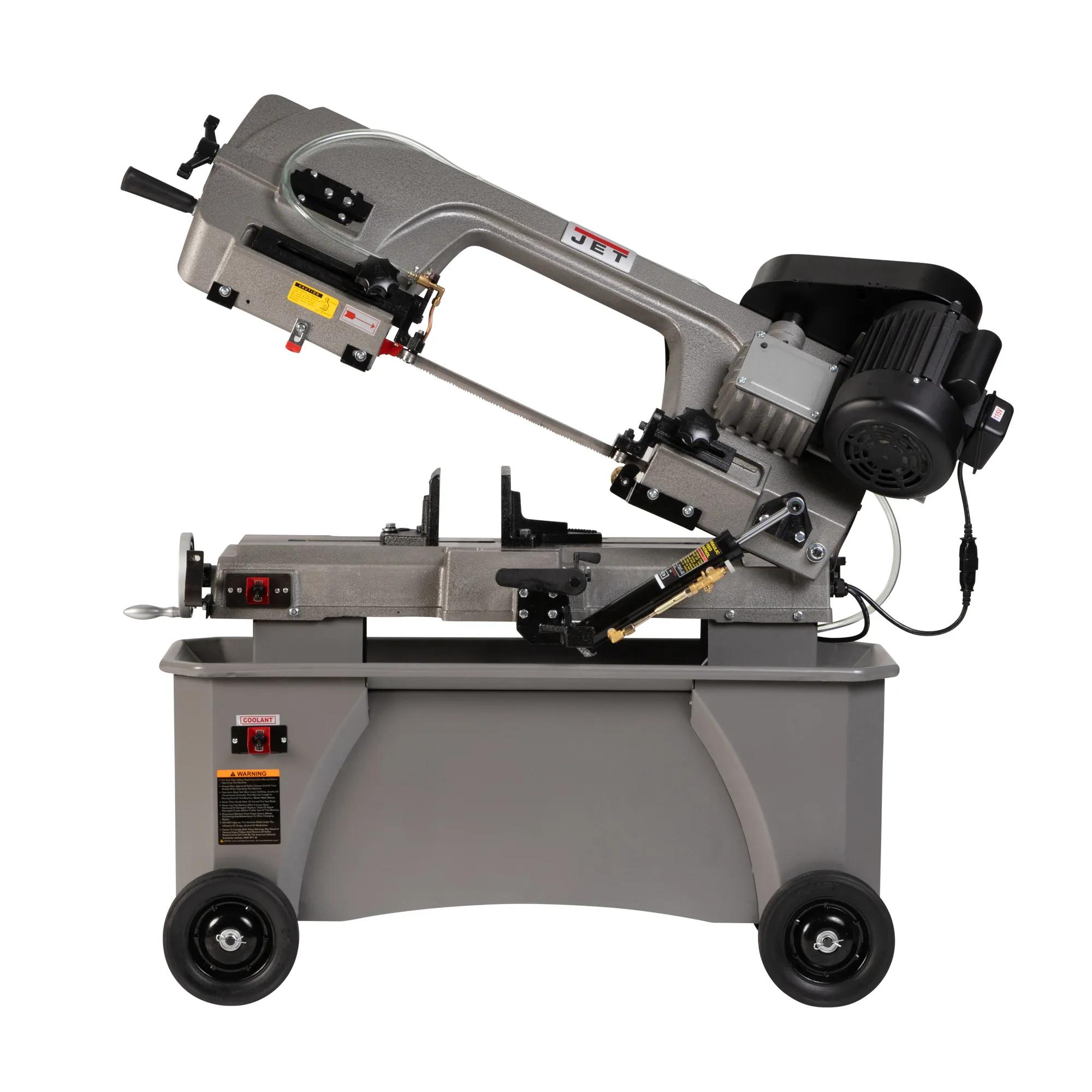

Where the cut starts: blade speed, blade geometry, and rigid frame in one tool. The HVBS-712 fits production environments where blade speed and frame rigidity both count — and the cycle counts they generate. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every cut.
Features
- Brushless 0.75 HP motor design fits modern shop priorities for low-maintenance operation across tool rooms.

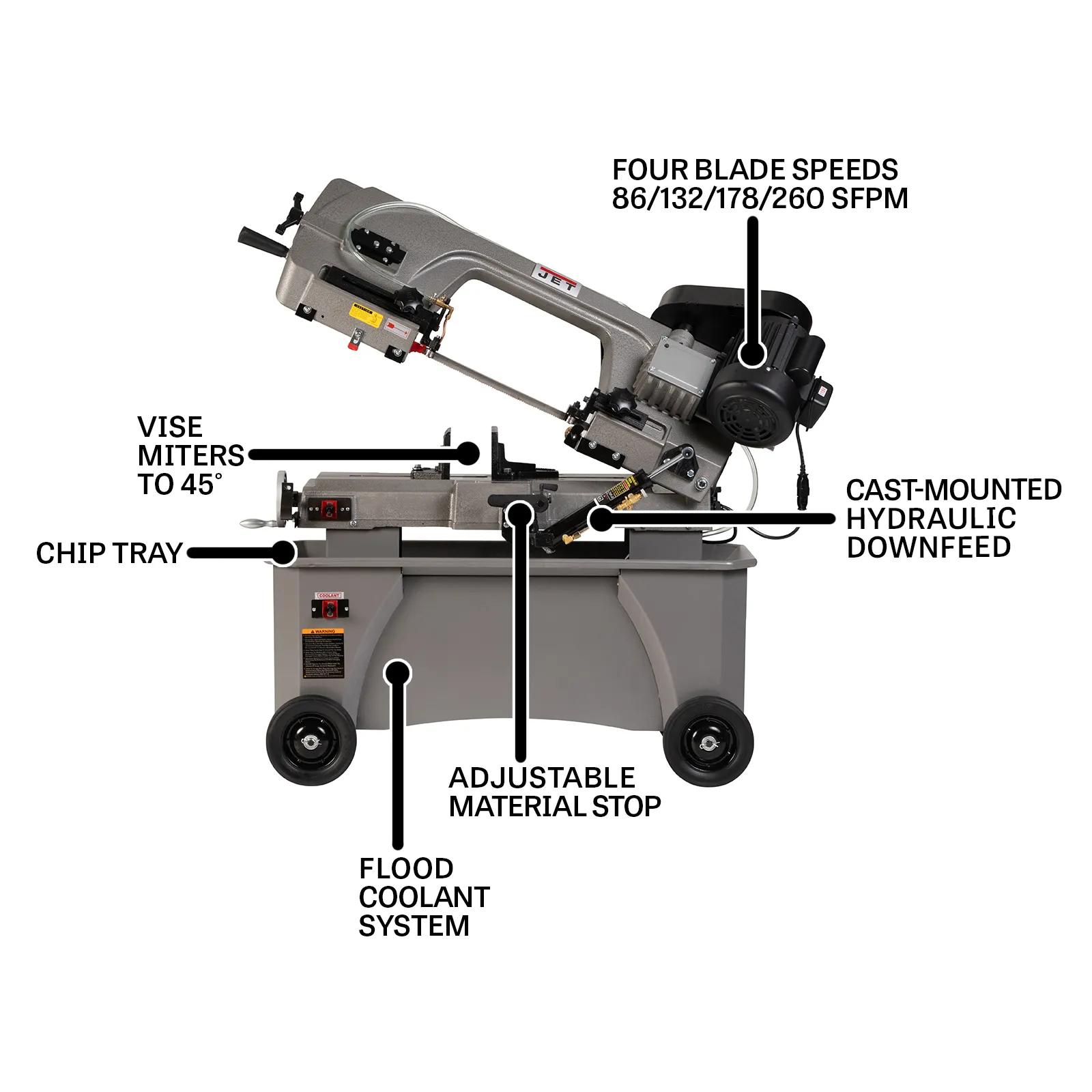

- 86, 132, 178, 260 blade speed — delivering blade velocity production sawing demands.
- Tolerance-grade frame construction holds blade alignment for the cutting authority industrial fabrication demands.
- Production-spec tilting table — extending the working envelope, engineered for the angled cuts production fabrication actually runs.
- Shop-rated cutting envelope supports workpiece sizes for the cut-length envelope industrial sawing requires.
- Factory-tested cast iron frames dampen harmonics across production cutting environments.
Specifications
- SKUJT9-414559
- Assembled Dimensions48 x 17 x 40 in.
- Blade Diameter7 in.
- Blade Length96 in.
- Blade Size (In.)3/4 x 0.035 x 93 in.
- Blade Speed86, 132, 178, 260

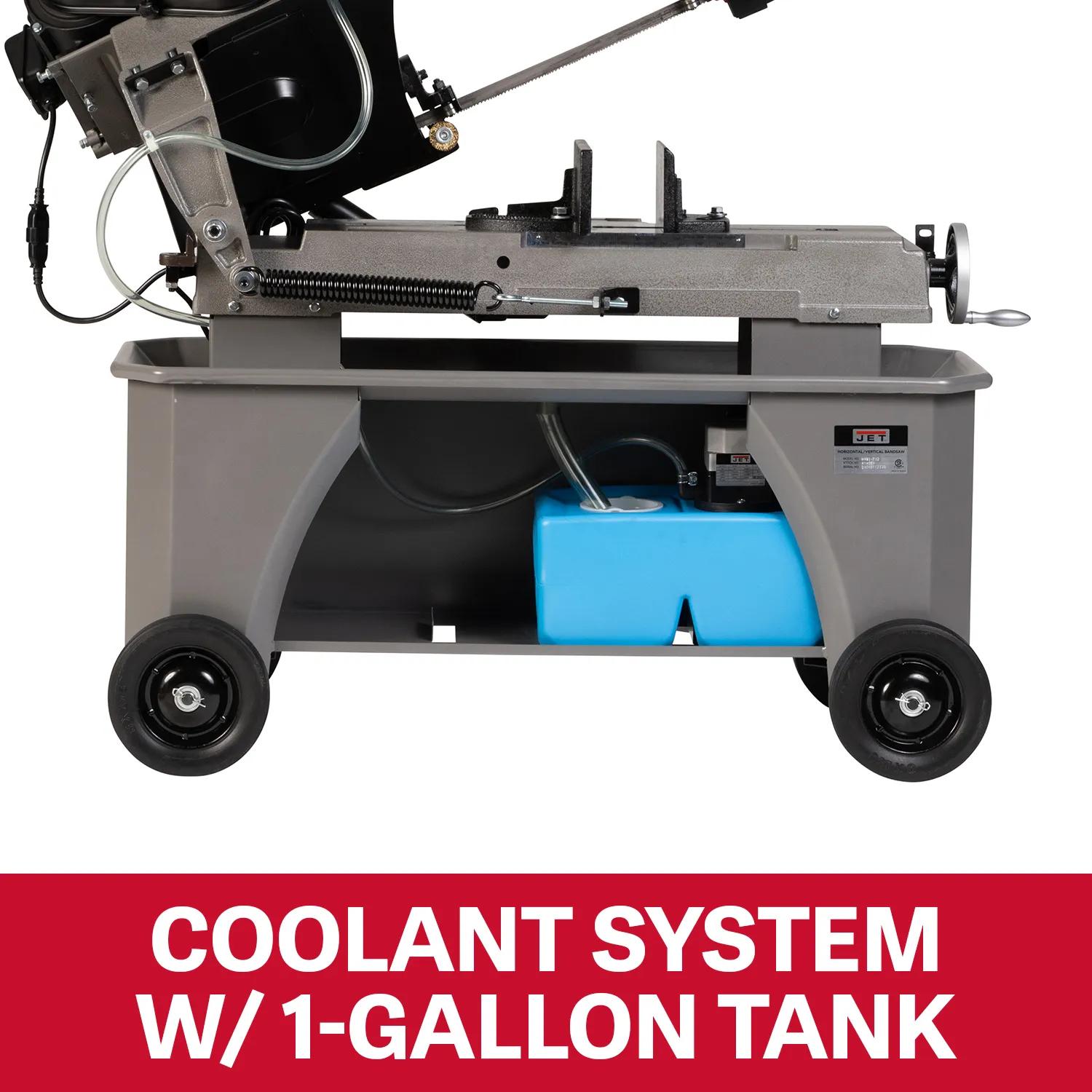

- Coolant Capacity1 Gal.
- Cutting Capacity - Height7 in.
- Drive TypeStep Pulley
- Head Movement0 Deg.
- Height22.4 in.
- Horse Power1 HP
- Input Power115/230 V 1 Ph
- Model NumberHVBS-712
- Motor HP0.75 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number414559
- Overall Assembled (Bow Lowered)48 x 17 x 40 in. (1219 x 432 x 1016 mm)
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 45 Degrees6-1/2 x 4-1/2 in.
- Rectangle At 90 Degrees4 x 11 in./ 7 x 10-3/8 in.
- Round Capacity At 90 Degrees7 in.
- SAP Gross Weight418
- SAP Net weight374
- Square At 45 Degrees4-1/2 x 4-1/2 in.
- Square At 90 Degrees7 x 7 in.
- UPC731325452518

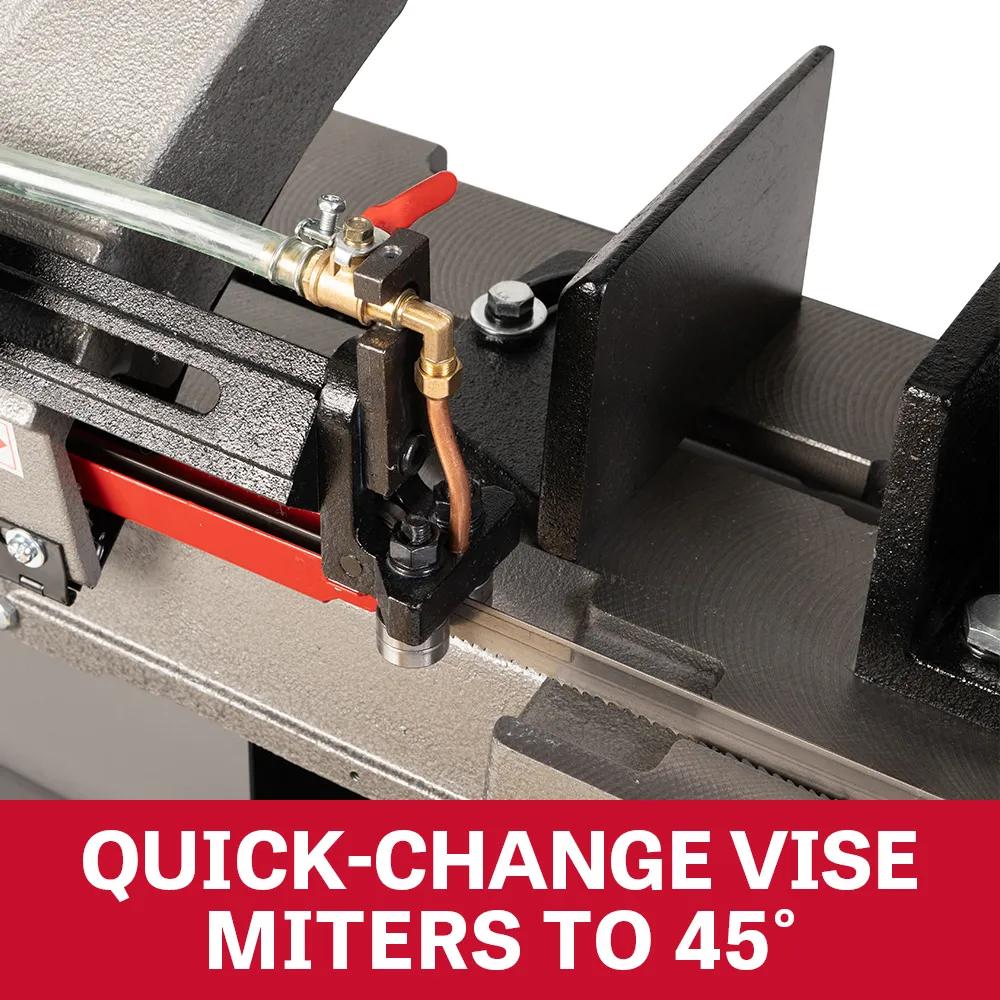

- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter11.75 in.
