Product Details

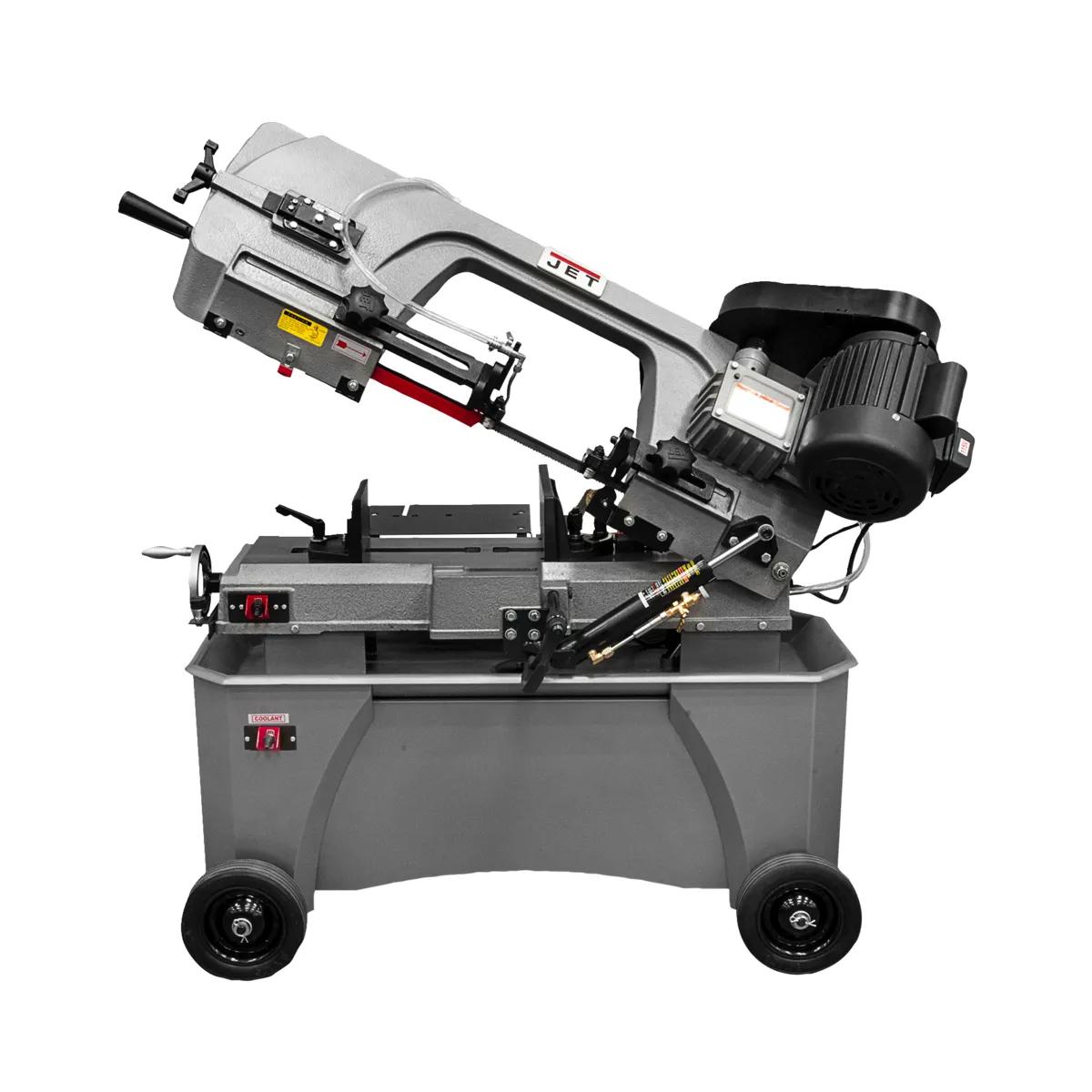

Cut quality starts with a saw built for the work. The HVBS-712D answers the work generated by shops cutting varied stock through long-cycle work. Equipped with a 0.75 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. Industrial-grade construction backed by the JET service network.
Features
- The 0.75 HP single-phase drive provides the working torque for the cycle counts industrial use generates.
- 86, 132, 178, 260 blade speed — delivering the cutting velocity production fabrication requires.
- Continuous-duty frame construction holds blade alignment for cut quality consistency across long runs.
- Premium-grade tilting table — delivering the angle envelope production cutting demands, engineered for miter and bevel cuts that defeat fixed-table saws.
- Continuous-duty cutting envelope covers workpiece sizes for the cutting envelope production sawing demands.
- Working-grade cast iron trunnion castings earn their place for harmonic dampening lighter materials can't match.
Specifications
- SKUJT9-414560
- Assembled Dimensions48 x 17 x 44 in.
- Blade Diameter7 in.
- Blade Length96 in.
- Blade Size (In.)3/4 x 0.035 x 93 in.
- Blade Speed86, 132, 178, 260

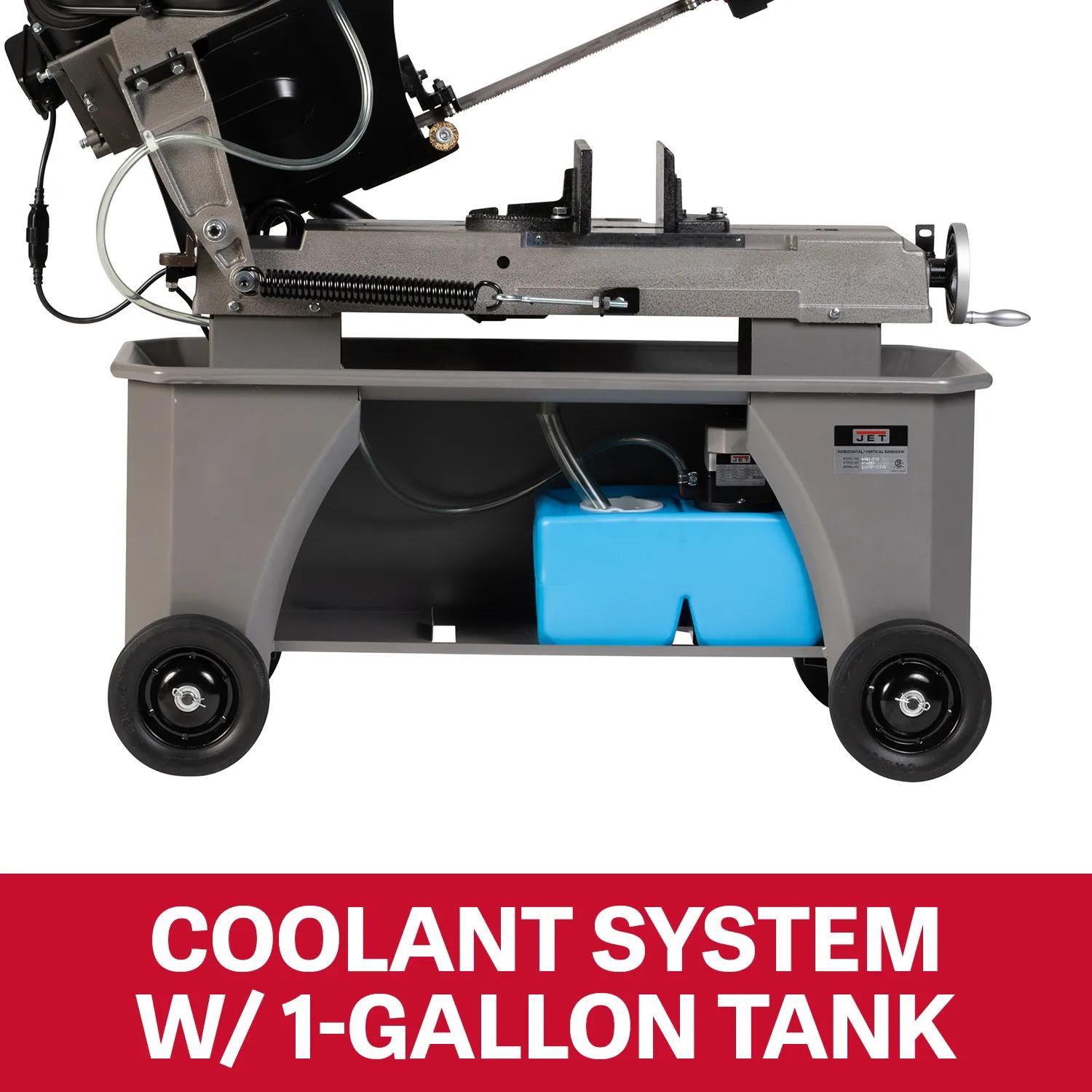

- Coolant Capacity1 Gal.
- Cutting Capacity - Height7 in.
- Drive TypeStep Pulley
- Head Movement0 Deg.
- Height22.4 in.
- Horse Power1.5 HP
- Input Power115/230 V 1 Ph
- Model NumberHVBS-712D
- Motor HP0.75 HP
- Motor PhaseSingle
- Motor Voltage115/230 V
- Old Material Number414560
- Overall Assembled (Bow Lowered)50 x 31-1/2 x 72-29/64 in.
- Prewired Voltage115 V
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Recommended Circut Size Amp20 A
- Rectangle At 45 Degrees6 x 4 in.
- Rectangle At 90 Degrees4 x 11 in./ 7 x 10-1/4 in.
- Round Capacity At 45 Degrees5 in.
- Round Capacity At 90 Degrees7 in.
- SAP Gross Weight418
- SAP Net weight374
- Square At 90 Degrees7 x 7 in.
- UPC731325452525

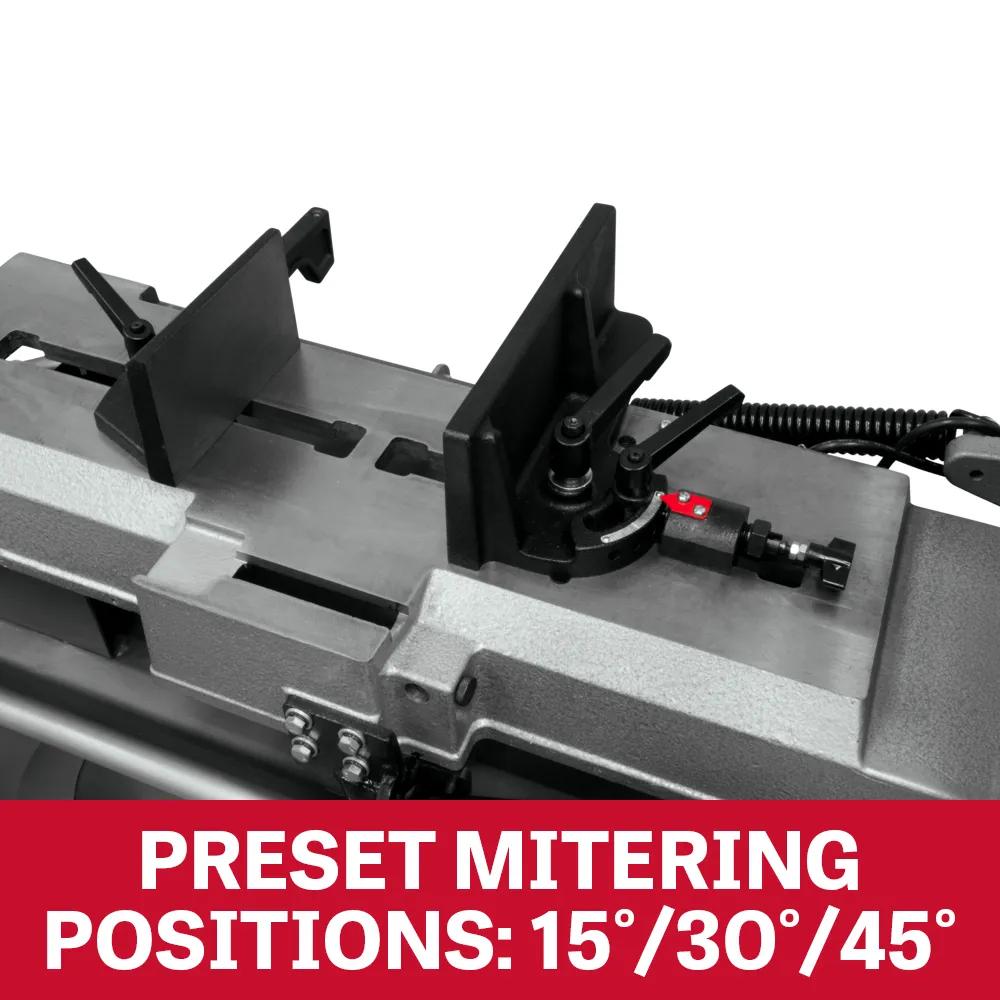

- Vise Swivels Deg45 Deg.
- WarrantyTwo Years
- Wheel Diameter11.75 in.
